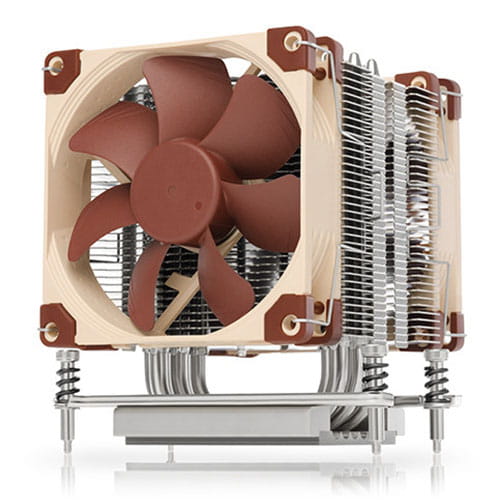

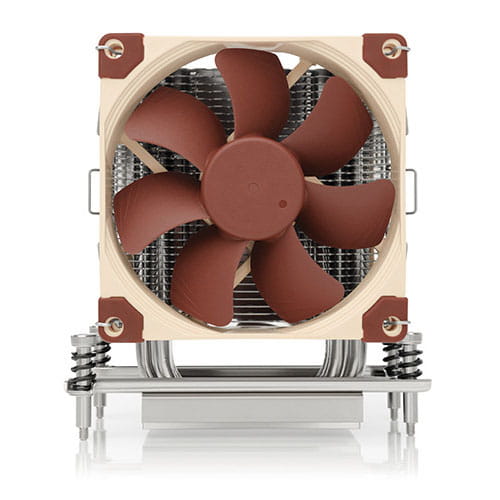

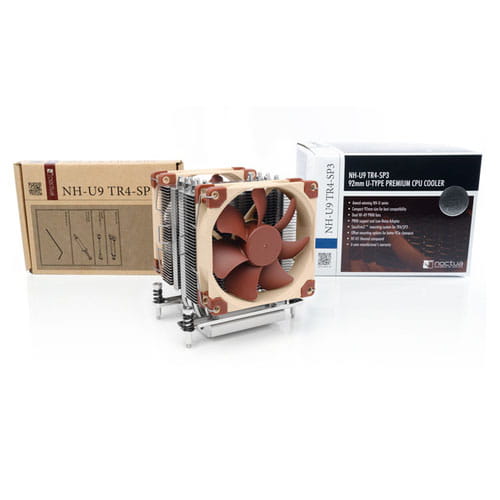

Noctua NH-U9 TR4-SP3

Noctua NH-U9 TR4-SP3

Noctua
  • Custom version for sTRX4 / TR4 / SP3 (Ryzen Threadripper / Epyc).
  • Compact 92mm size for the best compatibility.
  • Double fan NF-A9 PWM.
  • PWM support and adapter for noise reduction.
  • SecuFirm2 mounting system for sTRX4 / TR4 / SP3.

P/N: NH-U9TR4-SP3 - EAN/UPC: 9010018000122

74,44 € Without VAT
90,07 € With VAT
Only 5 units left
Approximate delivery between 29 octubre and 30 octubre
2 years
of guarantee
sending
shipping
100%
Secure pay

After being awarded more than 300 awards and recommendations from international websites and specialized magazines, the Noctua NH-U9 range has become a reference within the compact single tower and 92mm heatsinks. The TR4-SP3 version is a tailor-made model for the AMD sTRX4 / TR4 / SP3 platform (Ryzen Threadripper / Epyc) and includes a larger contact surface as well as the newest SecuFirm2 ™ mounting system for the sTRX4 / TR4 / socket SP3 Also equipped with two of the famous 92mm NF-A9 PWM silent fans, with a double fan inlet and outlet configuration, the proven Noctua NT-H1 thermal compound and a 6-year manufacturing warranty, the NH- U9 TR4-SP3 forms a compact solution of the highest quality that combines excellent performance, superb acoustics and exceptional compatibility for sTRX4 / TR4 / SP3 systems with reduced space.

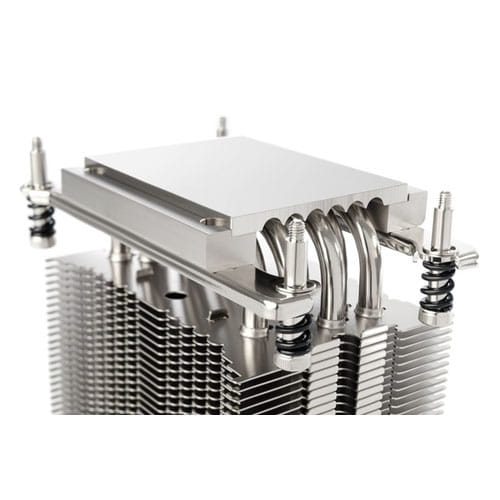

With dimensions of 70x56mm, the copper contact surface of the TR4-SP3 version is more than twice the size of the conventional model. Designed to fit with the large integrated heat dispersers (IHS) of AMD Ryzen Threadripper / Epyc processors based on sTRX4 / TR4 / SP3, this custom design allows optimal heat flow from the CPU base, to heatpipes and on the cooling fins.

With a total width of only 95mm, the NH-U9 TR4-SP3 completely clears the PCIe slots and never protrudes through the upper PCIe x16 slot. In addition, its height of only 125mm allows it to be installed in smaller boxes and in most spaces with 4U rack mounting.

The NH-U9 TR4-SP3 is equipped with two of the award-winning 92mm Noctua NF-A9 PWM fans. This dual fan input and output configuration allows to achieve a performance with reduced noise level that stands out among this type of compact heatsinks and is very similar to that of the larger NH-U12S TR4-SP3.

The magnificent NF-A9 fans included in the NH-U9 TR4-SP3 are compatible with PWM support for automatic speed control through the motherboard, which provides greater comfort. In addition, to achieve quieter operation, when using an adapter for noise reduction the maximum fan speed can be reduced from 2000 to 1550 rpm.

The Noctua SecuFirm2 ™ mounting system has become synonymous with quality, safety and ease of use. The TR4-SP3 version has been specially designed for the new socket and is especially easy to install: Just place the heatsink, secure it with the four spring-loaded screws and that's it!

The acclaimed NT-H1 from Noctua is a high-end thermal solution of proven quality that provides minimal thermal resistance, ease of use and outstanding reliability, which makes it suitable for use in workstation and professional server environments .

Highlights...

* Fan diameter: 9.2 cm.
* Color of product: Aluminum, Beige.
* Material: Copper.
* Number of fans: 2 Fan (s).
* Fan connector: 4 pins.
* Width: 125 mm, Depth: 120 mm, Height: 95 mm.

Heatsink
Socket Compatible AMD sTRX4, TR4, SP3
Height Without fan -> 125 mm
With fan -> 125 mm
Width Without fan -> 95 mm
With fan -> 95 mm
Depth Without fan -> 71 mm
With fan -> 120 mm
Weight Without fan -> 660 gr
With fan -> 895 gr
Material Copper (base and heat pipes), aluminum (cooling sheets), welded joints, nickel plated
Fan
Size 2x 92 x 92 x 25 mm
Model Noctura NF-A9 PWM
Rotation Speed 400 RPM - 1550 RPM - 2000 RPM
Flow 62,6 m³/h - 78,9 m³/h
Sonority 16.3 dB(A) - 22.8 dB(A)
Power 1.2 W
Voltage 12 V
MTTF > 150.000 h
