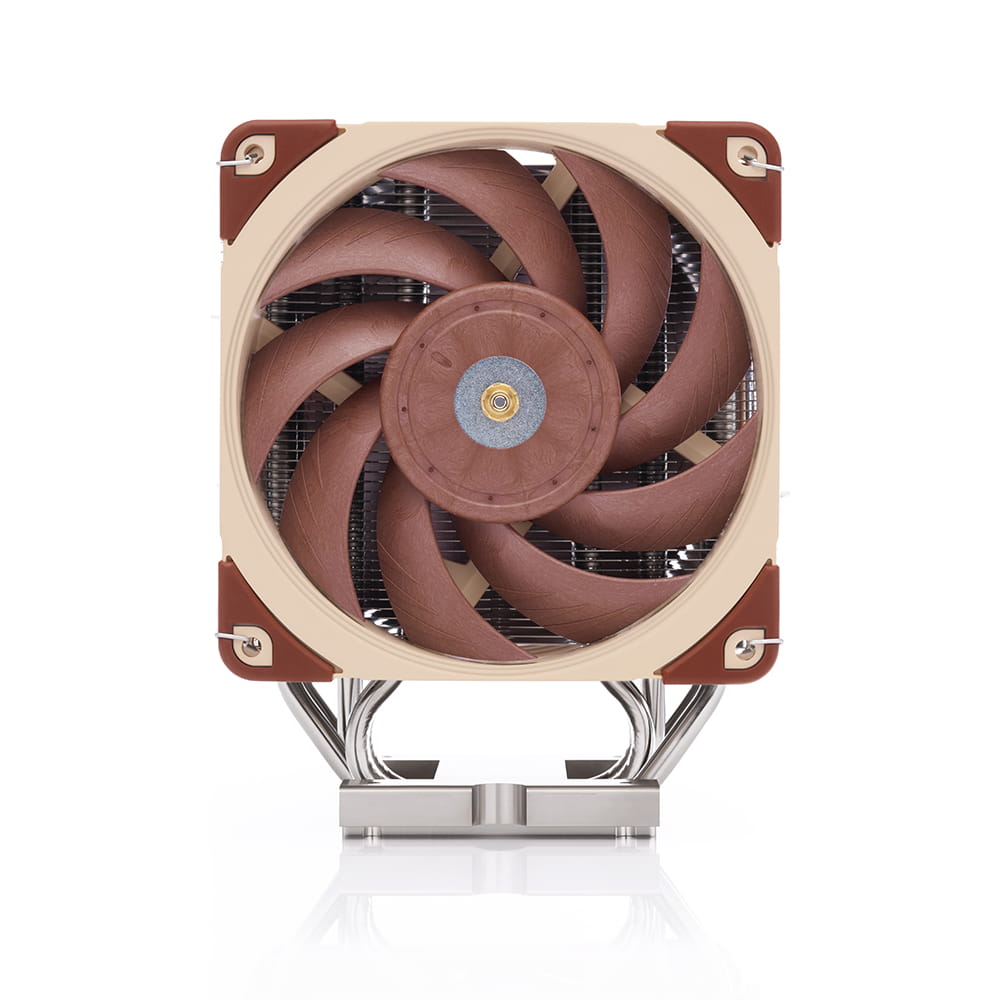

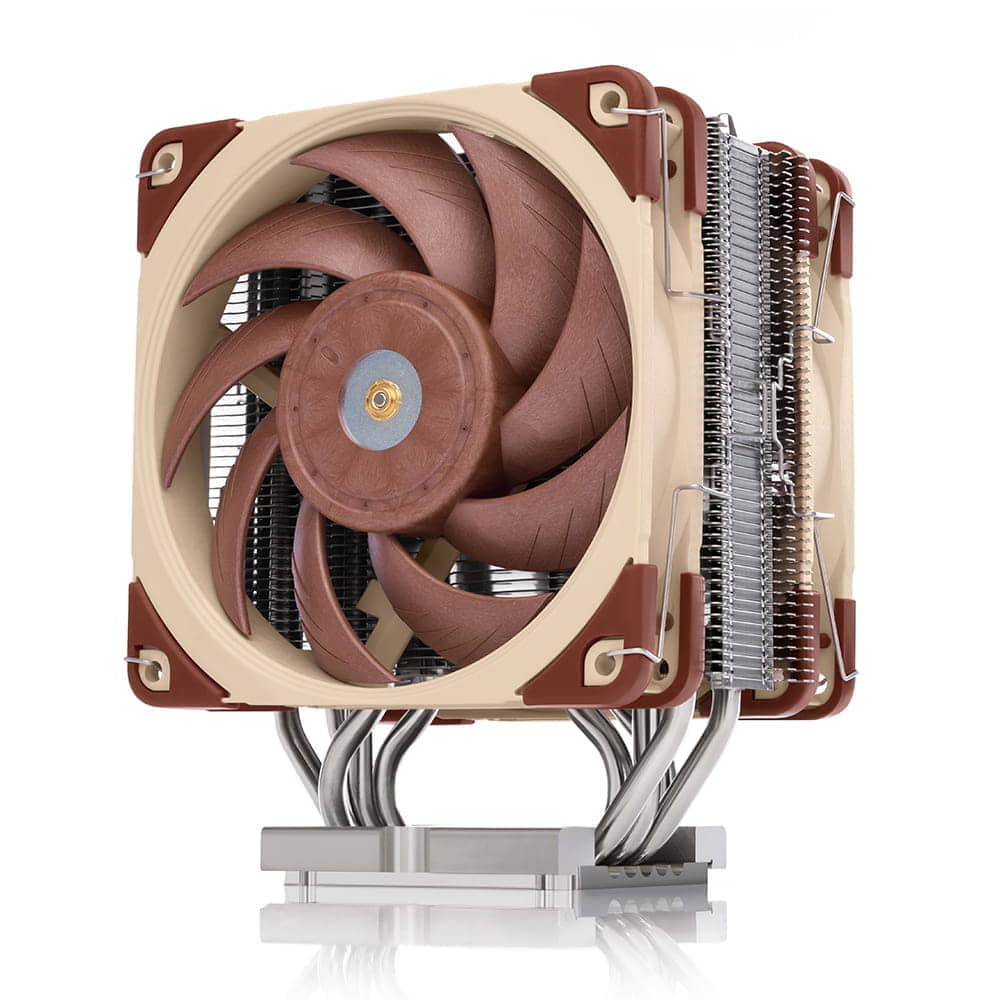

Noctua NH-U12S DX-3647

Noctua NH-U12S DX-3647

Noctua
  • Compatible with Intel Xeon LGA3647.
  • 2x Fan NF-A12x25 PWM.
  • NT-H1 thermal compound (previously applied).
  • Extended contact surface.

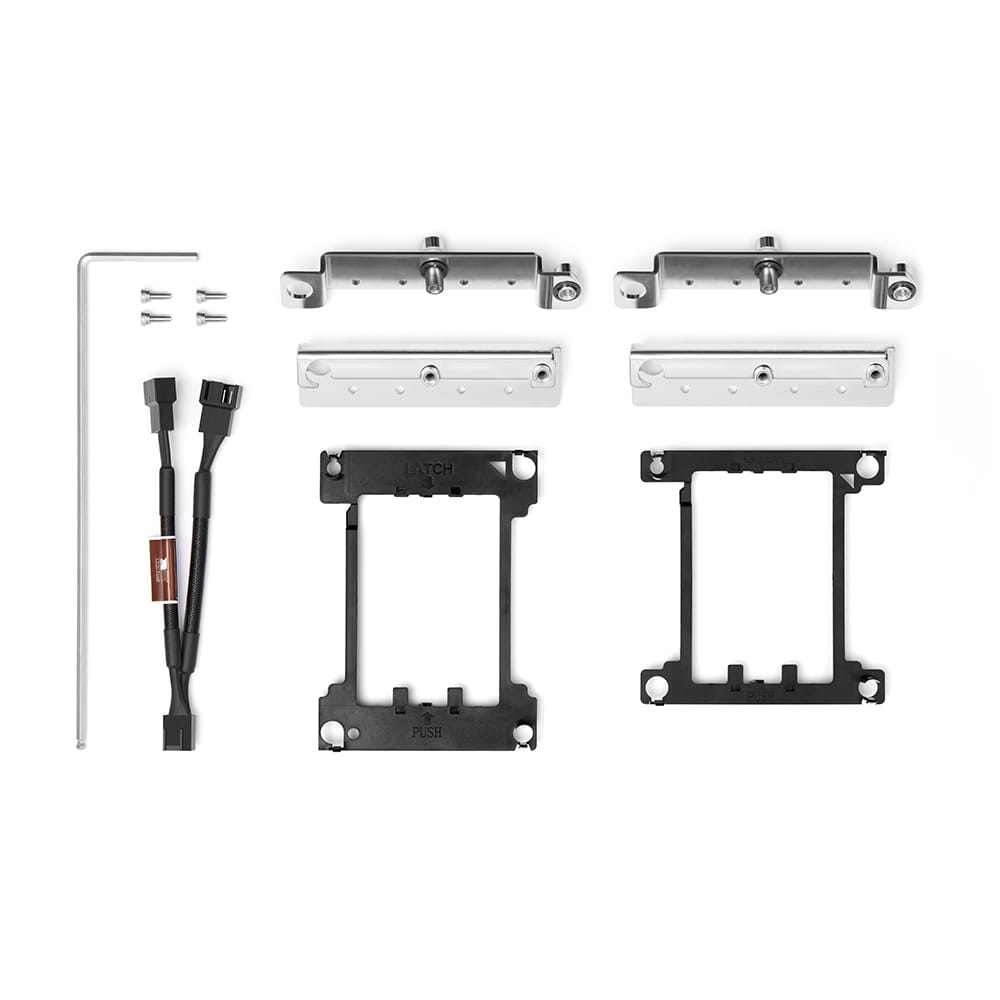

  • SecuFirm2 LGA3647 mounting system.
  • Noctua Case-Badge in metal.

P/N: NH-U12SDX-3647 - EAN/UPC: 9010018000146

101,45 € Without VAT
122,75 € With VAT
In stock
Approximate delivery between 07 octubre and 08 octubre
2 years
of guarantee
sending
shipping
100%
Secure pay

Noctua offers the ultimate solution for silent cooling in LGA3647 sockets for Intel Xeon.

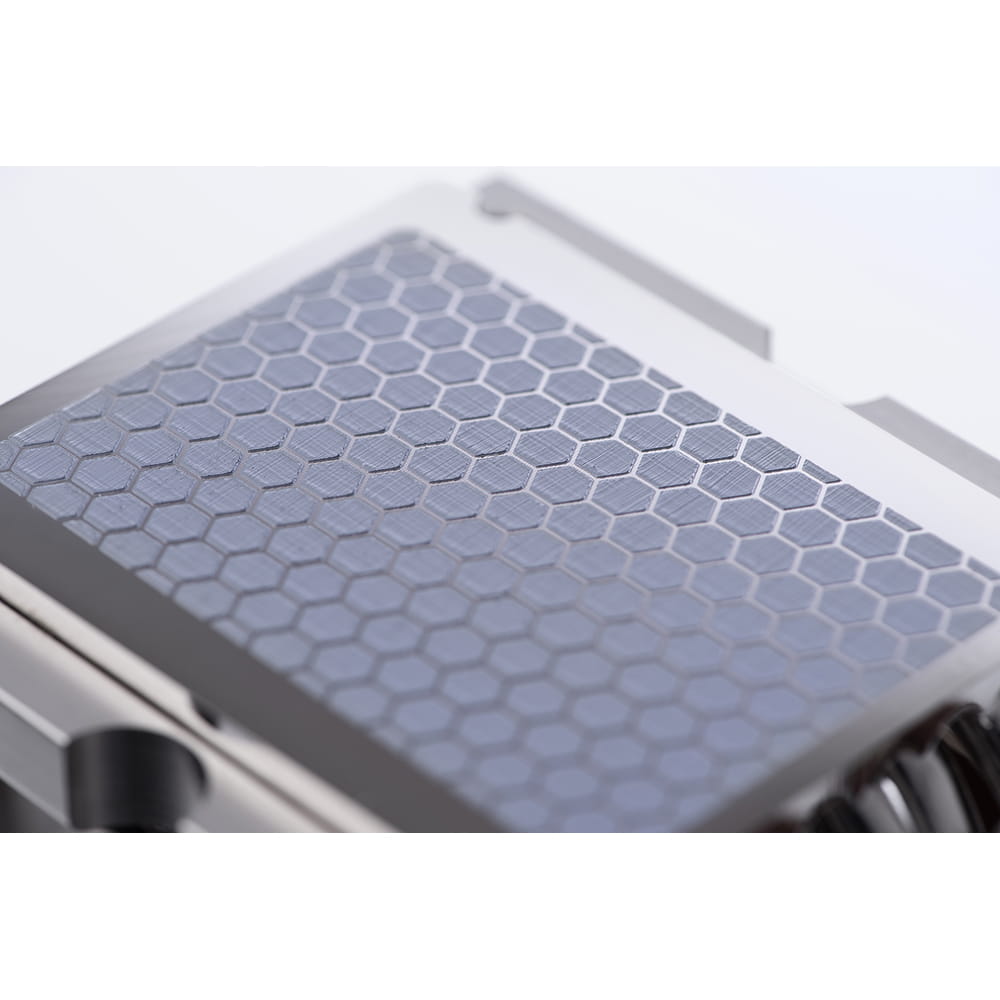

The NH-U12S DX-3647 is characterized by a larger contact surface. With dimensions of 70x56mm, the copper contact surface of the heatsink is more than twice the size of the conventional model. Designed to fit with the large integrated heat dispersers (IHS) of Intel LGA3647 socket-based processors, this custom design allows optimal heat flow from the CPU base, to heatpipes (heat conduction tubes) and over cooling fins

Equipped with two Noctua NF-A12x25, 120mm fans and with PWM control that provide performance, compatibility and quiet operation.

With the SecuFirm2 professional mounting system and the previously applied NT-H1 thermal compound, the NH-U12S DX-3647 has become the benchmark for quiet cooling work environments.

Highlights ...

* Compatible with Intel Xeon LGA3647.
* 2x NF-A12x25 PWM fan.
* NT-H1 thermal compound (previously applied).
* Extended contact surface.
* SecuFirm2 LGA3647 mounting system.
* Noctua Case-Badge in metal.

Especificaciones del disipador
Socket compatible Intel Xeon LGA3647
Altura sin ventilador 158 mm
Anchura sin ventilador 125 mm
Profundidad sin ventilador 45 mm
Peso sin ventilador 626 gr
Altura con ventilador 158 mm
Anchura con ventilador 125 mm
Profundidad con ventilador 97 mm
Peso con ventilador 1018 gr
Material Cobre (base y heat-pipes), aluminio (aletas de refrigeración), uniones soldadas, niquelado
Especificaciones del ventilador
Modelo 2x NF-A12x25 PWM
Rodamiento SSO2
Velocidad máxima 2000 RPM
Caudal máximo 102,1 m³/h
Sonoridad máxima 22,6 dB(A)
Potencia 1.68 W
Voltaje 12 V
MTBF > 150.000 h
