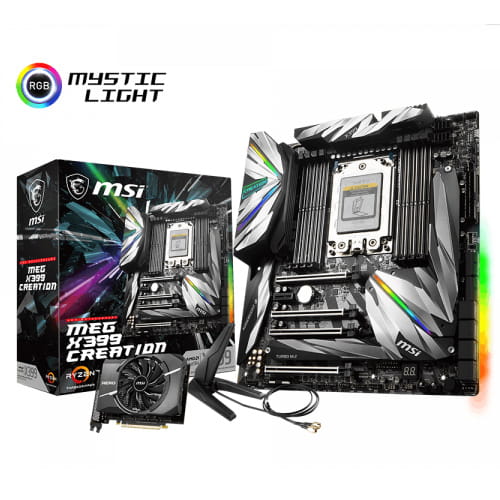

MSI MEG X399 Creation. Sockel TR4. E-ATX.
- Compatible with the first and second generation of AMD RYZEN THREADRIPPER processors.
- Compatible 8 DIMMs, Quad Channel DDR4 3600+ (OC).
- Total fan control with 10 PWM and 3 dedicated thermal sensors.
- Dual Gigabit LAN with Dual-band Wireless-AC and bandwidth control
- Strengthened built-in M.2. Keeps M.2 safe and fast.
- Audio Boost 4 with NAHIMIC.
- DDR4 Boost with Steel Armor.
- WHQL certified with Windows 10.
The price that appears is indicative
of guarantee
Insured
Secure pay
| Formate | |
| Chipset | |
| Socket | |
| kind of product | |
| kind of product | |
| No. of sockets |

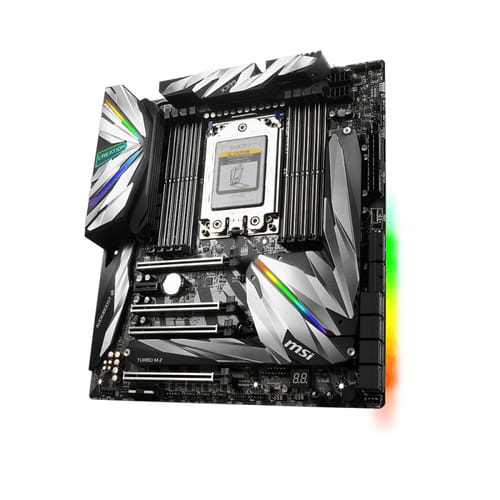

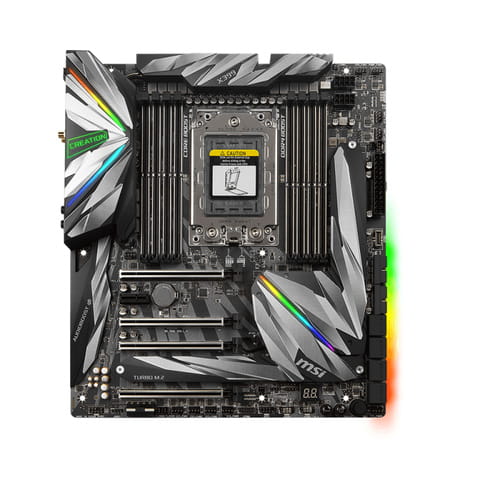

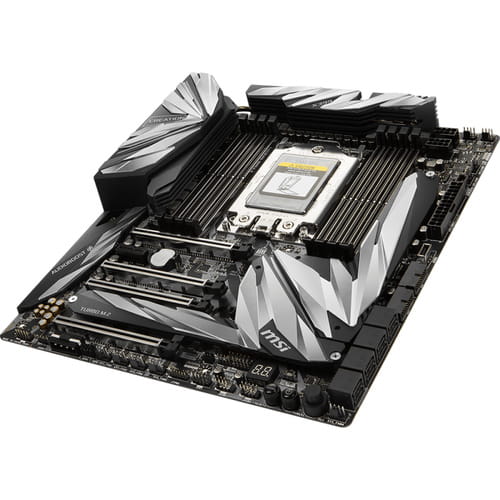

MSI MEG X399 CREATION comes with a unique appearance inspired by the concept of explosive element. Tailored for designers and creators of content, features and design perfectly meet the demanding requirements to create your own masterpiece.
A model that integrates in its circuits the maximum power to achieve the authentic performance of Ryzen processors. It has the most advanced manufacturing technology and protection systems.
With the TR4 socket and the AMD X399 chipset, the board is ready for the AMD Ryzen THREADRIPPER processor range, including the Second Generation. Supports DDR4 RAM modules from 2133 MHz to 3600+ (O.C.) in quad channel. In its 8 slots, the user can have a maximum of 128Gb.
Total fan control with 10 PWM and 3 dedicated thermal sensors.
Providing dual 8-pin connectors to configure an adequate power supply to release the maximum performance of the multi-core CPU.
Highlights...
* Compatible with 8 DIMM, Quad Channel DDR4 3600+ (OC).
* Absolute temperature control.
* Maximum storage: 7 x Turbo M.2 with M.2 XPANDER-AERO and AMD StoreMI technology.
* Maximum data transfer: Dual Gigabit LAN with Dual-band Wireless-AC and bandwidth control.
* Dual 8-pin power supply: Providing dual 8-pin connectors for adequate power supply to release the maximum performance of the multi-core CPU.
* Core Boost: With a premium distribution and full digital power design to support more cores and provide better performance.
| Processor | |
| Processor family | AMD |
| Compatible processor | AMD Ryzen |
| Socket | TR4 |
| Memory | |
| Compatible types | DDR4-SDRAM |
| Slot types | DIMM |
| Nº slots | 8 |
| Supported speeds | 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3300, 3333, 3400, 3466, 3600 MHz |
| Module capacity | |
| Max. internal memory | 128Gb |
| Ethernet | |
| Ethernet | Intel I211AT |
| Internal I/O | |
| USB 2.0 | 6 |
| USB 3.0 ( 3.1 Gen 1 ) | |
| USB 3.1 ( 3.1 Gen 2 ) | |
| USB 3.2 ( 3.1 Gen 1 ) | 6 |
| SATA | 8 |

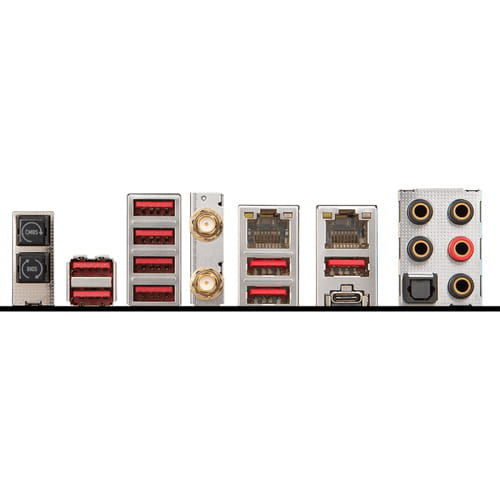

| Rear panel I/O ports (Input/Output) | |
| USB 2.0 | |
| USB 3.2 ( 3.1 Gen 1 ) | 9 |
| USB 3.2 ( 3.1 Gen 2 ) | |
| RJ45 | 2 |
| PS/2 | |
| HDMI | |
| DVI-D | |
| VGA | |
| DisplayPort | |
| Expansion slots | |
| PCI Express x1 | 1 |
| PCI Express x4 | |
| PCI Express x8 | 2 |
| PCI Express x16 | 2 |
| Performance | |
| Format | E-ATX |
| Chipset | AMD X399 |
| GPU | |
| Audio system | Realtek ALC1220 |
| Audio ouput channels | 7.1 |
| Dimensions | 304 x 272mm |
MSI MEG X399 CREATION comes with a unique appearance inspired by the concept of explosive element. Tailored for designers and creators of content, features and design perfectly meet the demanding requirements to create your own masterpiece.
A model that integrates in its circuits the maximum power to achieve the authentic performance of Ryzen processors. It has the most advanced manufacturing technology and protection systems.
With the TR4 socket and the AMD X399 chipset, the board is ready for the AMD Ryzen THREADRIPPER processor range, including the Second Generation. Supports DDR4 RAM modules from 2133 MHz to 3600+ (O.C.) in quad channel. In its 8 slots, the user can have a maximum of 128Gb.
Total fan control with 10 PWM and 3 dedicated thermal sensors.
Providing dual 8-pin connectors to configure an adequate power supply to release the maximum performance of the multi-core CPU.
Highlights...
* Compatible with 8 DIMM, Quad Channel DDR4 3600+ (OC).
* Absolute temperature control.
* Maximum storage: 7 x Turbo M.2 with M.2 XPANDER-AERO and AMD StoreMI technology.
* Maximum data transfer: Dual Gigabit LAN with Dual-band Wireless-AC and bandwidth control.
* Dual 8-pin power supply: Providing dual 8-pin connectors for adequate power supply to release the maximum performance of the multi-core CPU.
* Core Boost: With a premium distribution and full digital power design to support more cores and provide better performance.
| Processor | |
| Processor family | AMD |
| Compatible processor | AMD Ryzen |
| Socket | TR4 |
| Memory | |
| Compatible types | DDR4-SDRAM |
| Slot types | DIMM |
| Nº slots | 8 |
| Supported speeds | 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3300, 3333, 3400, 3466, 3600 MHz |
| Module capacity | |
| Max. internal memory | 128Gb |
| Ethernet | |
| Ethernet | Intel I211AT |
| Internal I/O | |
| USB 2.0 | 6 |
| USB 3.0 ( 3.1 Gen 1 ) | |
| USB 3.1 ( 3.1 Gen 2 ) | |
| USB 3.2 ( 3.1 Gen 1 ) | 6 |
| SATA | 8 |
| Rear panel I/O ports (Input/Output) | |
| USB 2.0 | |
| USB 3.2 ( 3.1 Gen 1 ) | 9 |
| USB 3.2 ( 3.1 Gen 2 ) | |
| RJ45 | 2 |
| PS/2 | |
| HDMI | |
| DVI-D | |
| VGA | |
| DisplayPort | |
| Expansion slots | |
| PCI Express x1 | 1 |
| PCI Express x4 | |
| PCI Express x8 | 2 |
| PCI Express x16 | 2 |
| Performance | |
| Format | E-ATX |
| Chipset | AMD X399 |
| GPU | |
| Audio system | Realtek ALC1220 |
| Audio ouput channels | 7.1 |
| Dimensions | 304 x 272mm |
