MP3119. Fanless Mini PC 3.5 para Networking Intel J1900 4 Lan
MP3119. Fanless Mini PC 3.5 para Networking Intel J1900 4 Lan
- Fanless Intel Celeron Bay Trail J1900 SoC Processor.
- Embedded Long-life Series, 5 Year Availability.
- 4x Intel Gigabit LAN Ports.
- Built-in +12V Locking Power Jack.
- ECO-design for EuP/ErP.
Simplified Configurator
Memories
M.2
of guarantee
shipping
Secure pay

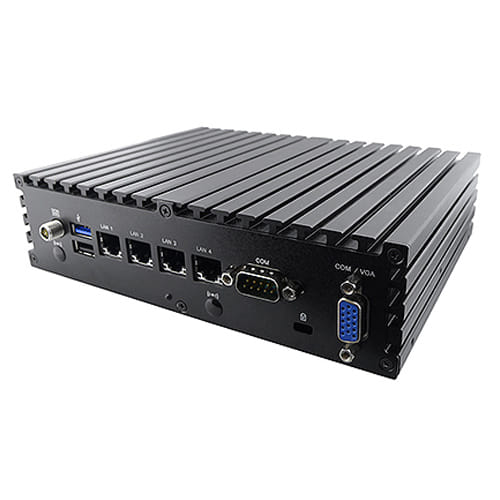

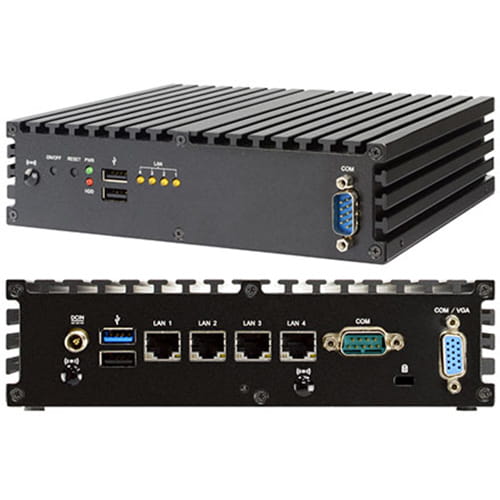

Introducing the MP3119, a device designed for Networking. Maximum power in the minimum space and all with maximum silence, since it is a totally fanless solution.
It integrates the Intel Celeron Bay Trail J900 processor with a base speed of 2Ghz, which can be increased in turbo mode up to 2.42Ghz. This processor has an L2 cache of 2Mb and a TDP consumption of 10W.
The MP3119 supports a So-DIMM DDR3L memory module at 1333Mhz with a maximum capacity of 8Gb. In addition, a 2.5 "SATA disk and an M.2 SSD can be installed.
It has connections: 3 USB 2.0 ports, 1 USB 3.0 port, 2 COM ports, 1 VGA port and 4 RJ45 GigaLAN ports.
Highlights...
* Intel Celeron Bay Trail J1900 SoC processor without fan.
* Long-lasting integrated series, 5 years of availability.
* 4x Intel Gigabit LAN ports.
* Built-in + 12V lock power connector.
* Ecological design for EuP / ErP.
Dimensions | 185 x 142 x 48mm |
Material | Aluminum |
Color | Black |
CPU | Intel Bay Trail Celeron J1900 - TDP: 10W |
Memory | 1x So-DIMM DDR3L 1333Mhz up to 8Gb |
Storage Space |
1x 2.5" SATA (max. Height 9.5mm) 1x M.2-2242 SSD (M-KEY) |
Display Interface | 1x VGA |
Network |
4x RJ45 GigaLan 1x Half-size Mini PCI-E (for WiFi module) 1x SIM Card Slot |

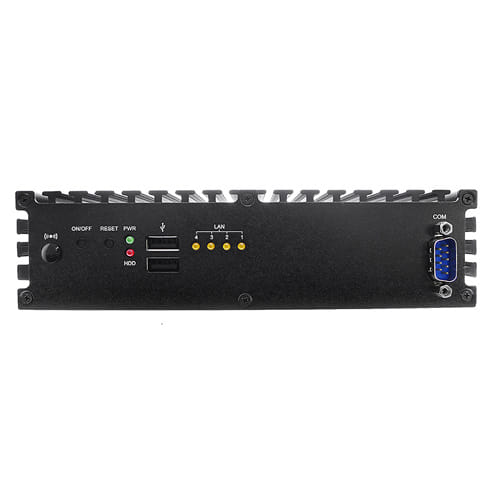

Front I/O Port |
2x USB 2.0 1x COM |

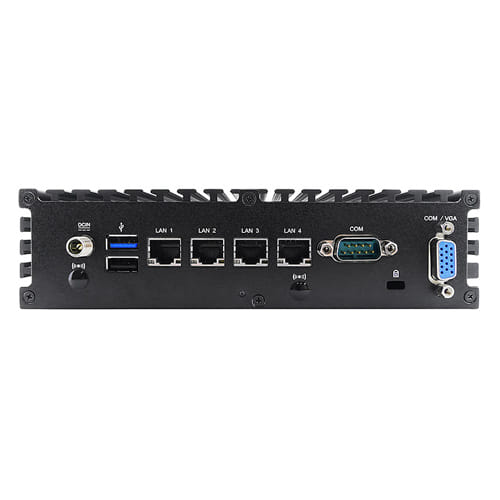

Rear I/O Port |
1x USB 2.0 1x USB 3.0 4x RJ45 1x VGA 1x COM |
Expansion Slot | 1x Full-size Mini PCI-E (for WiFi module) |
Power Source |
DC 12V Jack input (Lock Type) Adapter: AC 90~240V / DC 12V 5A / 60W |
Certifications | CE, FCC, RoHS, ErP |
Environment |
Operating Temperature: 0 ~ 50ºC Storage Temperature: -10 ~ 70ºC |
