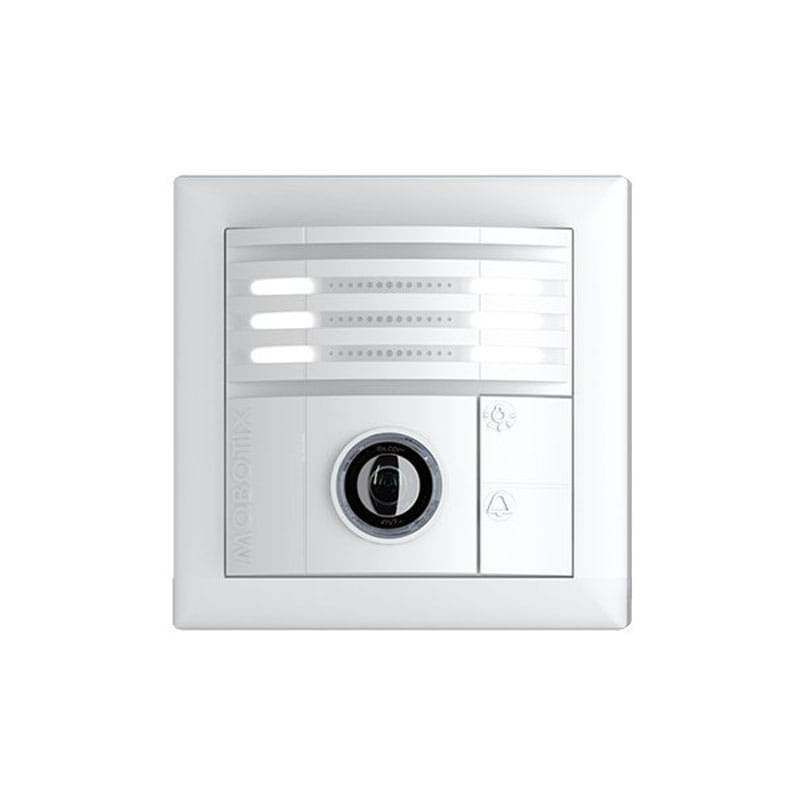

| Nombre del producto | T26B Hemispheric IP door station camera |
| Cámara Dual | No |
| Alineación manual de lentes | No |
| Micrófono | Yes |
| Altavoz | Yes |
| Area de aplicación | Indoor / Outdoor |
| MxBus | Yes |
| Color de la carcasa | White |
| Datos técnicos |
| Temperatura ambiente | -30 ~ 50 °C (-22 ~ 122 °F) |
| Clase IP | IP65 |
| Clase IK | IK10 |
| Certificaciones | EN55032:2012; EN55024:2010; EN50121-4:2015; FprEN61000-6-1:2015; EN61000-6-2:2015; EN61000-6-3:2007+A1:2011+AC:2012; EN61000-6-4:2007+A1:2011; EN60950-1:2006/A11:2009/A1:2010/A12:2011/A2:2013; AS/NZS CISPR 32:2015; CFR47 FCC part15B |
| MTBF | 80.000 h |
| PIR | No |
| DVR | - Camera-internal via microSD card
- External on USB device
- External on NAS
- Full image recording regardless of live image zoom
- MxFFS
- Pre-alarm and post-alarm images
- DVR monitoring with error notification
|
| Video llamada | Yes |
| Protocolos | IPv4, IPv6, HTTP, HTTPS, FTP, FTPS, RTP, RTSP, UDP, SNMP, SMTP, DHCP (Client or Server), NTP (Client and Server), SIP (Client and Server) G.711 (PCMA and PCMU) and G.722 |
| Ethernet | Ethernet 10/100, IPv4/IPv6, MiniUSB, IO and RS232 via Interface-Boxen (Accessory) |
| Sensores ambientales | - Temperature sensor
- Noise sensor
- Shock sensor (with later SW update)
- Other sensors/IO via MxMessageSystem
|
| Protección sobrevoltaje | via MX-Overvoltage-Protection-Box |
| Opciones de montaje | Wall, Ceiling, Bottom |
| CPU | i.MX 6 Dual Core incl. GPU |
| RAM | 1Gb |
| Ángulo de visión horizontal | 180º |
| Ángulo de visión vertical | 180º |
| Longitud focar | 1.6 mm |
| Abertura | f/2.0 |
| Max. Frame Rate | - MxPEG*: 42@HD(1280x720), 34@Full-HD, 24@QXGA, 15@5Mp, 12@6MP
- MJPEG*: 25@HD(1280x720), 13@Full-HD, 9@QXGA, 5@5Mp, 4@6MP
- H.264: 25@Full-HD, 20@QXGA
|
| Tamaño max de imagen | 6MP (3072x2048) |
| Lente | B016 |
| Formato de imagen | Freely configurable format 4:3, 8:3, 16:9 or customized format (Image Cropping), like 2592x1944 (5MP), 2048x1536 (QXGA), 1920x1080 (Full-HD), 1280x960 (MEGA) |
| PTZ | - Digital pan/tilt/zoom; max. zoom 8x (continious)
|
| Óptica de la cámara | Day, Night |
| Sensibilidad | - Color sensor (day): 0,1 lx @ 1/60s; 0,005 lx @ 1s
- BW sensor (night): 0,02 lx @ 1/60s; 0,001 lx @ 1s
|
| Codec de video | - MxPEG+, M-JPEG, JPEG (max. output fromat 6MP)
- H.264 (max. output format QXGA; bandwith limitation possible)
|
| ONVIF | Compatible |
| Sensor de imagen | 1/1,8“ CMOS sensor, 6MP (3072x2048), progressive scan |
| Consumo | Typ: 5 W Power consumption increases due to connected consumers: - MxBUS max. 3 W
- USB max. 2.5 W
- total max. 4 W
|
| Fuente de alimentación | |
| LED de estado | 3 |
| Interfaces | - Ethernet 100BaseT (MxRJ45)
- MiniUSB (MxMiniUSB)
|
| Señal de entraa | via Accessory (MX-232-IO-Box) |
| Señal de salida | via Accessory (MX-232-IO-Box) |
| Dimensiones | 99 x 99 x 60 mm |
| Peso | 265 gr |
