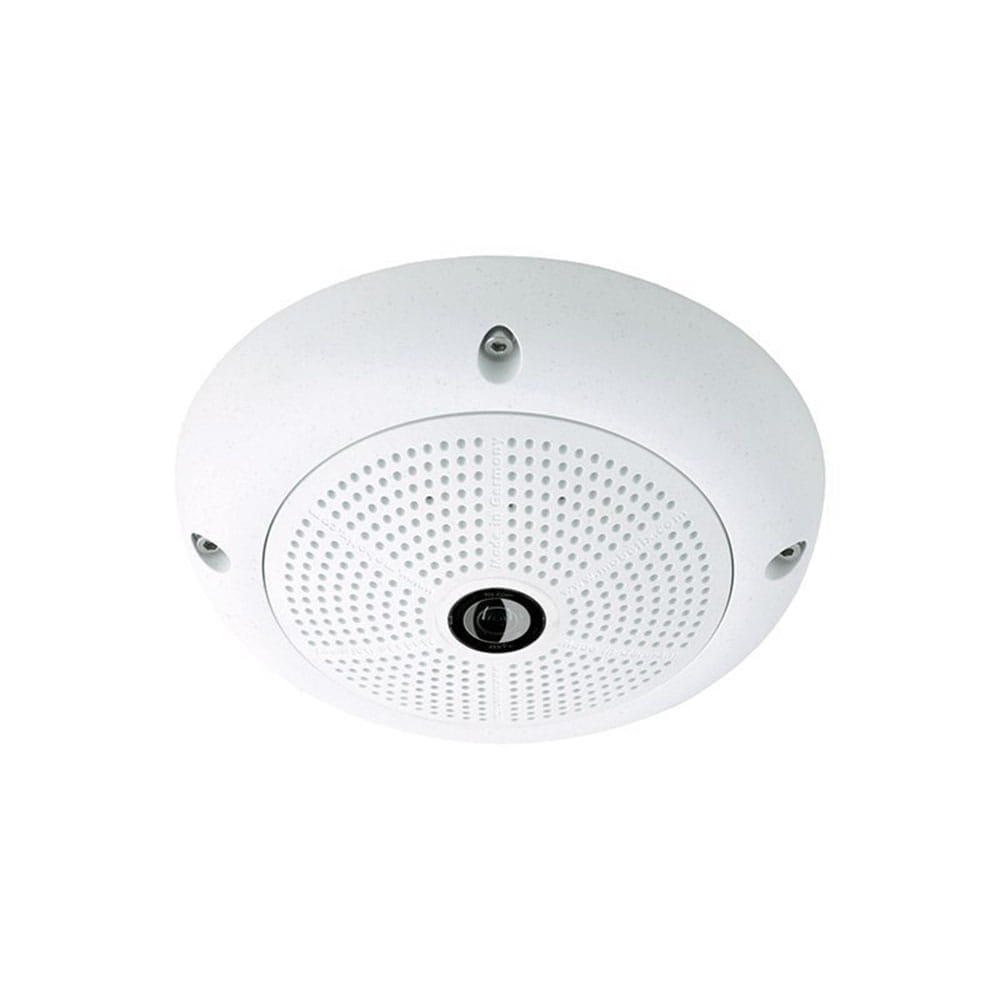

Mobotix Q26 Hemispheric

Mobotix Q26 Hemispheric

Mobotix
  • Mx6 system platform with H.264 and ONVIF compatible.
  • Recording on internal MicroSD card (4 GB serial).
  • In day or night version (color sensor or 6 MP B&W).
  • Equipped as standard with shock sensor and MxAnalytics.
  • Weatherproof housing and protected against shocks (IP66, IK10, from -40º to 50 ° C).
  • For mounting on ceilings, walls and masts.
  • Optional vandal protection stainless steel.

P/N: MX-Q26B-6D016

869,08 € Without VAT
1.051,59 € With VAT
2 years
of guarantee
sending
shipping
100%
Secure pay

An elegant, ultra-compact and weatherproof dome camera. The Q26 uses a hemispherical B016 lens, which is factory set and with the focus adjusted. Thanks to the omnidirectional 360 ° view to record a complete stay, the panoramic view and the intelligent video analysis tools, this camera opens up completely new application possibilities.

The Q26 is a fully elegant hemispheric camera, with a built-in fisheye lens and a 180 ° horizontal and vertical lens angle; It is available in the "Day" version, with a 6 MP color sensor and an infrared blocking filter, or "Night", with a 6 MP black and white sensor even more sensitive to light. Weatherproof (IP66) and rugged (IK10), the Q26 is the perfect camera for an overall view anywhere.

Already in 2008, MOBOTIX introduced hemispheric camera technology into the video surveillance market. The distortion correction takes place in the same camera, thus increasing the image quality and reducing the need for bandwidth. The 180 ° panoramic view, with integrated image correction, provides a realistic impression of a scene.

The camera has a 4 GB card as standard in the industry standard, microphone, speaker, MxActivitySensor for motion detection and all MxAnalytics video analysis tools, such as object counting, heat map reports and behavior detection.

In addition to the original fisheye image, the image of the Q26 can be displayed as a full corrected image Normal, Panorama, Double Panorama or Panorama-Focus, or in quadrants showing all cardinal points. The display mode can be changed at any time and in a matter of seconds.

Highlights ...

* Mx6 system platform with H.264 and ONVIF compatible.
* Recording on internal MicroSD card (4 GB serial).
* In day or night version (color sensor or 6 MP B&W).
* Equipped as standard with shock sensor and MxAnalytics.
* Weatherproof housing and protected against shocks (IP66, IK10, from -40º to 50 ° C).
* For mounting on ceilings, walls and masts.
* Optional vandal protection stainless steel.

Product Designation Q26B Hemispheric
Camera Type Hemispheric Camera
Dual Camera No
Manual Lens Alignment No
Microphone Yes
Speaker Yes
Application Area Indoor / Outdoor
MxBus Yes
Color Housing White
Technical Data
Ambient Temperature

-40...+50 °C (-40 ... 122 °F; Operational temperature)

Cold start at -30 °C (-22 °F)
IP Class IP66
IK Class IK06; with Vandalism Set: IK10
Certifications EN55032:2012; EN55024:2010; EN50121-4:2015; FprEN61000-6-1:2015; EN61000-6-2:2015; EN61000-6-3:2007+A1:2011+AC:2012; EN61000-6-4:2007+A1:2011; EN60950-1:2006/A11:2009/A1:2010/A12:2011/A2:2013; AS/NZS CISPR 32:2015; CFR47 FCC part15B
MTBF 80.000 h
PIR No
Audio Microphone/ Loudspeaker, both 16bit/16kHz (HD-Wideband-Audio)
DVR
  • Camera-internal via microSD card
  • External on USB device
  • External on NAS
  • Full image recording regardless of live image zoom
  • MxFFS
  • Pre-alarm and post-alarm images
  • DVR monitoring with error notification
Video Phone Yes
Protocols IPv4, IPv6, HTTP, HTTPS, FTP, FTPS, RTP, RTSP, UDP, SNMP, SMTP, DHCP (Client or Server), NTP (Client and Server), SIP (Client and Server) G.711 (PCMA and PCMU) and G.722
Ethernet Ethernet 10/100, IPv4/IPv6, MiniUSB, IO and RS232 via Interface-Boxen (Accessory)
Environmental Sensors
  • Temperature sensor
  • Noise sensor
  • Shock sensor (with later SW update)
    • Other sensors/IO via MxMessageSystem
Overvoltage Protection via MX-Overvoltage-Protection-Box
Mounting Options Wall, Ceiling, Bottom
CPU i.MX 6 Dual Core incl. GPU
RAM 1Gb
Image Angle horizontal 180º
Image Angle vertical 180º
Focal Length 1.6 mm
Aperture f/2.0
Max. Frame Rate
  • MxPEG*: 42@HD(1280x720), 34@Full-HD, 24@QXGA, 15@5Mp, 12@6MP
  • MJPEG*: 25@HD(1280x720), 13@Full-HD, 9@QXGA, 5@5Mp, 4@6MP
  • H.264: 25@Full-HD, 20@QXGA
Max. Image Size 6MP (3072x2048)
Lens B016
Image Format Freely configurable format 4:3, 8:3, 16:9 or customized format (Image Cropping), like 2592x1944 (5MP), 2048x1536 (QXGA), 1920x1080 (Full-HD), 1280x960 (MEGA)
PTZ
  • Digital pan/tilt/zoom; max. zoom 8x (continious)
Camera Optics Day, Night
Sensitivity
  • Color sensor (day): 0,1 lx @ 1/60s; 0,005 lx @ 1s
  • BW sensor (night): 0,02 lx @ 1/60s; 0,001 lx @ 1s
Video Codec
  • MxPEG+, M-JPEG, JPEG (max. output fromat 6MP)
  • H.264 (max. output format QXGA; bandwith limitation possible)
ONVIF Compatible
Image Sensor 1/1,8“ CMOS sensor, 6MP (3072x2048), progressive scan
Power Consumption

Typ: 5 W

Power consumption increases due to connected consumers:

  • MxBUS max. 3 W
  • USB max. 2.5 W
  • total max. 4 W
Power Supply
  • PoE IEEE 802.3af
Status LED 2
Interfaces
  • Ethernet 100BaseT (MxRJ45)
  • MiniUSB (MxMiniUSB)
    • MxBus
Signal Input via Accessory (MX-232-IO-Box)
Signal Output via Accessory (MX-232-IO-Box)
Dimensions 48 x 160 mm
Weight 350 gr
