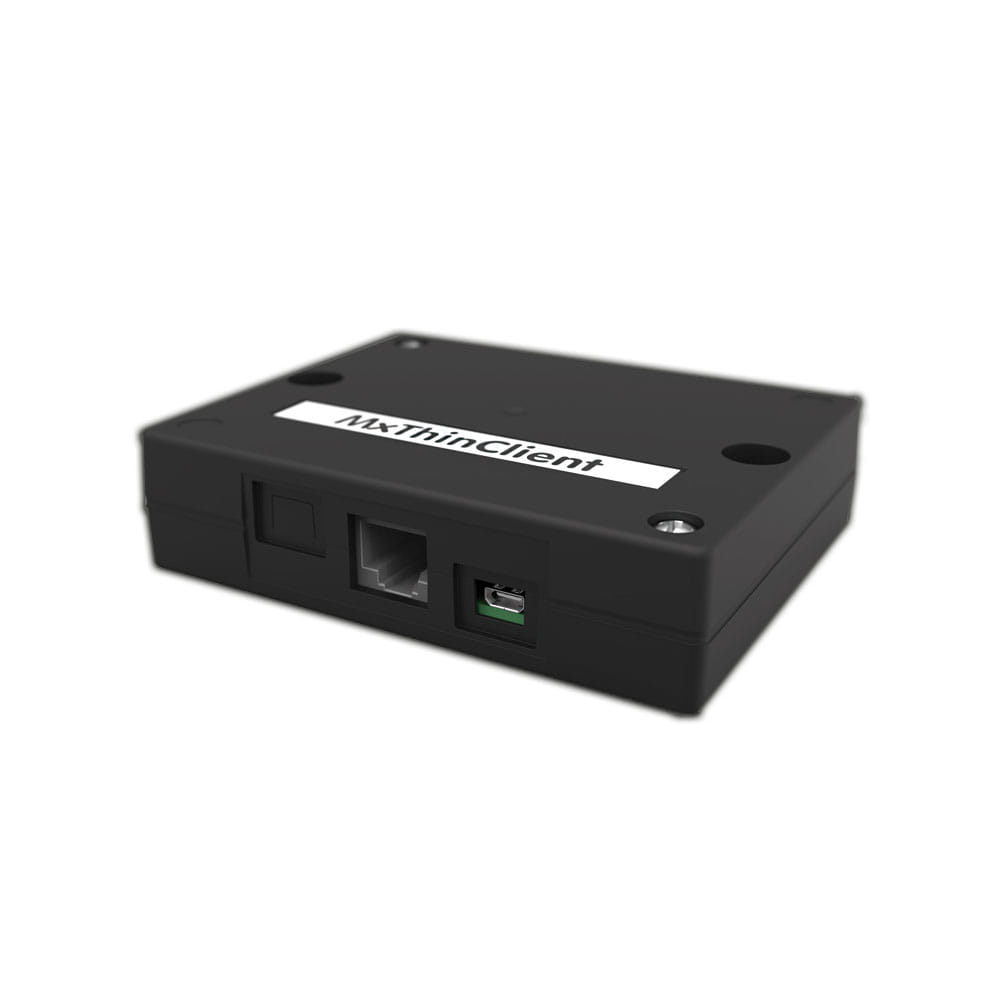

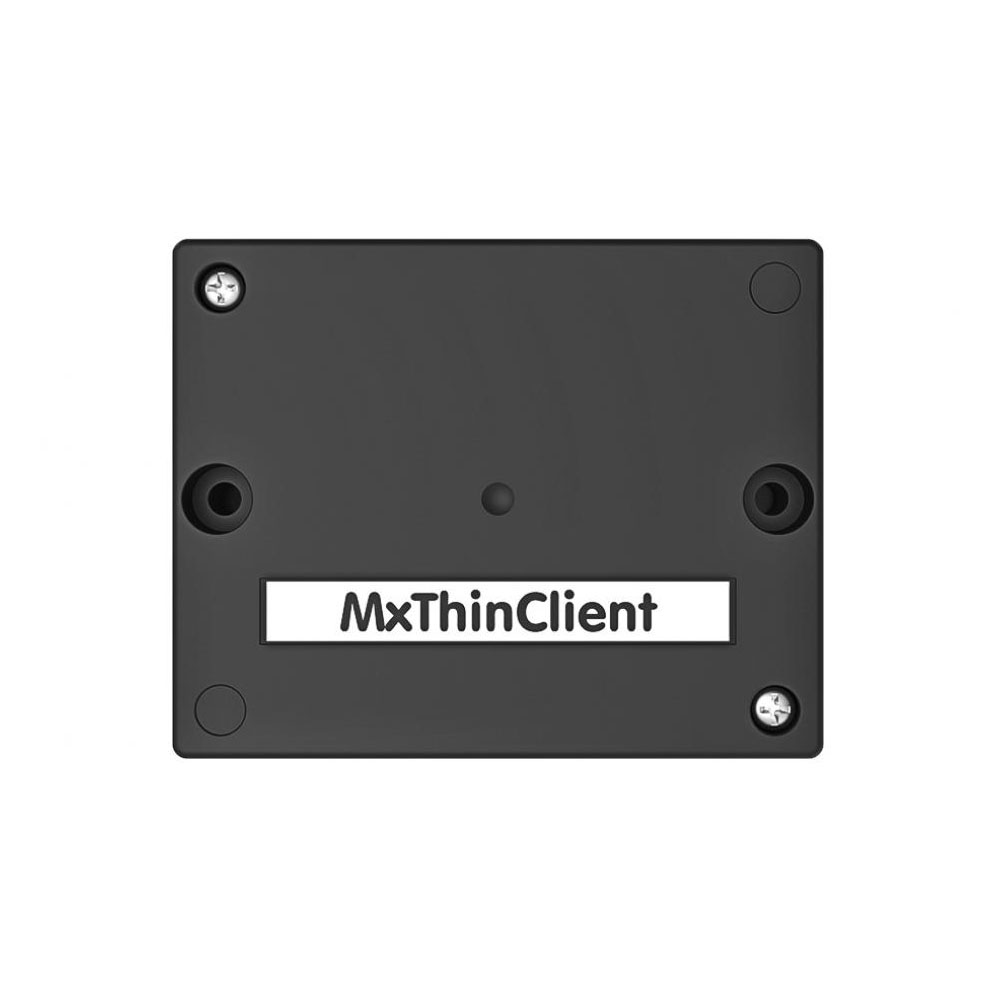

Mobotix MxThinclient.

Mobotix MxThinclient.

Mobotix
  • Visualization of cameras and video intercoms on a monitor / TV device.
  • Implementation of security applications and monitor walls without a license.
  • Initial configuration via password protected web interface on the PC.
  • Automatic camera change controlled by time or events.
  • Input (connection to Switch PoE): Ethernet 100Base-T (RJ45).
  • Output (connection to monitor / TV device): HDMI type D (MicroHDMI).
  • For indoor, ambient temperature from 0 to 40 ° C.

P/N: MX-A-TCLIENTA

372,53 € Without VAT
450,76 € With VAT
2 years
of guarantee
sending
shipping
100%
Secure pay

MxThinClient connects your camera network with a monitor or TV device with an HDMI connection. To show live images of individual cameras or video intercoms in temporary change and / or of the camera with the last alarm (e.g., motion detection). Or also to display advertising messages in retail stores.

MxThinClient easily connects via network cable to a free PoE port of a switch to which the camera to be displayed is connected. Using the HDMI cable, the MxThinClient connection to the screen is established. By additionally connecting a router to the switch, remote cameras can also be displayed on the monitor, which can be accessed via an Internet connection through a dynamic DNS service.

MxThinClient does not require a license or maintenance, requires very little current (2 watts), can easily be powered through the PoE switch with emergency power and has starting stability (faster and more reliable self-start after a power failure). The network device is activated / deactivated by connecting and disconnecting the Ethernet interconnect cable that should receive the power. In the event that a current camera connection is interrupted, this will be indicated to the user through the screen.

With the disappearance of all control elements such as the keyboard and mouse and the "display-only function", very specific possibilities of use for MxThinClient are opened. In the field of stores with large customer movements, for example, in the entrance area, to indicate the existence of a video surveillance system (theft prevention). Or in those cases where no type of video system operation can be carried out and only live images from the camera (monitor wall) should be displayed.

MxThinClient can also display on the monitor or TV device the live image of the integrated MOBOTIX camera that triggered an event last due to a current event, such as p. eg, MxActivitySensor. Communication between the camera and the MxThinClient takes place through MxMessageSystem.

Highlights ...

* Viewing cameras and video intercoms on a monitor / TV device.
* Implementation of security applications and monitor walls without a license.
* Initial configuration via password protected web interface on the PC.
* Automatic camera change controlled by time or events.
* Input (connection to Switch PoE): Ethernet 100Base-T (RJ45).
* Output (connection to monitor / TV device): HDMI type D (MicroHDMI).
* For indoor, ambient temperature from 0 to 40 ° C.

Product Designation MxThinClient
Color Housing Black
Technical Data
Ambient Temperature 0 ~ 40ºC
IP Class IP20
Certifications EN55032:2012, EN55022:2010; EN55024:2010; EN50121-4:2015, EN61000-6-1:2007; EN61000-6-2:2005, EN61000-6-3:2007 + A1:2011, EN61000-6-4:2007 + A1:2011, AS/NZS CISPR22:2009 + A1:2010, CFR47 FCC part15B
MTBF 80.000h
Protocols IPv4, HTTP, HTTPS, NTP, HDMI 1.4, FTP, FTPS
Mounting Options Horizontally or vertically put down, glued, screwed
CPU i.MX6 Solo ARM Cortex-A9 @ 1GHz
RAM 1024Mb
Compatibility Mx Cameras, monitor, TV set
Max. Image Size Full HD
Image Formats Input (Ethernet) – Supported Display Modes:
Single Lens Camera incl. Hemispheric:
All display modes
Dual Lens Camera, Camera Selection "Both":
All display modes except "Panorama"
Output (HDMI, negotiated automatically/not adjustable) – supported image sizes of the monitor**:
640x480p@59.94/60Hz 4:3
720x480p@59.94/60Hz 4:3
720x480p@59.94/60Hz 16:9
1280x720p@59.94/60Hz 16:9
1920x1080i@59.94/60Hz 16:9
720(1440)x480iH@59.94/60Hz 4:3
720(1440)x480iH@59.94/60Hz 16:9
720(1440)x240pH@59.94/60Hz 4:3
720(1440)x240pH@59.94/60Hz 16:9
1440x480p@59.94/60Hz 4:3
1440x480p@59.94/60Hz 16:9
1920x1080p@60Hz 16:9
720x576pH@50Hz 4:3
720x576pH@50Hz 16:9
1280x720p@50Hz
1920x1080i@50Hz
720(1440)x288pH@50Hz 4:3
720(1440)x288pH@50Hz 16:9
720(1440)x576pH@50Hz 4:3
720(1440)x576pH@50Hz 16:9
1920x1080p@50Hz
1920x1080p@23.98/24Hz
1920x1080p@25Hz
1920x1080p@30Hz
1280x720p@100Hz 16:9
1280x720p@119.88/120Hz 16:9
Video Codec MxPEG
Power Consumption 2W
Power Supply PoE IEEE 802.3af
Interfaces Ethernet 100Base-T (RJ45); HDMI Type D (MicroHDMI)
Signal Input 1
Signal Output 1
Dimensions 25 x 100 x 80 mm
Weight 125 gr

MxThinClient connects your camera network with a monitor or TV device with an HDMI connection. To show live images of individual cameras or video intercoms in temporary change and / or of the camera with the last alarm (e.g., motion detection). Or also to display advertising messages in retail stores.

MxThinClient easily connects via network cable to a free PoE port of a switch to which the camera to be displayed is connected. Using the HDMI cable, the MxThinClient connection to the screen is established. By additionally connecting a router to the switch, remote cameras can also be displayed on the monitor, which can be accessed via an Internet connection through a dynamic DNS service.

MxThinClient does not require a license or maintenance, requires very little current (2 watts), can easily be powered through the PoE switch with emergency power and has starting stability (faster and more reliable self-start after a power failure). The network device is activated / deactivated by connecting and disconnecting the Ethernet interconnect cable that should receive the power. In the event that a current camera connection is interrupted, this will be indicated to the user through the screen.

With the disappearance of all control elements such as the keyboard and mouse and the "display-only function", very specific possibilities of use for MxThinClient are opened. In the field of stores with large customer movements, for example, in the entrance area, to indicate the existence of a video surveillance system (theft prevention). Or in those cases where no type of video system operation can be carried out and only live images from the camera (monitor wall) should be displayed.

MxThinClient can also display on the monitor or TV device the live image of the integrated MOBOTIX camera that triggered an event last due to a current event, such as p. eg, MxActivitySensor. Communication between the camera and the MxThinClient takes place through MxMessageSystem.
