Mobotix MX-NPA-POE-INT-SET. PoE Module.

Mobotix MX-NPA-POE-INT-SET. PoE Module.

Mobotix
  • Direct PC connection without a switch thanks to the crossover function!.
  • Suitable for use with power sources from 12 V to 42 V!.
  • Connects to electrical power using a power supply unit!.
  • Suitable for all PoE-supplied (MOBOTIX) network cameras and Mx2wire!.
  • Suitable for all standard PoE devices conforming to IEEE 802.3af (e.g., VoiP phone, netbooks, routers etc.)!.
  • Suitable for international use thanks to interchangeable power supply adapters!.
  • Can be connected to the end device using an Ethernet cable up to 100 m in length!.

P/N: MX-NPA-POE-INT-SET - EAN/UPC: 4047438012256

113,91 € Without VAT
137,83 € With VAT
2 years
of guarantee
sending
shipping
100%
Secure pay

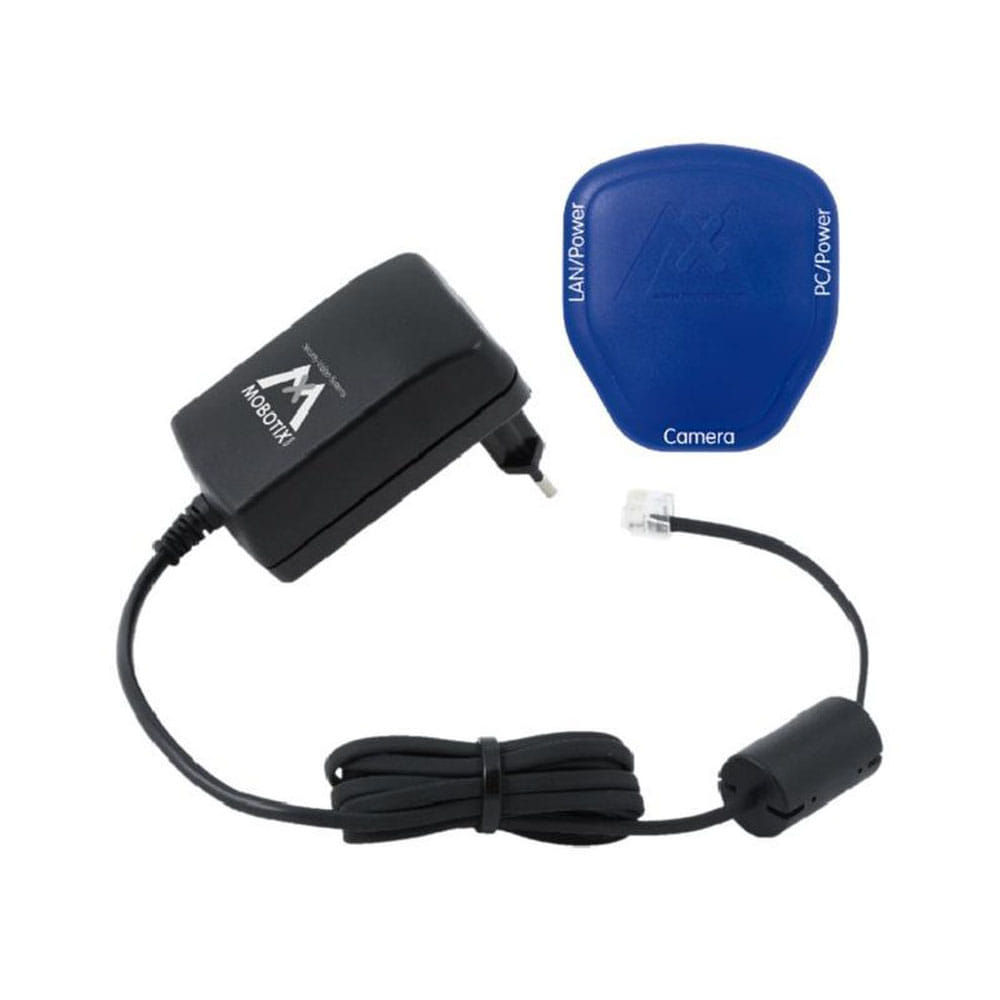

The MOBOTIX Network Power Adapter Set (NPA-PoE set) is a high-quality, robust, ultra-compact and multifunctional PoE injector with three connectors (network, camera/PoE device, PC) and a universal power supply unit with interchangeable adapter plugs.

The Network Power Adapter Set remotely supplies all PoE devices with power in accordance with the IEEE 802.3af standard. This makes it possible to use the network cable to both connect the camera and remotely supply power (up to 100 m). As a result, a network camera can be supplied with PoE power via the adapter and connected directly to your PC (integrated crossover function).

A further advantage of this product is its versatility. The blue adapter can be connected to different electrical power supply networks around the world (90 V to 230 V) using the power supply unit. The device can also be directly connected to network-independent power sources between 12 V and 42 V. This is ideal for battery-operated, standalone operation of a network camera. This device is especially practical because the included power supply unit can be used around the world by changing the adapter plugs as required with a few simple steps.

Highlights...

* Direct PC connection without a switch thanks to the crossover function!.
* Suitable for use with power sources from 12 V to 42 V!.
* Connects to electrical power using a power supply unit!.
* Suitable for all PoE-supplied (MOBOTIX) network cameras and Mx2wire!.
* Suitable for all standard PoE devices conforming to IEEE 802.3af (e.g., VoiP phone, netbooks, routers etc.)!.
* Suitable for international use thanks to interchangeable power supply adapters!.
* Can be connected to the end device using an Ethernet cable up to 100 m in length!.

Product Designation PoE Power Adapter Set, INT
Ambient Temperature 0 ~ 40ºC
Certifications 2006/95/EG, EN 60950:2005, 2004/108/EG, EN 55022:2006, EN 55024:1998+A1:2001+A2:2003, EN 61000-6-1:2007, EN 61000-4-2, EN 61000-4-3EN 61000-4-4, EN 61000-4-6, CFR 47, FCC Part 15B, C-Tick AS/NZS 3548, CISPR 22:2005 (mod.)
Power Supply Input Power Supply Unit: 100 V to 240 V, 50 to 60 Hz 7 400 mA
Output Power Supply Unit: 24 V DC / 750 mA
Status LED 1
RJ45 Ethernet Connectors Power Supply Unit: 1 (for adapter); Adapter: 3 (LAN/Power, PC/Power, Camera)
Further Connectors Power Supply Unit: 1x network (100 V to 240 V, 50 to 60 Hz / 400 mA)
Dimensions 85 x 52 x 39 mm
Weight 280 gr
