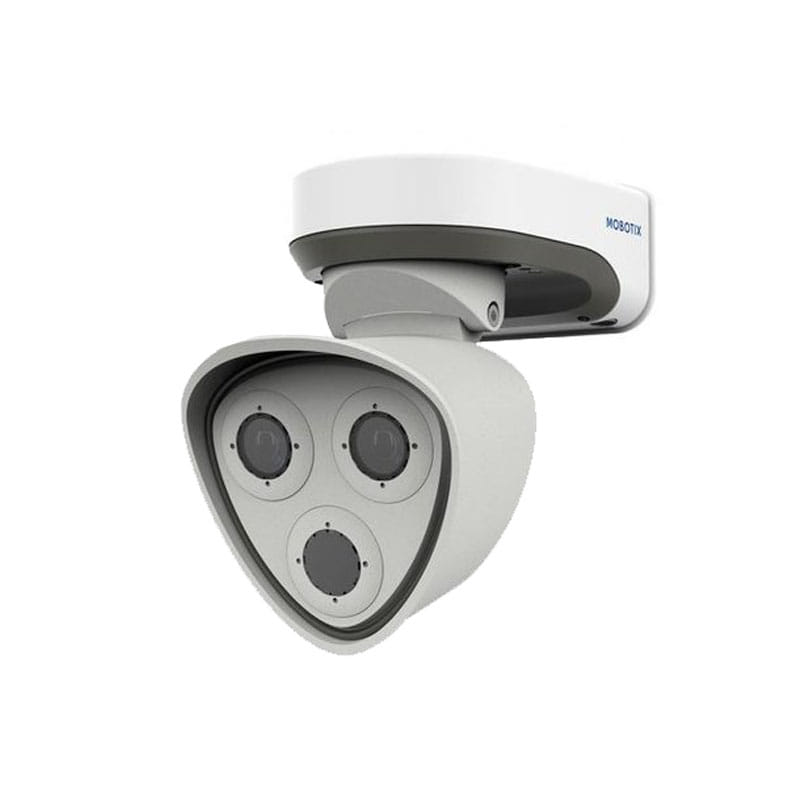

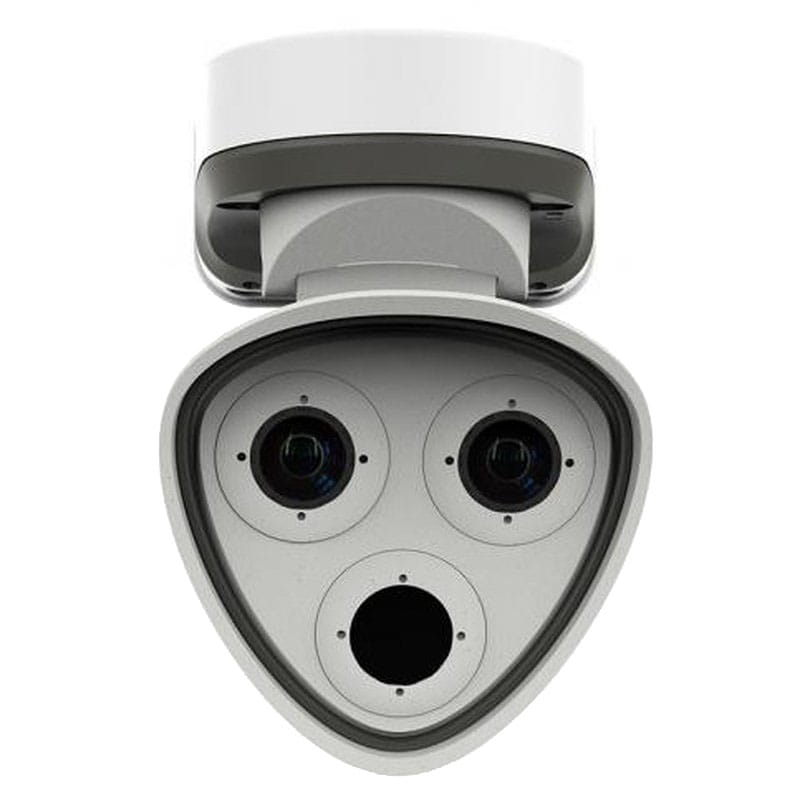

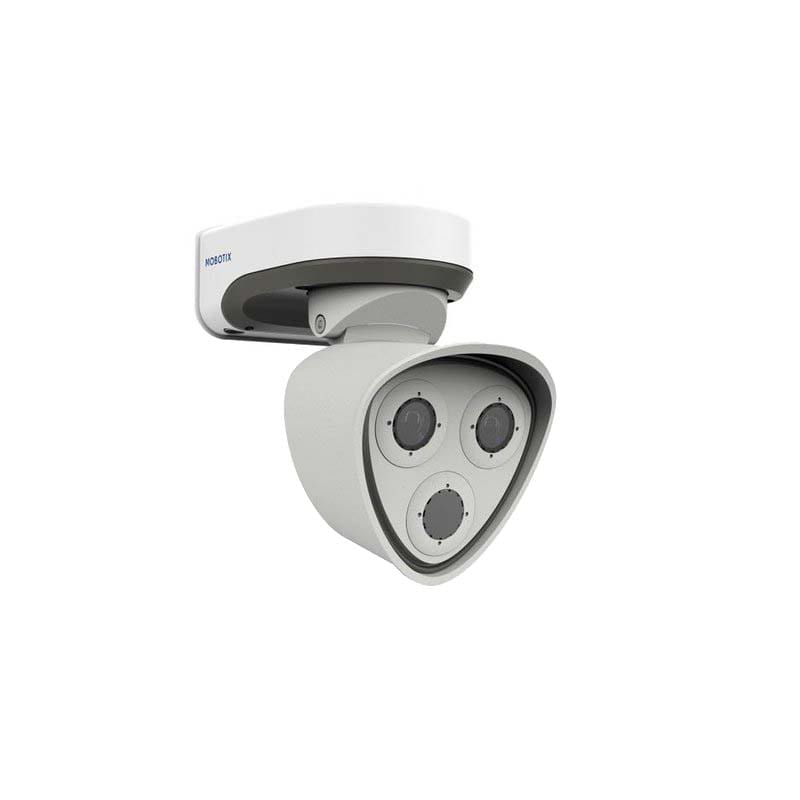

Mobotix M73. Cámara IoT de alto rendimiento.

Mobotix M73. Cámara IoT de alto rendimiento.

Mobotix
  • Platform with the most flexible codec support: H.264, H.265*, MxPEG+ and MJPEG.
  • ONVIF Profile S and T* conformity guarantees utmost interoperability.
  • Increased modularity with flexible usage of a combination of up to three sensor or functional modules.
  • 4K UHD resolution.
  • Wide Dynamic Range (WDR) with up to 120 dB.
  • Easy Plug quick-mounting system.
  • Robust in any environment: –40 to 65 °C/–40 to 149 °F, IP66, and IK07.

P/N: MX-M73A-RJ45 - EAN/UPC: 4047438034982

1.044,94 € Without VAT
1.264,38 € With VAT
2 years
of guarantee
sending
shipping
100%
Secure pay

M73: the first MOBOTIX camera with three modules. M73 is simply the best and most innovative IoT video system that
has manufactured MOBOTIX to date. A product according to the tradition of the company that, however, is completely new and unique. Smart, flexible and versatile.

The M73 is not going more than flexibility! Our high-quality MOBOTIX cameras include their innovative and powerful systems technology, as well as the backing of the MOBOTIX modular application. The M73 is a camera with unsurpassed features in terms of power, functionality, cybersecurity and perimeter computing. A compact and uncompromising camera that offers exceptional viewing and does not overlook the smallest detail, designed by Eskild Hansen.

The new open platform of MOBOTIX 7 video systems, together with the M73, will revolutionize video surveillance. MOBOTIX 7 includes special applications that meet a large number of individual needs in a specialized way. In addition, the platform is explicitly open to applications developed by our own partners and customers. The result is an infinite number of camera applications that can meet any particular need.

MOBOTIX video systems are specific to meet the specific needs of different sectors. Our customers have the most avant-garde and flexible video technology, thanks to the MOBOTIX 7 platform. Applications integrated into the camera firmware, independent of the network, can be used even remotely. Discover how to protect and optimize your production processes with the MOBOTIX 7 platform and the M73 camera.

Highlights ...

* Platform with the most flexible codec support: H.264, H.265 *, MxPEG + and MJPEG.
* The compliance of ONVIF Profile S and T * guarantees maximum interoperability.
* Greater modularity with the flexible use of a combination of up to three sensors or functional modules.
* 4K UHD resolution.
* Wide dynamic range (WDR) with up to 120 dB.
* Easy Plug quick assembly system.
* Robust in any environment: –40 to 65 ° C / –40 to 149 ° F, IP66 and IK07.

Product Designation M73A Solution Platform
Application Area Indoor / Outdoor
MxBus YNo
Color Housing White
Technical Data
Ambient Temperature -40 to 65°C (-40 to 149°F)
IP Class IP66
IK Class IK07
Certifications EN55032; EN55035; EN50121-4; EN61000-6-1; EN61000-6-2; EN61000-6-3; EN61000-6-4; AS/ NZS CISPR32; CFR47 FCC part15B; EN62368; NRTL
MTBF 80.000 h
PIR Via MultiSense Functional module (from 2020)
Audio Via Functional module
DVR MicroSD card (8GB), MxPEG+ recording only
Protocols DHCP (client and server), DNS, ICMP, IGMP v3, IPv4, IPv6, HTTP, HTTPS, FTP, FTPS, NFS, NTP (client and server), RTP, RTCP, RTSP, SIP (client and server), SMB/CIFS, SNMP, SMTP, SSL/TLS v1.3, UDP, VLAN, VPN, Zeroconf/mDNS
Ethernet MxRJ45
Environmental Sensors Via MultiSense Functional module (from 2020)
Mounting Options Wall / Pole (with accessory)
Max. Frame Rate
  • MxPEG: 20@4K
  • H.264: 30@4K
  • H.265: 30@4K (April 2020)
Max. Image Size 4K UHD 3840x2160, 16:9
Image Format Freely configurable format 4:3, 8:3, 16:9 or customized format (Image Cropping), like 2592x1944 (5MP), 2048x1536 (QXGA), 1920x1080 (Full-HD), 1280x960 (MEGA)
PTZ
  • Digital
Sensitivity
  • Color sensor (day): 0,1 lx @ 1/60s; 0,005 lx @ 1s
  • BW sensor (night): 0,02 lx @ 1/60s; 0,001 lx @ 1s
Video Codec
  • H.264
  • H.265 with Triple-Streaming
  • MxPEG+
  • MJPEG
ONVIF Profile S and T (April 2020)
Image Sensor 4K UHD 3840x2160, 16:9
Power Consumption

max. 25 Watts

Power Supply Max. PoE class 4 (IEEE 802.3af/at)
Status LED 1 Multi-Color LED
Interfaces
  • Ethernet 1000BaseT
  • miniUSB
  • MOBOTIX 7 Modules (3x)
Signal Input 1
Signal Output 1
Dimensions 228 x 153 x 232 mm
Weight
