Español MiniBarebone NUC Industrial MiniPC 3.5. Intel N3160 JBC420 Dual Lan
MiniBarebone NUC Industrial MiniPC 3.5. Intel N3160 JBC420 Dual Lan
- MiniBarebone NUC.
- INTEL Braswell N3160 SoC processor.
- Supports SoDIMM DDR3 memory up to 8Gb.
- Built-in Long-life series, planned life cycle until the first quarter of 2020.
- Supports 2 x HDMI and 1 x DP for 3 independent screens.
- 2 x Gigabit Network 2 x USB 3.0 1 x Serial
- 12V DC-In and 2 x LAN.
of guarantee
shipping
Secure pay
Jetway JNU591B motherboard. Intel® Celeron N3160 SoC Fanless Processor, 1.60GHz - 2.24GHz Burst, Quad-Core, 6W TDP, with AES-NI support.
It includes Intel® HD Graphics 400. It is compatible with a DDR3L-1600 SO-DIMM memory module, up to 8Gb capacity, at a speed of 1600Mhz and with a voltage of 1.35V.
It also has a Full Size mSATA / mini-PCIE Shared Slot slot. Its rear connections are: 2 USB 3.0, 2 RJ45, 2 HDMI 1.4b, 1 Display port 1.1, 1 Jack 3.5mm and Jack Connector DC-in 12V 2.5mm.
Highlights...
* INTEL® Braswell N3160 SoC processor.
* Built-in Long-life Series, planned life cycle until the first quarter of 2020.
* Supports 2 x HDMI and 1 x DP for 3 independent screens.
* 12V DC-In and 2 x LAN.
* ECO design for EuP / ErP.
| General Data | |
| Model | JBC420U591W-3160B |
| Processor | Intel Celeron N3160 SoC, 1.60GHz 2.24GHz Burst, Quad-Core, 6W TDP, with AES-NI support |
| Chipset | SoC |
| Supported Memory | 1 SODIMM DDR3L-1600 Dual Channel 8Gb de memoria (1.35V Requerido) |
| Integrated graphics card | Intel HD Graphics 400 |
| Expansion Slotos | |
| IDE / SATA Connections | 1 mSATA |
| Ethernet card | 2 x Intel I211-AT PCI-E Gigabit LAN 1 x half size Mini-PCI Express Slot Wireless 802.11 b/g/n + Bluetooth 4.0 |
| Sound card | Realtek ALC662VD HD Audio |
| TV out | No |
| Internal connections | |

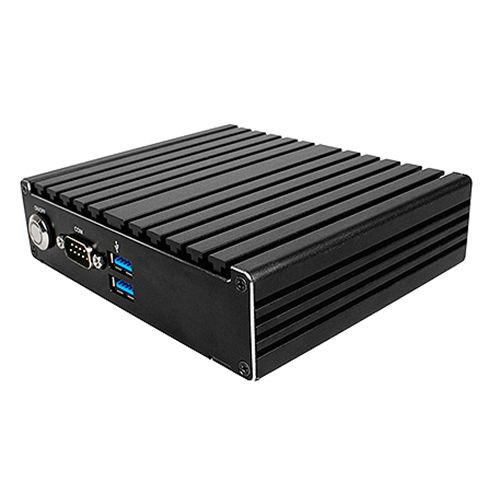

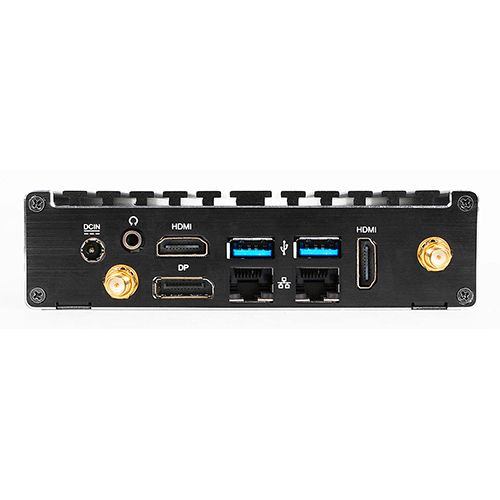

| Rear connections | FRONT OF 1 button On 1 Led on 2 USB 3.0 port 1 COM port REAR 2 USB 3.0 ports 2 HDMI ports 1 Display Port 1.1 2 RJ45 connector 2 SMA connector for Wifi antenna 1 Combo Jack audio co-connector 1 DC-In + 12V 2.5mm Power Connector |
| Compatible systems | Windows 7/8.1/10 (32/64 Bits) |
| Monitoring and administration system | |
| Operating temperature | 0 ~ 40º |
| Format / Dimensions | NUC 129x34x109mm |
| Weight | |
| Box content | 1 x 40W AC power adapter 1 x DIN Rail Kit 1 x CD Drivers 1 x WIFI antenna 1 x Manual |
