MiniBarebone NUC Industrial FDF632W-7200-B

MiniBarebone NUC Industrial FDF632W-7200-B

Jetway
Support 2* SO-DIMM DDR4-2133 up to 32GB
4* USB2.0, 4* USB3.0, 1* HDMI, 1* DP, 2* RJ45, 4* COM (Max), 1* MIC, 1* Line out
Support Max. 4K display resolution
M/B Form Factor : 3.5″ (148x102mm)
DC-12V_60W Adapter

P/N: FDF632W-7200-B

550,00 € Without VAT
665,50 € With VAT
2 years
of guarantee
sending
shipping
100%
Secure pay
MiniBarebone NUC Industrial FDF632W-7200-B

MB Model

– JNF632E-XXXX / 3.5” SBC
– Core Number : i5-7200U / i5-7300U / Celeron 3855U

BIOS

– AMI 128Mb SMT Flash ROM

CPU/Chipset

– Intel® Skylake/Kabylake U Processor (TDP 15W)
Notes : When the system runs, CPU will automatically adjust its working clock frequency according to changing workload.

Memory

– 2 * SO-DIMM slots DDR4-2133MHz up to 32GB

Storage

– 1 * 2.5” SATA3 6Gb/s internal drive bay (only support 2.5″ HDD with a hight ≤ 10mm)
– 1 * Mini-PCIe (full size, shared with mSATA)

Network

– 2 * Intel® GbE
– 1 * half-size Mini-PCIe slot (for WiFi expansion)

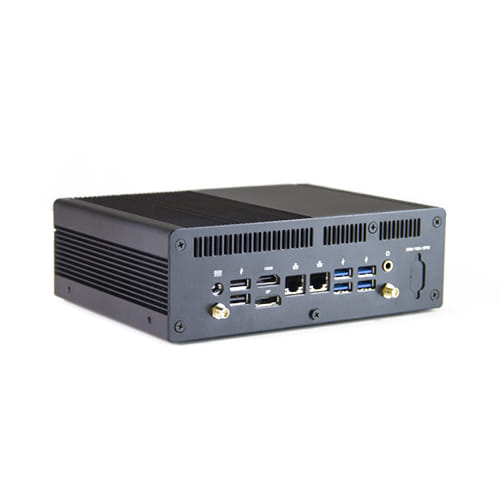

Rear Panel I/O

– 2 * USB 2.0 , 4 * USB 3.0
– 1 * HDMI (Max. resolution:4096 x 2160@24Hz)
– 1 * DP (Max. resolution:4096 x 2304@60Hz)
– 2 * RJ45
– 1 * Line-out
– 1 * GPIO (Optional)

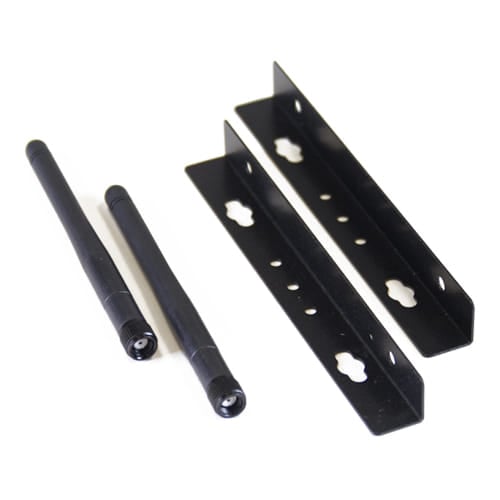

– 2 * Antenna holes (Optional)
– 1 * DC-In jack

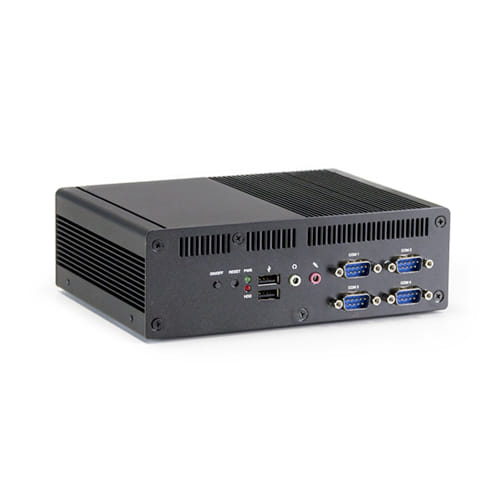

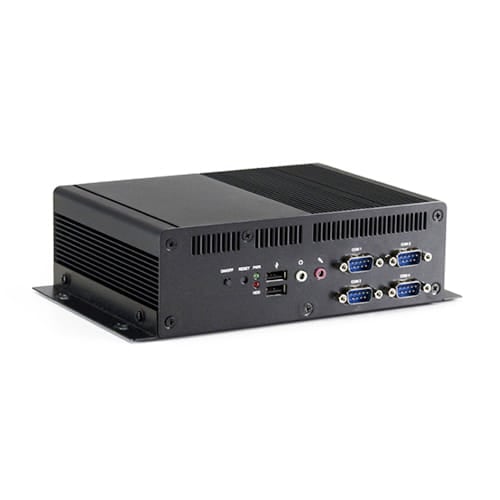

Front Panel I/O

– 1 * Power button, 1 * Reset button
– 1 * Power LED, 1 * HDD LED
– 2 * USB 2.0 ports
– 1 * Line-out, 1 * MIC-in
– 2 * COM (Default, max 4 COM, COM1 supports RS232/422/485, setting by BIOS)

Power Source

– DC Adapter / DC12V-5A-60W
– AC 90~240V input

Compliance

– CE, FCC, LVD, RoHS

Safety

– Vibration test: N.C
– Shock test: N.C

Temperature

– Operating Temperature: -20 ~ 50° C (Under the condition of using mSATA or SSD)
– Operating Temperature: 0 ~ 50° C (Under the condition of using 2.5” SATA HDD)
(The test environment is closed and windless)
– Storage Temperature: -20 ~ 70° C
Humidity: Between 40% and 60%, non-condensing

Dimensions

– 193 (W) x 142.4 (D) x 62 (H) mm

Packing

– Net Weight: 2.2KG
– Gross Weight: 3.2KG
– Color Box dimension: 250 (W) * 118 (D) * 295 (H) mm

OS Support

– Skylake CPU support Win7, Win8, Win10.
– HBFDF632(W)-7200-B (Kabylake CPU) only support Win10.
