M350. Mini-ITX
- The universal box Incredible box in capital letters.
- Every detail of this box is a pleasant surprise.
- A disk of 2.5 includes space as standard.
- It is manufactured to be used without fans taking advantage of a dissipation by natural convection.
of guarantee
shipping
Secure pay

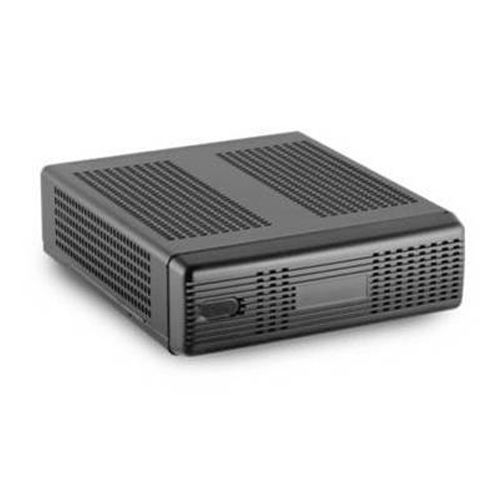

The M350 box is, without a doubt, the most versatile professional mini-ITX box ever designed.

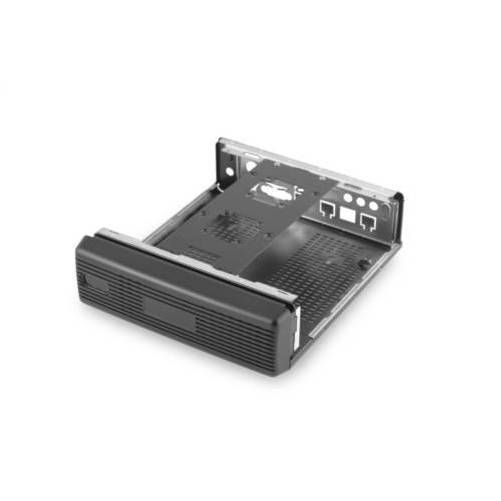

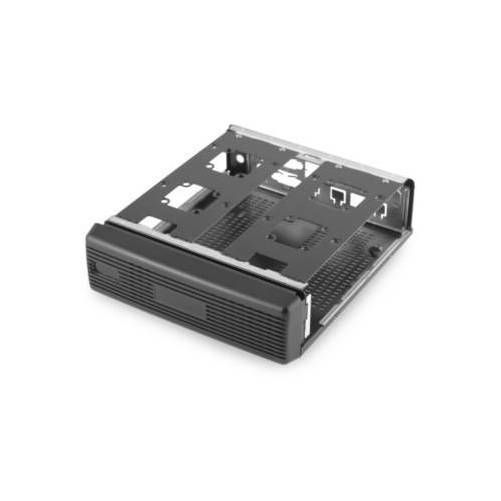

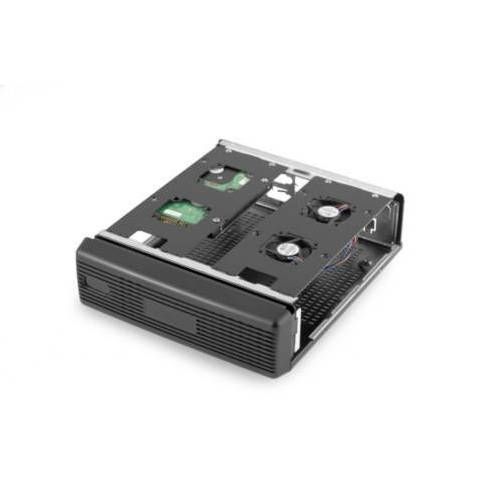

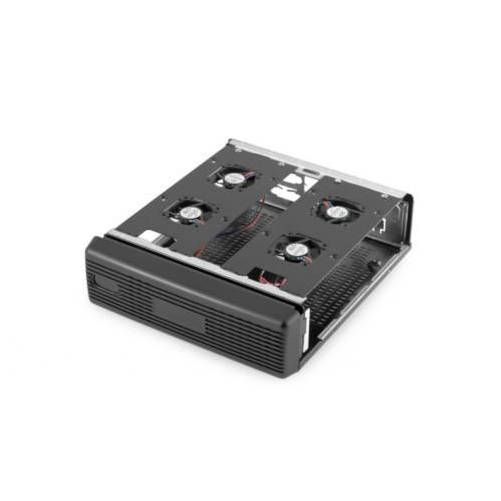

Every detail of this box is a pleasant surprise. M350 Mini-ITX is manufactured to be used without fans taking advantage of a natural convection dissipation, it also offers a wide range of options to include 40x40x10mm fans to force cooling from the front and from the top if necessary.
The M350 MINI ITX box is designed to dissipate heat from the components of the equipment by convection.
For this it includes several grilles with hundreds of small holes through which the heat escapes.

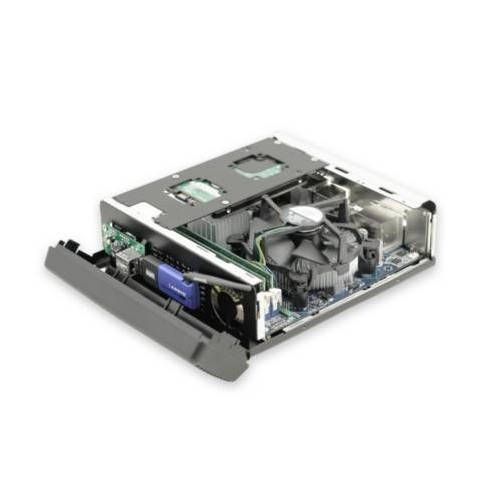

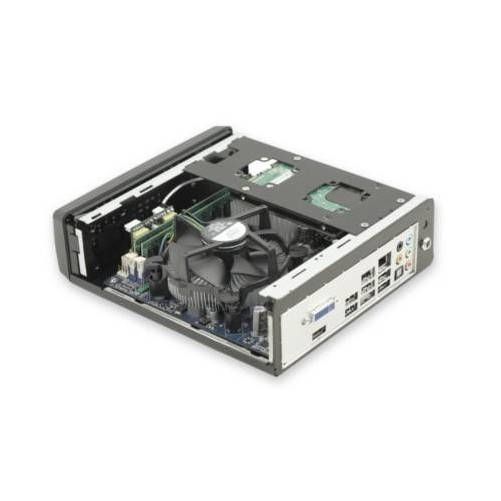

Despite its small size, you will find that you will not have problems installing boards that use standard-size coolers (like some Intel boards with Mobile processors).
And of course, it is compatible with boards that use Intel Atom processor, VIA Eden, C3 or VIA Nano. This box does not include power supply.

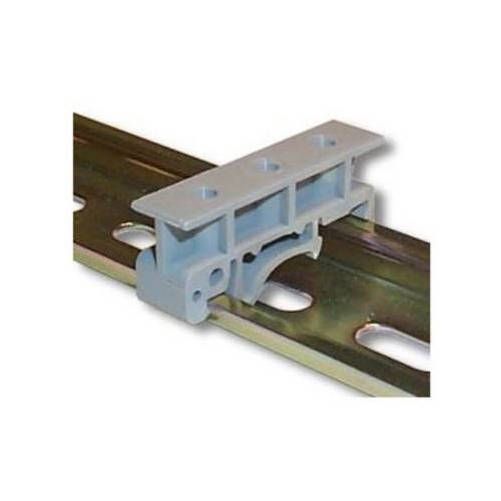

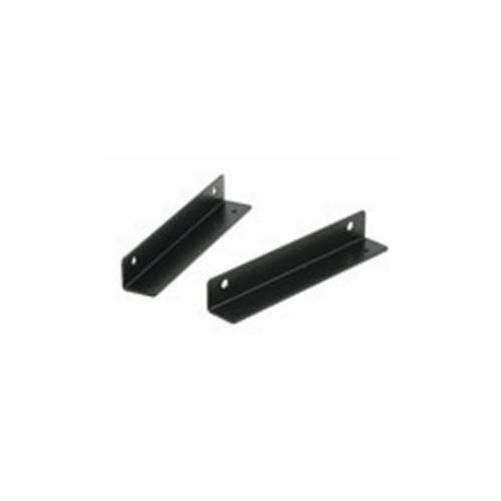

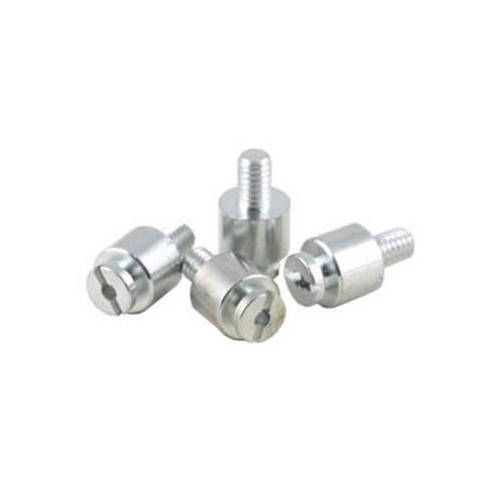

It is compatible with Mini-ITX boards that integrate the DC-DC transformer, and also with those that do not integrate it, adding some of the famous PicoPSU sources. Optionally, additional parts are offered for wall mounting, on the back of a VESA monitor or on DIN rail.
Highlights from M350 Mini-ITX ...
* Reduced dimensions.
* High cooling capacity.
* Possibility of locating it in different spaces and in different ways.
* Possibility of customization.
* Large number and diversity of applications. You can see more information in this LINK
| Description | |
| Model | M350 |
| Material | Front -> Plastic Structure -> Aluminum |
| Form Factor | Mini-itx |
| External color | Black |
| Internal color | Interior and grilles Black |
| Connections | USB 2.0 x 2 |
| Power Supply included | No |
| Extras | Front cover concealment of usb. It can be used without fans, as it has dissipation holes throughout the structure. 4cm fans can be mounted on the hard drive adapters in the case. It has additional parts for wall mounting, vesa or DIN rail. Antenna and cable for optional wireless rear. |
| Compatibility | |
| Comp. Motherboards | Mini-ITX |
| P.S. Format | PicoPSU |
| P.S. Max Length | |
| VGA Max Length | |
| Cooler Max Height | |
| Expansion | |
| Slots | |
| External bays | |

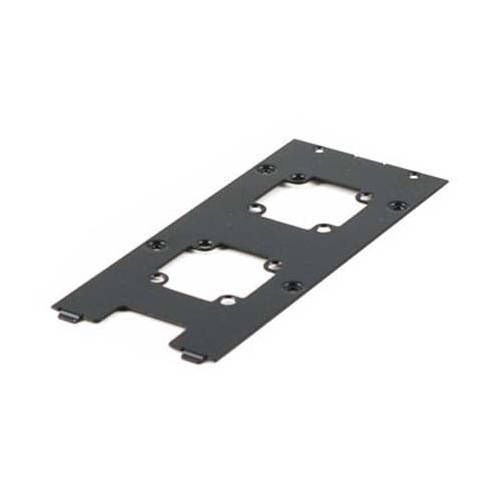

| Internal bays | 2.5" x 1 (additional support for another hd can be added) |
| Refrigeration | |
| Front | |
| Rear | |
| Top | |
| Bottom | |
| Side | |
| Dimensions | |
| Width | 192 mm. |
| Height | 62 mm. |
| Depth | 210 mm. |
| Weight | |
