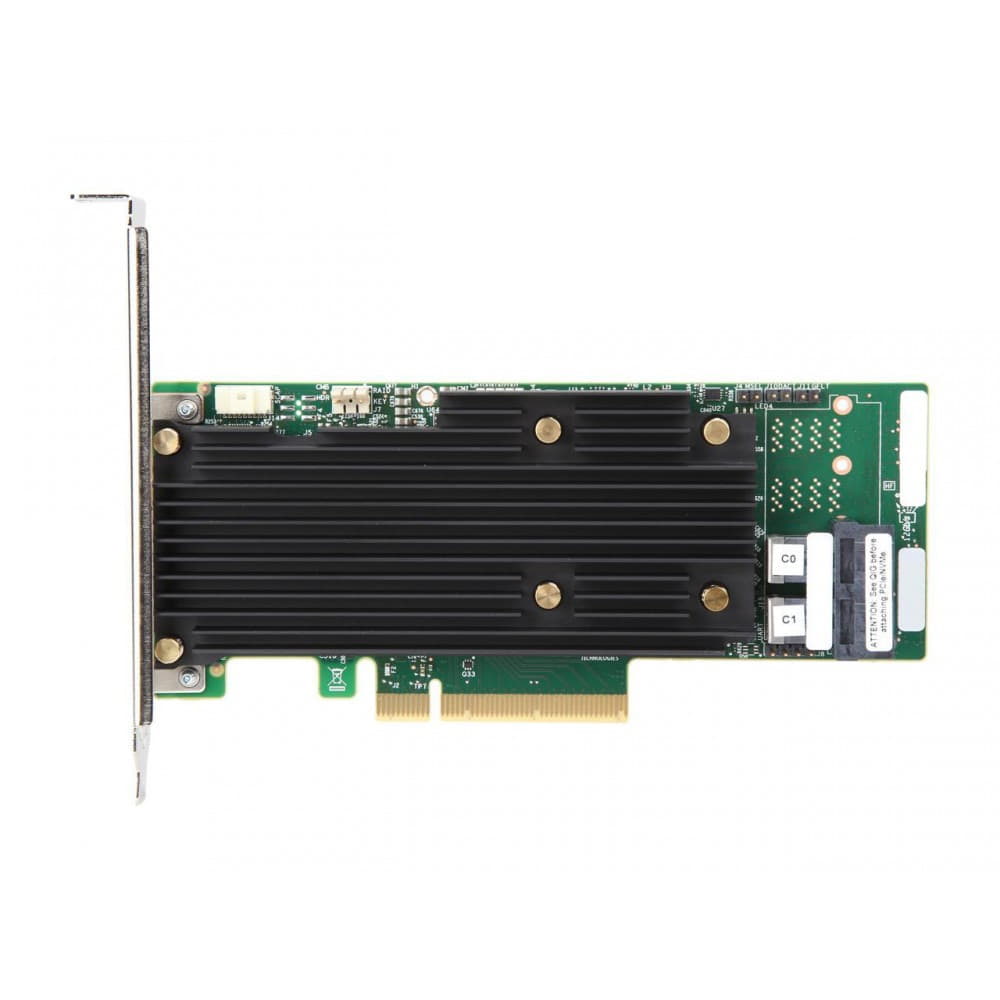

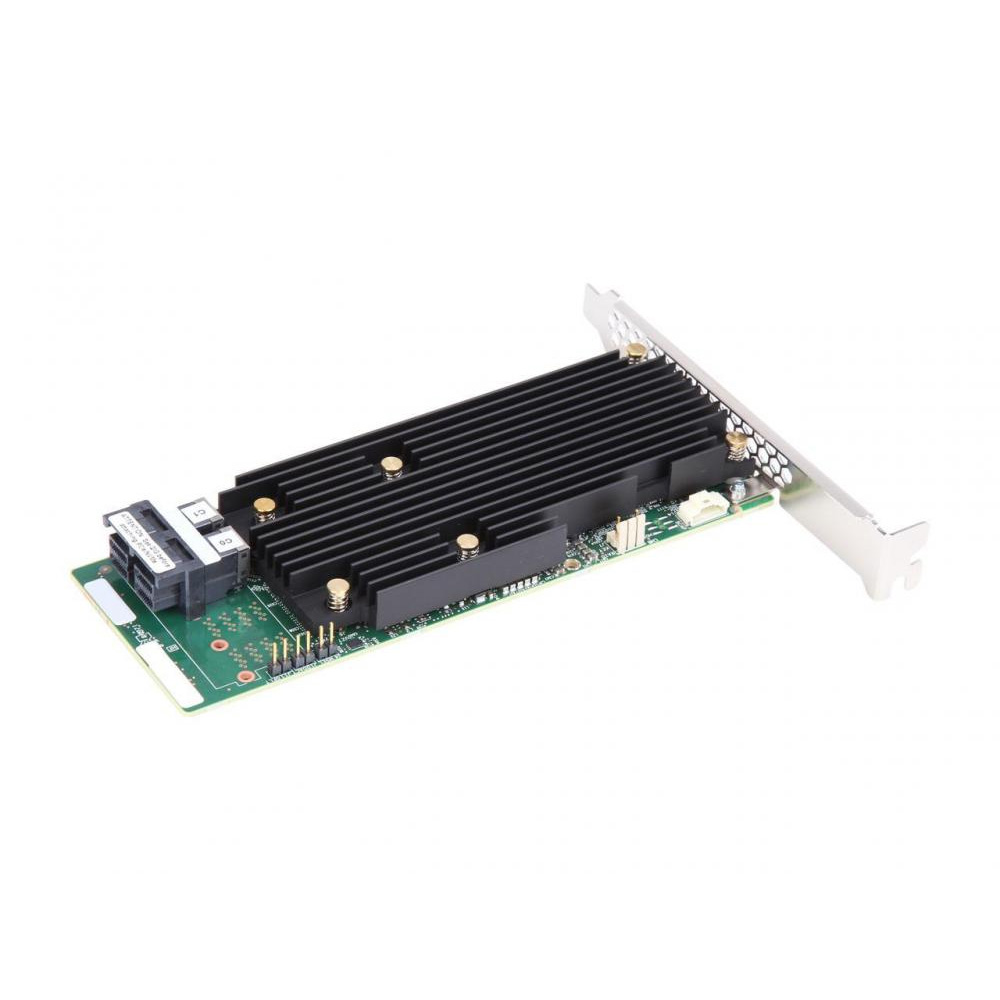

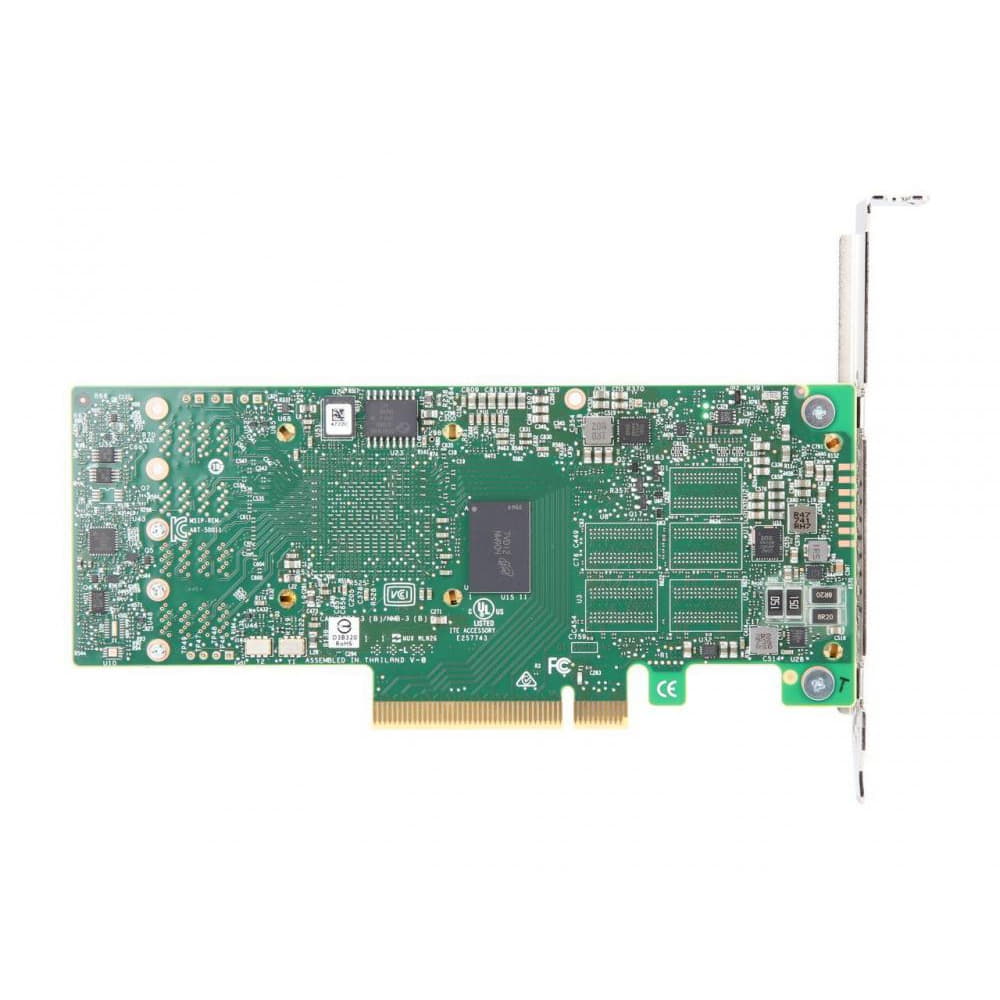

LSI MegaRAID 9460-8i 8 Puertos SAS/SATA/NVMe
- Tri-Mode storage interface ports.
- Supports 12, 6, and 3 Gb/s SAS and 6 and 3 Gb/s SATA data transfer rates.
- Up to 8 storage interface PCIe links.
- SFF-9402 compliant, connector pin-out.
- SFF-8485 compliant, SGPIO.
- RAID levels 0, 1, 5, 6*, 10, 50, and 60.
- CacheVault flash back-up at power fail.
- PCIe 3.1 host interface.
of guarantee
shipping
Secure pay
Data center, cloud and high-performance computing environments not only require large amounts of storage capacity, they also must provide the data protection, flexibility and performance today’s applications and end users demand. The MegaRAID 9460-16i Tri-Mode Storage Adapter is a 12Gb/s SAS/SATA/PCIe (NVMe) controller card that addresses these needs by delivering proven performance and RAID data protection for a range of high-end server storage applications.
MegaRAID Tri-Mode storage adapters bring NVMe performance benefits to the storage tier by providing connectivity and data protection that MegaRAID technology has offered for over 20 years for SAS/SATA interfaces. Based on the dual-core SAS3516 or SAS3508 RAID-on-Chip (ROC) and 72-bit DDR4-2133 SDRAM, these controllers provide bandwidth and IOPS performance increases compared to the previous generation and are ideal for high-end servers using internal storage or connecting to largescale external storage enclosures.
Broadcom’s Tri-Mode SerDes Technology enables operation of NVMe, SAS, or SATA storage devices in a single drive bay. A single controller can operate in all three modes concurrently servicing NVMe, SAS, or SATA drives. The controller negotiates between the speeds and protocols to seamlessly work with any of the three types of storage devices. Tri-Mode support provides a non-disruptive way to evolve existing data center infrastructure. By upgrading to a Tri-Mode controller, users can expand beyond SAS/SATA and use NVMe without major changes to other system configurations.
Highlights...
* Tri-Mode storage interface ports.
* Supports 12, 6, and 3 Gb/s SAS and 6 and 3 Gb/s SATA data transfer rates.
* Up to 8 storage interface PCIe links.
* SFF-9402 compliant, connector pin-out.
* SFF-8485 compliant, SGPIO.
* RAID levels 0, 1, 5, 6*, 10, 50, and 60*.
* CacheVault flash back-up at power fail.
* PCIe 3.1 host interface.
| Physical Dimensions | 155.65 x 68.90mm |
| Connectors | Two (x4) SFF-8643 |
| Supported interface | SAS, SATA, PCIe (NVMe) |
| Max. PCIe (NVMe) | Two x4, Four x2 |
| Max. Devices Per Controller | SAS/SATA: 240 NVMe: 24 |
| Cache Memory | 2 GB 2133 MHz DDR4 SDRAM |
| I/O Processor/ SAS Controller | SAS3508 |
| Host Bus Type | PCIe 3.1 x8 |
| Key RAID Data Protection Features | • RAID levels 0, 1, 5, and 6* • RAID spans 10, 50, and 60* • JBOD Mode* • Online Capacity Expansion (OCE) • Online RAID Level Migration (RLM) • Auto resume after loss of system power during array rebuild or reconstruction (RLM) • Single controller multipathing • Load balancing • Configurable stripe size up to 1 MB (64 KB only for 9440-8i) • Fast initialization for quick array setup • Check consistency for background data integrity • SSD support with SSD Guard™ technology • Patrol read for media scanning and repairing |
| Operating Temperature | 0°C to 55°C |
| Operating Voltage | +12V ± 8%; 3.3V ± 9% |
| MTBF (Calculated) | >3,000,000 hours at 40°C |
| Management Software | LSI Storage Authority (LSA) StorCLI (command-line interface), HII (UEFI Human Interface Infrastructure) |
| Regulatory Certifications | USA (FCC 47 CFR part 15 Subpart B, Class B); Canada (ICES-003, Class B); Taiwan (CNS 13438); Japan (VCCI V-3); Australia/New Zealand (AS/NZS CISPR 22); Korea (RRA No. 2013-24 & 25); Europe (EN55022/EN55024); Safety: EN/IEC/ UL 60950; RoHS; WEEE |
| OS Support | Microsoft Windows, VMware vSphere/ESXi, Red Hat Enterprise Linux, SuSE Linux, Ubuntu Linux, Citrix XenServer, CentOS Linux, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSD. |
