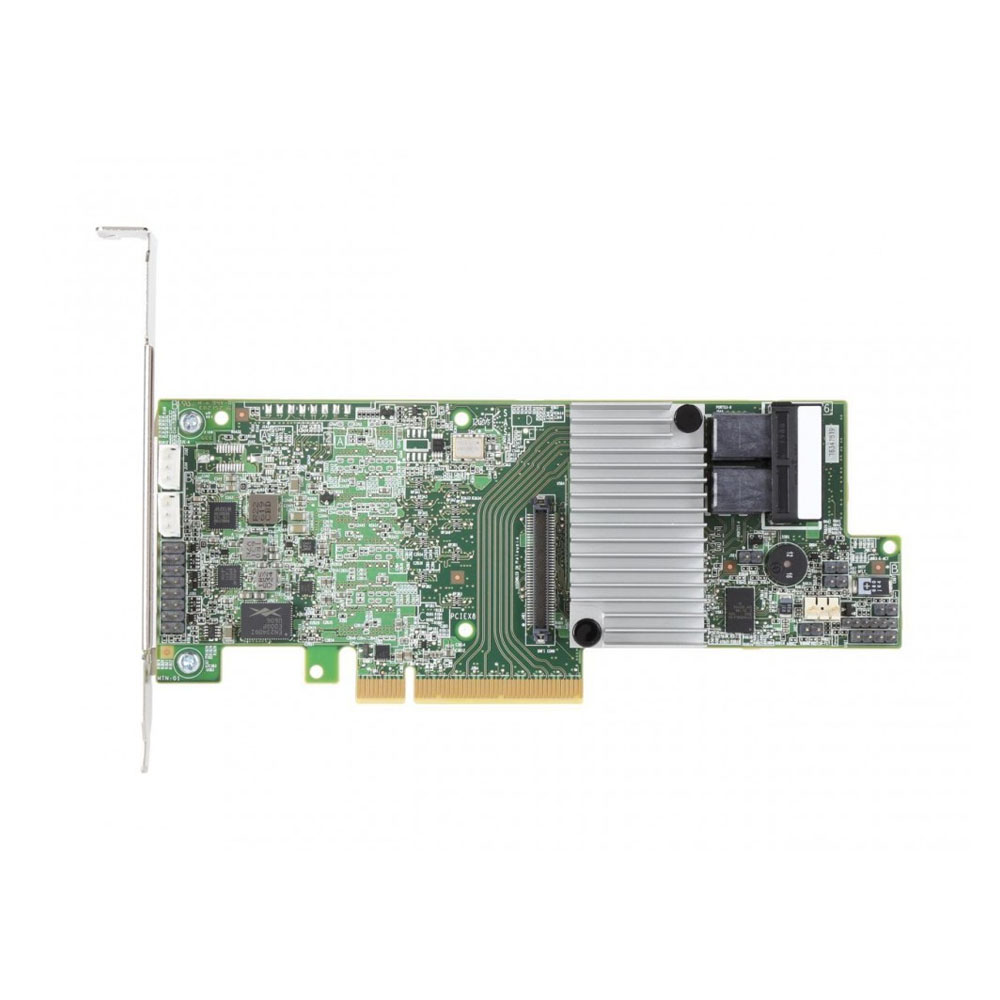

LSI MegaRAID 9361-8i SAS/SATA
- Connect up to 128 SATA or SAS drives with eight internal 12 Gb / s SATA and SAS ports.
- Fits low profile form factor rack mounted servers and side mounted SAS connectors.
- Supports critical high-bandwidth applications with PCIe® 3.0 connectivity.
- Balance protection and performance for critical applications with RAID levels 0, 1, 5, 6, 10, 50, and 60.
- Add more protection and peace of mind with optional CacheVault® flash cache protection.
The price that appears is indicative
of guarantee
Insured
Secure pay
Data centers, cloud, and high-performance computing environments not only require large amounts of storage capacity, they must also provide the data protection and performance that today's applications and end users demand. The SAS 9361-8i MegaRAID SAS and SATA 12 Gb / s RAID Controller Card meets these needs by offering proven performance and RAID data protection for a variety of server storage applications.
The explosive growth of data in the cloud and enterprise data centers is leading to the need to direct efforts to improved storage performance interfaces to increase the speed of applications to access the most important data.
This 12 Gb / s SAS adapter is designed to achieve the best performance and data protection necessary for next-generation storage and server platforms.
It offers up to twice the amount of data transfer than other SAS solutions, and its 12 Gb / s allows SAS infrastructures to send bandwidth that can take full advantage of its PCI Expres 3.0 with a single controller card.
The MegaRAID SAS 9361-8i has eight internal ports, a 1.20 GHz PowerPC® dual-core processor, a 72-bit DDRIII interface, and 1 Gb of cache memory. All this is powered by the LSI SAS 3108 Dual-COre ROC, which includes the latest PCI Express 3.0 technology and 12 Gb / s SAS technology.
Highlights ...
* Its 12 G12Gb / s accelerate performance to the next level.
* Ideal for data centers, workstations and servers.
* Connect up to 128 SATA and SAS devices.
| Puertos e interfaces | ||||
| Interfaces soportados | SAS, SATA | |||
| Interfaz de host | PCI Express x8 | |||
| Interfaz de salida | SAS,SATA | |||
| Nºpuertos SATA internos | 4 | |||
| Desempeño | ||||
| Niveles RAID | 0, 1, 5, 6, 10, 50, 60 | |||
| Soporte SSD | Si | |||
| Memoria interna | DDR3 | |||
| Velocidad de memoria | 1866 MHz | |||
| Transferencia de datos | 12 Gbit/s | |||
| Soporte S.M.A.R.T. | Si | |||
| Ancho | 64 mm | |||
| Profundidad | 167,6 mm | |||
