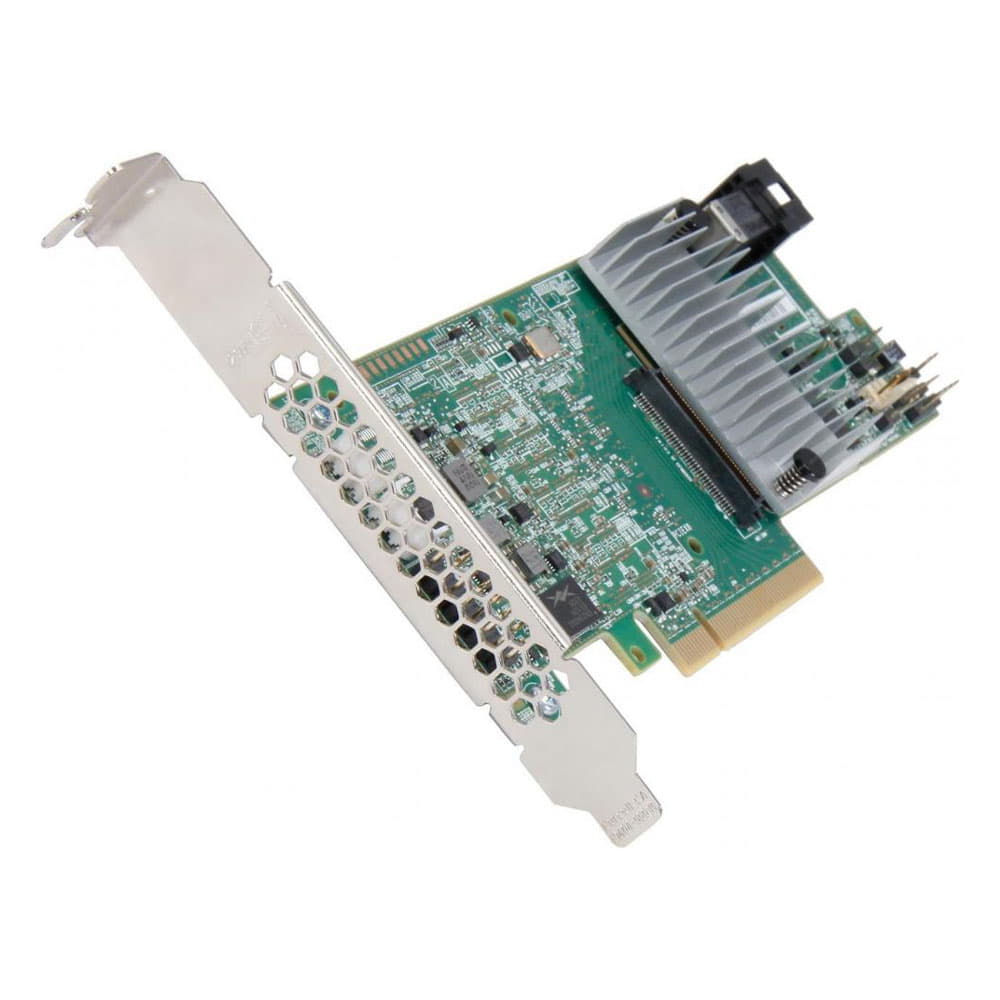

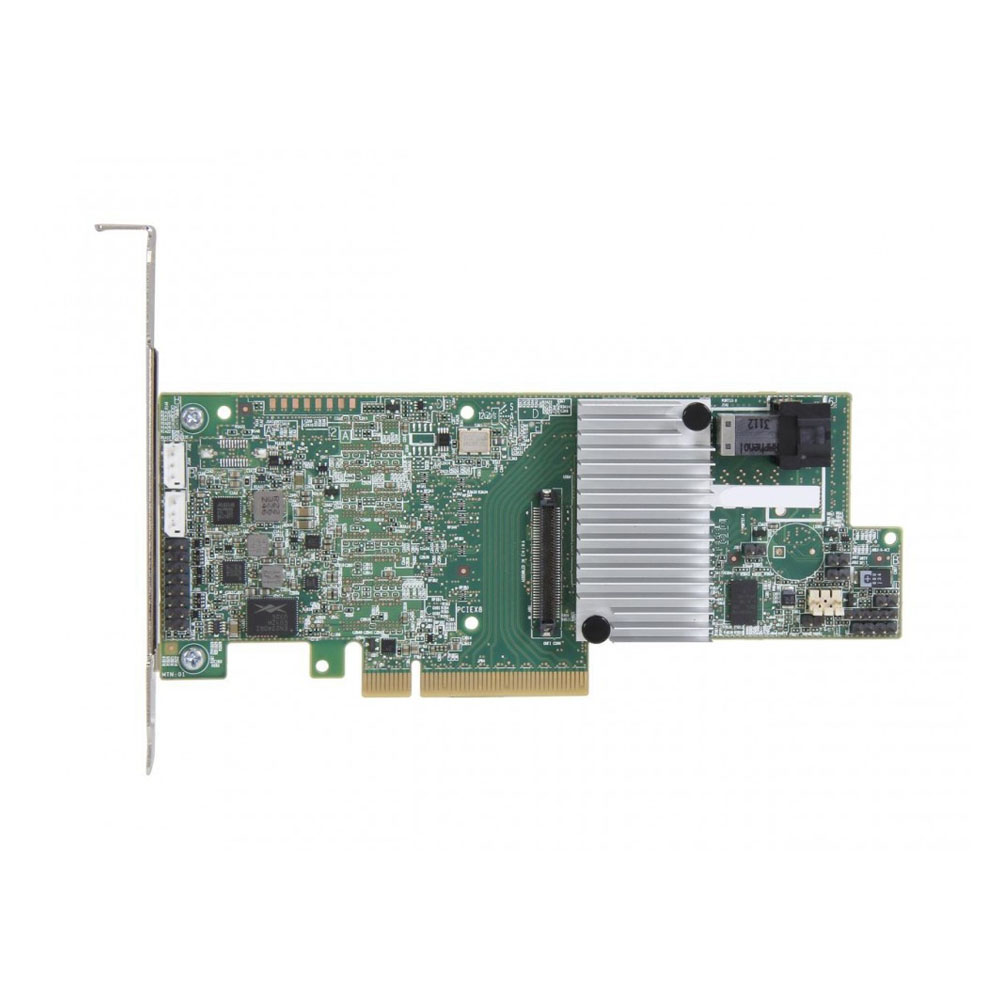

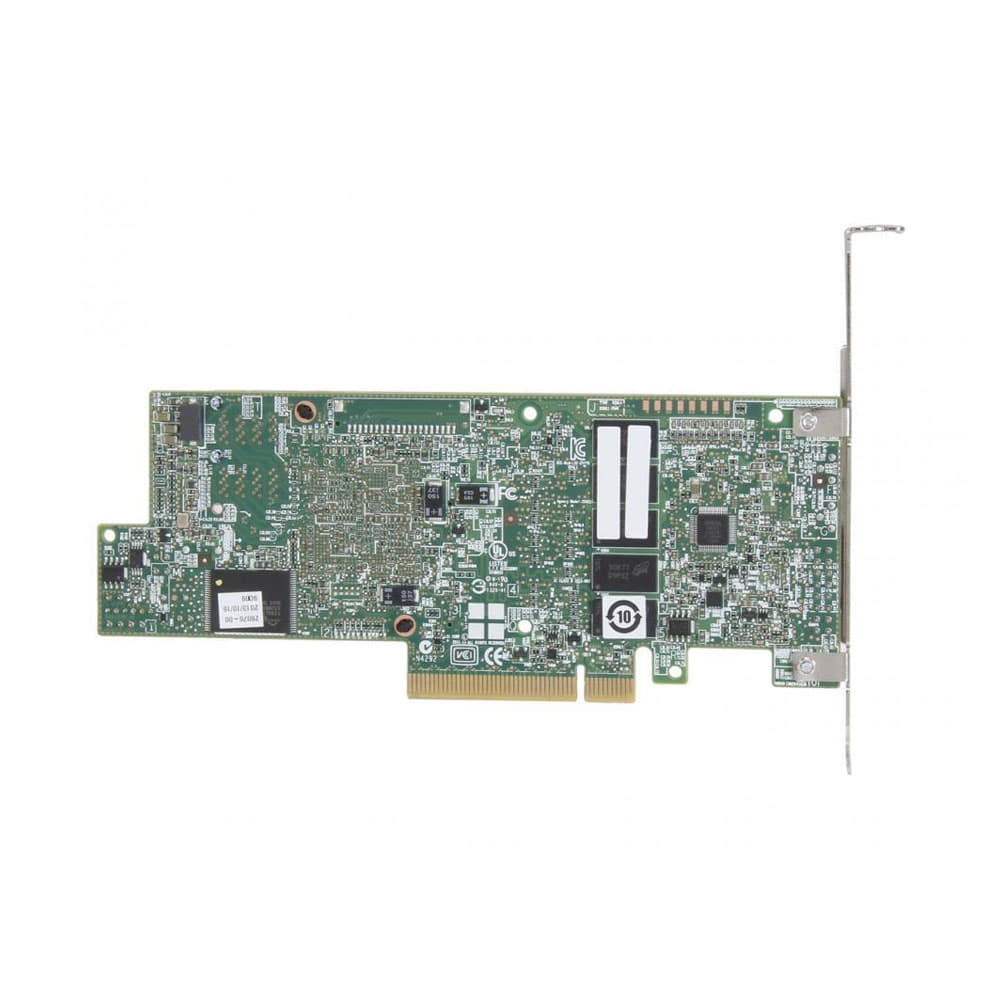

LSI MegaRAID 9361-4i SAS/SATA

LSI MegaRAID 9361-4i SAS/SATA

Broadcom LSI
  • Connect up to 1024 SAS and SATA devices with 8 external 12 Gb / s SAS and SATA ports.
  • Fits low profile form factor 1U / 2U servers and workstations (full height bracket included).
  • Provides up to 12 Gb / s of SAS and up to 6 Gb / s of SATA performance with PCIe® 3.0 connectivity.

P/N: 05-25420-10 - EAN/UPC: 0830343003051

750,00 € Without VAT
907,50 € With VAT
This product is not available in our warehouse or in any of our suppliers at this time.
The price that appears is indicative
3 years
of guarantee
Shipment
Insured
100%
Secure pay

Otros clientes que vieron este producto también se interesaron en
251,22 €
Without VAT
303,98 €
With VAT
LSI MegaRAID CVM02 CacheVault Kit (9361 series)
119,39 €
Without VAT
144,46 €
With VAT
LSI MegaRAID CVPM02 CacheVault Kit
13,68 €
Without VAT
16,55 €
With VAT
Inline 76620B. Adaptador mSATA a SATA 2.5

For applications that need external storage connectivity, the 12Gb / s SAS 9300-8e adapter allows servers of any size to connect to over 1000 SAS or SATA end devices. Scale storage to support high-performance, high-capacity applications with 12 Gb / s SAS and the flexibility to support 6 Gb / s SATA drives.

The explosive growth of data in the cloud and enterprise data centers is leading to the need to direct efforts to improved storage performance interfaces to increase the speed of applications to access the most important data.

This 12 Gb / s SAS adapter is designed to achieve the best performance and data protection necessary for next-generation storage and server platforms.

It offers up to twice the amount of data transfer than other SAS solutions, and its 12 Gb / s allows SAS infrastructures to send bandwidth that can take full advantage of its PCI Expres 3.0 with a single controller card.

The MegaRAID SAS 9361-4i has four internal ports, a 1.20 GHz PowerPC® dual-core processor, a 72-bit DDRIII interface and 1 Gb of cache memory. All this is powered by the LSI SAS 3108 Dual-COre ROC, which includes the latest PCI Express 3.0 technology and 12 Gb / s SAS technology.

Highlights ...

* Its 12 G12Gb / s accelerate performance to the next level.
* Ideal for data centers, workstations and servers.
* Connect up to 128 SATA and SAS devices.

Puertos e interfaces
Interfaces soportados SAS, SATA
Interfaz de host PCI Express x8
Interfaz de salida SAS,SATA
Nº puertos SATA internos 4
Desempeño
Niveles RAID 0, 1, 5, 6, 10, 50, 60
Soporte SSD Si
Memoria interna DDR3
Velocidad de memoria 1866 MHz
Velocidad de transferencia 12 Gbit/s
Soporte S.M.A.R.T. Si
Ancho 64 mm
Profundidad 167,6 mm
