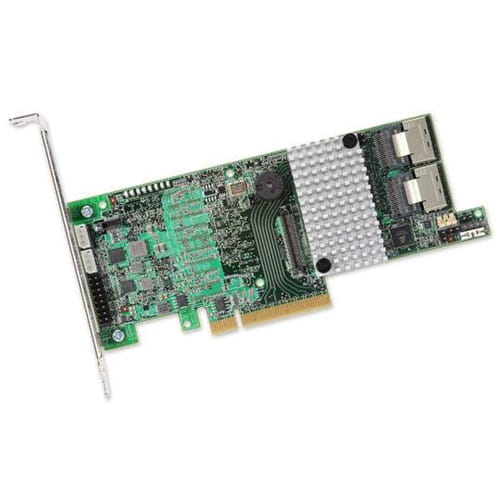

LSI MegaRAID 9271-8i SAS/SATA
- Connect up to 128 SATA or SAS drives with eight internal 6Gb / s ports.
- Fits low profile form factor rack mounted servers and side mounted SAS connectors.
- Bandwidth to support critical applications with PCIe® 3.0 connectivity.
- Balance protection and performance for critical applications with RAID levels 0, 1, 5, 6, 10, 50, and 60.
- Add more protection and peace of mind with optional CacheVault® flash cache protection and heat-tolerant battery backup cache protection modules.
The price that appears is indicative
of guarantee
Insured
Secure pay
Today's high-performance data centers, cloud, and computing environments not only require very high storage capacity to be able to deal with the highest volumes of data as quickly as possible, they also need to protect and send data to achieve the needs of applications and end users.
The MegaRAID® SAS 9271-8i 6 Gb / s SAS and SATA RAID RAID controller card offers RAID data protection and performance for a wide range of server storage applications.
The MegaRAID SAS 9271-8i is able to handle all demands thanks to its 6 Gb / s SAS RAID controllers and its powerful combination of performance, protection and interoperability.
Its 8 internal ports are powered by two 800 MHz PowerPC® processors and its 72-bit DDRIII memory interface with 1Gb of cache. All this powered by its LSI SAS 2208 Dual-Core ROC and the latest PCI Express 3.0 with its 6 Gb / s SAS technology improving performance to the maximum.
Highlights ...
* Connects up to 128 3Gb / s and 6Gb / s SAS and SATA hard drives
* Help users to check the true potential of SSDs.
* Its CacheVault technology reduces expense.
* Option to add a heat tolerant battery.
| Puertos e Interfaces | ||||
| Conectores internos | Dos Mini-SAS SFF8087 (side mount) | |||
| Interfaz de host | PCI Express x8 | |||
| Versión PCI Express | 3.0 | |||
| Transferencia de datos | Hasta 6 Gb/s por puerto | |||
| Dimensiones | ||||
| Factor de Forma | MD2 perfil bajo | |||
| Dimensiones | 6,6" x 2,536" | |||
| Condiciones ambientales | ||||
| Temperatura operativa | 0 - 55 °C | |||
| Desempeño | ||||
| Niveles RAID | 0, 1, 5, 6, 10, 50, 60 | |||
| Soporte SSD | Si | |||
| Memoria interna | 1024 MB DDR3 | |||
| Procesador | LSI SAS 2208 Dual-Core RAID on Chip (ROC) | |||
| Cache | 1 GB 1333MHz DDRIII SDRAM | |||
| Nº dispositivos soportados | 128 | |||
| Tipo de BUS Host | x8 lane PCI Express 3.0 compliant | |||
