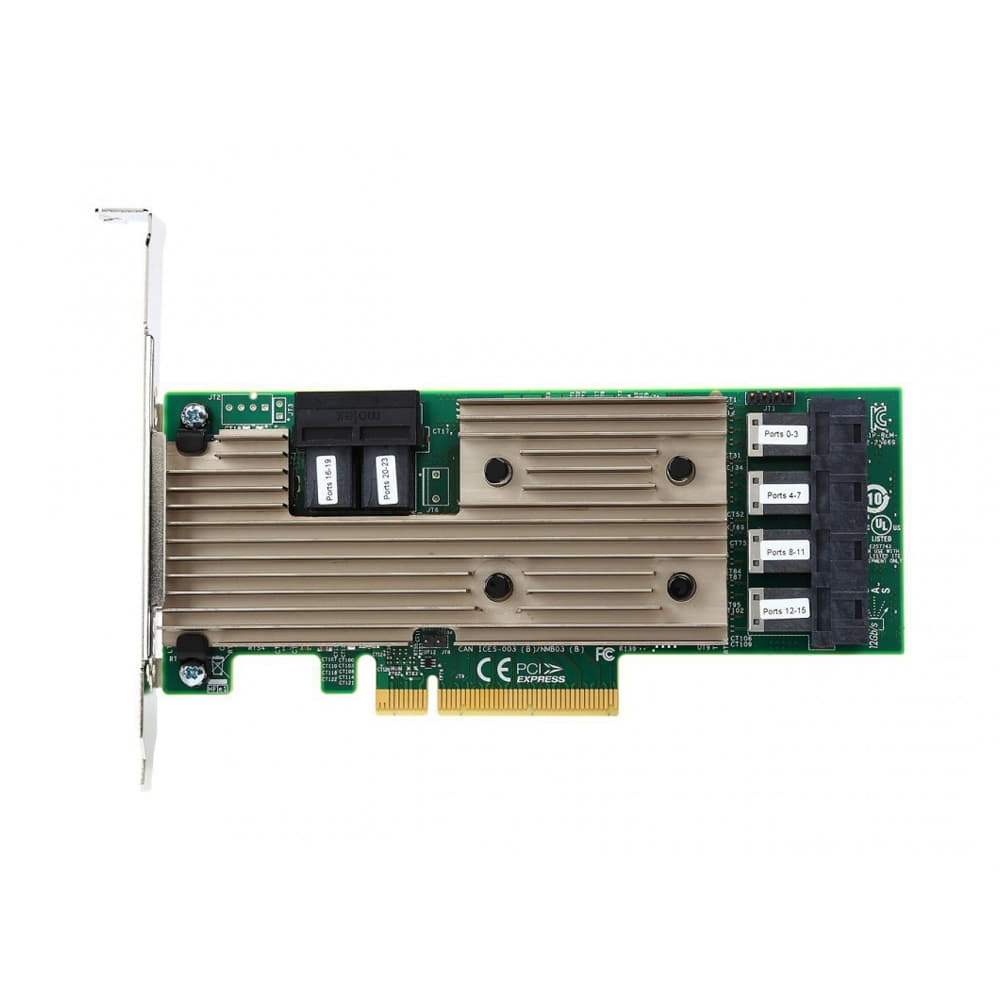

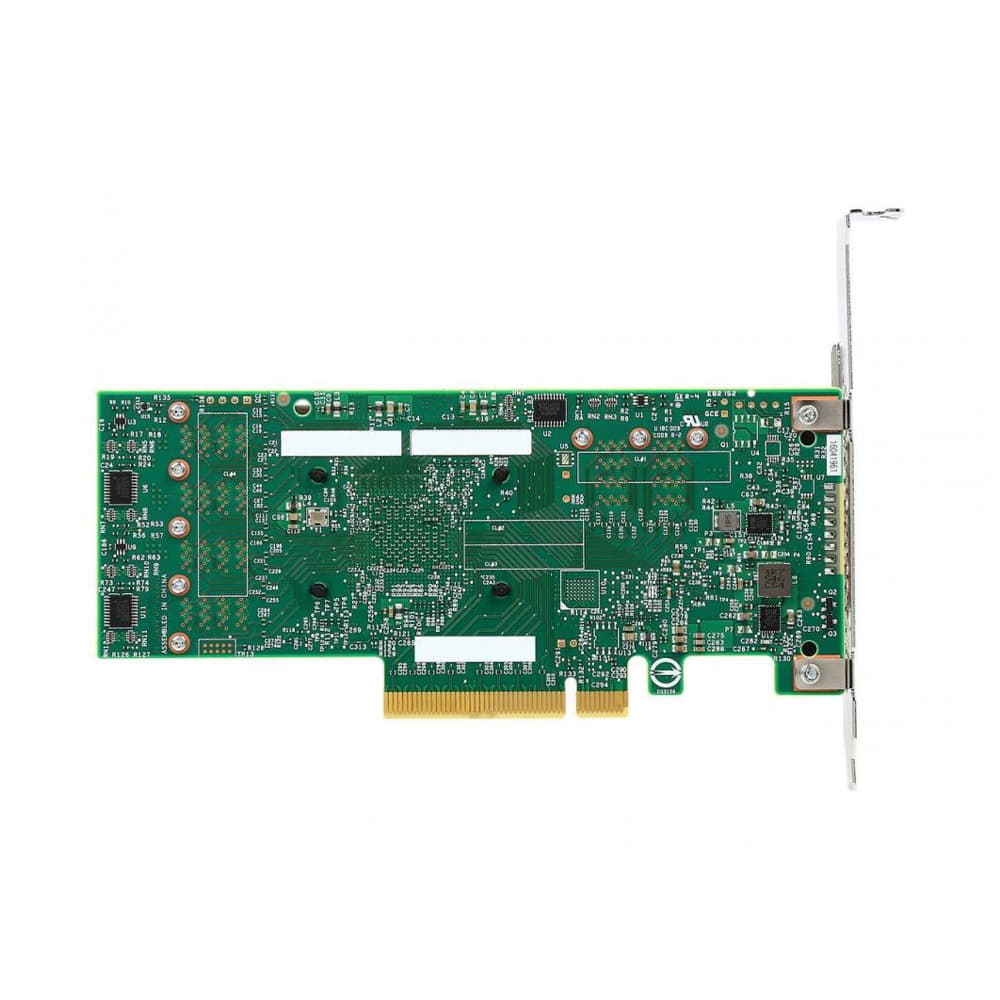

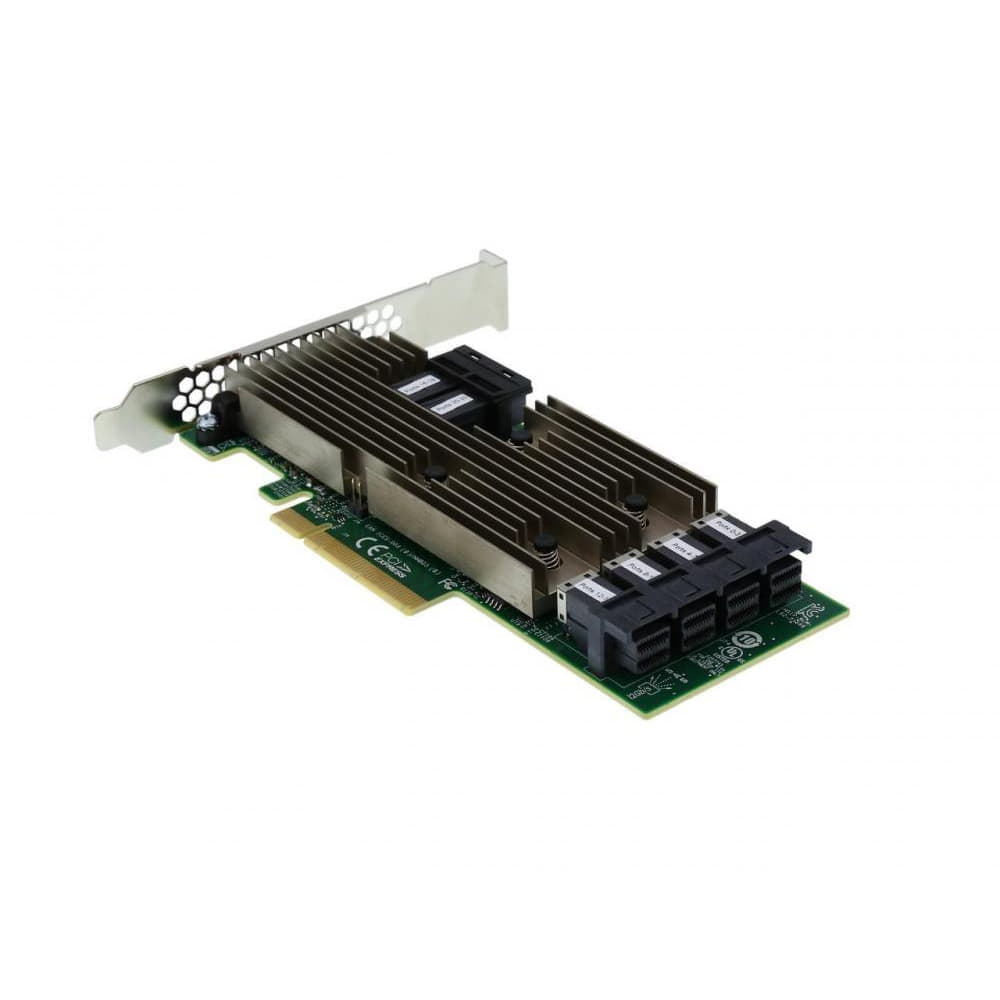

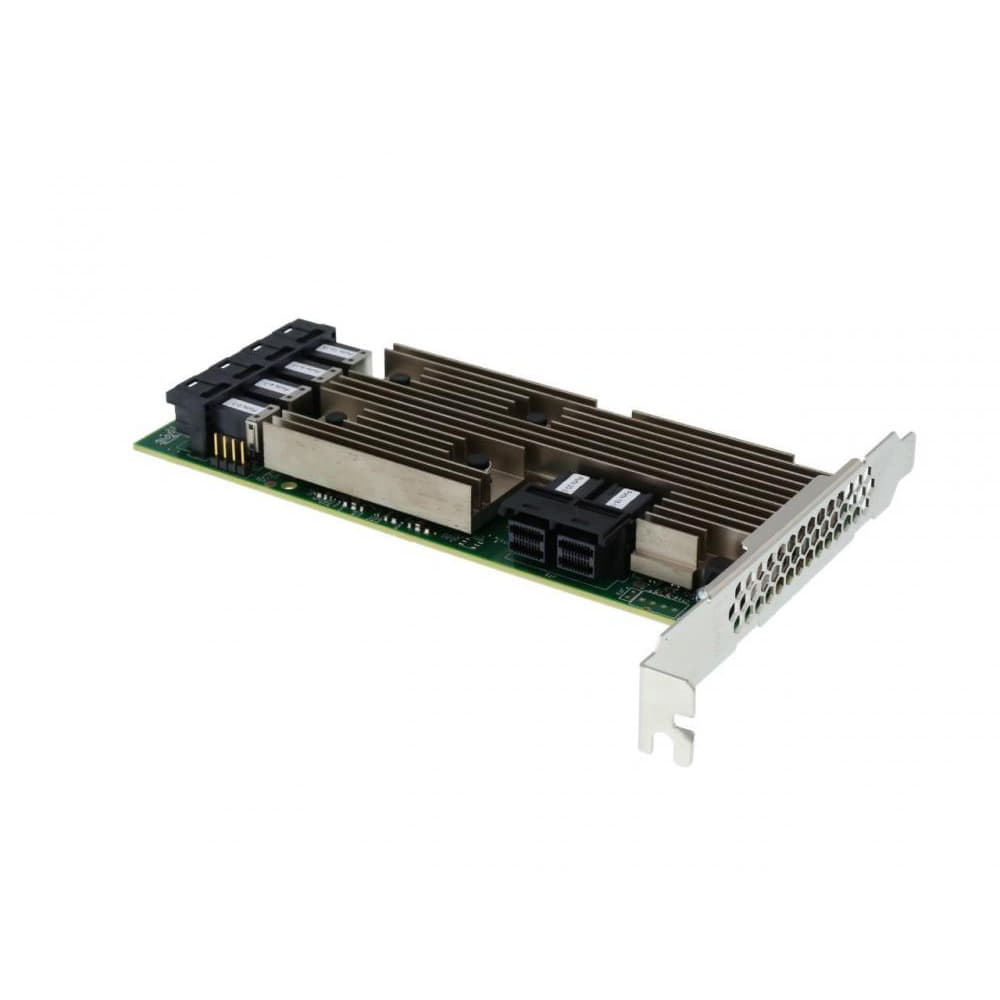

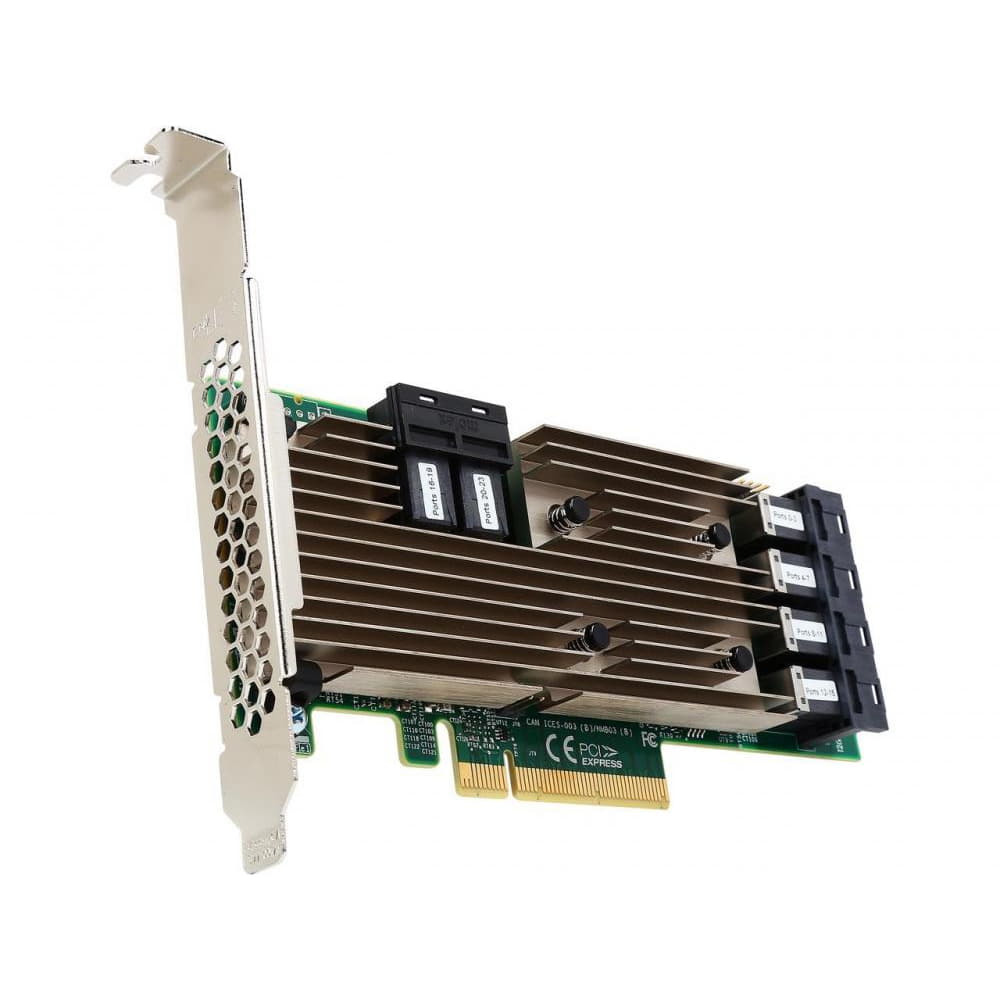

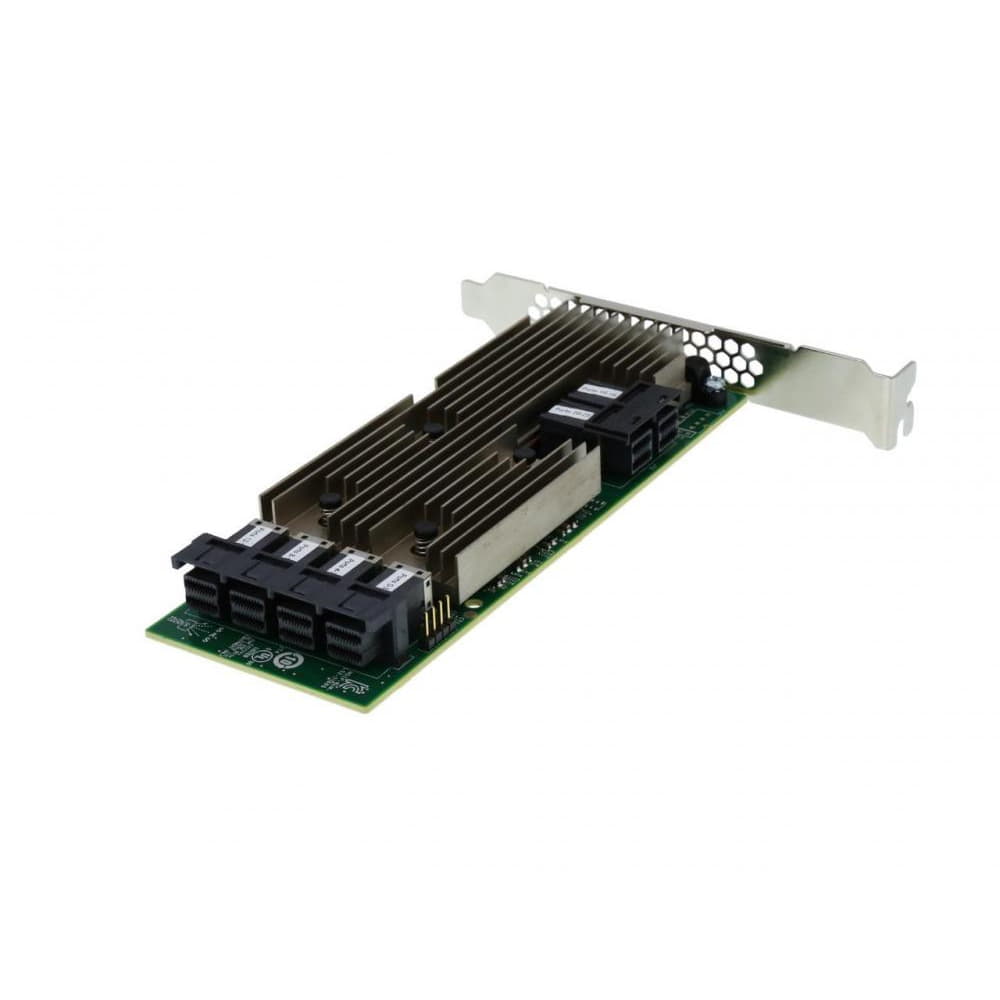

LSI 9305-24i SAS/SATA. 24 Puertos.
- Provides maximum connectivity to 24 SAS / SATA devices for direct attached storage; or up to 1024 SAS / SATA devices using expanders
- Supports mission-critical applications with the bandwidth of PCIe® 3.0 connectivity
- Delivers over 1.5 million IOPS for performance sensitive applications
The price that appears is indicative
of guarantee
Insured
Secure pay
Enable data center scaling by offering the ability to connect up to 24 SAS or SATA drives directly or achieve maximum connectivity through expanders
Introducing the world's first 24-port low-profile, single-chip SAS / SATA HDD and SSD direct-connect host bus adapter. With the SAS3224 IOC, this HBA achieves more than 1.5 million IOPs with minimal latency and throughput performance of 6,400 MBps. The SAS 9305-24i HBA enables data center scaling by offering the ability to connect up to 24 SAS or SATA drives directly or achieve maximum connectivity through expanders.
Highlights...
* Provides maximum connectivity to 24 SAS / SATA devices for direct attached storage; or up to 1024 SAS / SATA devices using expanders
* Supports mission-critical applications with the bandwidth of PCIe® 3.0 connectivity.
* Delivers over 1.5 million IOPS for performance sensitive applications.
Tipo de bus de host | PCI Express® 3.0 de 8 carriles |
---|---|
Dispositivos compatibles | 1024 dispositivos SATA / SATA no RAID por controlador |
Conectores internos | 6 Mini-SAS HD SFF8643 |
Puertos internos | 24 |
Temperatura de funcionamiento | 0 ° C hasta 55 ° C |
Voltaje de funcionamiento (V) | + 12V +/- 8%, 3.3V +/- 9% |
Soporte de SO | Microsoft Windows, Linux (Oracle, SuSE, Red Hat), Solaris, VMware, FreeBSD, CentOS, Canonical |
Potencia PCI | Típico: 16,2 W |
Soporte de cable | Cobre pasivo, óptico activo |
Controlador de E / S | SAS3224 |
Humedad de funcionamiento | 20% a 80% sin condensación |
Soportes | Altura completa y perfil bajo |
Certificaciones reglamentarias | Australia / Nueva Zelanda (AS / NZS 3548), Canadá (ICES-003), EMC: Clase B-US (CFR 47, P15B), Europa (EN55022 / EN55024), RoHS, Seguridad: EN60950, WEEE |
Garantía | 3 años, soporte técnico gratuito, opción de reemplazo avanzada en broadcom.com/support/warranty/internal-raid-hba |
Tasas de transferencia de datos | Compatible con SAS-3 de 12 Gb / s |
Software de gestión | Administrador de almacenamiento MegaRAID (MSM), StorCLI (Interfaz de línea de comandos), Autoridad de almacenamiento LSI (LSA), Infraestructura de interfaz humana HII UEFI), CTRL-R |
