Lex Tera
- Compact, powerful and fanless industrial solution.
- With E3845, N4200, 3955U or i5-6200 processors.
- With memory capacities from 4Gb to 16Gb.
- MSATA storage.
- Intel Gigabit network card (1, 2, or 3 ports). There is a configuration with 2 PoE ports.
- Video outputs: VGA, DVI or HDMI.
- It has COM ports (2 or 4) and USB ports (2, 3 or 4).
of guarantee
Insured
Secure pay
Processor | |
Processor | |
Processor | |
Processor | |
Formate | |
Conectividad | |
Conectividad | |
Conectividad | |
Conectividad | |
Aplications | |
Aplications | |
Aplications |

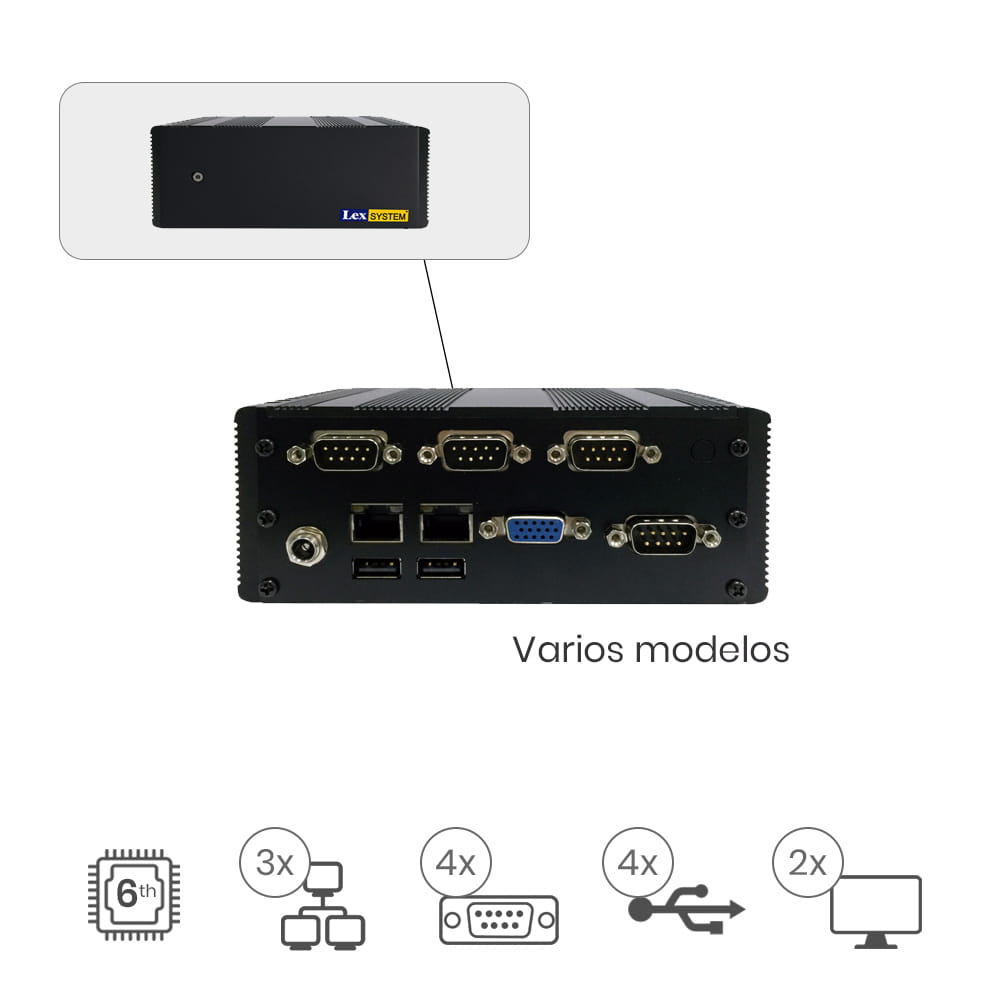

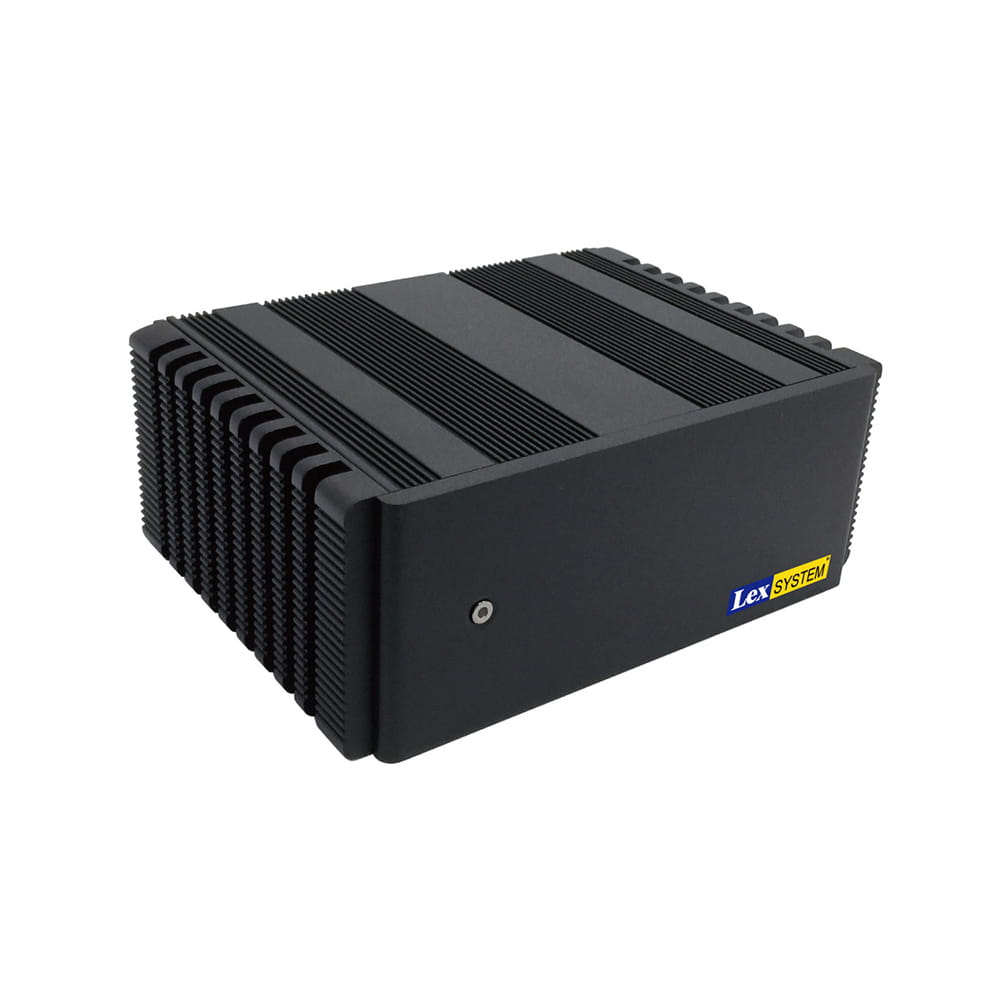

The Lex Tera is an industrial equipment designed to work 24/7 without rest and in a totally silent way.
The range of processors go from an Atom to an Intel i5, going through Celeron and Pentium.
Up to 4 COM, up to 3 Lan, with 2POE, with an extended range of voltages, with 2 HDMI ... there are 9 different models capable of satisfying almost any need that arises.
Highlights ...
* A wide range of possibilities (9 different).
* Industrial equipment designed to work 24 hours a day.
* Passive cooling. There are no moving parts that can "wear out" or break with use.

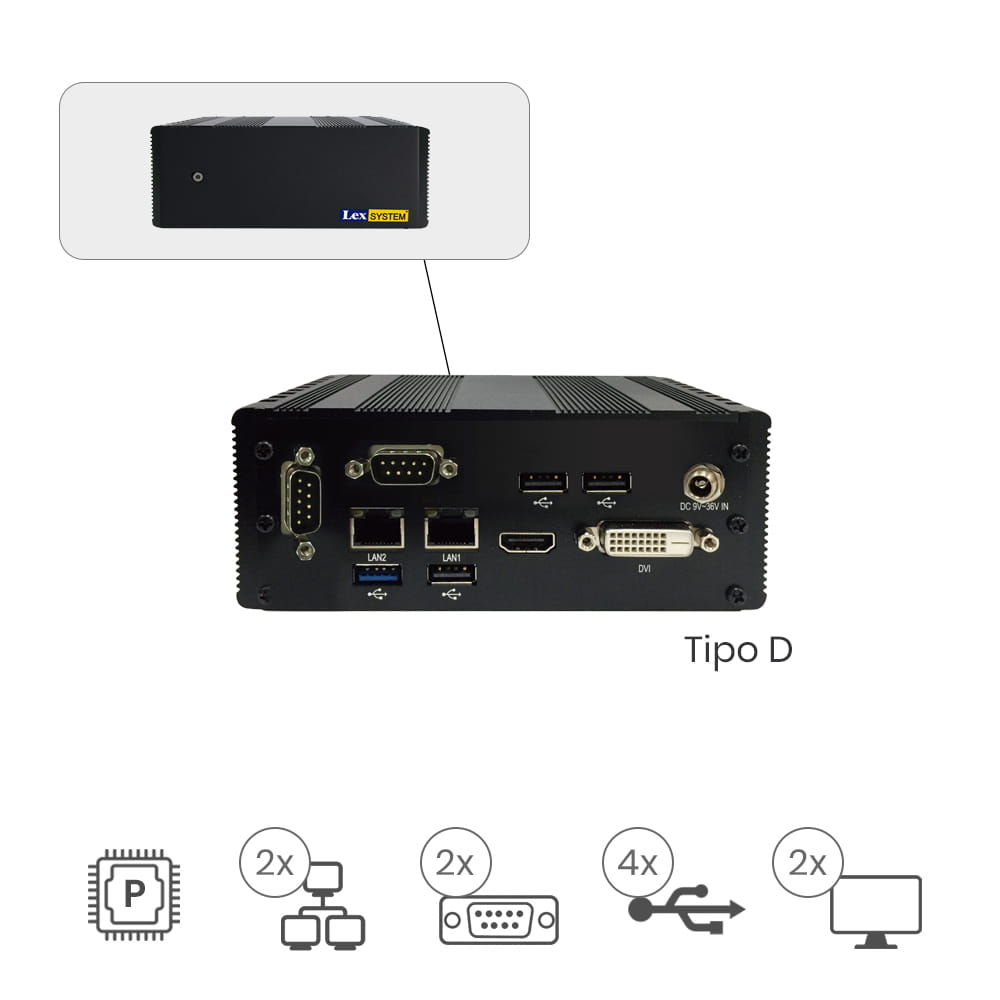

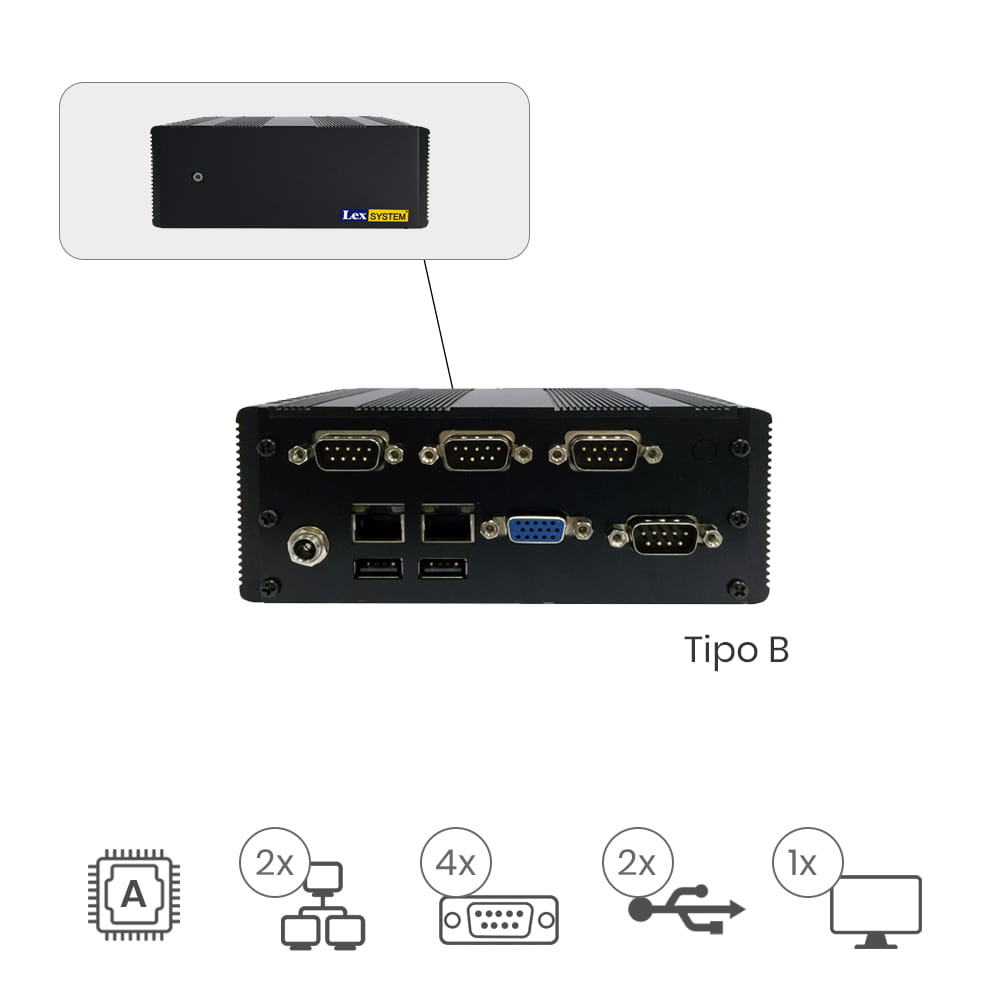

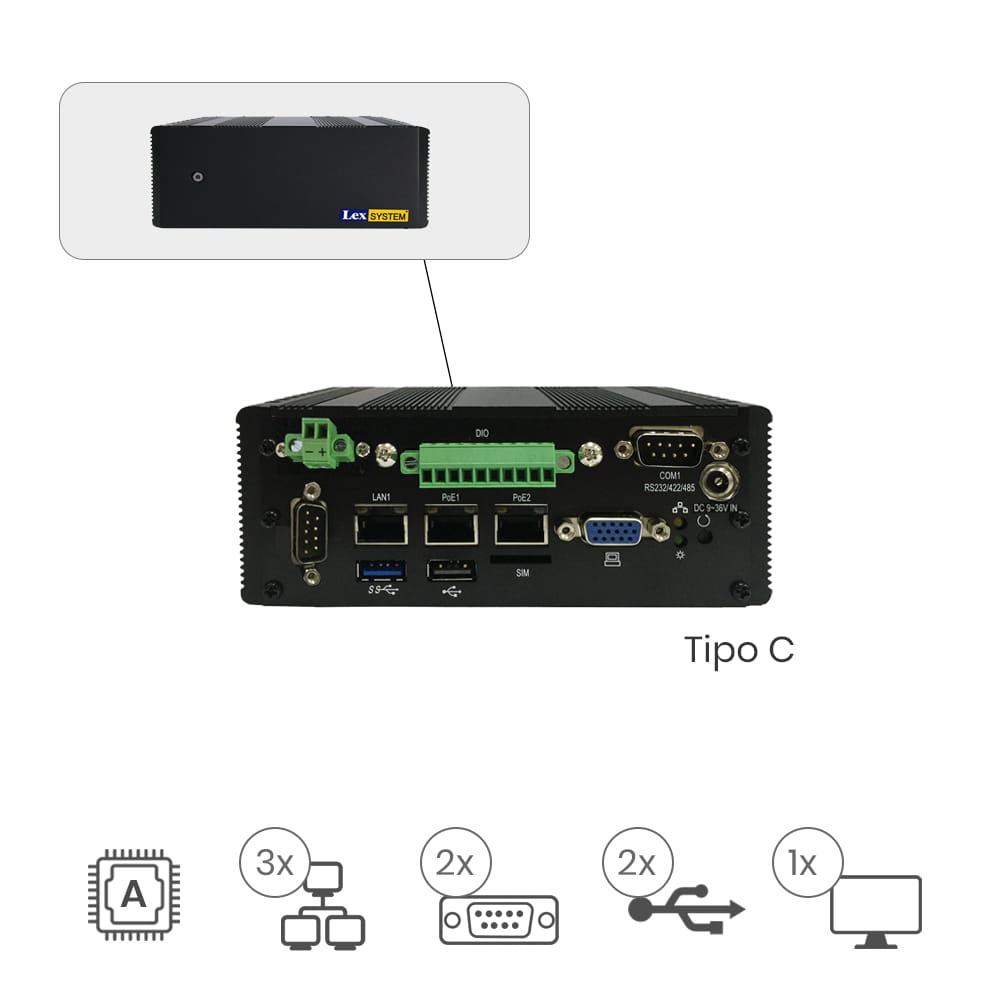

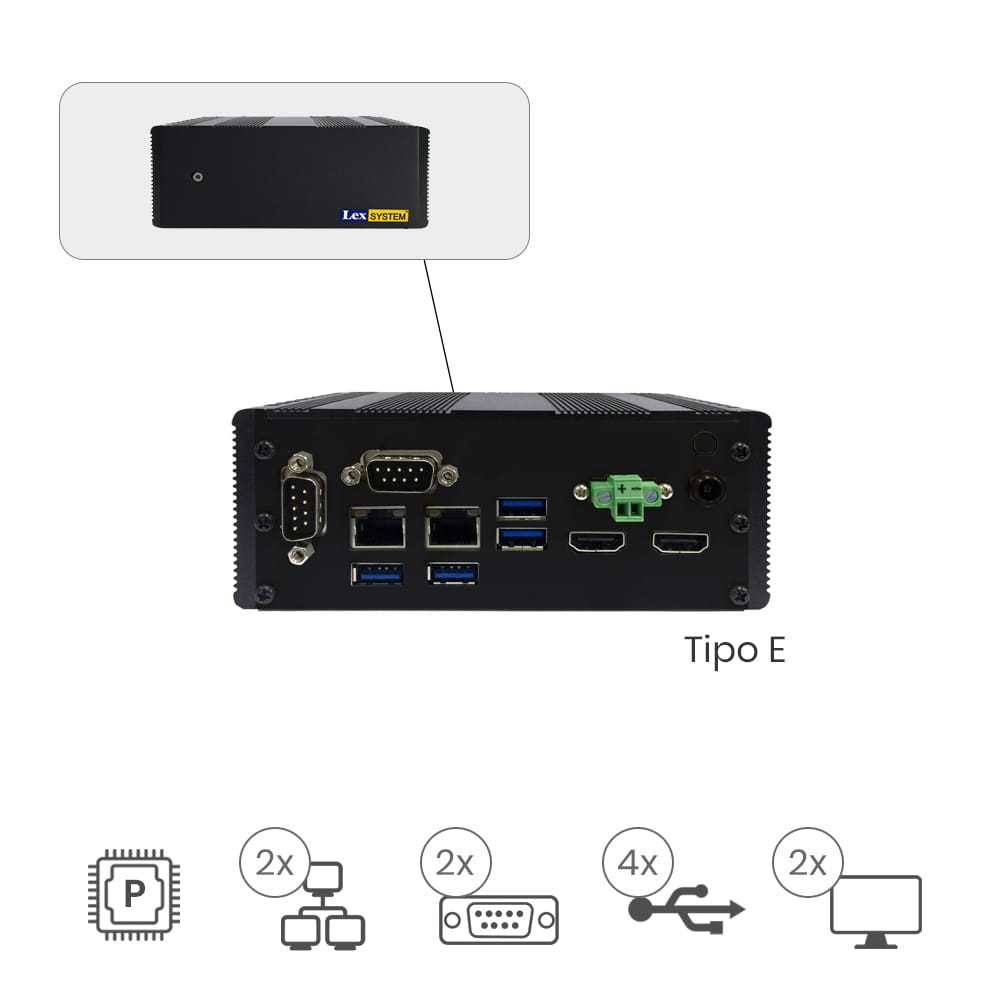

Tipo A | Tipo B | Tipo C | Tipo D | Tipo E | |
Procesador | E3845 1.91Ghz | N4200 2.5Ghz | |||
Memoria | 4Gb en placa | 1x So-DIMM D3 max 8Gb | 4Gb en placa | 1x So-DIMM D3 max 8Gb | |
Chipset | Intel Bay Trail SoC | Intel Apollo Lake SoC | |||
Almacenamiento | mSATA | ||||
Slots Expansión | 1x Full-size Mini PCIe 1x Half-size Mini PCIe |
1x Full-size Mini PCIe 1x Full-size Mini PCIe |
1x Full-size Mini PCIe 1x Half-size Mini PCIe |
1x Full-size Mini PCIe 1x Full-size Mini PCIe |
|
Red | 2x Intel GbE | 2x PoE, 1x Intel GbE | 2x Intel GbE | ||
USB | 2x USB 2.0 | 1x USB 3.0, 1x USB 2.0 | 1x USB 3.0, 3x USB 2.0 | 4x USB 3.0 | |
Puerto Serie | 4x COM | 2x COM | |||
Salida Vídeo | VGA | 1x HDMI, 1x DVI | 2x HDMI | ||
Alimentación | DC input : +12V | DC input : +9~48V | DC input : +9~36V | ||
Temp. funcionamiento | -20°C ~ +60°C | ||||
Temp. almacenamiento | -20°C ~ +70°C | ||||
Humedad relativa | 95% @ 40°C, sin condensación | ||||
Dimensiones | 145 (ancho) x 106.2 (fondo) x 56.5 (alto) mm | ||||
Material | Aluminio | ||||
Color | Negro | ||||
Peso | 0.9 Kg | ||||
Acc. opcionales | GPS, Bluetooth, PoE, WiFi, 4G LTE, Isolated COM, battery UPS, DI/DO, Video Input, SATA Kit*, VESA Mount*, Wall Mount* |

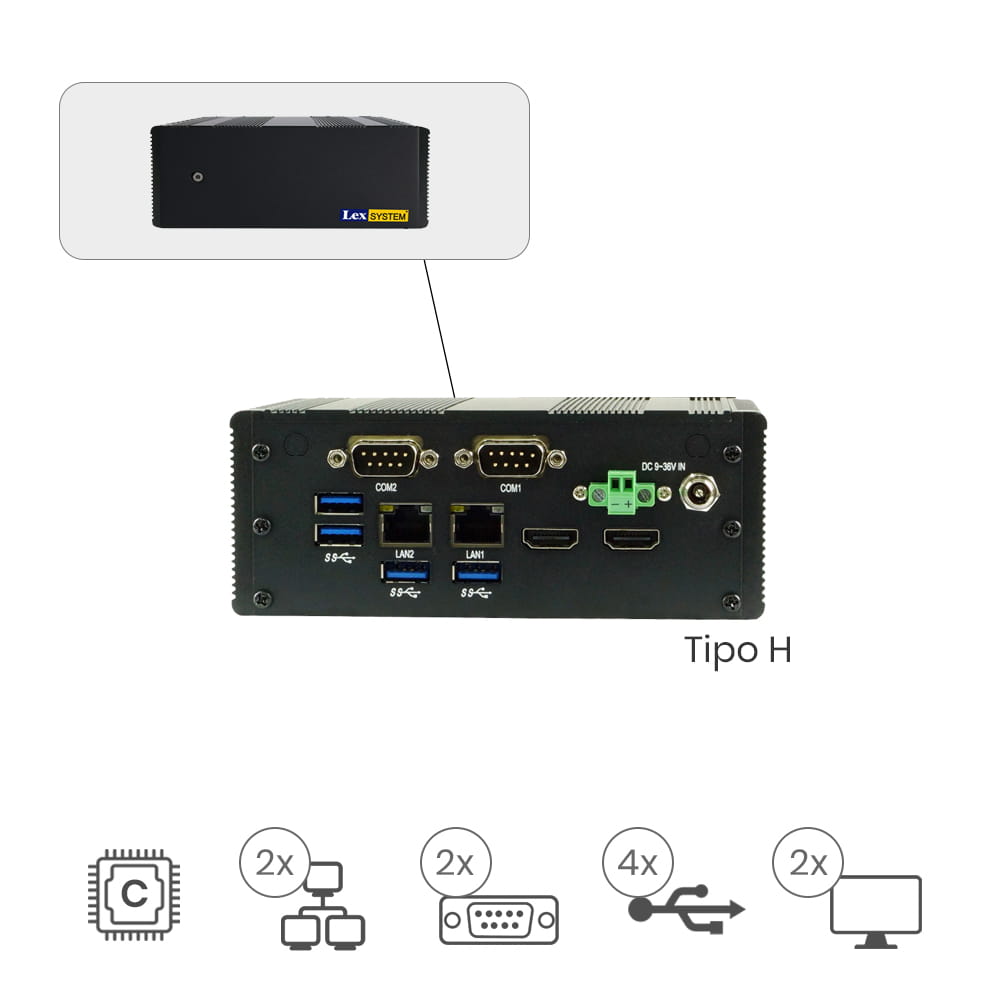

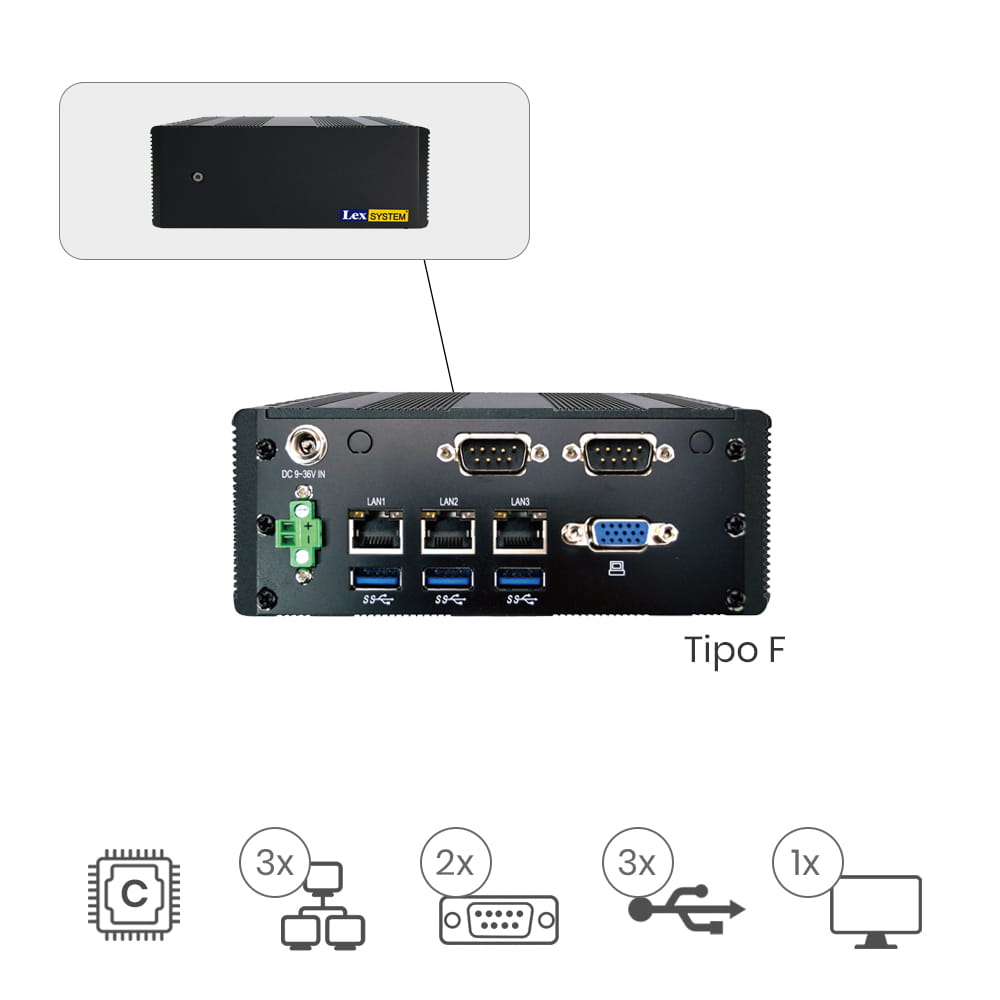

Tipo F | Tipo G | Tipo H | Tipo I | |
Procesador | 3955U 2Ghz | i5-6200 2.3Ghz | 3955U 2Ghz | i5-6200 2.3Ghz |
Memoria | 1x So-DIMM D4 max 16Gb | |||
Chipset | Intel Skylake-U / Kaby Lake-U SoC | |||
Almacenamiento | mSATA | |||
Slots Expansión | 1x Full-size Mini PCIe 1x Full-size Mini PCIe |
|||
Red | 3x Intel GbE | 2x Intel GbE | ||
USB | 3x USB 3.0 | 4x USB 3.0 | ||
Puerto Serie | 2x COM | |||
Salida Vídeo | VGA | 2x HDMI | ||
Alimentación | DC input : +9~36V | |||
Temp. funcionamiento | -20°C ~ +60°C | -20°C ~ +50°C | -20°C ~ +60°C | -20°C ~ +50°C |
Temp. almacenamiento | -20°C ~ +70°C | |||
Humedad relativa | 95% @ 40°C, sin condensación | |||
Dimensiones | 145 (ancho) x 106.2 (fondo) x 56.5 (alto) mm | |||
Material | Aluminio | |||
Color | Negro | |||
Peso | 0.9 Kg | |||
Acc. opcionales | GPS, Bluetooth, PoE, WiFi, 4G LTE, Isolated COM, battery UPS, DI/DO, Video Input, SATA Kit*, VESA Mount*, Wall Mount* |
