Español KIT Placa FNJ711 + cables + ACDC
KIT Placa FNJ711 + cables + ACDC
- Designed specifically for loT sytems.
- Intel Baytrail N2807 processor.
- It incorporates 2Gb DDR3L.
- 1x Intel GbE.
- 2x internal USB 2.0. 1x internal USB 3.0.
- 1x Mini-PCIe

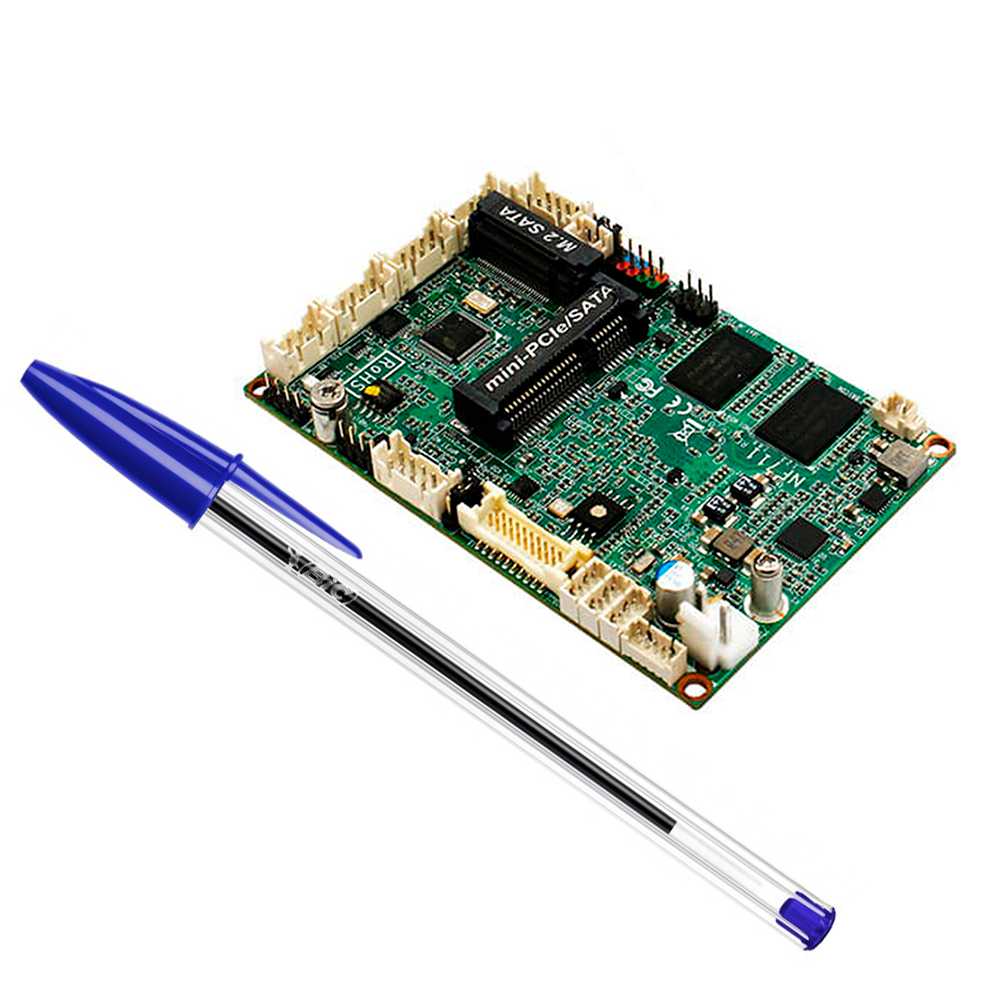

- Dimensions: Only 84x55mm.
of guarantee
shipping
Secure pay

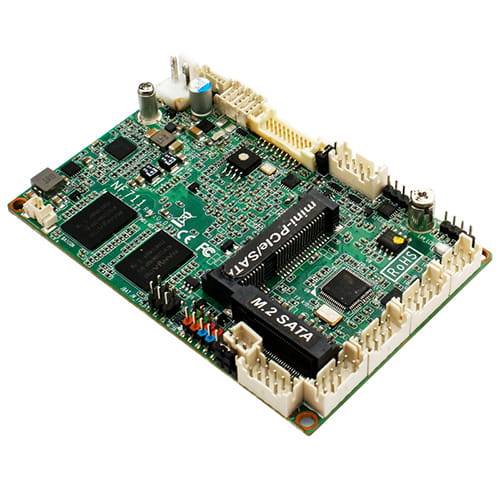

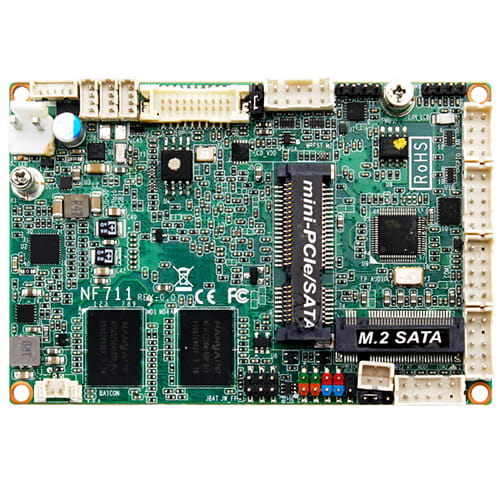

The Jetway JNF711-2807 board incorporates the Intel Baytrail N2807 processor at 2.16Ghz and 2Gb of DDR3L memory, suitable for most applications. All this in a compact format of only 18 ".
With the Intel Gigabit Ethernet LAN port, customers can connect to the intranet and surf the Internet.
In addition, it offers a large expansion capacity, with M.2 and mPCIe / mSATA slot that can expand additional storage or connect other additional modules. The JNF711-2807 also has a USB 3.0 port, two USB 2.0 ports, one RS232 and one RS232 / 422/485. Customers can connect different peripherals to meet their needs.
This board is also compatible with dual VGA / eDP display that can be used for PC with main panel or standard panel.
Highlights...
* Designed for loT applications and control systems.
* Intel Baytrail N2807 SoC processor.
* Supports DDR3L, built-in 2GB memory.
* 1x Intel GbE.
* M.2 storage support (M key, SATA interface, 2242).
* 2x internal COM port.
* 1x internal USB3.0 and 2x internal USB2.0.
* 1x Full-size Mini-PCIe / mSATA slot.
| General Data | |
| Model | JETWAY JNF711-2807 |
| Processor | Intel Baytrail N2807 Dual Core (2.16GHz) Cache 1MB |
| Chipset | |
| Memory Supported | 2Gb DDR3L (on-board) |
| Integrated graphic card | Intel HD Graphics |
| Expansion Slots | 1 x M.2 1 x Mini-PCIe (mSATA) Tamaño completo |
| IDE / SATA Connectors | |
| Ethernet card | 1 x Intel I211AT Gigabit |
| Sound card | Realtek ALC662VD |
| TV output | No |

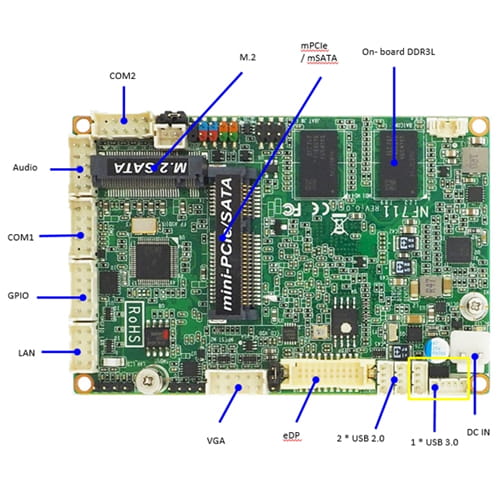

| Internal connections | 1x USB 3.0 2x USB 2.0 1x Ethernet 1x eDP 1x VGA 1x RS232 1x RS232/422/485 1x GPIO 1x Audio 1x SMBUS |
| Rear connections | |
| Operating temp. | 0 ~ 60ºC |
| Format and Size | 1.8" (84 * 55mm) |
| Box contents | |
