Jetway MI08-00 Socket 1200 H410 ATX

Jetway MI08-00 Socket 1200 H410 ATX

Jetway
  • Mini-ITX motherboard.
  • Supports 10th generation Intel i3, i5 and i7 processors up to 65W.
  • Intel H410 Express chipset.
  • Socket 1200.
  • Supports 2 DDR4 memory modules up to 64Gb.
  • Dual LAN: 1x Intel i211AT GbE, 1x Intel i219V GbE.
  • Video outputs: 1x HDMI, 1x DP, 1x eDP.
  • 6x COM (COM1 compatible with RS232 / 422/485), 3x USB3.2 Gen.1, 5x USB2.0.
  • 1x PCIe x16 slot, 1x M. 2 M-key 2242/2280 (SATA / PCIe x2) compatible with NVMe, 1x M.2 E-key 2230 (PCIe x1 / USB2.0), 1x M.2 B-key 3042/3052 (USB3.0 / PCIe x1) with SIM card slot.

P/N: MI08-00

213,33 € Without VAT
258,13 € With VAT
Canon Digital not included: 5,45 € + Taxes
In stock in secondary storage
Approximate delivery between 02 agosto and 03 agosto
3 years
of guarantee
Shipment
Insured
100%
Secure pay

Otros clientes que vieron este producto también se interesaron en
323,31 €
Without VAT
391,21 €
With VAT
Intel Core i7-11700KF 3.6Ghz. Socket 1200. TRAY
596,54 €
Without VAT
721,81 €
With VAT
Asus Z11PA-D8. 2x Socket 3647.
59,80 €
Without VAT
72,36 €
With VAT
Supermicro SNK-P0063AP4. Socket SP2. 2U.

At this time, we do not have in our catalog any product with characteristics identical to: Jetway MI08-00. However, we can show you very similar products, if you tell us what you are looking for:
Formate
Chipset
Socket
kind of product
No. of sockets
kind of product

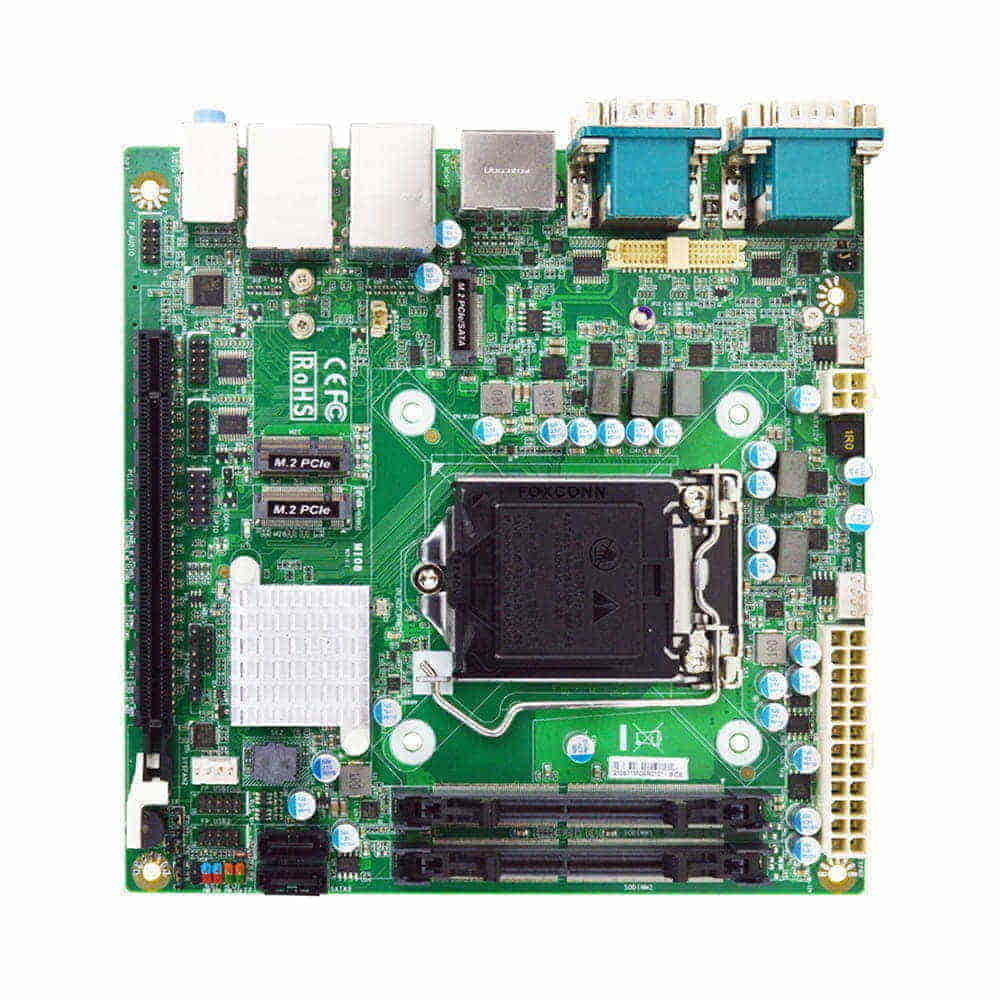

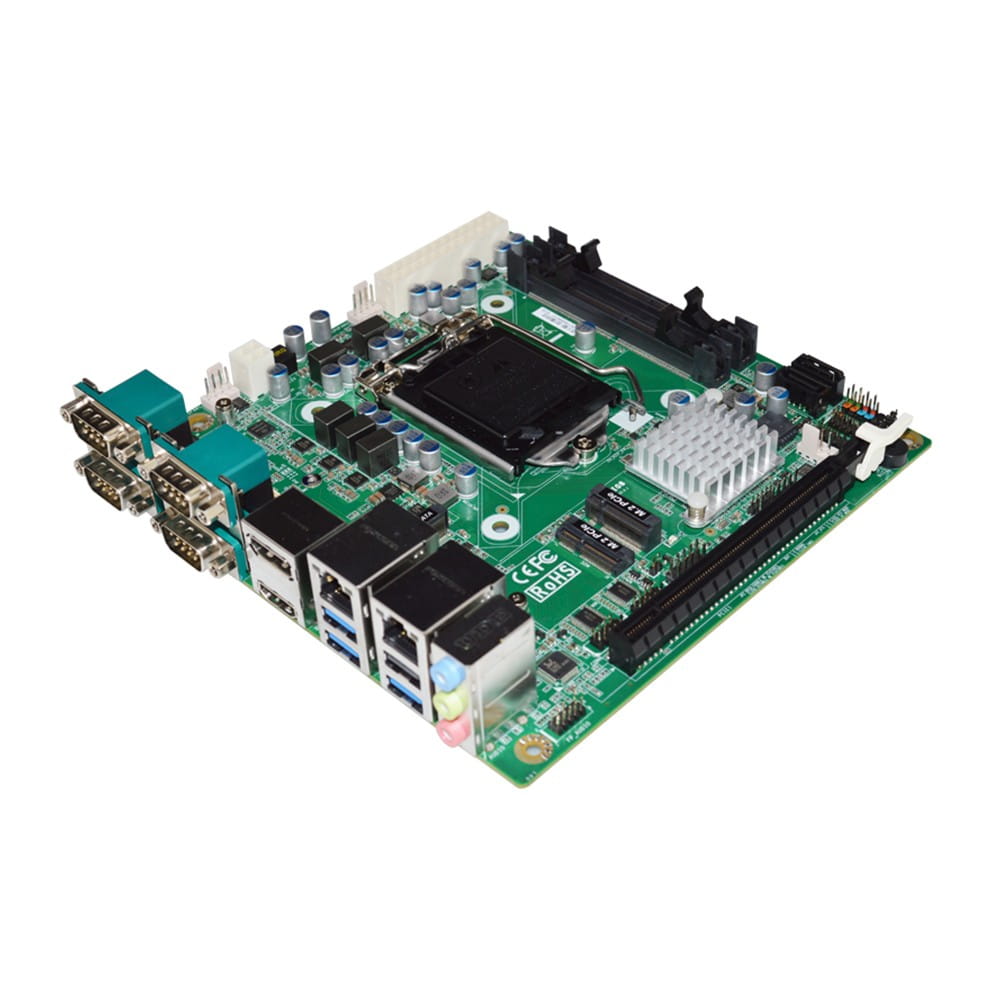

The JETWAY MI08-00 is a Mini-ITX form factor board that adopts 10th generation Intel® Core i7 / i5 / i3, Pentium and Celeron processor.

The board supports two DDR4 2666MHz SO-DIMMs, up to 64GB. With the integrated Intel® i219V GbE and i211AT GbE controller, the MI08-00 / MI08-02 offers two Ethernet devices for network transmission. Two SATAIII (6Gb / s) interfaces and one M.2 M-key 2242/2280 (SATA / PCIex2) support NVMe offering storage devices. One M.2 2230 dongle (PCIex1 / USB2.0), one M.2 3042/3052 key B (USB3.0 / PCIe x1) with SIM card slot, three USB3.2 Gen.1 ports, five ports USB2.0 and the six COM ports provide versatile expansion. The PCIex16 slot can support Jetway risers for different expansions.

The MI08-00 offers one HDMI1.4 port, one DP1.2 port, and one eDP port that can support 2 independent displays.

We highlight ...

* Mini-ITX motherboard.
* Supports 10th generation Intel i3, i5 and i7 processors up to 65W.
* Socket 1200.
* Supports 2 DDR4 memory modules up to 64Gb.
* Dual LAN: 1x Intel i211AT GbE, 1x Intel i219V GbE.
* Video outputs: 1x HDMI, 1x DP, 1x eDP.
* 6x COM (COM1 compatible with RS232 / 422/485), 3x USB3.2 Gen.1, 5x USB2.0.
* 1x PCIe x16 slot, 1x M. 2 M-key 2242/2280 (SATA / PCIe x2) compatible with NVMe, 1x M.2 E-key 2230 (PCIe x1 / USB2.0), 1x M.2 B-key 3042/3052 (USB3.0 / PCIe x1) with SIM card slot.

Modelo - MI08-00 (predeterminado)
Factor de forma - Mini-ITX (6.7 pulgadas * 6.7 pulgadas, 170 * 170 mm)
Sistema de procesador - Procesador Intel® 10th LGA 1200 Socket Core i7 / i5 / i3 / Pentium / Celeron Comet Lake-S (TDP máx. De 65 W)
- Conjunto de chips Intel H410 Express
- BIOS ROM Flash AMI de 128 Mb
Ranura de expansión - 1 * E-key 2230 (PCIex1 / USB2.0)
- 1 * B-key 3042/3052 (USB3.0 / PCIe x1) W / ranura para tarjeta SIM
- 1 * ranura PCIex16
Memoria - 2 * SO-DIMM SDRAM DDR4 2666 / 2400MHz de doble canal sin ECC de hasta 64 GB
Gráficos - Gráficos Intel® HD, memoria compartida
- 1 * eDP (Resolución máxima: 4096 × 2304 @ 60Hz)
- 1 * HDMI 1.4 (Resolución máxima: 4096 × 2160 @ 30Hz)
- 1 * DP (Resolución máxima: 4096 × 2304 @ 60Hz )
- Admite pantallas duales
Ethernet - 1 * Intel i219V GbE
- 1 * Intel i211AT GbE
Audio - Audio HD de 6 canales: Realtek ALC888S-VD2
Almacenamiento - 2 * SATAIII
- 1 * M-key 2242/2280 (SATA / PCIex2) compatible con NVMe

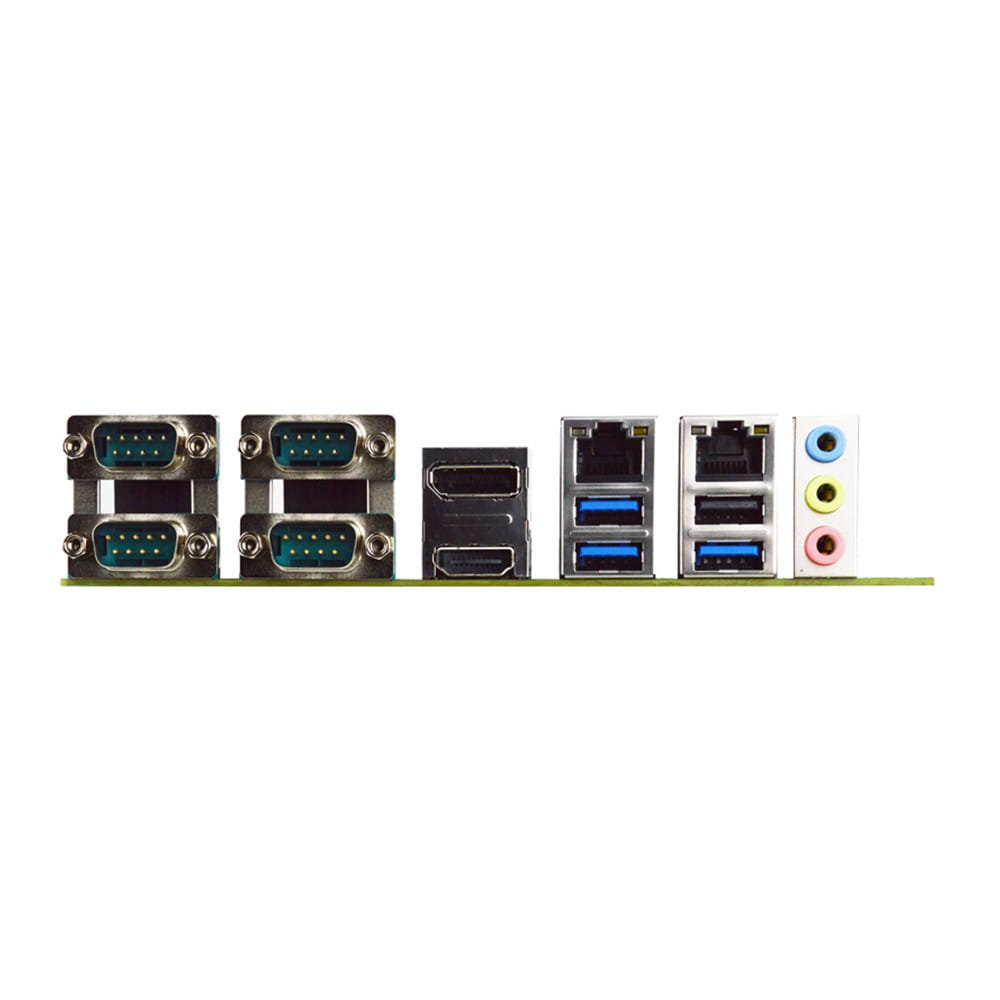

E / S trasera - 1 * HDMI
- 1 * DP
- 2 * RJ45 Ethernet
- 3 * USB 3.2 (Gen.1)
- 1 * USB 2.0
- 4 * COM (COM1 admite RS232 / 422/485)
- Entrada de línea, salida de línea, MIC
- 1 * conector de entrada de CC
E / S interna - 4 * USB 2.0
- 1 * eDP
- 2 * SATAIII
- 2 * COM
- 1 * M.2 M-key 2242/2280 (SATA / PCIex2) compatible con NVMe
- 1 * M.2 E-key 2230 (PCIex1 / USB2 .0)
- 1 * M.2 B-key 3042/3052 (USB3.0 / PCIe x1)
- 1 * PS / 2, 1 * GPIO (8 bits)
- 1 * Intrusión de chasis
- 1 * Encabezado de audio, 1 * Modo AT
: compatible con TPM2.0 integrado (MI08-02)
Temporizador de vigilancia - Desde Super I / O para arrastrar RESETCON #
- 256 segmentos (10sec ~ 255min)
Energía ATX PWR (4 + 24 pines), AT / ATX admitido
- AT: directamente PWR encendido como entrada de energía lista
- ATX: presione el botón para encender PWR después de que la entrada de energía esté lista
Cumplimiento - CE, FCC, LVD, RoHS, ALCANCE
Temperatura - En funcionamiento: 0 ° C ~ 60 ° C
- Almacenamiento: -20 ° C ~ 85 ° C
- Humedad: 10% ~ 90% RH @ 40 ° C (sin condensación)
Soporte de SO - Windows 10, Linux
