Jetway JBC501F797-Q37-B

MB Model

– JNF797-Q370 Series/ MINI-ITX

Part No.

– HBJC501F797-Q37-B (non-WIFI)
– HBJC501F797WQ37-B (WIFI)

BIOS

– AMI SMT Flash ROM

CPU/Chipset

– Intel® LGA1151 Coffee Lake Processor (Max. TDP 35W)
– Intel® Q370 chipset
Notes: When the system runs, CPU will automatically adjust its working clock frequency according to changing workload.

Memory

2 * SO-DIMM slots / dual channel DDR4 2400/2666 up to 32GB total

Storage

– 1 * 2.5” SATA3 6Gb/s internal drive bay (only support 2.5″ HDD with a hight ≤ 10mm)
– 1 * M.2-2242/2260/2280 (M-KEY, Support NVMe) slot for SSD

Network

– 2 * Intel Gigabit LAN (i219LM, i211AT)
– 1 * M.2-2230 (E-KEY) slot for WIFI module expansion

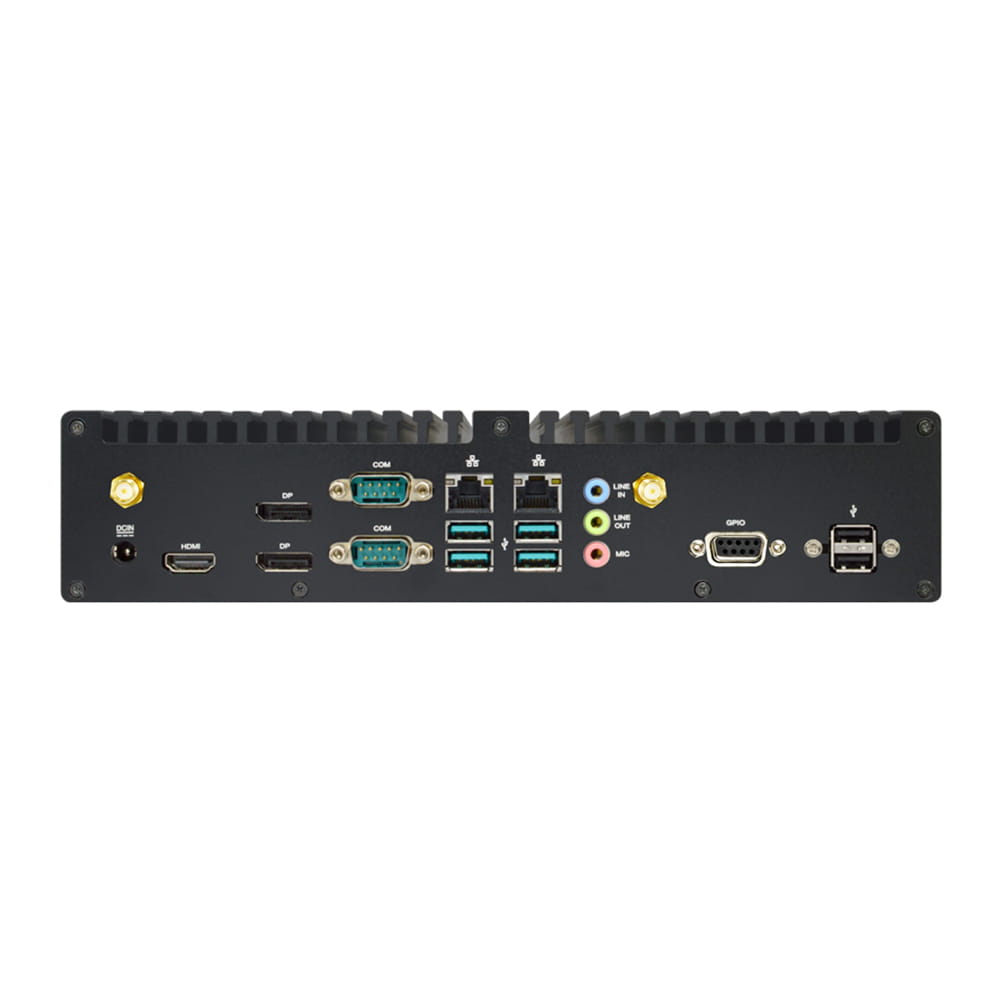

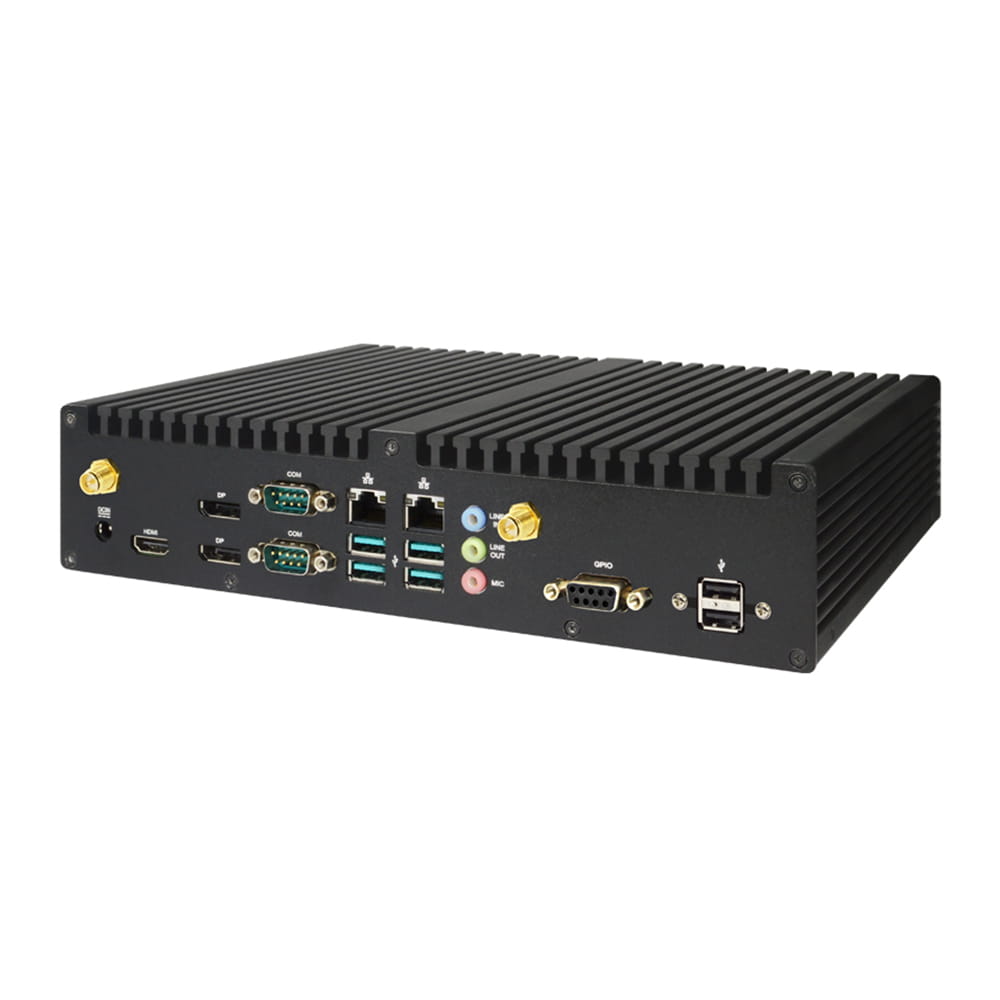

Rear Panel I/O

– 4 * USB 3.1 ports (Gen. 2)
– 1 * HDMI (Max Resolution: 4096 x 2160@30Hz)
– 2 * DP (Max Resolution: 4096 x 2304@60Hz)
– 2 * RJ45
– 1 * Audio
– 2 * COM (RS232/422/485)
– 2 * Antenna holes (HBJC501F797WQ37-B only)
– 1 * DC-In

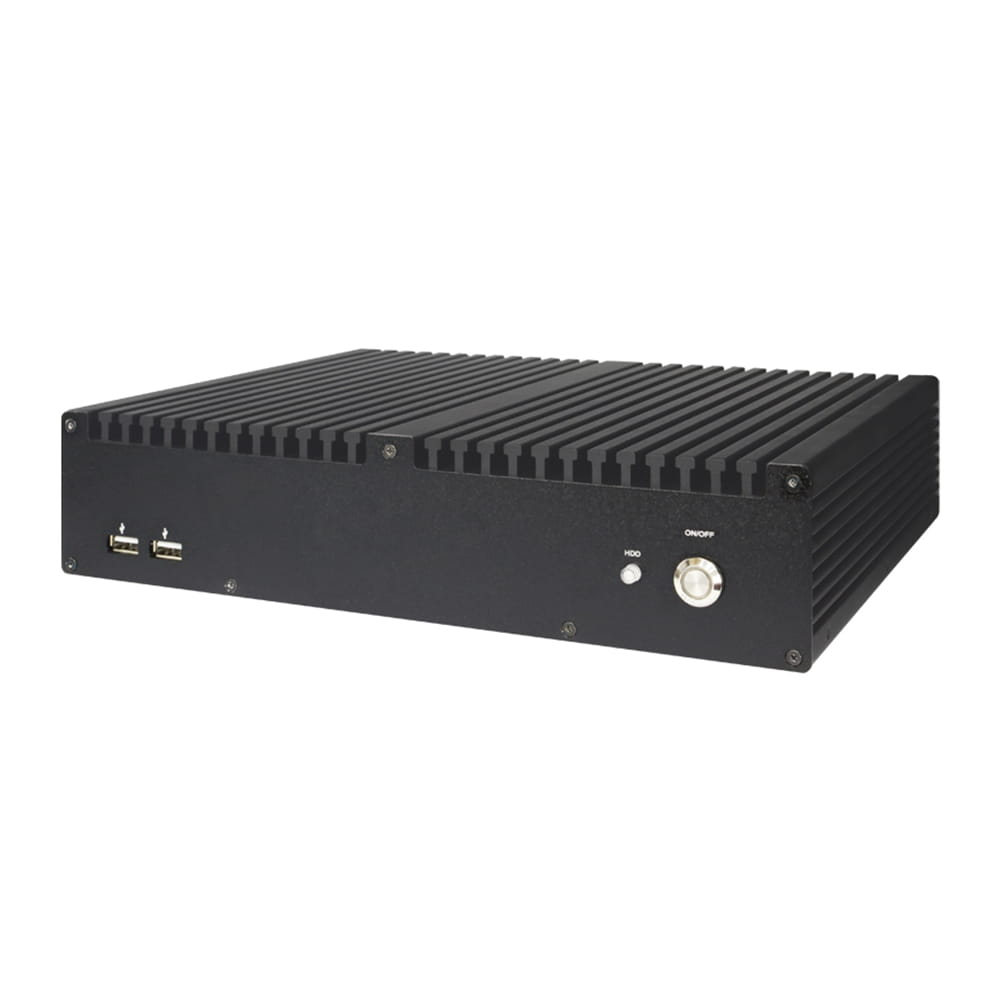

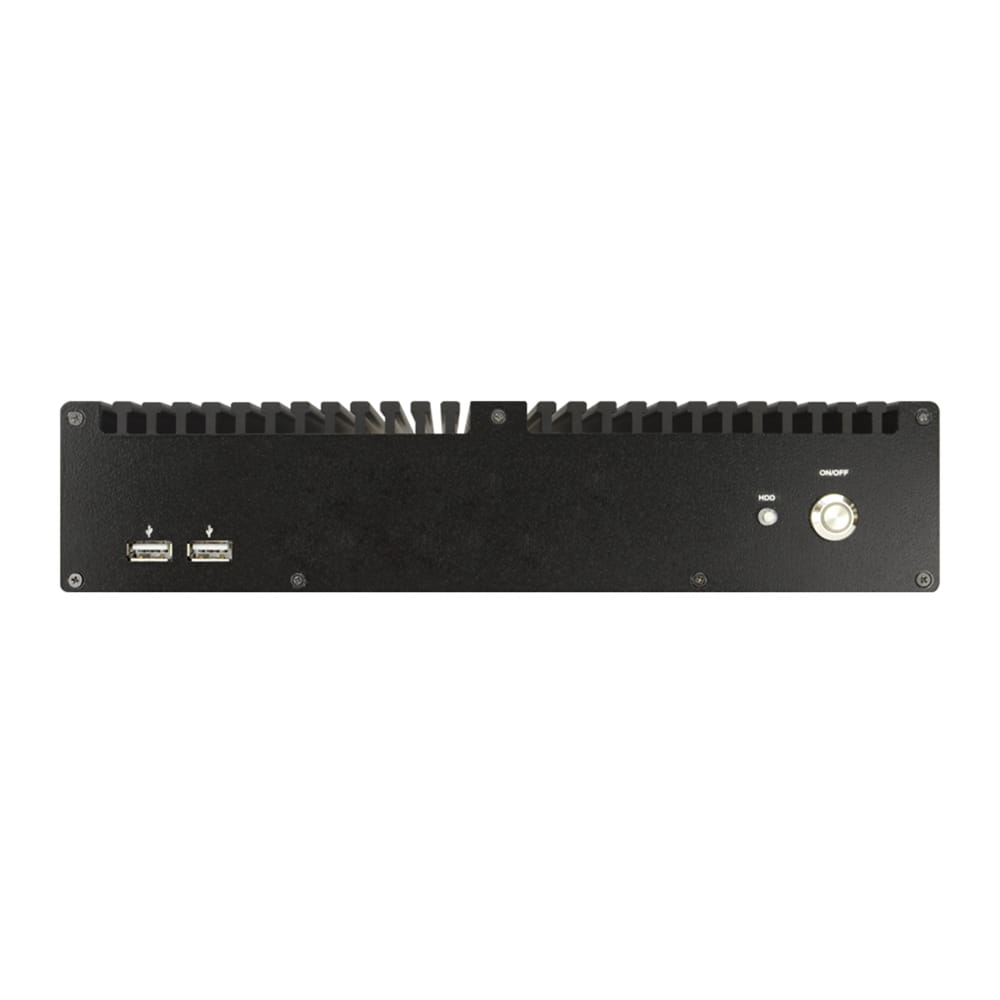

Front Panel I/O

– 1 * Power button, 1 * HDD LED
– 2 * USB 2.0 ports

Internal Expansion

– Support onboard TPM 2.0

Power Source

– AC to DC Adapter 19VDC-6.3A 120W

Certifications

– CE, FCC, LVDS, RoHS, ErP Ready

Temperature

– Operating Temperature: -20 ~ 50° C (The test environment is closed and windless)
– Storage Temperature: -10 ~ 70° C
– Humidity : 90% , non-condensing

Dimensions

– 264 (W) x 199.4 (D) x 58 (H) mm

Packing

– Net Weight: 4.2KG
– Gross Weight: 5KG
– Color Box dimension: 406 (W) * 148 (D) * 380 (H) mm

OS Support

– Windows 10, Linux

Warranty

– 2 Year limited warranty
