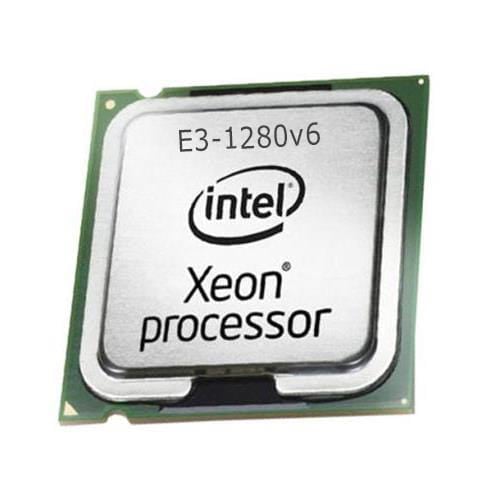

Intel Xeon E3-1280v6 3.9GHz. Socket 1151. TRAY.
Intel Xeon E3-1280v6 3.9GHz. Socket 1151. TRAY.
- Processor frequency: 3.9 GHz
- Processor socket: LGA 1151 (Socket H4).
- Memory channels supported by the processor: Dual.
- Maximum internal memory supported by the processor: 64 GB.
- Thermal design power (TDP): 72 W.
of guarantee
shipping
Secure pay
The Intel Xeon E3 family of processors offers computing and professional images to meet the needs of businesses around the world, including: small business servers, basic level workstations, powerful mobile workstations, storage servers, Workstations for cutting-edge cloud / multimedia transcoding and computing / IoT. Trusted professional computing provided along with reliable workload performance, integrated graphics support and enhanced hardware security.
Get better HD and UHD video transcoding performance with up to 18 AVC video transcodes and up to 2 HEVC transcodes per processor. The new 10-bit HVEC hardware acceleration allows for improved 4K decoding and encoding.
Intensify the performance and images required by media and entertainment applications or CAD for professionals. Experience the difference in computing for professionals with enhanced ECC memory compatibility, enhanced hardware security and reliability features, as well as ISV application certification with optimization available only on Intel Xeon processors.
Regardless of the size of your company, the value of your data is huge. Keep them with the possibility of access and better protected at all times, in addition to improved hardware performance, with a server equipped with the affordable family of Intel Xeon E3-1200 v5 processors.
With independent graphics performance, included in some configurations of the Intel Xeon E3 family of processors, it has the additional advantage of a graphics engine that offers an extraordinary visual experience. The total cost of membership is usually lower compared to the acquisition of an independent professional graphics adapter. In addition, it achieves an ISV application certification with optimization available only on Intel Xeon processors.
Highlights ...
* Processor frequency: 3.9 GHz.
* Processor socket: LGA 1151 (Socket H4).
* Memory channels supported by the processor: Dual, Maximum internal memory supported by the processor: 64 GB.
* VID voltage range: 0.55 - 1.52 V.
* Thermal design power (TDP): 72 W.
Processor number | E3-1280v6 |
Lithography | 14 nm |
Socket | FCLGA1151 |
Tcase | |
Performance | |
No. Cores | 4 |
No. Threads | 8 |
Base frequency | 3.9 Ghz |
Turbo frequency | 4.2 Ghz |
Cache | 8 Mb |
Number of UPI links | |
TDP | 72 W |
Memory Specifications | |
Maximum size | 64 Gb |
Types | DDR4-2400, DDR3L-1866 |
Maximum speed | 2400 Mhz |
No. Channels | 2 |
ECC Compatible | Si |
Expansion Options | |
Scalability | 1S |
PCI Express | 3.0 |
Maximum PCie lines | 16 |
Advanced Technologies | |
Compatible with Intel Optane memory | Yes |
Intel Speed Shift Technology | |
Intel Turbo Boost Max 3.0 Technology | |
Intel Turbo Boost Technology | 2.0 |
Intel vPro Platform | Yes |
Intel Hyper-Threading Technology | Yes |
VT-x Technology | Yes |
VT-d Technology | Yes |
Instruction set | Intel SSE4.1, Intel SSE4.2, Intel AVX2 |
No. of AVX-512 FMA units | |
SpeedStep Technology | Yes |
