Español Inline 76662A. Tarjeta PCIeX1 3xUSB3.0 con SATApower
Inline 76662A. Tarjeta PCIeX1 3xUSB3.0 con SATApower
- Host controller InLine 3 + 1 USB 3.0 port, PCIe, with SATA power connector and LP support.
- Complies with the PCI Express 2.0 basic specification revision.
- Complies with the Universal Serial Bus 3.0 specification Revision 1.0.
- Compatible with previous versions of USB 2.0 and PCI-Express 1.0.
- Supports the following data transfer rate: USB 2.0 mode up to 480 Mbps, USB 3.0 mode up to 5 Gbps.
- Max. 5V / 900mA power output to each USB 3.0 port (with power supply connected).
- Supports Windows 8.1 / 8/7 / Vista / XP / Server 2008 R2, Linux Kernel 2.6 or later.
of guarantee
shipping
Secure pay

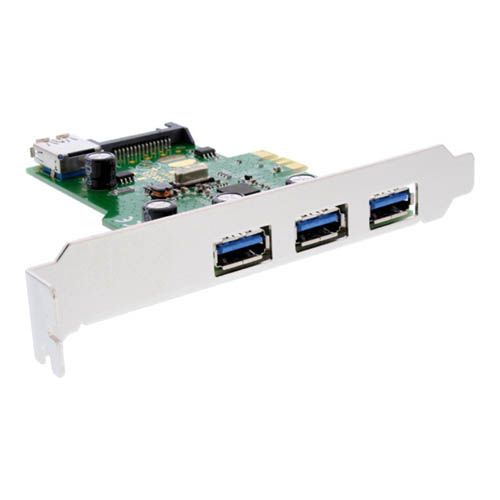

Inline 76662A is an expansion card with PCI Express x1 connection, which adds three rear USB 3.0 ports and one internal to our equipment, providing maximum compatibility and flexibility.
The USB 3.0 standard can reach maximum data transfer speeds of 5Gb / s.
For its power it has a 5-pin SATA port.
Highlights ...
* PCIe card x1.

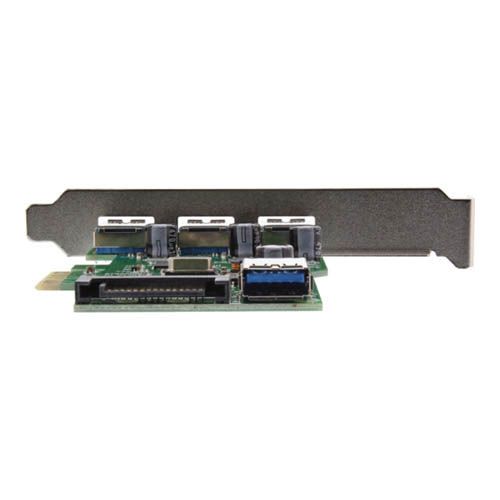

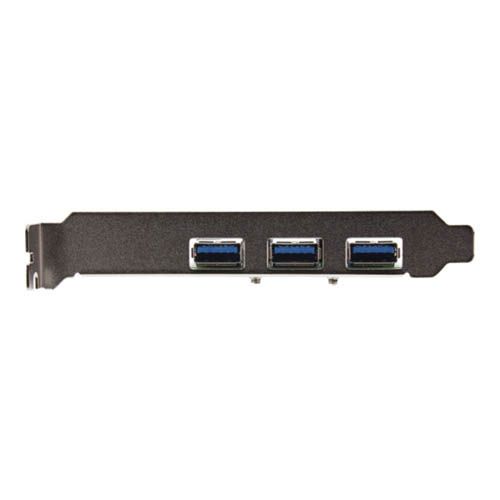

* It provides us with three rear USB 3.0 ports and one internal USB 3.0.
* Compatible with Windows XP / Vista / 7/8 / 8.1 / Server 2008 R2 / Linux Kernel 2.6 or higher.
* It is powered through a SATA port.
| Modelo | 76662A |
| Interface | PCIe X1 |
| Puertos | 3 Puertos USB 3.0 Traseros + 1 interno |
| Velocidad máxima | 5Gbps |
| Sistemas soportados | Windows XP / 7 / 8 / 8.1 / Server 2008 R2 / Linux Kernel 2.6 o superior |
| Alimentación | SATA 5-pines |
| Controladora | Renesas UPD72020x |

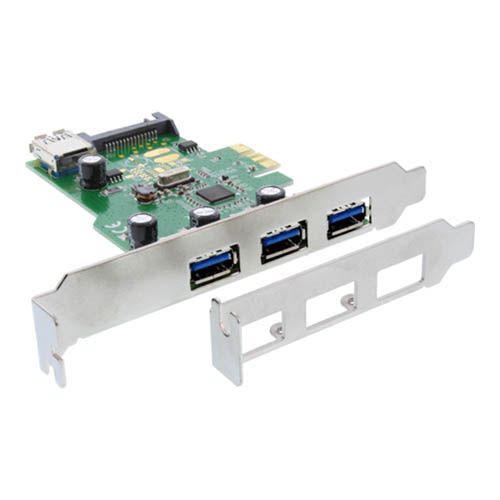

| Extras | Incluye chapa PCI normal y de bajo perfil |
Inline 76662A is an expansion card with PCI Express x1 connection, which adds three rear USB 3.0 ports and one internal to our equipment, providing maximum compatibility and flexibility.
The USB 3.0 standard can reach maximum data transfer speeds of 5Gb / s.
For its power it has a 5-pin SATA port.
Highlights ...
* PCIe card x1.
* It provides us with three rear USB 3.0 ports and one internal USB 3.0.
* Compatible with Windows XP / Vista / 7/8 / 8.1 / Server 2008 R2 / Linux Kernel 2.6 or higher.
* It is powered through a SATA port.
| Modelo | 76662A |
| Interface | PCIe X1 |
| Puertos | 3 Puertos USB 3.0 Traseros + 1 interno |
| Velocidad máxima | 5Gbps |
| Sistemas soportados | Windows XP / 7 / 8 / 8.1 / Server 2008 R2 / Linux Kernel 2.6 o superior |
| Alimentación | SATA 5-pines |
| Controladora | Renesas UPD72020x |
| Extras | Incluye chapa PCI normal y de bajo perfil |
