Español In Win R200 caja Rack 2U IW-R200-02N

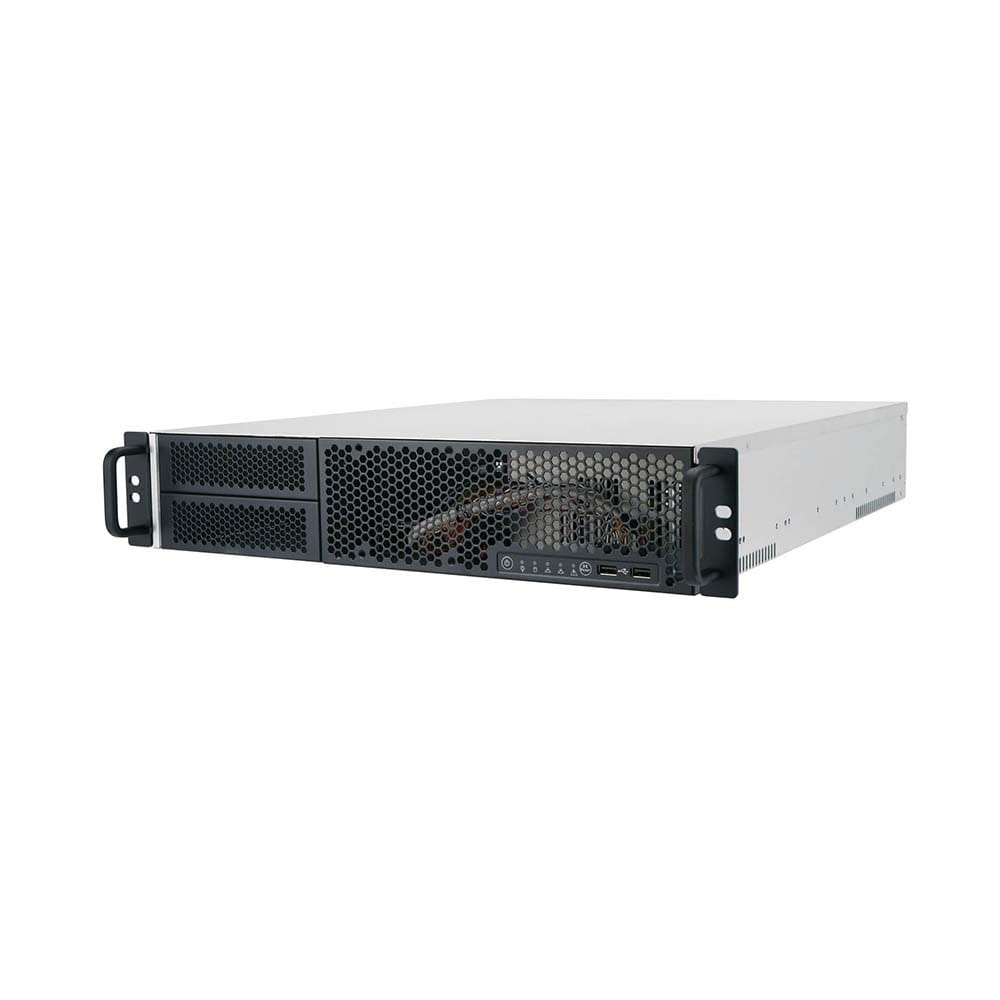

In Win R200 caja Rack 2U IW-R200-02N
Rack mount .2U supports ATX motherboard.
External 5.25 "x 2 and internal 3.5" HDD x 4 bay.
Supports 80 x 25mm cooling fans x 2.
Compatible with PSU 500W, redundant 500W or CRPS 550W / 800W.
Expandable storage option with InWin storage kit．
Supports 7 low-profile cards or 3 optional full-height PCI slots with rear PCI card bracket.
of guarantee
Insured
Secure pay

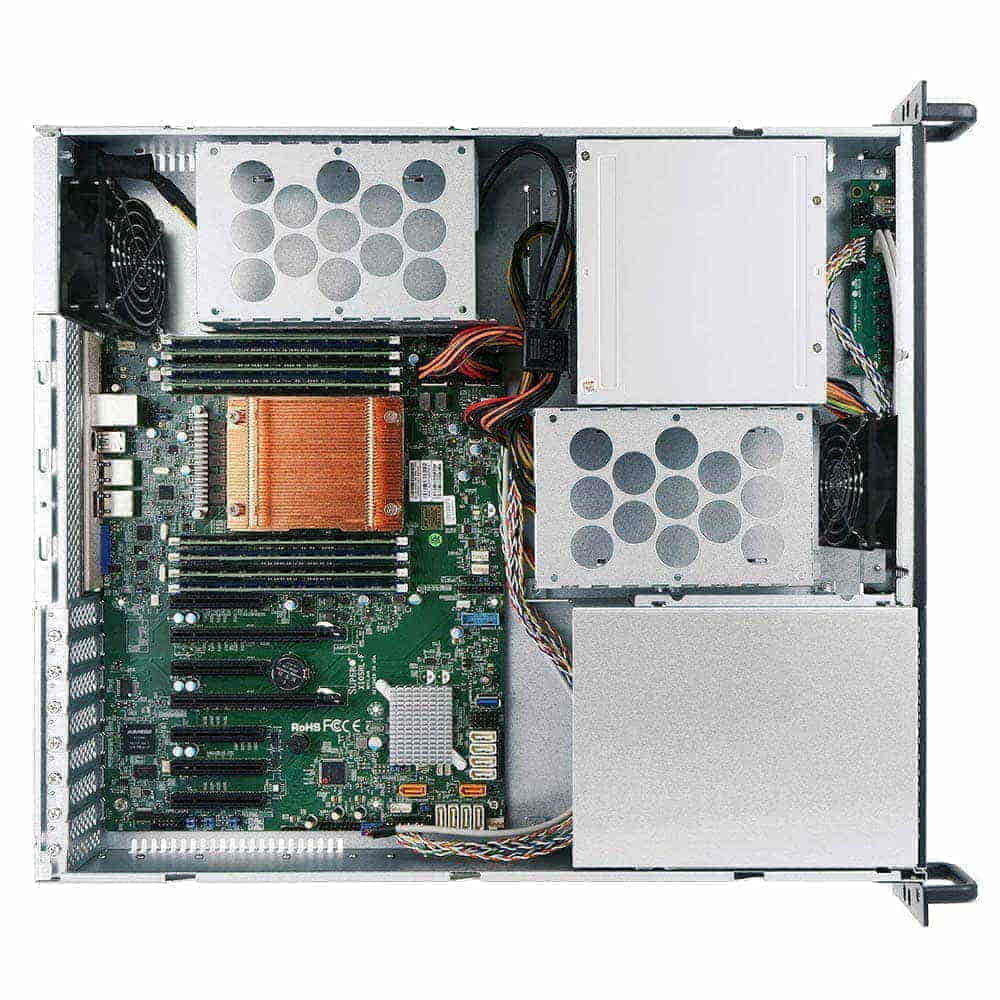

It features an open bay 2U shallow server chassis for AMD EPYC family motherboards. Supports up to two 5.25 "external hard drives and four 3.5" internal hard drives.
HIghlights...
* Compatible with the AMD EPYC family.
* External 5.25 "x 2 and internal 3.5" HDD x 4 bay.
* Compatible with PSU 500W, redundant 500W or CRPS 550W / 800W.
* Adjustable speed: 600 ~ 3000RPM.
* Supports 7 low-profile cards or 3 optional full-height PCI slots with rear PCI card holder.
| Datos Generales | ||||
| Especificación | ||||
|---|---|---|---|---|
| Estándar en la industria | EIA-RS310D | |||
| Factor de forma M / B | ATX (12 "x 9,6") | |||
| Drive Bay | • Externo: 5.25 "x 2 • Interno: 3.5" x 4 |
|||
| Fuente de alimentación | Soporta: • Factor de forma: Único, 2U redundante, CRPS • Watt: simple 500W, 2U redundante 550W, CRPS 550W / 800W |
|||
| Indicador | LED de estado de energía, HDD, actividad LAN | |||
| Panel de control frontal | Interruptor de encendido, reinicio del sistema, USB 2.0 x 2 | |||
| Seguridad del chasis | Interruptor de intrusión (opcional) | |||
| Ventilador | • Ventilador frontal PWM de 80 x 25 mm x 1 • Ventilador trasero PWM de 80 x 25 mm x 1 |
|||
| Ranura de expansión | Ranura PCI de perfil bajo x 7 o ranura PCI de altura completa x 3 (mediante tarjeta vertical) | |||
| Material | • Material: SGCC • Espesor: 1,2 mm |
|||
| Kit de riel | Admite rieles deslizantes sin herramientas y con cojinetes de bolas de 28 " | |||
| Dimensiones del producto (DxWxH; solo chasis) | 504 x 432,4 x 88 mm (19,84 "x 17,02" x 3,46 ") |
|||
| Dimensiones del paquete (DxWxH) | 682 x 563 x 204 mm | |||
| Peso (solo chasis) | • Peso neto: 7,18 kg • Peso bruto: 10,12 kg |
|||
| Pie cúbico | 2,77 | |||
