iiyama ProLite T2736MSC-B1 27
iiyama ProLite T2736MSC-B1 27
- 27 "screen.
- Resolution 1920x1080.
- Capacitive screen with 10 touch points.
- LED panel.
- Totally useful at any angle.
- Designed to operate in demanding environments.
of guarantee
shipping
Secure pay

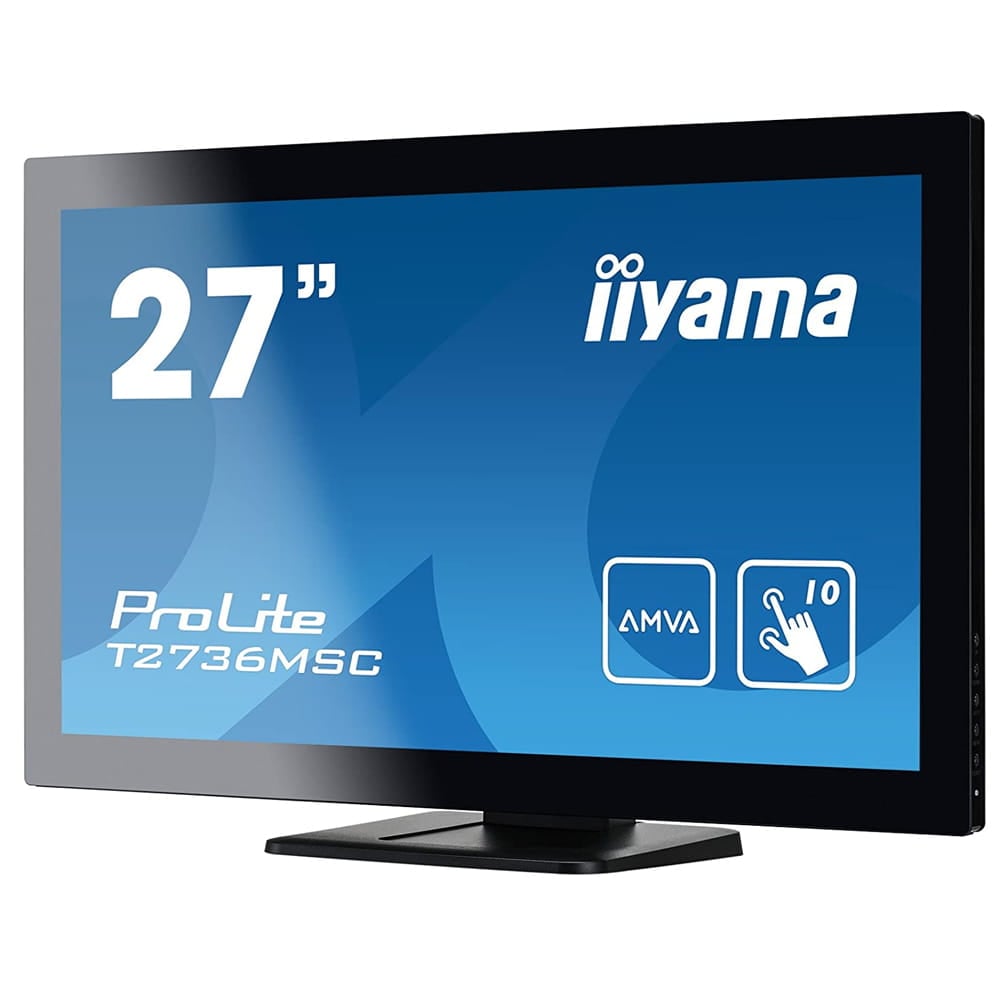

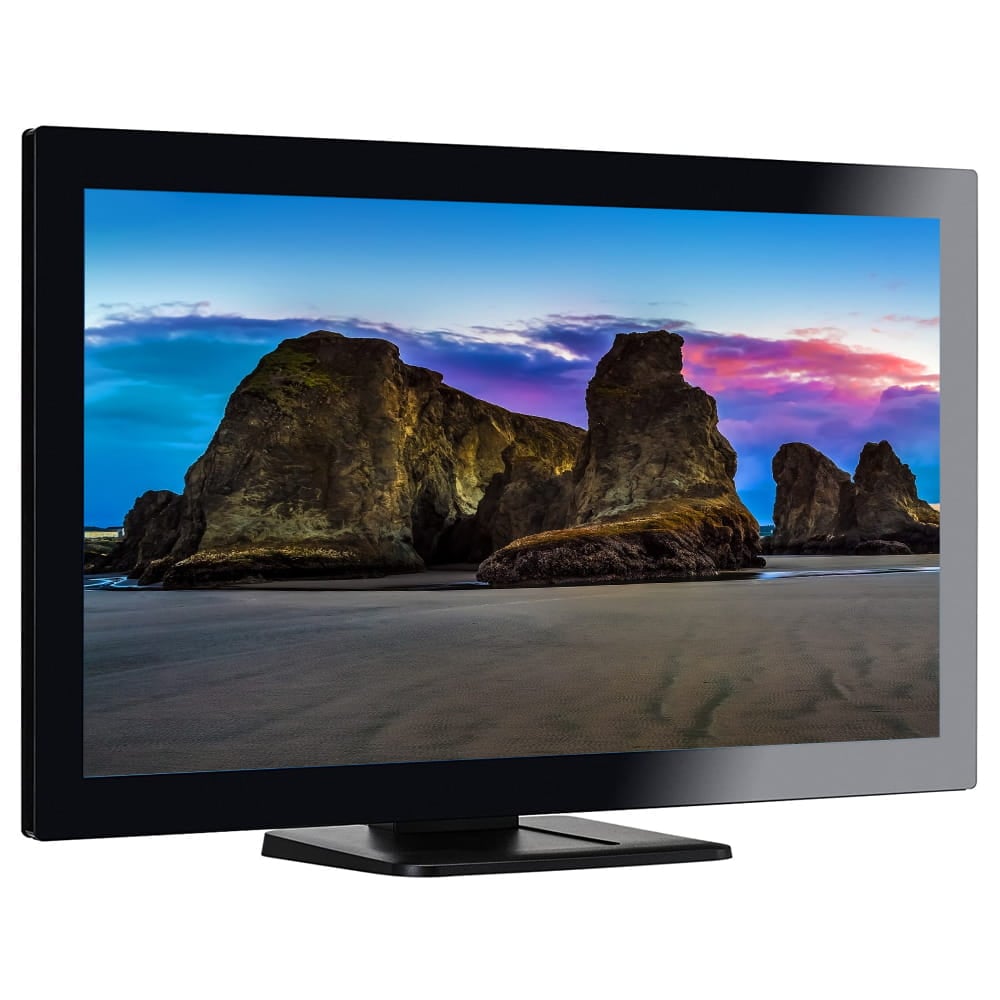

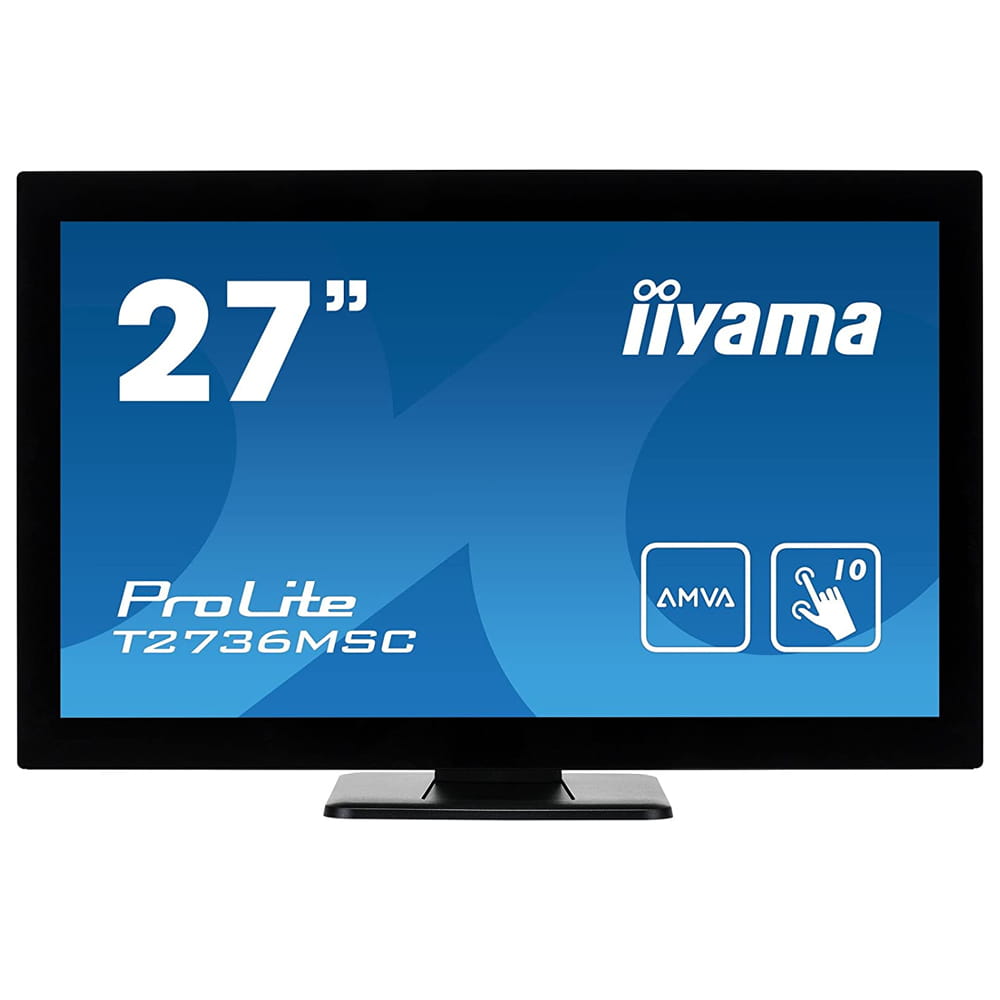

With its Full HD (1920x1080) resolution and accurate Projective Capacitive 10 point touch technology, the ProLite T2736MSC delivers seamless and accurate touch response.
The AMVA panel technology guarantees high performance with excellent colour reproduction and high contrast, making it an excellent choice for a vast array of demanding interactive applications. The flexible stand can be positioned at several angles creating a comfortable and ergonomic user experience.
-
Highlights...
- * Resolution 1920x1080.
* Capacitive screen with 10 touch points.
* LED panel.
* Fully useful at any angle.
* Designed to operate in demanding environments.
Exhibición | ||||
Design | Edge to edge glass | |||
Diagonal | 27", 68.6cm | |||
Panel | AMVA LED | |||
Native resolution | 1920 x 1080 @60Hz (2.1 megapixel Full HD) | |||
Aspect ratio | 16:9 | |||
Brightness | 300 cd/m² typical | |||
Brightness | 255 cd/m² with touch | |||
Static contrast | 3000:1 typical | |||
Light transmittance | 85% | |||
Advanced contrast | 12M:1 | |||
Response time | 4ms | |||
Viewing zone | horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° | |||
Colour support | 16.7mln 8bit (6bit + Hi-FRC) | |||
Horizontal Sync | 30 - 80KHz | |||
Vertical Sync | 56 - 75Hz | |||
Viewable area W x H | 597.6 x 336.15mm, 23.5 x 13.2" | |||
Pixel pitch | 0.311mm | |||
Bezel colour and finish | black, matte | |||
Touch technology | projective capacitive | |||
Touch points | 10 (HID, only with supported OS) | |||
Touch method | stylus, finger, glove (latex) | |||
Touch interface | USB | |||
Supported operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. | |||

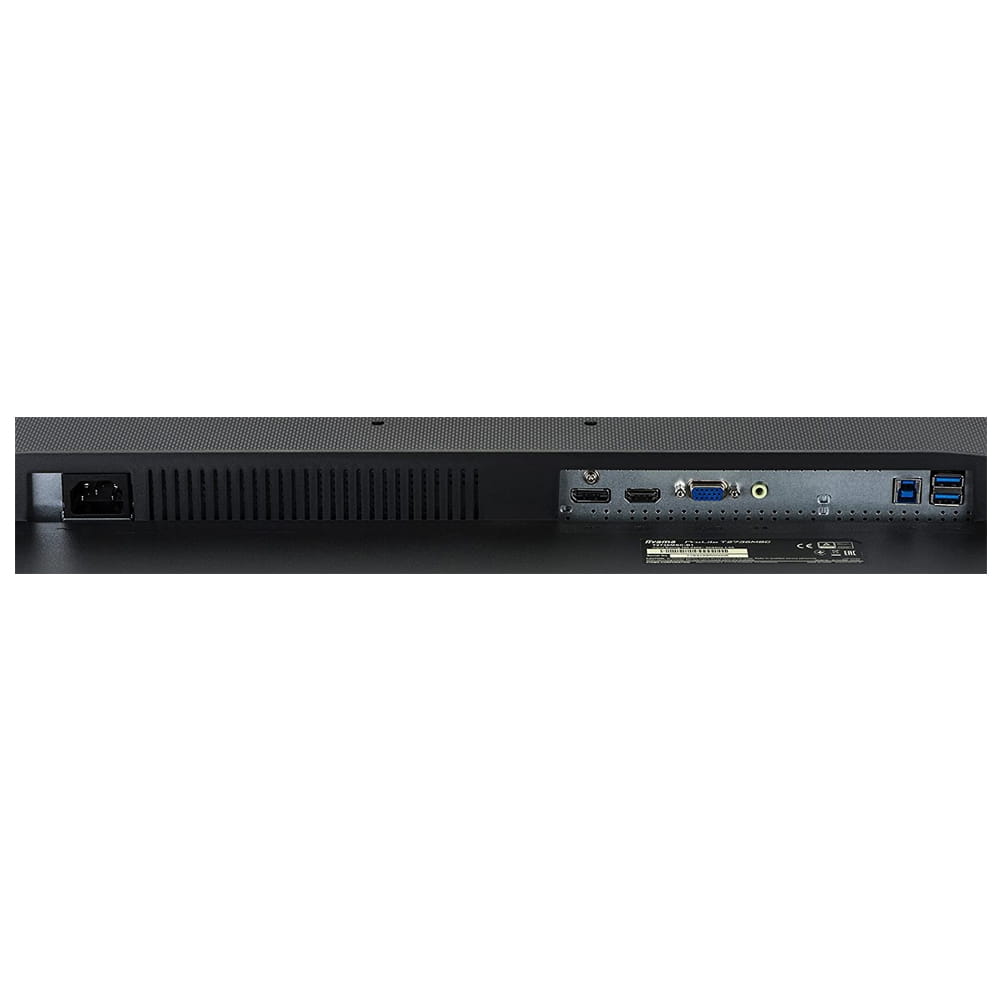

Analog signal input | VGA x1 | |||
Digital signal input | HDMI x1 DisplayPort x1 |
|||
Audio output | Speakers 2 x 2W | |||
HDCP | yes | |||

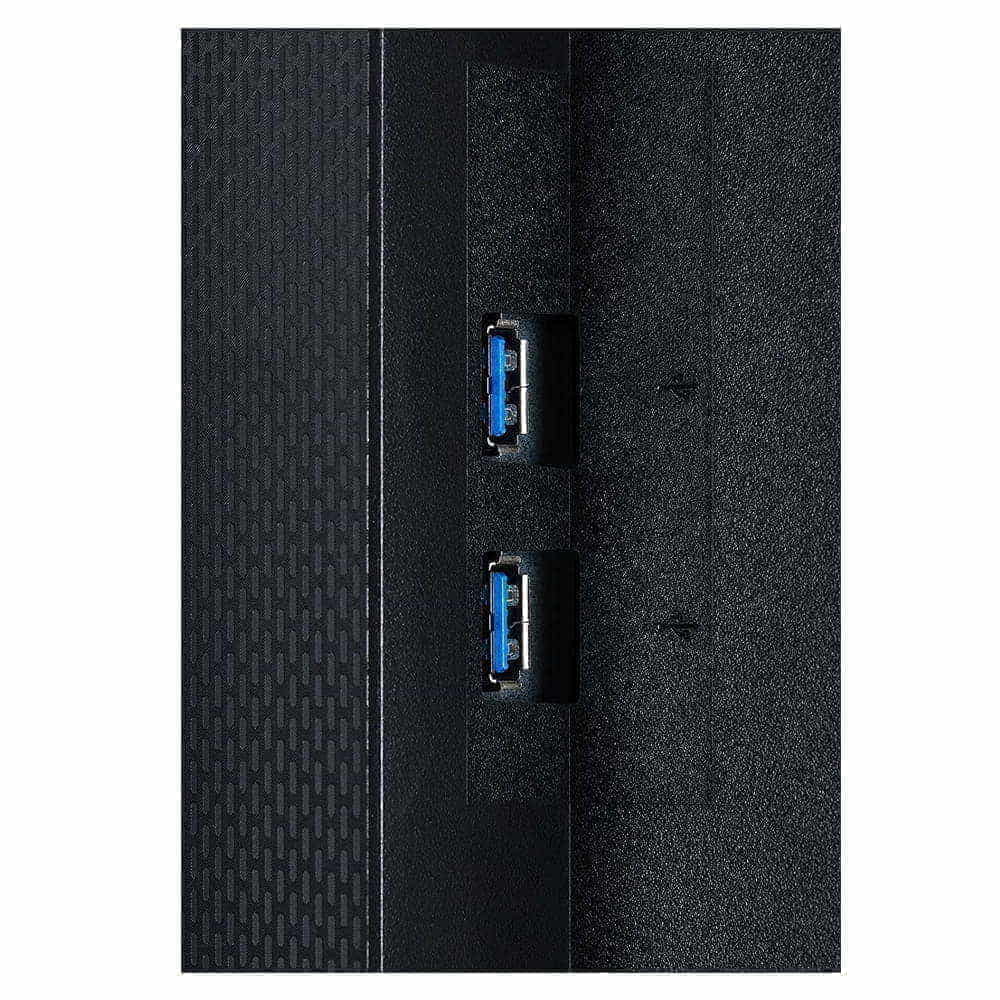

USB HUB | x4 (v.3.0) | |||
Glass thickness | 2.2mm | |||
OSD key lock | yes | |||
OSD languages | EN, DE, FR, ES, IT, PT, RU, JP, NL, PL | |||

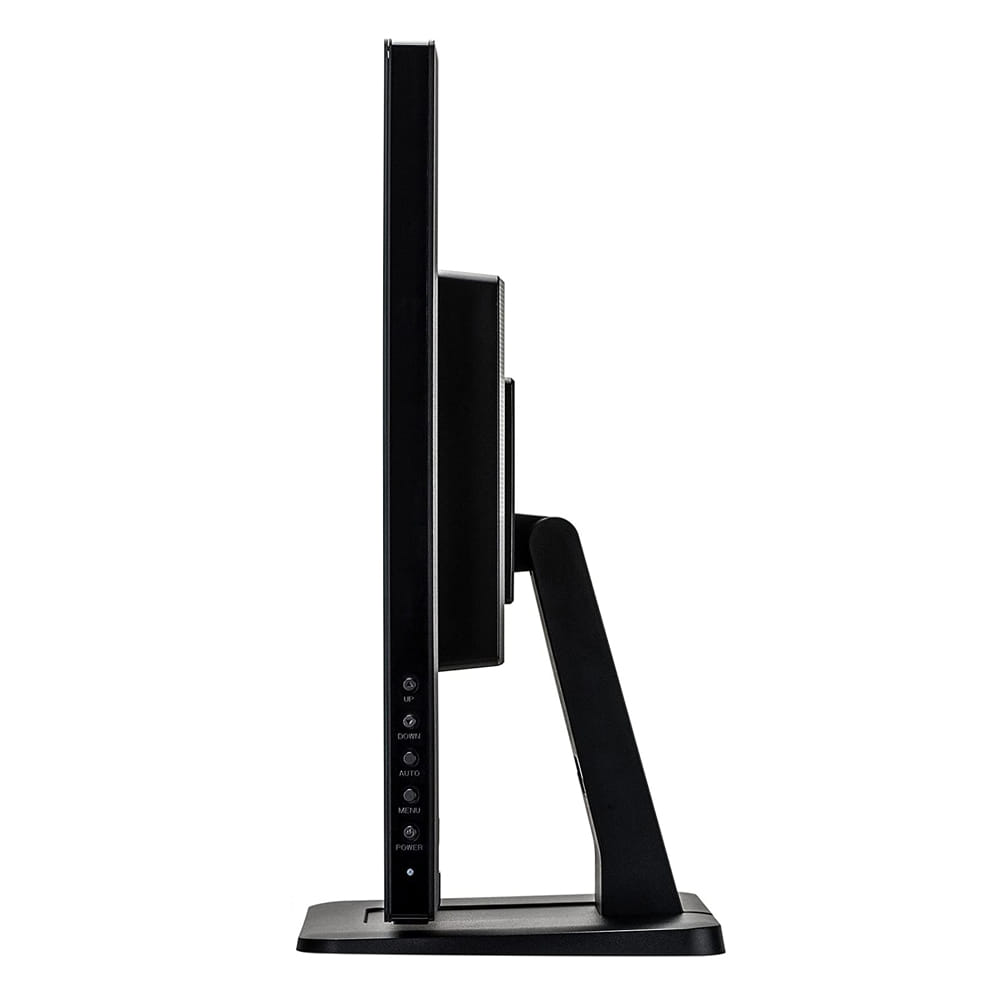

Control buttons | Scroll up / Audio Adjust / Blue Light Reducer, Scroll down / ECO, Auto, Menu, Power | |||
User controls | Picture adjust (brightness, contrast, ECO, i-Style colour, ACR), geometry (pixel clock, phase, H.position, V.position, aspect), colour settings (gamma, colour temp), OSD (H.position, V. position, OSD time, language), extra (reset, signal select, audio input, opening logo, LED, OD, information, volume, auto adjust) | |||
Convenience | Kensington-lock™ prepared | |||
Blue light reducer | yes | |||
Plug&Play | DDC2B | |||

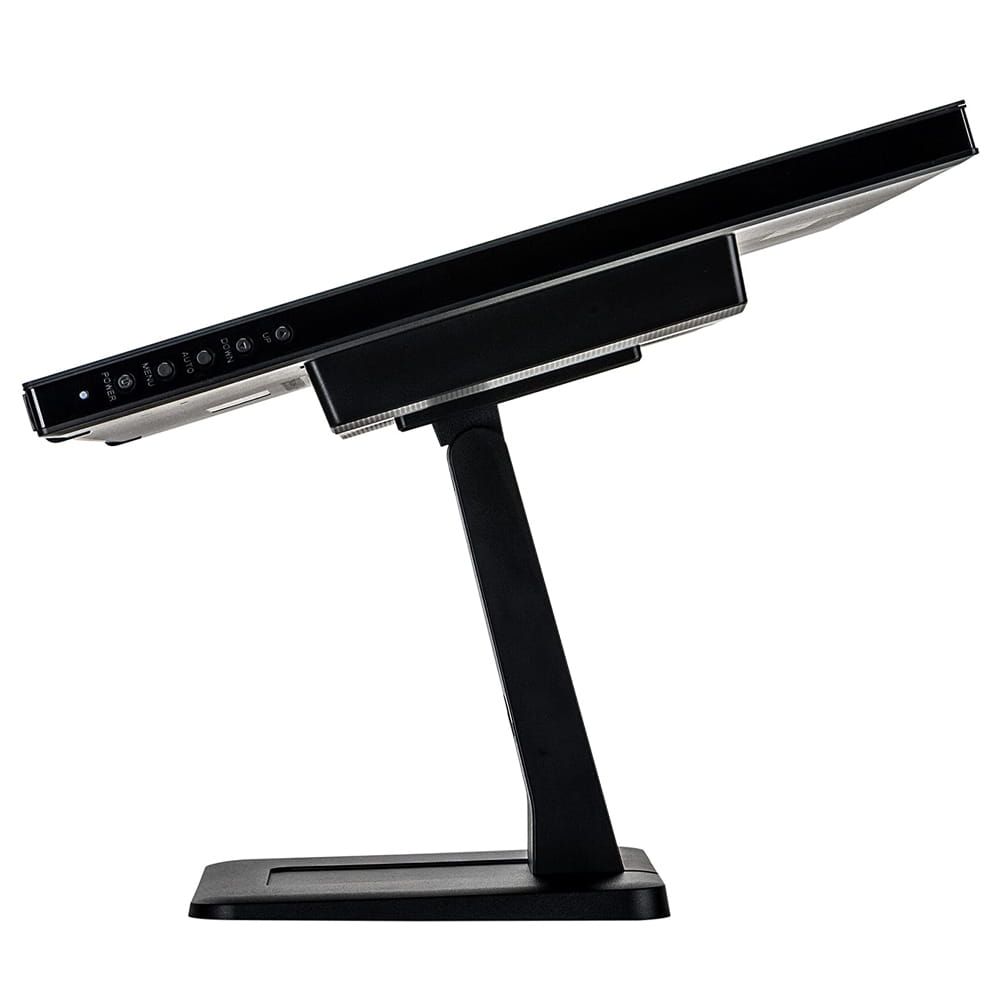

Tilt angle | 73° up; 3° down | |||

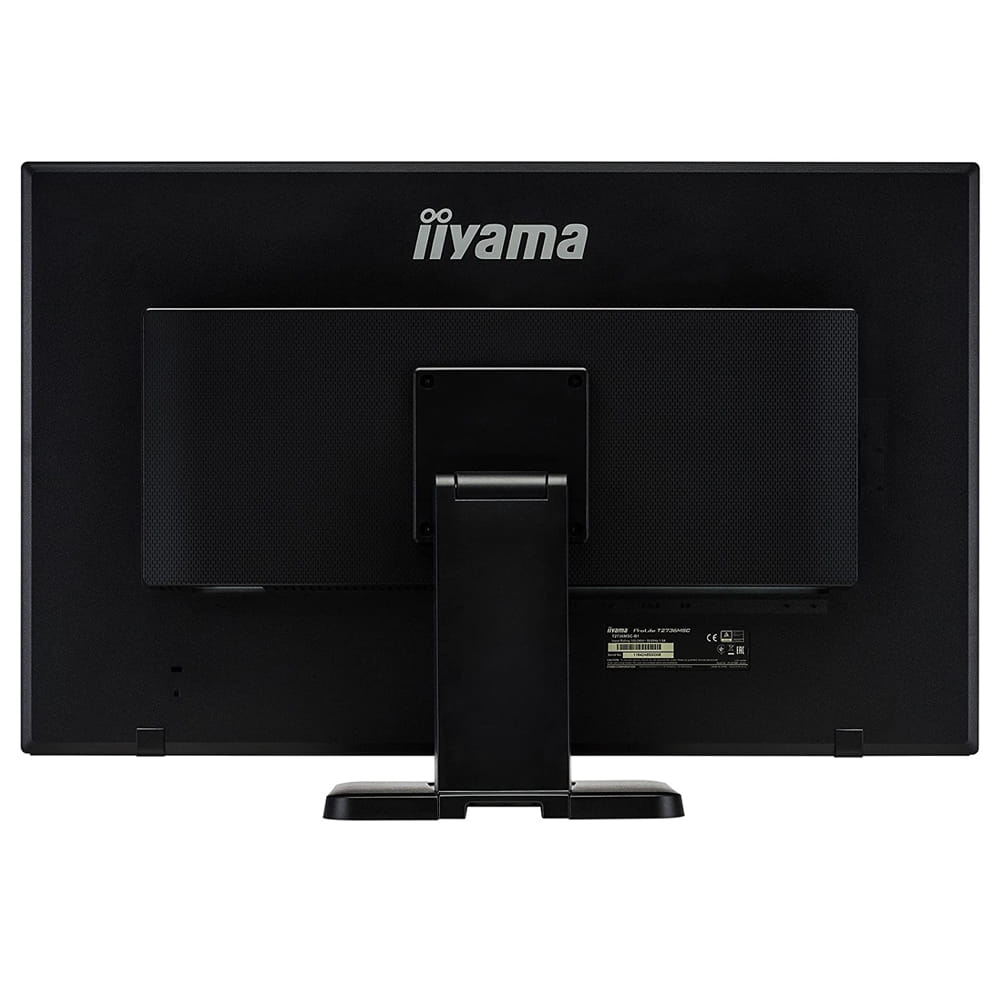

VESA mounting | 100 x 100mm | |||
Cables | power (1.8m), VGA (1.8m), USB (1.8m), HDMI (1.8m) | |||
Guides | quick start guide, safety guide | |||
Power supply unit | internal | |||
Power supply | AC 100 - 240V, 50/60Hz | |||
Power usage | 28W typical, 0.5W stand by, 0.5W off mode | |||
Regulations | CE, TÜV-Bauart, ErP, CU | |||
Energy efficiency class | A | |||
Other | REACH SVHC above 0.1%: Lead | |||
Product dimensions W x H x D | 659.5 x 444 x 220.5mm | |||
Weight (without box) | 7.4kg | |||
EAN code | 4948570116423 | |||
Manufacturer | iiyama | |||
Model | ProLite T2736MSC-B1 | |||
Energy efficiency class | A | |||
Visible screen diagonal | 69cm; 27"; (27" segment) | |||
ON mode power consumption | 28W | |||
Annual energy consumption | 41kWh/annum* | |||
Power in Standby | 0.5W stand by | |||
Power in OFF Mode | 0.5W off mode | |||
Resolution | 1920 x 1080 |
