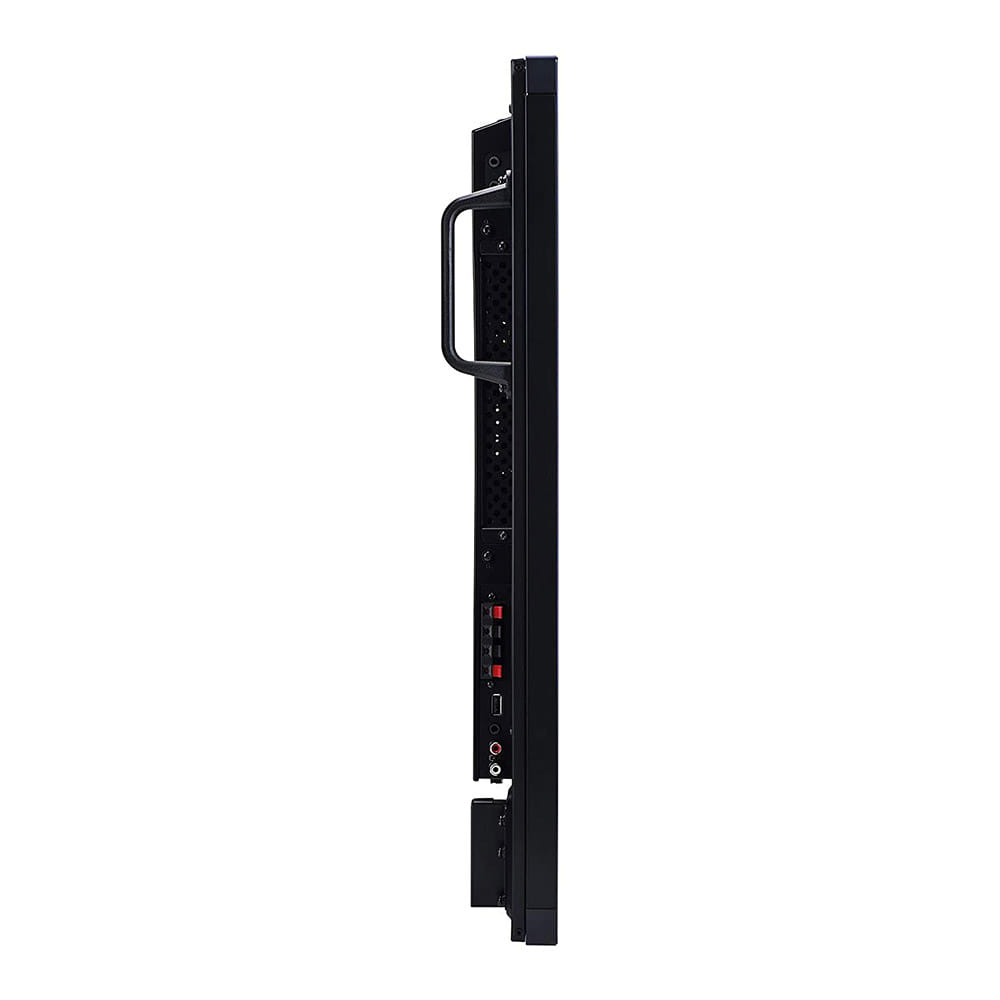

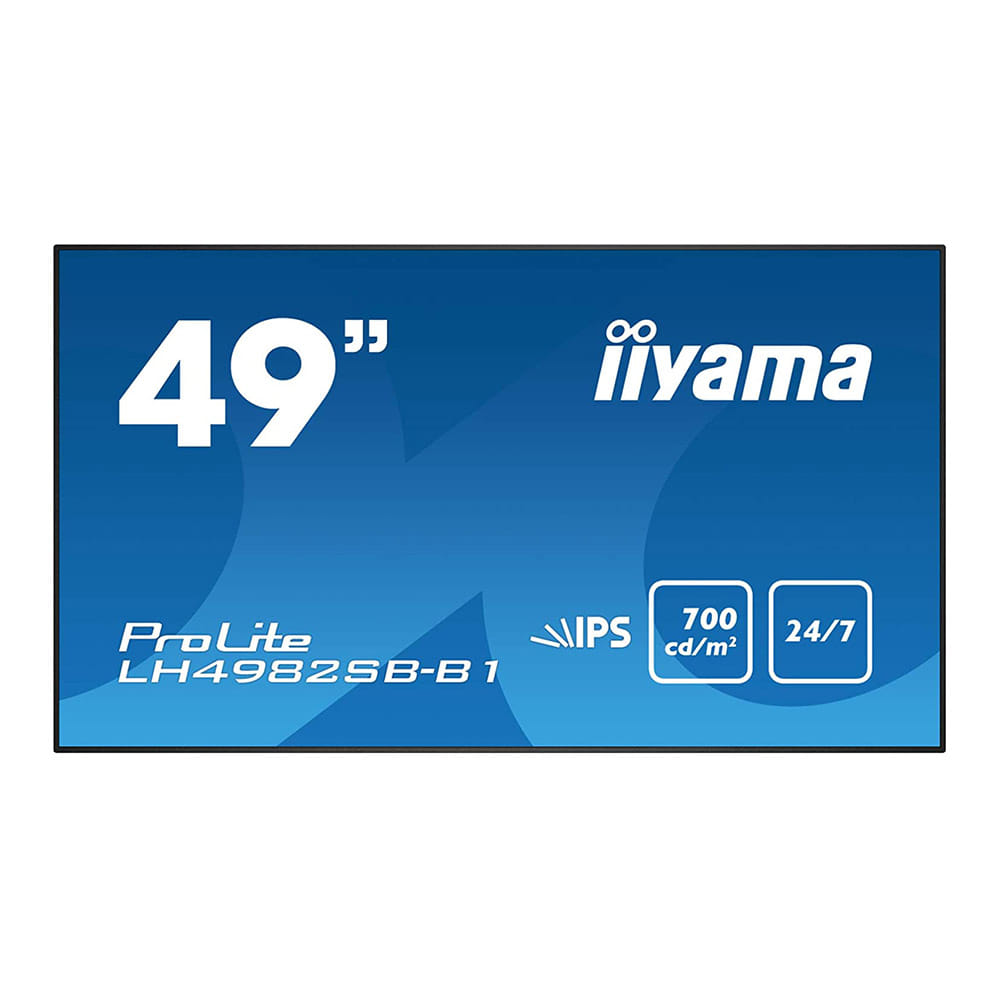

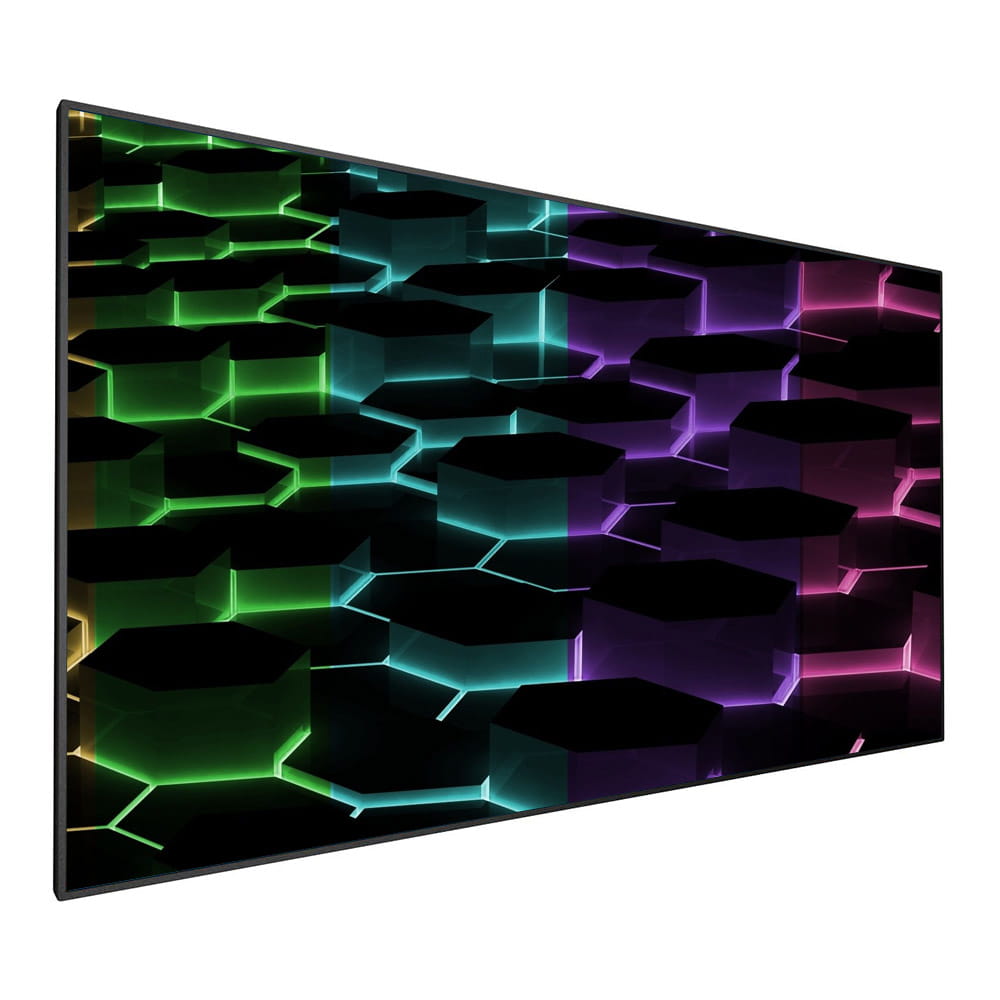

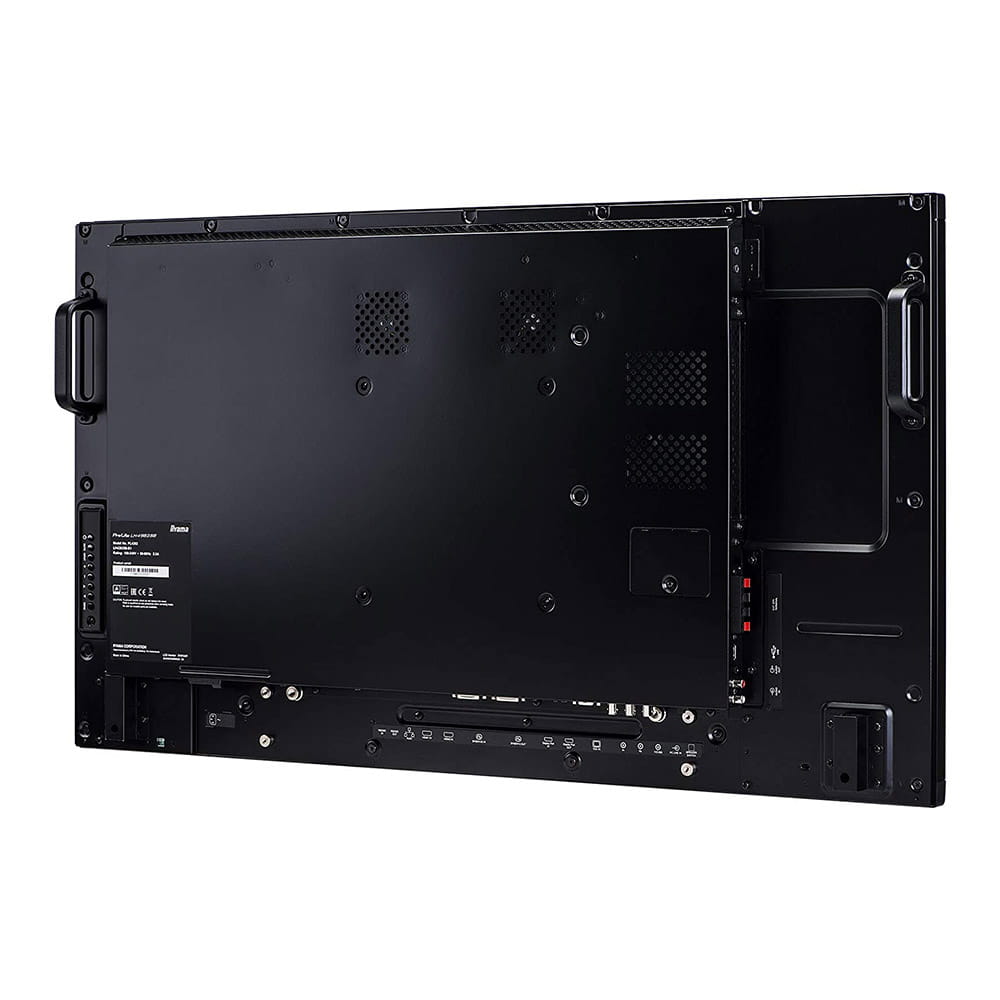

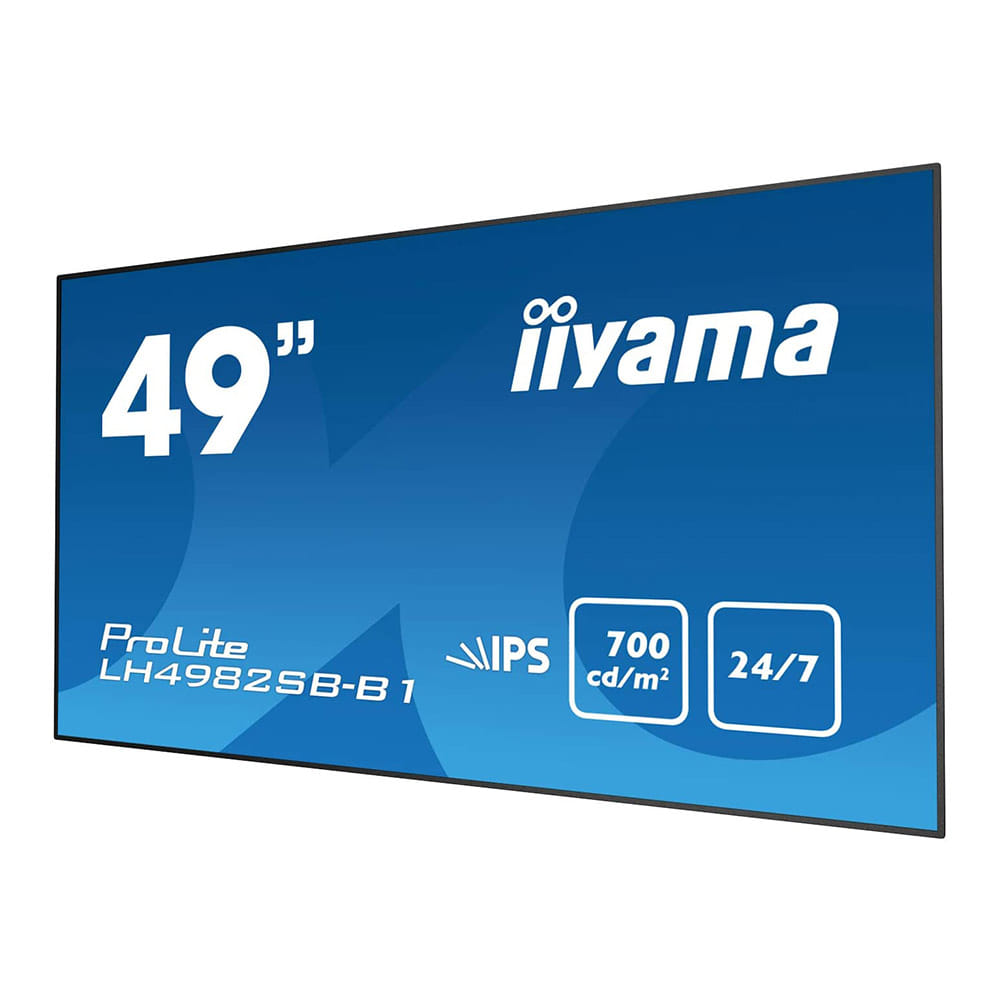

Español iiyama ProLite LH4982SB-B1 FHD 48.5
iiyama ProLite LH4982SB-B1 FHD 48.5
- Viewable Image: 123.2 MU (48.5 Inch (es).
- Resolution: 1920 x 1080 pixels.
- Response time: 8 ms (GtG).
- Supported placement: Indoor.
- Orientation: Landscape, Portrait.
The price that appears is indicative
of guarantee
shipping
Secure pay
The Prolite LH4982SB-B1 large format professional monitor is the ideal digital signage solution for companies that want maximum impact with maximum flexibility. The shallow depth design and ultra narrow bezel design combined with the high brightness of 700cd / m2 - IPS panel, 24/7 operability and portrait / landscape orientation ensure optimal fit in most digital signage installations, incl. video walls. The LED-backlit technology guarantees low energy consumption and together with active ventilation offers reliability for long-term operation. It can be controlled via LAN, RS232 or through a PC connected in the OPS bay.
A daisy chain is a wiring scheme in which multiple devices are connected in sequence or in a ring. It allows the connection of a series of devices using a single connection between each of the two devices through the DisplayPort / HDMI input and a DisplayPort / HDMI output. The output connects to the next screen. This wiring arrangement with a DisplayPort / HDMI cable between each set of monitors provides a simple and less cluttered system setup.
Highlights....
* Viewable Image: 123.2cm (48.5 Inch (es).
* Resolution: 1920 x 1080 pixels.
* Response time: 8 ms (GtG).
* Supported placement: Indoor.
* Orientation: Landscape, Portrait .
| Diseño | Ultra thin bezel |
| Diagonal | 48.5", 123.2cm |
| Pantalla | IPS LED, matte finish, opacidad 10% |
| Resolución nativa | 1920 x 1080 (2.1 megapixel Full HD) |
| Relación de aspecto | 16:9 |
| Brillo | 700 cd/m² típico |
| Contraste estático | 1300:1 típico |
| Tiempo de respuesta (GTG) | 8ms |
| Área de visualización | horizontal/vertical: 178°/178°, derecho/izquierdo: 89°/89°, arriba/abajo: 89°/89° |
| Soporte de Color | 1.07B 10bit (8bit + Hi-FRC) |
| Sincronización horizontal | 30.0 - 83kHz |
| Sincronización vertical | 50 - 76Hz |
| Área de visualización h x v | 1073.8 x 604mm, 42.3 x 23.8" |
| Pixel pitch | 0.55926mm |
| Bisel color y acabado | negro, mate |
| Conector de entrada analógica | VGA x1 RCA video x1 |
| Conector de entrada digital | DVI x1 HDMI x2 DisplayPort x1 |
| Entrada de audio | Mini jack x1 |
| Entrada de control del monitor | RS-232c x1 RJ45 (LAN) x1 IR x1 |
| Conector de salida digital | DisplayPort x1 (v.1.2 Daisy Chain multi-stream) |
| Salida de audio | Mini jack x1 RCA (L/R) x1 Altavoces 2 x 10W |
| Monitor controles de salida | RS-232c x1 Bucle IR x1 ranura OPS x1 (El Slot Intel OPS 80 pin, no es compatible con OPS-C) |
| HDCP | si |
| Puertos USB | x1 (v.2.0) |
| Extra | handles |
| Opratividad | 24/7 |
| pared de video / conexión en cadena | si |
| Reproducción multimedia | si |
| Carcasa (bisel) | meta |
| Orientación | Horizontal, vertical |
| Montaje VESA | 400 x 400mm |
| Unidad de fuente de alimentación | interno |
| Fuente de alimentación | AC 100 - 240V, 50/6025Hz |
| Gestión de energía | 135W typical, Modo en espera 0.5W, Modo apagado 0.5W |
| Producto dimensiones W x H x D | 1093 x 623.0 x 71mm |
| Peso (sin caja) | 19kg |
