Icy Dock MB703M2P-B para M.2 SATA

Icy Dock MB703M2P-B para M.2 SATA

Icy Dock
  • Convert your M.2 SATA SSD into a 2.5 "9.5mm high SSD / HDD form factor.

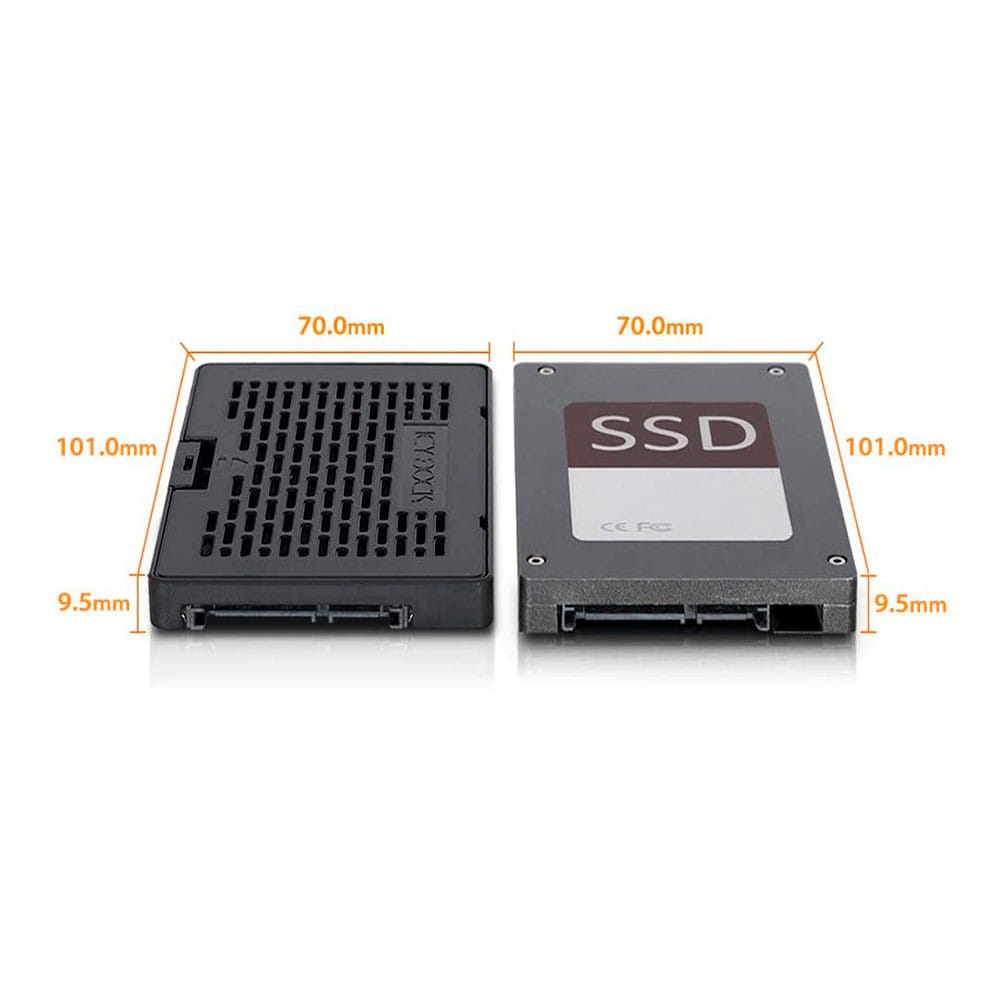

  • Dimensions, port and screw locations identical to 2.5 "HDD or SSD (9.5mm high).
  • Accepts all M.2 SATA SSDs from 30mm to 80mm length (2230/2242/2260/2280).
  • Enables hot swap functionality for any M.2 SATA SSD
  • Support for the full 6Gbps SATA III bandwidth specification
  • 100% tool and screw free M.2 drive mounting
  • Can be installed in any 2.5 "backplane board, hot-swap bay, or USB disk adapter
  • Robust ABS plastic construction
  • Body and lid are in one piece
  • SATA power and data cable compatibility with deadbolt models

P/N: MB703M2P-B - EAN/UPC: 4713227445092

21,04 € Without VAT
25,46 € With VAT
In stock in secondary storage
Approximate delivery between 24 mayo and 25 mayo
3 years
of guarantee
Shipment
Insured
100%
Secure pay

Otros clientes que vieron este producto también se interesaron en
7,00 €
Without VAT
8,47 €
With VAT
Tacens Vecto 2.5 SATA-USB
10,16 €
Without VAT
12,29 €
With VAT
Zignum HD-V535IB 3.5 USB 2.0 Negra
9,18 €
Without VAT
11,11 €
With VAT
Aisens ASM2-007GRY M.2 USB 3.1 Gris
13,35 €
Without VAT
16,15 €
With VAT
Aisens ASE-3530B 3.5 USB 3.1

The ICY DOCK EZConvert MB703M2P-B is a complete solution to convert any M.2 SATA SSD to the exact dimensions and port locations as a standard 2.5 "HDD or SSD (9.5mm high). Designed to be compatible, it accepts all M.2 sizes from 30mm to 80mm in length, installing without screws or tools, and allows these drives to be installed anywhere that will accept a bare 2.5 "drive, such as a drive bay. hot swap, a 2.5 "mounting kit, or 2.5" ICY DOCK racks. The MB703M2P-B protects the delicate printed circuit board of your M.2 SSDs against shocks and drops.

Since M.2 SSDs are not designed to be hot-swappable, their connectors are very delicate and are generally designed for only 250 insert / remove cycles. When used with the EZConvert MB703M2P-B, M.2 SATA SSD drives can be hot-swapped without using the internal connector, but using ICY DOCK's powerful hot-swap connector, designed for at least 10,000 insertion cycles and extraction. Hot-swapping makes it easy to add, remove, and replace disks without the need to reboot the system.

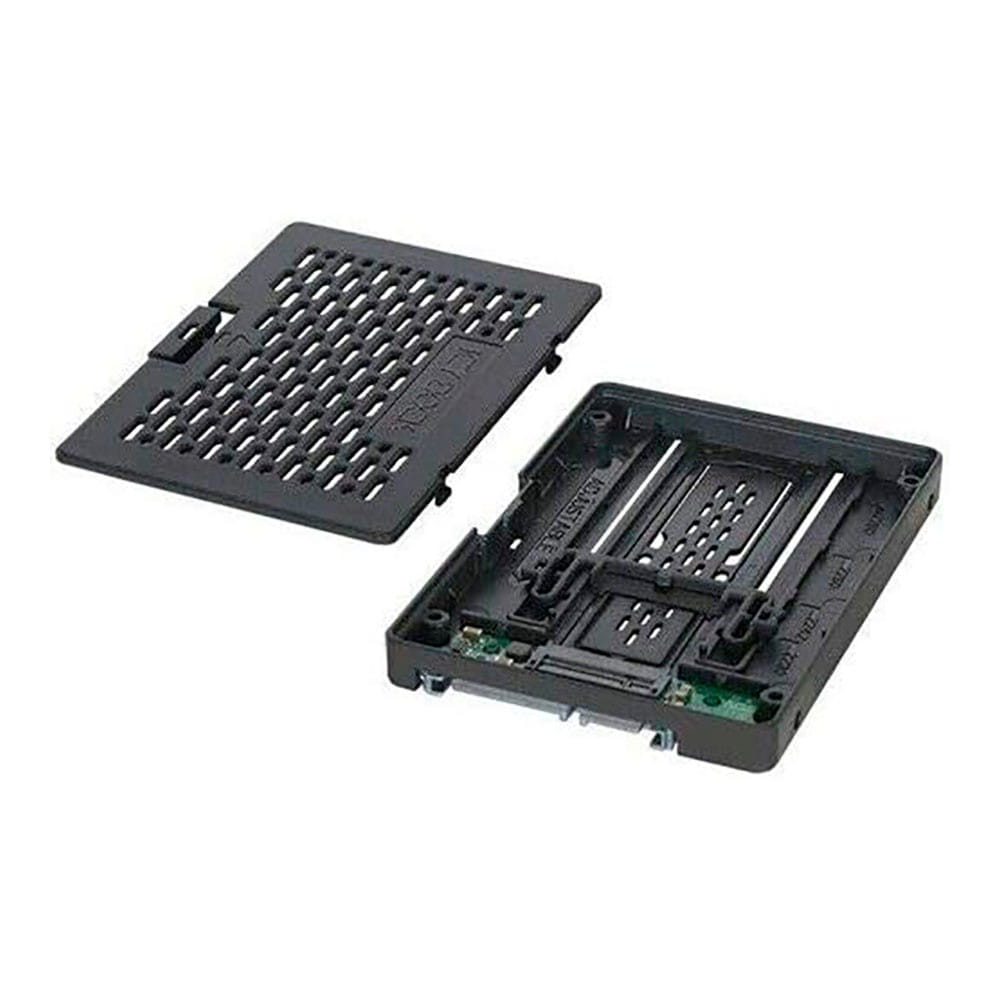

The one-piece cover is equipped with a robust EZ-press closure, which allows frequent disc changes. Simply press the latch to open the lid, exposing the drive bay for easy drive installation, removal, or replacement.

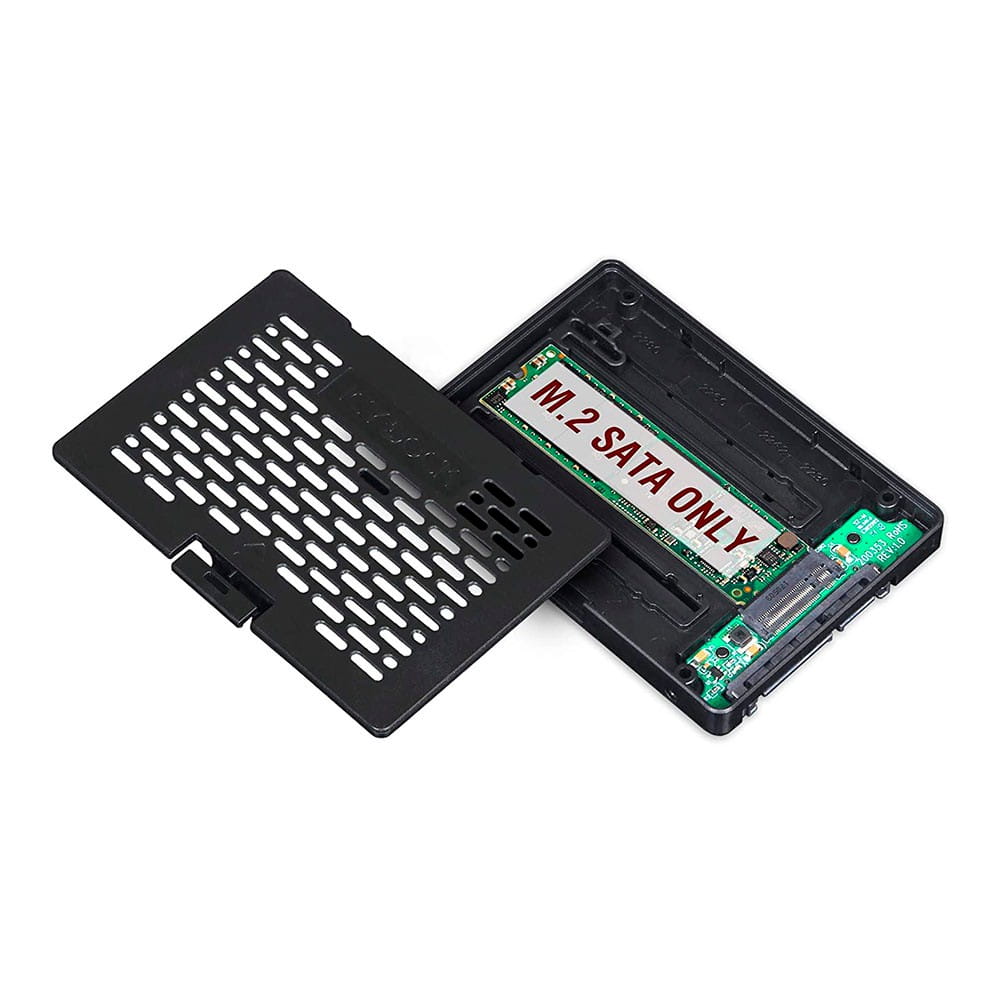

The M.2 Adjustable Sliding Cabinet accommodates all standard M.2 SATA SSD lengths, including 2230 (30mm), 2242 (42mm), 2260 (60mm), and 2280 (80mm). The enclosure clips into the screw hole of the SSD to secure the drive without the need for screws or tools.

Since the MB703M2P-B uses the standard 2.5 "form factor, it can be installed in any 2.5" backplane or hot swappable bay, such as our flexiDOCK, ExpressCage or ToughArmor models. This allows you to expand the capabilities of your existing 2.5 "devices by adding support for M.2 SATA SSDs.

ICY DOCK's EZConvert MB703M2P-B not only allows you to convert M.2 SATA drives to 2.5 "drives, but also, in combination with a SATA to USB 3.1 adapter cable (not included), you can easily convert the MB703M2P- B to an external M.2 SATA drive to take your data anywhere.

The body and cover of the MB703M2P-B are made from a single piece of durable ABS plastic, to strengthen the case and protect your hard drive from drops and bumps. One-piece construction is preferable to multi-piece because the connection between two pieces creates a weak point that is subject to failure.

Highlights.

* Compact CPU cooler, height 29.50mm.
* Copper base and aluminum sheets.
* 74mm PWM fan.
* Adjustable speed: 600 ~ 3000RPM.
* Airflow: 33.50CFM.

Color Negro
Tamaño de disco compatible 1 x B / B + M key M.2 SATA SSD 2230/2242/2260/2280
Typo de disco compatible SATA
Número de M.2 1
Bahía de disco 1 x Bahía de disco de 2.5" SATA (9.5mm - 15mm)
Interfaz  1 x SATA 7pin
Alimentación  1 x conector de alimentación SATA de 15 pin
Tasa de transferencia

Hasta 6Gbps (Depende de la velocidad del disco)

Soporte hot-swap Si
Material Plastico
Dimensiones 70 x 9.5 x 101 (mm)
Peso neto 28g
Humedad 5%~65% RH
Temperatura de funcionamiento

0°C to 60°C (32°F to 140°F)

The ICY DOCK EZConvert MB703M2P-B is a complete solution to convert any M.2 SATA SSD to the exact dimensions and port locations as a standard 2.5 "HDD or SSD (9.5mm high). Designed to be compatible, it accepts all M.2 sizes from 30mm to 80mm in length, installing without screws or tools, and allows these drives to be installed anywhere that will accept a bare 2.5 "drive, such as a drive bay. hot swap, a 2.5 "mounting kit, or 2.5" ICY DOCK racks. The MB703M2P-B protects the delicate printed circuit board of your M.2 SSDs against shocks and drops.

Since M.2 SSDs are not designed to be hot-swappable, their connectors are very delicate and are generally designed for only 250 insert / remove cycles. When used with the EZConvert MB703M2P-B, M.2 SATA SSD drives can be hot-swapped without using the internal connector, but using ICY DOCK's powerful hot-swap connector, designed for at least 10,000 insertion cycles and extraction. Hot-swapping makes it easy to add, remove, and replace disks without the need to reboot the system.

The one-piece cover is equipped with a robust EZ-press closure, which allows frequent disc changes. Simply press the latch to open the lid, exposing the drive bay for easy drive installation, removal, or replacement.

The M.2 Adjustable Sliding Cabinet accommodates all standard M.2 SATA SSD lengths, including 2230 (30mm), 2242 (42mm), 2260 (60mm), and 2280 (80mm). The enclosure clips into the screw hole of the SSD to secure the drive without the need for screws or tools.

Since the MB703M2P-B uses the standard 2.5 "form factor, it can be installed in any 2.5" backplane or hot swappable bay, such as our flexiDOCK, ExpressCage or ToughArmor models. This allows you to expand the capabilities of your existing 2.5 "devices by adding support for M.2 SATA SSDs.

ICY DOCK's EZConvert MB703M2P-B not only allows you to convert M.2 SATA drives to 2.5 "drives, but also, in combination with a SATA to USB 3.1 adapter cable (not included), you can easily convert the MB703M2P- B to an external M.2 SATA drive to take your data anywhere.

The body and cover of the MB703M2P-B are made from a single piece of durable ABS plastic, to strengthen the case and protect your hard drive from drops and bumps. One-piece construction is preferable to multi-piece because the connection between two pieces creates a weak point that is subject to failure.

Highlights.

* Compact CPU cooler, height 29.50mm.
* Copper base and aluminum sheets.
* 74mm PWM fan.
* Adjustable speed: 600 ~ 3000RPM.
* Airflow: 33.50CFM.

Color Negro
Tamaño de disco compatible 1 x B / B + M key M.2 SATA SSD 2230/2242/2260/2280
Typo de disco compatible SATA
Número de M.2 1
Bahía de disco 1 x Bahía de disco de 2.5" SATA (9.5mm - 15mm)
Interfaz  1 x SATA 7pin
Alimentación  1 x conector de alimentación SATA de 15 pin
Tasa de transferencia

Hasta 6Gbps (Depende de la velocidad del disco)

Soporte hot-swap Si
Material Plastico
Dimensiones 70 x 9.5 x 101 (mm)
Peso neto 28g
Humedad 5%~65% RH
Temperatura de funcionamiento

0°C to 60°C (32°F to 140°F)
