Gigabyte Z390 UD. Socket 1151.

Gigabyte Z390 UD. Socket 1151.

Gigabyte
  • Supports 9th and 8th generation Intel® Core ™ processors.
  • Dual Channel DDR4 without ECC without buffer, 4 DIMMs.
  • New 10 + 2 phase PWM digital design.
  • NVMe PCIe Gen3 x4 22110 M.2 connector.
  • Multi-way graphics support with PCIe Armor and Ultra Durable ™ design.
  • GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management.
  • Full color RGB light strip holder.
  • CEC 2019 ready, save energy with a simple click.
  • Smart Fan 5 with multiple temperature sensors and hybrid ventilation heads with FAN STOP.
  • Support for Lightning-Fast Intel® Thunderbolt ™ 3 AIC.
  • Intel® Optane ™ Memory.

P/N: GAZ39UD-00-G - EAN/UPC: 4719331804411

95,64 € Without VAT
115,72 € With VAT
2 years
of guarantee
sending
shipping
100%
Secure pay

With Smart Fan 5 users can have games on their PC that can maintain stable performance while being kept cool. Smart Fan 5 allows users to swap their fan connectors to connect different thermal sensors to different receivers on the motherboard. In addition with Smart Fan 5 the hybrid connectors for the fan support PWM and voltage fans, this makes the motherboard more adapted to the mounting of cooling liquids.

Intersil Digital PWM + Lower RDS (on) MOSFET GIGABYTE UD series motherboards use a 10 * + 2-phase MOSFET PWM + RDS (on) design to support the latest 8-core Intel® Core ™ CPUs by offering precision Unbelievable in delivering power to the most energy-consuming and power-intensive components on the motherboard, plus offering improved system performance and maximum hardware scalability.


Multi-graphics settings offer superior performance for gaming enthusiasts who demand maximum fps without compromising resolution

To create a perfect virtual reality experience, GIGABYTE UD motherboards offer the best features to make your virtual reality feel like your real reality. With technologies like NVMe support via M.2 or U.2 and a one-piece metal shield to prepare heavier discrete graphics cards, it's obvious that GIGABYTE UD has the tools you need to start your virtual reality journey.

Customize your next PC gear to your liking by selecting the color of your choice to illuminate the external RGB light strip.

GIGABYTE's innovative stainless steel shield one-piece design reinforces the PCIe connectors to provide the necessary strength to enable heavy graphics cards.

The Z390 motherboards feature plated ATX 24pin and ATX 12V 8pin + 4pin power connectors to offer a stable power supply while the CPU is overloaded.

GIGABYTE motherboards use high-end audio capacitors. These high-quality capacitors help deliver high-resolution, high-fidelity audio to provide the most realistic sound effects for gamers.

GIGABYTE motherboards feature an audio noise protector that essentially separates sensitive analog audio components on the board from possible noise pollution at the PCB level. LED trace path lighting Illuminates to show separation of PCB layers.

CEC requirement: PC power consumption must be below a certain level when in off mode, idle mode, standby mode. With high energy-efficient hardware components and tuned BIOS, GIGABYTE motherboards can achieve lower power consumption in idle mode and fully comply with the new 2019 CEC (California Energy Commission) power consumption requirement.
BIOS is essential for users during initial setup to establish optimal settings. With a new easy-to-use graphical user interface and new functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience when setting up their computer.

Set up your stage and share the best game moments with XSplit Gamecaster + Broadcaster. The social media integration is fully optimized and ready for real-time chat, keeping you informed and focused on the game. A single click is required to stream your game through Twitch. Stretch your game like a pro!

Highlights...

* Supports 9th and 8th generation Intel® Core ™ processors.
* Dual Channel DDR4 without ECC without buffer, 4 DIMMs.
* New 10 + 2 phase PWM digital design.
* Made for online gaming: Intel® Ethernet Connection I219-V, TUF LANGuard and TurboLAN technology.
* Realtek S1200A Codec: Flawless audio quality with an unprecedented 108 dB signal-to-noise ratio for stereo line output and 103 dB SNR for line input.
* Aura Sync RGB Lighting: Synchronizable LED effects on a wide variety of compatible PC components.

Procesador
CPU Support for 9th and 8th Generation Intel® Core™ i9 processors/ Intel® Core™ i7 processors/ Intel® Core™ i5 processors/ Intel® Core™ i3 processors/ Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1151 package
Chipset Intel® Z390 Express Chipset
Memoria
  1. 4 x DDR4 DIMM sockets supporting up to 128GB (32GB single DIMM capacity) of system memory**
  2. ** Please note that the support for system total memory size depends on the CPU installed.
  3. Arquitectura de memoria Dual Channel
  4. Support for DDR4 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules
  5. Soporte para módulos de memoria ECC Un-buffered UDIMM 1Rx8/2Rx8 (operando en modo no-ECC)
  6. Soporte para módulos de memoria non-ECC Un-buffered DIMM 1Rx8/2Rx8
  7. Soporte para módulos de memoria Extreme Memory Profile (XMP)
Gráfica
  1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
  2. * Support for HDMI 1.4 version and HDCP 2.2.
Ranuras de expansión
  1. 1 x conector M.2 (Socket 3, M key, SATA tipo 2242/2260/2280/22110 y soporte SSD PCIe x4/x2 )
  2. 6 x conector SATA 6Gb/s
  3. Soporta RAID 0, RAID 1, RAID 5, y RAID 10
Almacenamiento
  1. 1 x conector M.2 (Socket 3, M key, SATA tipo 2242/2260/2280/22110 y soporte SSD PCIe x4/x2 )
  2. 6 x conector SATA 6Gb/s
  3. Soporta RAID 0, RAID 1, RAID 5, y RAID 10
Intel® Optane™ Memory Ready *2
LAN Chip Realtek® GbE LAN (10/100/1000 Mbit)
Audio
  1. Realtek® ALC887 codec
  2. Audio de alta definición
  3. 2/4/5.1/7.1-canales

    * Para configurar el audio de 7.1-canales, tiene que usar el módulo de audio HD del panel frontal y habilitar la función multi-channel en el controlador de audio.
  4. Soporte para salida S / PDIF
Puertos USB
  1. 8 x puertos USB 3.1 Gen 1 (6 puertos en el panel trasero, 2 puertos disponibles a través de las cabeceras USB internas)
  2. 2 x puertos USB 2.0/1.1 disponibles a través del conector USB interno

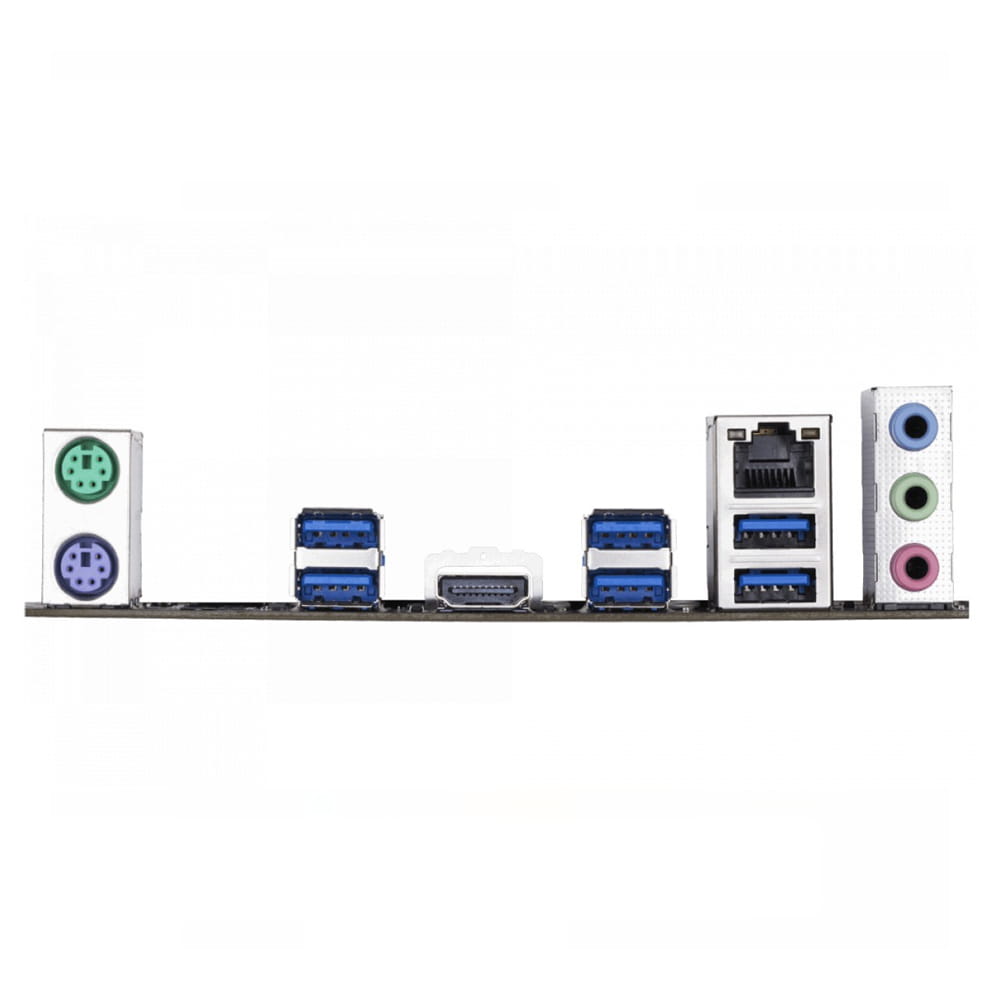

E/S panel trasero
  1. 1 x puerto de ratón PS / 2
  2. 1 x puerto de Teclado PS / 2
  3. 1 x HDMI
  4. 6 x puerto USB 3.1 Gen 1
  5. 1 x Puerto RJ-45
  6. 3 x audio jacks
E/S internas
  1. 1 x 24-pin ATX main power connector
  2. 1 x conector de alimentación ATX 12V 8-pin
  3. 1 x 4-pin ATX 12V power connector
  4. 1 x Triple conector socket M.2
  5. 6 x conector SATA 6Gb/s
  6. 1 x conector del ventilador de la CPU
  7. 3 x conector del ventilador del sistema
  8. 1 x RGB LED strip header
  9. 1 x front panel header
  10. 1 x front panel audio header
  11. 1 x cabezal USB 3.1 Gen 1
  12. 1 x conector USB 2.0/1.1
  13. 1 x conector S/PDIF Out
  14. 1 x Tarjeta expansión Thunderbolt™
  15. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
    La función TPM es opcional según las diferentes políticas locales
  16. 1 x conector del puerto de serie
  17. 1 x Clear CMOS jumper
Accesorios User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x Supporting DVD
1 x TUF Gaming Sticker
1 x TUF Certification card(s)
1 x M.2 SSD screw package(s)
Sistema operativo Windows® 10 64-bit
Formato de fábrica ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 23 cm )
