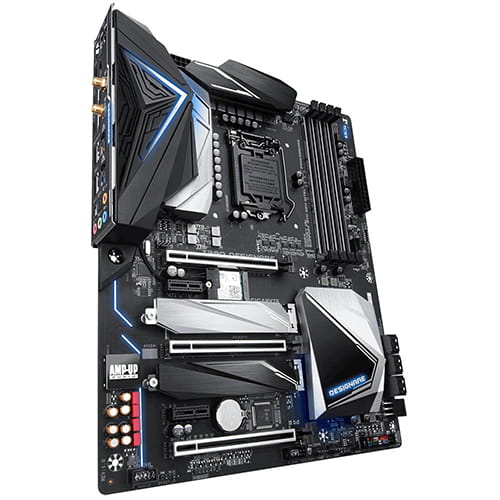

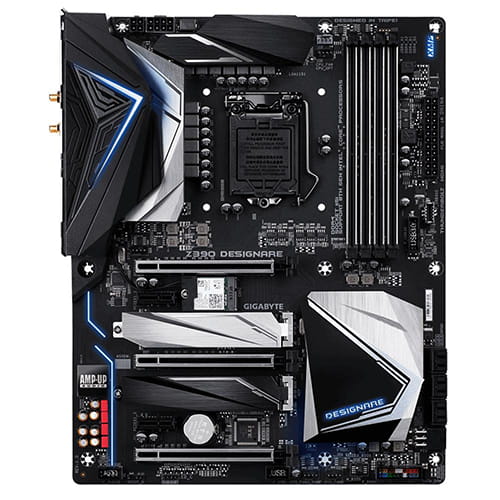

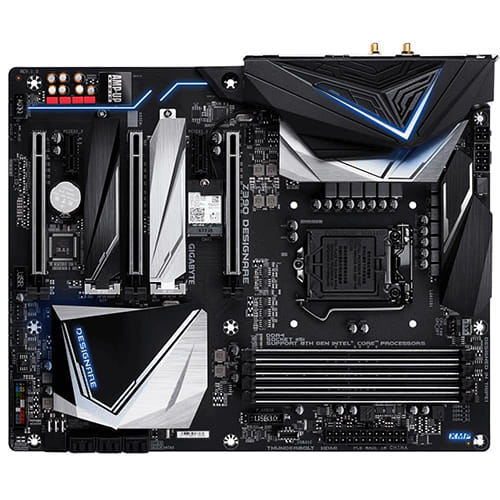

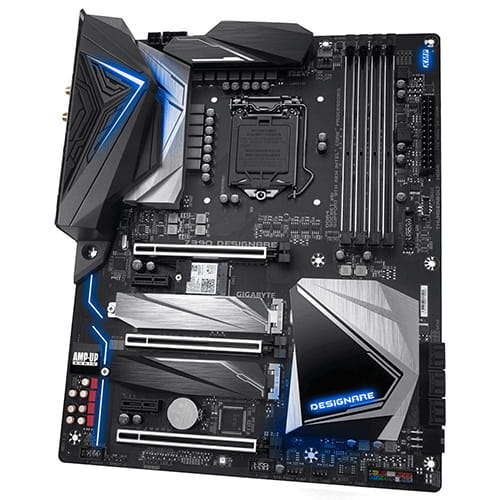

Gigabyte Z390 DESIGNARE. Socket 1151.

Gigabyte Z390 DESIGNARE. Socket 1151.

Gigabyte
  • Supports 9th and 8th Gen Intel Core Processors.
  • DDR4 Dual Channel Non-ECC Unbuffered , 4 DIMMs.
  • 12+1 Phases Digital VRM Solution with DrMOS.
  • Advanced Thermal Design with Direct Touch Heatpipe.
  • Intel Thunderbolt 3 - The USB-C that Does it All.
  • CPU attached PCIe 3.0 x4/x4 NVMe RAID.
  • Dual Ultra-Fast M.2 with PCIe Gen3 x4 interface with Thermal Guards.

P/N: Z390DESIGNARE - EAN/UPC: 4719331804640

278,03 € Without VAT
336,42 € With VAT
2 years
of guarantee
sending
shipping
100%
Secure pay

Intel Z390 Ultra Durable motherboard with 12+1 Phases Digital VRM, Direct Touch Heatpipe, Thunderbolt 3, CPU attached RAID, 802.11ac Wireless, Dual M.2 with Thermal Guards, Dual Intel GbE LAN with cFosSpeed, Front & Rear USB 3.1 Gen 2 Type-C.

The motherboard uses an 12+1 phases digital CPU power design which includes both digital PWM Controller and DrMOS. These 100% digital controller and additional 8+4 Solid-pin CPU Power Connectors offer incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from the new 9th Generation Intel Core processors.

GIGABYTE's exclusive 2X Copper PCB design provides a sufficient number of power tracks between components to assume higher power demands than normal and to, somewhat critical, extract heat from the area that supplies directly to the CPU. This is essential in order to ensure that the motherboard is capable of correctly handling the increase in energy demand caused by overclocking.

The motherboard uses high performance thermal design by combining massive heatsink, Direct Touch Heatpipe, thick thermal pad, providing ultimate MOSFET cooling performance for enthusiasts, overclockers and gamers.

Multiple angles design on heatsink to improve thermal performance by increasing heat dissipation surface and maintain stylish aesthetic.

NVIDIA QUADRO 3D Workstation Professional Graphics Solutions are designed and built specifically for artists, designers, and engineers, NVIDIA Quadro GPUs power more than 100 professional applications across a broad range of industries. Professionals trust them to enable their best work using applications such as Adobe Creative Cloud, Avid Media Composer, Autodesk Suites, Dassault Systemes, CATIA and SOLIDWORKS, Siemens NX, PTC Creo, and many more.

Z390 DESIGNARE motherboard offers the first ever direct CPU attached PCIe AIC SSDs of NVMe storage for users who demand high capacity and seek the ultimate performance. DESIGNARE’s unique design can be configured in RAID for record speeds of up to 3551 MB/s (Sequential Read) directly attached to CPU side, removing the bottleneck between CPU and platform chipset, making Z390 DESIGNARE the obvious choice for the ultimate content creation PC.

Z390 motherboards offer the industry's best compatibility in terms of NVMe storage for users who demand high capacity and seek the best performance. GIGABYTE' unique design can be configured in RAID for record speeds of up to 3551 MB/s (Sequential Read), making GIGABYTE the obvious choice for the ultimate PC.

Highlights...

* Supports 9th and 8th Gen Intel Core Processors.
* DDR4 Dual Channel Non-ECC Unbuffered , 4 DIMMs.
* 12+1 Phases Digital VRM Solution with DrMOS.
* Advanced Thermal Design with Direct Touch Heatpipe.
* Intel Thunderbolt 3 - The USB-C that Does it All.
* CPU attached PCIe 3.0 x4/x4 NVMe RAID.
* Dual Ultra-Fast M.2 with PCIe Gen3 x4 interface with Thermal Guards.
* Multi-Way Graphics Support with Dual Armor and Ultra Durable Design.
* Dual Intel Gigabit LAN with cFosSpeed.
* Onboard Intel CNVi 160MHz 802.11ac 2x2 WIFI.
* Front USB 3.1 Gen 2 Type-C Header.
* ALC1220-VB Enhance 114dB(Rear)/ 110dB(Front) SNR in Microphone with WIMA Audio Capacitors.
* USB DAC-UP 2 with adjustable voltage.
* Smart Fan 5 with multiple temperature sensors and hybrid ventilation heads with FAN STOP.
* Support RGB Lighting Effect in Full Color.
* CEC 2019 Ready, Save the Power as Easy as One Click.
* Intel Optane Memory.

Processor
  1. Support for 9th and 8th Generation Intel Core i9 processors/ Intel Core i7 processors/ Intel Core i5 processors/ Intel Core i3 processors/ Intel Pentium processors/ Intel Celeron processors in the LGA1151 package
  2. Caché L3 varía según la CPU
Chipset Intel Z390 Express
Memory
  1. 4 x DDR4 DIMM sockets supporting up to 128GB (32GB single DIMM capacity) of system memory**
  2. ** Please note that the support for system total memory size depends on the CPU installed.
  3. Arquitectura de memoria Dual Channel
  4. Support for DDR4 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules
  5. Soporte para módulos de memoria ECC Un-buffered UDIMM 1Rx8/2Rx8 (operando en modo no-ECC)
  6. Soporte para módulos de memoria non-ECC Un-buffered DIMM 1Rx8/2Rx8
  7. Soporte para módulos de memoria Extreme Memory Profile (XMP)
Integrated Graphic Card Procesador gráfico integrado – Soporte Intel® HD Graphics:
  1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
  2. * Support for HDMI 1.4 version and HDCP 2.2.
Procesador gráfico integrado + Controlador Intel® Thunderbolt™ 3:
  1. 2 x Intel® Thunderbolt™ 3 connectors (USB Type-C™ ports), supporting DisplayPort and Thunderbolt™ video outputs and a maximum resolution of 4096x2304@60 Hz
  2. * Supports up to 7680x3840@60 Hz if connected to an external graphics card for display output.
  3. *Devido a las limitaciones de los puertos I/O de la arquitectura del PC, el número de dispositivos Thunderbolt™ que pueden utilizarse depende del número de dispositivos PCI Express instalados. (Consulte el capítulo 1-7, "Conectores del panel posterior," para más información.)
  4. * Soporta DisplayPort versión 1.2.
Audio
  1. Realtek® ALC1220-VB codec
  2. * The back panel line out jack supports DSD audio.
  3. Audio de alta definición
  4. 2/4/5.1/7.1-channel
  5. Soporte para salida S / PDIF
LAN 2 x chips Intel® GbE LAN (10/100/1000 Mbit)
Expansion Slots
  1. 1 x PCI Express x16, a x16 (PCIEx16)
  2. * Para un rendimiento óptimo, aunque sea con una única tarjeta gráfica PCI Express instalada, asegúrese de conectarla en la ranura PCIEx16.
  3. 1 x ranura PCI Express x16, a velocidad x8 (PCIEX8)
  4. * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
  5. 1 x PCI Express x16, a x4 (PCIEX4)
  6. 2 x PCI Express x1 slots
  7. (Todos los slots PCI Express conforman el estandar PCI Express 3.0)
  8. 1 x M.2 Socket 1 connector for an Intel® CNVi wireless module (CNVI)
Storage
  1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2M)
  2. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2P)
  3. 6 x conector SATA 6Gb/s
  4. Soporta RAID 0, RAID 1, RAID 5, y RAID 10
  5. * Consulte los conectores internos "1-8" para saber los avisos de instalación de los conectores M.2 y SATA.
Multi-Graphic Technology
  1. Compatibilidad con las tecnologías NVIDIA® Quad-GPU SLI™ y 2-Way NVIDIA® SLI™
  2. Support for AMD Quad-GPU CrossFire™ and 3-Way/2-Way AMD CrossFire™ technologies
USB Chipset+USB 3.1 Gen 1 Hub:
  1. 4 x USB 3.1 Gen 1 ports on the back panel
Chipset+ Controlador Intel® Thunderbolt™ 3:
  1. 2 x USB Type-C™ ports on the back panel, with USB 3.1 Gen 2 support
Chipset:
  1. 1 x USB Type-C™ port with USB 3.1 Gen 2 support, available through the internal USB header
  2. 2 x USB 3.1 Gen 2 Type-A ports (red) on the back panel
  3. 2 x USB 3.1 Gen 1 ports available through the internal USB header
  4. 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Internal E/S Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x conector de alimentación ATX 12V 8-pin
  3. 1 x 4-pin ATX 12V power connector
  4. 1 x PEG power connector
  5. 2 x conectores M.2 Socket 3
  6. 6 x conector SATA 6Gb/s
  7. 1 x conector del ventilador de la CPU
  8. 1 x conexión del ventilador para refrigeración por agua
  9. 2 x cabeceras para ventilador del sistema
  10. 1 x conector para los ventiladores del sistema/para las bombas de refrigeración líquida
  11. 1 x RGB LED strip header
  12. 1 x front panel header
  13. 1 x conector de audio en el panel frontal
  14. 1 x puerto USB Tipo-C™, con soporte USB 3.1 Gen 2
  15. 1 x cabezal USB 3.1 Gen 1
  16. 1 x conector USB 2.0/1.1
  17. 1 x S/PDIF Out header
  18. 1 x Clear CMOS jumper

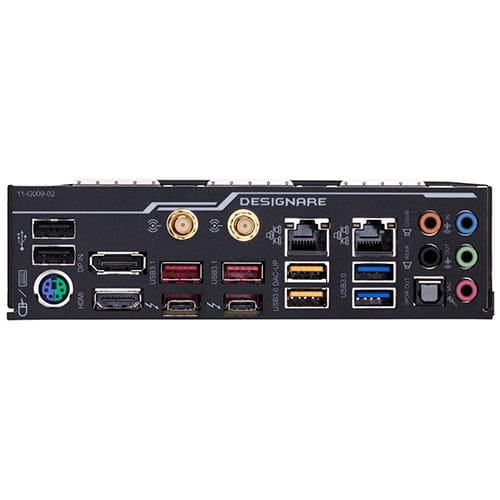

Rear E/S Panel
  1. 1 x puerto teclado / ratón PS / 2
  2. 1 x DisplayPort In port
  3. 1 x HDMI
  4. 2 x conectores de antena SMA (2T2R)
  5. 2 x USB 3.1 Gen 2 Type-A ports (red)
  6. 2 x Thunderbolt™ 3 connectors (USB Type-C™ ports, with USB 3.1 Gen 2 support)
  7. 4 x puertos USB 3.1 Gen 1
  8. 2 x puerto USB 2.0/1.1
  9. 2 x puerto RJ-45
  10. 1 x conector óptico S/PDIF Out
  11. 5 x audio jacks
Form Factor Factor de forma ATX, 30.5cm x 24.4cm
