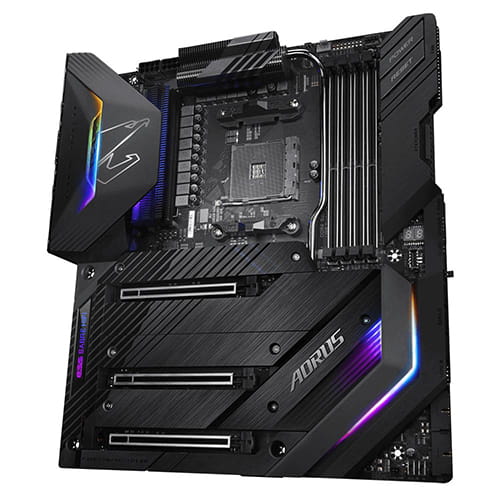

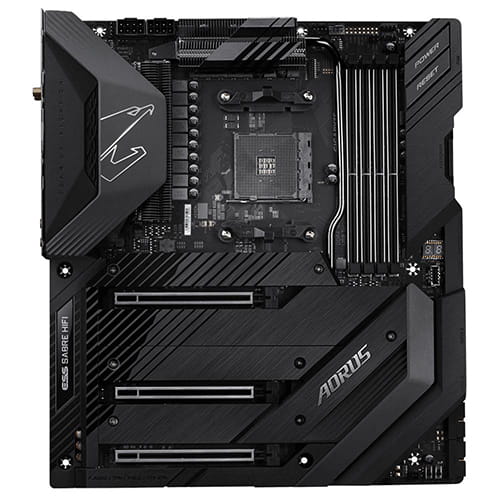

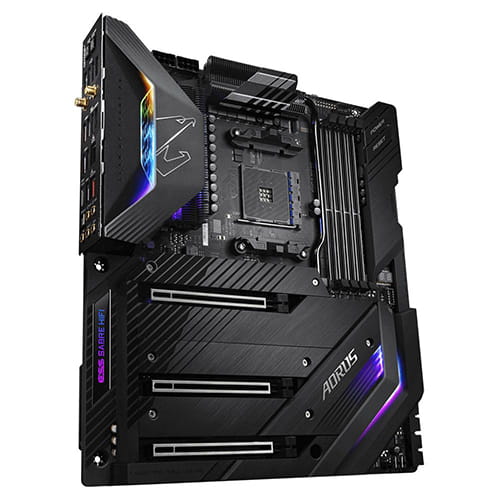

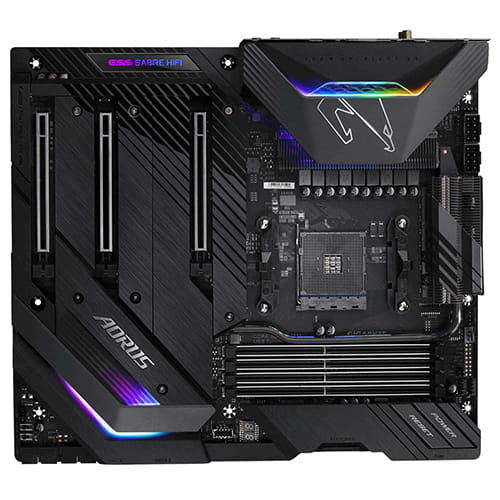

AMD X570 AORUS Motherboard with Direct 16 Phases Infineon Digital VRM, Fins-Array Heatsink, NanoCarbon Baseplate, Triple PCIe 4.0 M.2 with Thermal Guards, Intel® WiFi 6 802.11ax, ESS SABRE HiFi 9218, AQUANTIA® 10GbE LAN+1GbE LAN, RGB FAN COMMANDER, RGB Fusion 2.0.
Innovative design, cutting-edge function, state-of-art aesthetics, sophisticated thermal design, next generation network connection, Hi-Fi level audio system. X570 AORUS XTREME is the new definition of flagship motherboard.
GIGABYTE X570 motherboards based on the AMD X570 Chipset provide full support for 3rd Gen AMD Ryzen™ Processors. The all-new design is a testament to GIGABYTE's dedication to design quality. GIGABYTE X570 motherboards offer a rich list of features such as support for PCIe 4.0 and USB Type-C™ interfaces on select boards, refined audio, high speed of Ethernet and latest standard of WIFI design, to fulfill users' performance, audio, and data transfer needs. The new, advanced power and thermal design enables users to unleash the performance on AMD Ryzen™ 3000-series Processors, making the GIGABYTE X570 motherboards perfect for users looking to build the best AMD platform gaming system.
GIGABYTE X570 motherboards maximize your PC's potential with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC to a performance driven system.
To unleash the full potential of the 3rd Generation of AMD Ryzen™ CPU, the motherboard requires the best CPU power design. With the best quality components and GIGABYTE R&D design capability, the X570 AORUS is a true beast among motherboards.
X570 AORUS XTREME uses some unprecedented and innovative thermal design to ensure CPU, Chipset, SSD stability and low temperature under full loading application and gaming.
Hungry for better performance? X570 AORUS XTREME has full PCIe 4.0 design, supports high frequency memory, and full SSD thermal guard to make sure you get the maximum full system performance.
Highlights...
* Supports AMD 3rd Gen Ryzen/ 2nd Gen Ryzen/ 2nd Gen Ryzen with Radeon Vega Graphics/ Ryzen with Radeon Vega Graphics Processors.
* Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs.
* Direct 16 Phases Infineon Digital VRM Solution with 70A Power Stage.
* Thermal Reactive Armor Design with Fins-Array Heatsink, Direct Touch Heatpipe and NanoCarbon Baseplate.
* Triple Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Triple Thermal Guards.
* Onboard Intel WiFi 6 802.11ax 2T2R & BT 5 with 2X AORUS Antenna.
* Rear 130dB SNR AMP-UP Audio with ALC1220-VB & ESS SABRE 9218 DAC with WIMA Audio Capacitors.
* AQUANTIA 10GbE BASE-T LAN and Intel Gigabit LAN with cFosSpeed.
* Exclusive RGB FAN COMMANDER for Professional Casemoders.
* USB TurboCharger for Mobile Device Fast Charge Support.
* RGB FUSION with Multi-Zone Addressable LED Light Show Design, Supports Addressable LED & RGB LED Strips.
* Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP and Noise Detection.
* Front & Rear USB 3.2 Gen2 Type-C Headers.
* Q-Flash Plus Update BIOS Without Installing CPU, Memory and Graphics Card.
| Processor |
AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/ AMD Ryzen™ with Radeon™ Vega Graphics processors |
| Chipset |
AMD X570 |
| Memory |
- 3rd Generation AMD Ryzen™ processors:
Support for DDR4 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
- 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:
Support for DDR4 3600(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules
- 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
- Arquitectura de memoria Dual Channel
- Soporte para módulos de memoria ECC Un-buffered DIMM 1Rx8/2Rx8*
- * ECC mode supported by 3rd Gen AMD Ryzen™/ 2nd Gen AMD Ryzen™ and only PRO sku of 2nd Gen AMD Ryzen™ with Radeon™ Vega Graphics processors/ AMD Ryzen™ with Radeon™ Vega Graphics processors.
- Soporte para módulos de memoria non-ECC Un-buffered DIMM 1Rx8/2Rx8
- Soporte para módulos de memoria Extreme Memory Profile (XMP)
|
| Integrated Graphic Card |
|
| Audio |
- Realtek® ALC1220-VB codec
- * The front panel line out jack supports DSD audio.
- ESS SABRE9218 DAC chip
- Audio de alta definición
- 2/4/5.1/7.1-channel
- Soporte para salida S / PDIF
|
| LAN |
- 1 x Aquantia GbE LAN chip (10 Gbit/5 Gbit/2.5 Gbit/1000 Mbit/100 Mbit) (LAN1)
- 1 x Intel® GbE LAN phy (10/100/1000 Mbit) (LAN2)
|
| Expansion Slots |
Integrated in the CPU (PCIEX16/PCIEX8):
- 3rd Generation AMD Ryzen™ processors:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x8 (PCIEX8)
- 2nd Generation AMD Ryzen™ processors:
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16)
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX8)
* Para un rendimiento óptimo, aunque sea con una única tarjeta gráfica PCI Express instalada, asegúrese de conectarla en la ranura PCIEx16.
* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When using the 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors, the PCIEX16 slot operates at up to x8 mode.
- 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX16)
Integrated in the Chipset (PCIEX4):
- 1 x PCI Express x16 slot, supporting PCIe 4.0*/3.0 and running at x4
For 3rd Generation AMD Ryzen™ processors only.
|
| Storage |
Integrated in the CPU (M2A_SOCKET):
- 3rd Generation AMD Ryzen™ processors:
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support)
- 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)
Integrated in the Chipset (M2B_SOCKET/M2C_SOCKET):
- 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support) (M2B_SOCKET)
* For 3rd Generation AMD Ryzen™ processors only.
- 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support) (M2C_SOCKET)
For 3rd Generation AMD Ryzen™ processors only.
- 6 x conector SATA 6Gb/s
- Soporta RAID 0, RAID 1, y RAID 10
* Consulte los conectores internos "1-9" para saber los avisos de instalación de los conectores M.2 y SATA.
|
| Multi-Graphic Technology |
- Compatibilidad con las tecnologías NVIDIA® Quad-GPU SLI™ y 2-Way NVIDIA® SLI™
- Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
|
| USB |
Chipset+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports on the back panel
Integrated in the Chipset:
- 1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header
- 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support
- 3 x USB 3.2 Gen 2 Type-A port (red) on the back panel
- 2 x USB 3.2 Gen 1 ports available through the internal USB header
Integrated in the CPU:
- 2 x USB 3.2 Gen 2*/Gen 1 Type-A ports (red) on the back panel
* For 3rd Generation AMD Ryzen™ processors only.
- 2 x USB 3.2 Gen 1 ports on the back panel
Chipset+USB 3.2 Gen 1 Hub:
- 2 x USB 3.2 Gen 1 ports available through the internal USB header
- 2 x puertos USB 2.0/1.1 disponibles a través del conector USB interno
|
| Internal E/S Connectors |
- 1 x conector de alimentación principal ATX 24-pin
- 2 x conector de potencia 8-pin ATX 12V
- 1 x OC PEG power connector
- 1 x conector del ventilador de la CPU
- 1 x conexión del ventilador para refrigeración por agua
- 4 x conector para ventilador del sistema
- 2 x conectores para los ventiladores del sistema/para las bombas de refrigeración líquida
- 2 x Addressable LED strip headers
- 2 x RGB LED strip headers
- 3 x M.2 Socket 3 connectors
- 6 x conector SATA 6Gb/s
- 1 x conector del panel frontal
- 1 x conector de audio en el panel frontal
- 1 x USB Type-C™ port, with USB 3.2 Gen 2 support
- 2 x USB 3.2 Gen 1 headers
- 1 x conector USB 2.0/1.1
- 1 x noise detection header
- 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
La función TPM es opcional según las diferentes políticas locales
- 2 x cabezales de sensor de temperatura
- 1 x botón de encendido
- 1 x botón reset
- 2 x conmutadores para la BIOS
- Punto de medida de tensión
- 1 x Tarjeta expansión Thunderbolt™ (Only rev1.1 available)
|

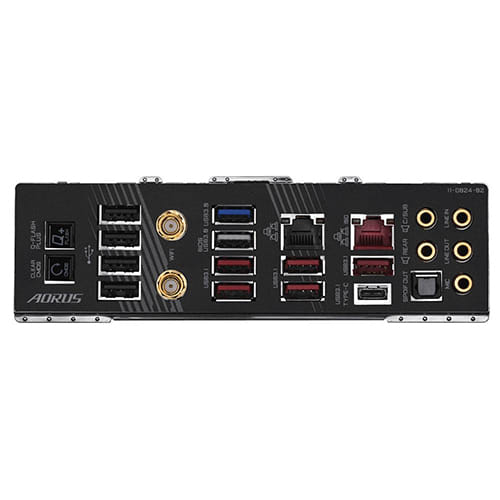

| Rear E/S Panel |
- 1 x Q-Flash Plus button
- 1 x botón para limpiar la CMOS
- 2 x conectores de antena SMA (2T2R)
- 1 x USB Type-C™ port, with USB 3.2 Gen 2 support
- 2 x USB 3.2 Gen 2*/Gen 1 Type-A ports (red)
* For 3rd Generation AMD Ryzen™ processors only.
- 3 x USB 3.2 Gen 2 Type-A ports (red)
- 2 x USB 3.2 Gen 1 ports
- 4 x puertos USB 2.0/1.1
- 2 x puerto RJ-45
- 1 x optical S/PDIF Out connector
- 5 x audio jacks
|
| Form Factor |
E-ATX Form Factor; 30.5cm x 27.0cm |

AMD X570 AORUS Motherboard with Direct 16 Phases Infineon Digital VRM, Fins-Array Heatsink, NanoCarbon Baseplate, Triple PCIe 4.0 M.2 with Thermal Guards, Intel® WiFi 6 802.11ax, ESS SABRE HiFi 9218, AQUANTIA® 10GbE LAN+1GbE LAN, RGB FAN COMMANDER, RGB Fusion 2.0.
Innovative design, cutting-edge function, state-of-art aesthetics, sophisticated thermal design, next generation network connection, Hi-Fi level audio system. X570 AORUS XTREME is the new definition of flagship motherboard.
GIGABYTE X570 motherboards based on the AMD X570 Chipset provide full support for 3rd Gen AMD Ryzen™ Processors. The all-new design is a testament to GIGABYTE's dedication to design quality. GIGABYTE X570 motherboards offer a rich list of features such as support for PCIe 4.0 and USB Type-C™ interfaces on select boards, refined audio, high speed of Ethernet and latest standard of WIFI design, to fulfill users' performance, audio, and data transfer needs. The new, advanced power and thermal design enables users to unleash the performance on AMD Ryzen™ 3000-series Processors, making the GIGABYTE X570 motherboards perfect for users looking to build the best AMD platform gaming system.
GIGABYTE X570 motherboards maximize your PC's potential with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC to a performance driven system.
To unleash the full potential of the 3rd Generation of AMD Ryzen™ CPU, the motherboard requires the best CPU power design. With the best quality components and GIGABYTE R&D design capability, the X570 AORUS is a true beast among motherboards.
X570 AORUS XTREME uses some unprecedented and innovative thermal design to ensure CPU, Chipset, SSD stability and low temperature under full loading application and gaming.
Hungry for better performance? X570 AORUS XTREME has full PCIe 4.0 design, supports high frequency memory, and full SSD thermal guard to make sure you get the maximum full system performance.
Highlights...
* Supports AMD 3rd Gen Ryzen/ 2nd Gen Ryzen/ 2nd Gen Ryzen with Radeon Vega Graphics/ Ryzen with Radeon Vega Graphics Processors.
* Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs.
* Direct 16 Phases Infineon Digital VRM Solution with 70A Power Stage.
* Thermal Reactive Armor Design with Fins-Array Heatsink, Direct Touch Heatpipe and NanoCarbon Baseplate.
* Triple Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Triple Thermal Guards.
* Onboard Intel WiFi 6 802.11ax 2T2R & BT 5 with 2X AORUS Antenna.
* Rear 130dB SNR AMP-UP Audio with ALC1220-VB & ESS SABRE 9218 DAC with WIMA Audio Capacitors.
* AQUANTIA 10GbE BASE-T LAN and Intel Gigabit LAN with cFosSpeed.
* Exclusive RGB FAN COMMANDER for Professional Casemoders.
* USB TurboCharger for Mobile Device Fast Charge Support.
* RGB FUSION with Multi-Zone Addressable LED Light Show Design, Supports Addressable LED & RGB LED Strips.
* Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP and Noise Detection.
* Front & Rear USB 3.2 Gen2 Type-C Headers.
* Q-Flash Plus Update BIOS Without Installing CPU, Memory and Graphics Card.
| Processor |
AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/ AMD Ryzen™ with Radeon™ Vega Graphics processors |
| Chipset |
AMD X570 |
| Memory |
- 3rd Generation AMD Ryzen™ processors:
Support for DDR4 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
- 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:
Support for DDR4 3600(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules
- 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
- Arquitectura de memoria Dual Channel
- Soporte para módulos de memoria ECC Un-buffered DIMM 1Rx8/2Rx8*
- * ECC mode supported by 3rd Gen AMD Ryzen™/ 2nd Gen AMD Ryzen™ and only PRO sku of 2nd Gen AMD Ryzen™ with Radeon™ Vega Graphics processors/ AMD Ryzen™ with Radeon™ Vega Graphics processors.
- Soporte para módulos de memoria non-ECC Un-buffered DIMM 1Rx8/2Rx8
- Soporte para módulos de memoria Extreme Memory Profile (XMP)
|
| Integrated Graphic Card |
|
| Audio |
- Realtek® ALC1220-VB codec
- * The front panel line out jack supports DSD audio.
- ESS SABRE9218 DAC chip
- Audio de alta definición
- 2/4/5.1/7.1-channel
- Soporte para salida S / PDIF
|
| LAN |
- 1 x Aquantia GbE LAN chip (10 Gbit/5 Gbit/2.5 Gbit/1000 Mbit/100 Mbit) (LAN1)
- 1 x Intel® GbE LAN phy (10/100/1000 Mbit) (LAN2)
|
| Expansion Slots |
Integrated in the CPU (PCIEX16/PCIEX8):
- 3rd Generation AMD Ryzen™ processors:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x8 (PCIEX8)
- 2nd Generation AMD Ryzen™ processors:
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16)
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX8)
* Para un rendimiento óptimo, aunque sea con una única tarjeta gráfica PCI Express instalada, asegúrese de conectarla en la ranura PCIEx16.
* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When using the 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors, the PCIEX16 slot operates at up to x8 mode.
- 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX16)
Integrated in the Chipset (PCIEX4):
- 1 x PCI Express x16 slot, supporting PCIe 4.0*/3.0 and running at x4
For 3rd Generation AMD Ryzen™ processors only.
|
| Storage |
Integrated in the CPU (M2A_SOCKET):
- 3rd Generation AMD Ryzen™ processors:
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support)
- 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)
Integrated in the Chipset (M2B_SOCKET/M2C_SOCKET):
- 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support) (M2B_SOCKET)
* For 3rd Generation AMD Ryzen™ processors only.
- 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support) (M2C_SOCKET)
For 3rd Generation AMD Ryzen™ processors only.
- 6 x conector SATA 6Gb/s
- Soporta RAID 0, RAID 1, y RAID 10
* Consulte los conectores internos "1-9" para saber los avisos de instalación de los conectores M.2 y SATA.
|
| Multi-Graphic Technology |
- Compatibilidad con las tecnologías NVIDIA® Quad-GPU SLI™ y 2-Way NVIDIA® SLI™
- Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
|
| USB |
Chipset+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports on the back panel
Integrated in the Chipset:
- 1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header
- 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support
- 3 x USB 3.2 Gen 2 Type-A port (red) on the back panel
- 2 x USB 3.2 Gen 1 ports available through the internal USB header
Integrated in the CPU:
- 2 x USB 3.2 Gen 2*/Gen 1 Type-A ports (red) on the back panel
* For 3rd Generation AMD Ryzen™ processors only.
- 2 x USB 3.2 Gen 1 ports on the back panel
Chipset+USB 3.2 Gen 1 Hub:
- 2 x USB 3.2 Gen 1 ports available through the internal USB header
- 2 x puertos USB 2.0/1.1 disponibles a través del conector USB interno
|
| Internal E/S Connectors |
- 1 x conector de alimentación principal ATX 24-pin
- 2 x conector de potencia 8-pin ATX 12V
- 1 x OC PEG power connector
- 1 x conector del ventilador de la CPU
- 1 x conexión del ventilador para refrigeración por agua
- 4 x conector para ventilador del sistema
- 2 x conectores para los ventiladores del sistema/para las bombas de refrigeración líquida
- 2 x Addressable LED strip headers
- 2 x RGB LED strip headers
- 3 x M.2 Socket 3 connectors
- 6 x conector SATA 6Gb/s
- 1 x conector del panel frontal
- 1 x conector de audio en el panel frontal
- 1 x USB Type-C™ port, with USB 3.2 Gen 2 support
- 2 x USB 3.2 Gen 1 headers
- 1 x conector USB 2.0/1.1
- 1 x noise detection header
- 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
La función TPM es opcional según las diferentes políticas locales
- 2 x cabezales de sensor de temperatura
- 1 x botón de encendido
- 1 x botón reset
- 2 x conmutadores para la BIOS
- Punto de medida de tensión
- 1 x Tarjeta expansión Thunderbolt™ (Only rev1.1 available)
|
| Rear E/S Panel |
- 1 x Q-Flash Plus button
- 1 x botón para limpiar la CMOS
- 2 x conectores de antena SMA (2T2R)
- 1 x USB Type-C™ port, with USB 3.2 Gen 2 support
- 2 x USB 3.2 Gen 2*/Gen 1 Type-A ports (red)
* For 3rd Generation AMD Ryzen™ processors only.
- 3 x USB 3.2 Gen 2 Type-A ports (red)
- 2 x USB 3.2 Gen 1 ports
- 4 x puertos USB 2.0/1.1
- 2 x puerto RJ-45
- 1 x optical S/PDIF Out connector
- 5 x audio jacks
|
| Form Factor |
E-ATX Form Factor; 30.5cm x 27.0cm |
