Gigabyte RX 5500 XT Gaming OC 8Gb GDDR6

Gigabyte RX 5500 XT Gaming OC 8Gb GDDR6

Gigabyte
  • Powered by AMD Radeon RX 5500 XT.
  • Integrated with 8GB GDDR6 128-bit memory interface.
  • WINDFORCE 3X Cooling System with alternate spinning fans.
  • RGB Fusion 2.0 – 16.7M colors synchronize with other AORUS devices.
  • Protection Back Plate.
  • PCI-Express 4.0 Support.

P/N: GV-R55XTGAMINGOC-8GD

232,43 € Without VAT
281,24 € With VAT
Only 5 units left
Approximate delivery between 28 septiembre and 29 septiembre
2 years
of guarantee
sending
shipping
100%
Secure pay

Gigabyte Radeon RX 5500 XT GAMING OC features PCI-Express 4.0 support, with a throughput of 16 GT/s and enables two times the bandwidth compared to PCI Express 3.0. With the PCI-Express 4.0 supported motherboard, and get ready for the next generation of PC gaming.

The WINDFORCE 3X cooling system features 3x 80mm unique blade fans, alternate spinning fan, 2 composite copper heat pipes, heat-pipe direct touch and 3D active fan functionality, together delivering an effective heat dissipation capacity for higher performance at lower temperatures.

The GIGABYTE “Alternate Spinning” is the only solution that can solve the turbulent airflow of three fans. The biggest problem with the three fans is turbulence. Since the fans rotate in the same direction, the airflow direction is opposite between the fans, which will cause turbulent airflow and reduce heat dissipation efficiency. GIGABYTE turns the middle fan in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.

The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.

The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.

With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.

Highlights...

* Powered by AMD Radeon RX 5500 XT.
* Integrated with 8GB GDDR6 128-bit memory interface.
* WINDFORCE 3X Cooling System with alternate spinning fans.
* RGB Fusion 2.0 – 16.7M colors synchronize with other AORUS devices.
* Protection Back Plate.
* PCI-Express 4.0 Support.

Graphics Processing Radeon RX 5500 XT
Core Clock Boost Clock : up to 1845 MHz
Game Clock* : 1737 MHz (Reference card is 1717 MHz)
Stream Processors 1408
Process Technology 7 nm
Memory Clock 14000 Mhz
Memory Size 8 Gb
Memory Type GDDR6
Memory Bus 128 bit
Memory Bandwidth 224 Gb/s
Card Bus PCI-E 4.0
Digital max. resolution 7680x4320 @60Hz
Multi-view 4
Card size 281x 115 x 40 mm
PCB Form ATX
DirectX 12
OpenGL 4.6
Recommended PSU 450W
Power Connectors 1x 8-Pin

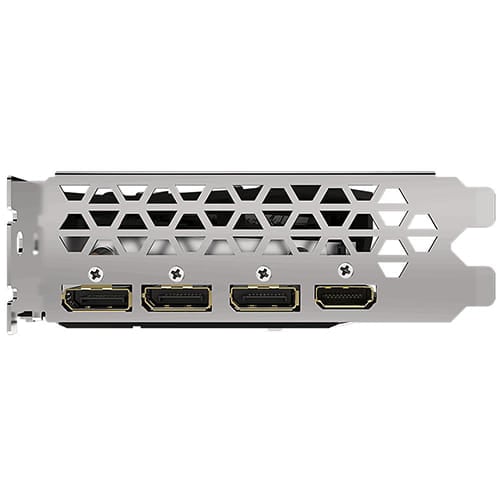

Output
  • 3x DisplayPort 1.4
  • 1x HDMI 2.0b

Gigabyte Radeon RX 5500 XT GAMING OC features PCI-Express 4.0 support, with a throughput of 16 GT/s and enables two times the bandwidth compared to PCI Express 3.0. With the PCI-Express 4.0 supported motherboard, and get ready for the next generation of PC gaming.

The WINDFORCE 3X cooling system features 3x 80mm unique blade fans, alternate spinning fan, 2 composite copper heat pipes, heat-pipe direct touch and 3D active fan functionality, together delivering an effective heat dissipation capacity for higher performance at lower temperatures.

The GIGABYTE “Alternate Spinning” is the only solution that can solve the turbulent airflow of three fans. The biggest problem with the three fans is turbulence. Since the fans rotate in the same direction, the airflow direction is opposite between the fans, which will cause turbulent airflow and reduce heat dissipation efficiency. GIGABYTE turns the middle fan in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.

The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.

The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.

With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.

Highlights...

* Powered by AMD Radeon RX 5500 XT.
* Integrated with 8GB GDDR6 128-bit memory interface.
* WINDFORCE 3X Cooling System with alternate spinning fans.
* RGB Fusion 2.0 – 16.7M colors synchronize with other AORUS devices.
* Protection Back Plate.
* PCI-Express 4.0 Support.

Graphics Processing Radeon RX 5500 XT
Core Clock Boost Clock : up to 1845 MHz
Game Clock* : 1737 MHz (Reference card is 1717 MHz)
Stream Processors 1408
Process Technology 7 nm
Memory Clock 14000 Mhz
Memory Size 8 Gb
Memory Type GDDR6
Memory Bus 128 bit
Memory Bandwidth 224 Gb/s
Card Bus PCI-E 4.0
Digital max. resolution 7680x4320 @60Hz
Multi-view 4
Card size 281x 115 x 40 mm
PCB Form ATX
DirectX 12
OpenGL 4.6
Recommended PSU 450W
Power Connectors 1x 8-Pin
Output
  • 3x DisplayPort 1.4
  • 1x HDMI 2.0b
