Gigabyte RTX 2060 Super Gaming OC 8Gb GDDR6

Gigabyte RTX 2060 Super Gaming OC 8Gb GDDR6

Gigabyte
  • Graphics processor: GeForce RTX 2060 SUPER.
  • Processor frequency: 1815 MHz.
  • Graphics adapter memory capacity: 8 GB.
  • Graphics adapter memory type: GDDR6.
  • Data width: 256 bit.
  • Maximum resolution: 7680 x 4320 pixels.
  • Interface type: PCI Express x16 3.0.
  • WindForce 3X cooling system.
  • RGB Fusion 2.0.

P/N: GV-N206SGAMINGOC-8GD2.0 - EAN/UPC: 0889523020494

395,34 € Without VAT
478,36 € With VAT
2 years
of guarantee
sending
shipping
100%
Secure pay

GeForce RTX graphics cards use Turing architecture technology and the new RTX graphics platform. This provides up to six times the performance of previous-generation graphics cards and the power of real-time mapping and artificial intelligence for gaming.

This model squeezes the RTX 2060 Super graphics engine to the maximum, being able to reach up to 1815 Mhz of frequency and execute the most complex highlights, shadows and textures. To provide optimal cooling and therefore sensational performance and long-lasting durability, the Gigabyte RTX 2060 Super Gaming OC 8GB is equipped with a triple Windforce fan, direct contact heatpipes and a large heatsink. All this with the most complete connectivity.

The WindForce 3X cooling system features 3 unique 80mm blade fans, reciprocating rotating fan, 4 composite copper heat pipes, direct heat pipe touch and 3D active fan functionality, delivering effective heat dissipation capacity for greater performance at lower temperatures.

Gigabyte's "Alternate Spinning" patent is the only solution that can solve the turbulent airflow of three fans. The biggest problem with all three fans is turbulence. Since the fans rotate in the same direction, the direction of the air flow is opposite between the fans, causing turbulent air flow and reducing heat dissipation efficiency. GIGABYTE rotates the center fan in the opposite direction, so the direction of air flow between the two fans is the same, reducing turbulence and increasing air flow pressure.

The shape of the pure copper heat pipe maximizes the area of ​​direct contact with the GPU, improving heat transfer. The heat pipe also covers the VRAM through a large metal plate contact for contact with adequate limitations.

With 16.7 million customizable color options and multiple lighting effects, you can choose lighting effects or sync them with other AORUS devices.

Highlights ...

* Graphics processor: GeForce RTX 2060 SUPER.
* Processor frequency: 1815 MHz.
* Graphics adapter memory capacity: 8 GB.
* Graphics adapter memory type: GDDR6.
* Data width: 256 bit.
* Maximum resolution: 7680 x 4320 pixels.
* Interface type: PCI Express x16 3.0.
* WindForce 3X cooling system.
* RGB Fusion 2.0.

Procesador gráfico GeForce RTX 2060 Super
Velocidad del núcleo 1815 MHz (Reference Card: 1650 MHz)
RTX-OPS 45
Núcleos Cuda 2176
Velocidad de memoria 14000 Mhz
Tamaño de memoria 8Gb
Tipo de memoria GDDR6
Bus de memoria 256 bit
Ancho de banda de memoria 448 Gb/s
Bus de la tarjeta PCI-E 3.0 x16
Resolución digital max. 7680x4320 @60Hz
Multi-view 4
Dimensiones 280.35 x 116.45 x 40.24 mm
PCB Form ATX
DirectX 12
OpenGL 4.6
Fuente recomendada 550W
Conectores de alimentación 1x 8-Pin, 1x 6-Pin

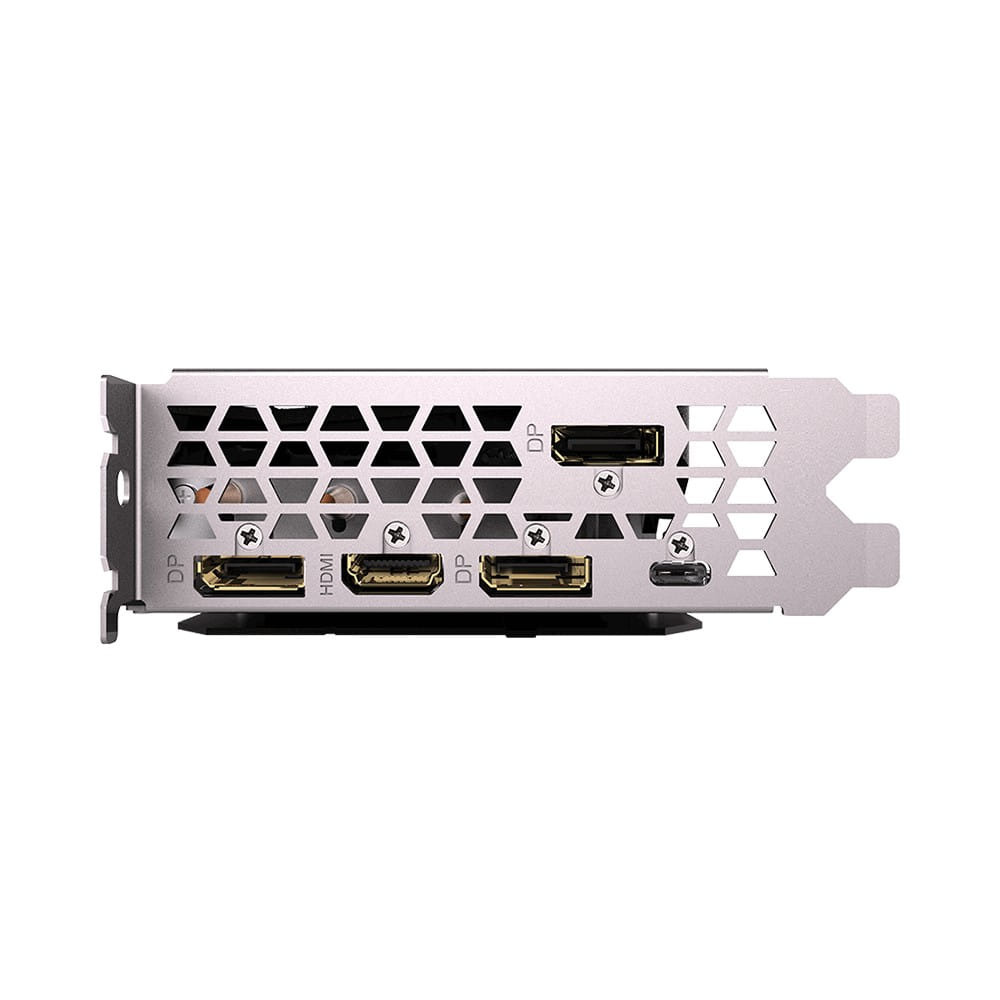

Salidas 3x DisplayPort 1.4
1x HDMI 2.0b
1x USB Type-C
Soporte SLI No

GeForce RTX graphics cards use Turing architecture technology and the new RTX graphics platform. This provides up to six times the performance of previous-generation graphics cards and the power of real-time mapping and artificial intelligence for gaming.

This model squeezes the RTX 2060 Super graphics engine to the maximum, being able to reach up to 1815 Mhz of frequency and execute the most complex highlights, shadows and textures. To provide optimal cooling and therefore sensational performance and long-lasting durability, the Gigabyte RTX 2060 Super Gaming OC 8GB is equipped with a triple Windforce fan, direct contact heatpipes and a large heatsink. All this with the most complete connectivity.

The WindForce 3X cooling system features 3 unique 80mm blade fans, reciprocating rotating fan, 4 composite copper heat pipes, direct heat pipe touch and 3D active fan functionality, delivering effective heat dissipation capacity for greater performance at lower temperatures.

Gigabyte's "Alternate Spinning" patent is the only solution that can solve the turbulent airflow of three fans. The biggest problem with all three fans is turbulence. Since the fans rotate in the same direction, the direction of the air flow is opposite between the fans, causing turbulent air flow and reducing heat dissipation efficiency. GIGABYTE rotates the center fan in the opposite direction, so the direction of air flow between the two fans is the same, reducing turbulence and increasing air flow pressure.

The shape of the pure copper heat pipe maximizes the area of ​​direct contact with the GPU, improving heat transfer. The heat pipe also covers the VRAM through a large metal plate contact for contact with adequate limitations.

With 16.7 million customizable color options and multiple lighting effects, you can choose lighting effects or sync them with other AORUS devices.

Highlights ...

* Graphics processor: GeForce RTX 2060 SUPER.
* Processor frequency: 1815 MHz.
* Graphics adapter memory capacity: 8 GB.
* Graphics adapter memory type: GDDR6.
* Data width: 256 bit.
* Maximum resolution: 7680 x 4320 pixels.
* Interface type: PCI Express x16 3.0.
* WindForce 3X cooling system.
* RGB Fusion 2.0.

Procesador gráfico GeForce RTX 2060 Super
Velocidad del núcleo 1815 MHz (Reference Card: 1650 MHz)
RTX-OPS 45
Núcleos Cuda 2176
Velocidad de memoria 14000 Mhz
Tamaño de memoria 8Gb
Tipo de memoria GDDR6
Bus de memoria 256 bit
Ancho de banda de memoria 448 Gb/s
Bus de la tarjeta PCI-E 3.0 x16
Resolución digital max. 7680x4320 @60Hz
Multi-view 4
Dimensiones 280.35 x 116.45 x 40.24 mm
PCB Form ATX
DirectX 12
OpenGL 4.6
Fuente recomendada 550W
Conectores de alimentación 1x 8-Pin, 1x 6-Pin
Salidas 3x DisplayPort 1.4
1x HDMI 2.0b
1x USB Type-C
Soporte SLI No
