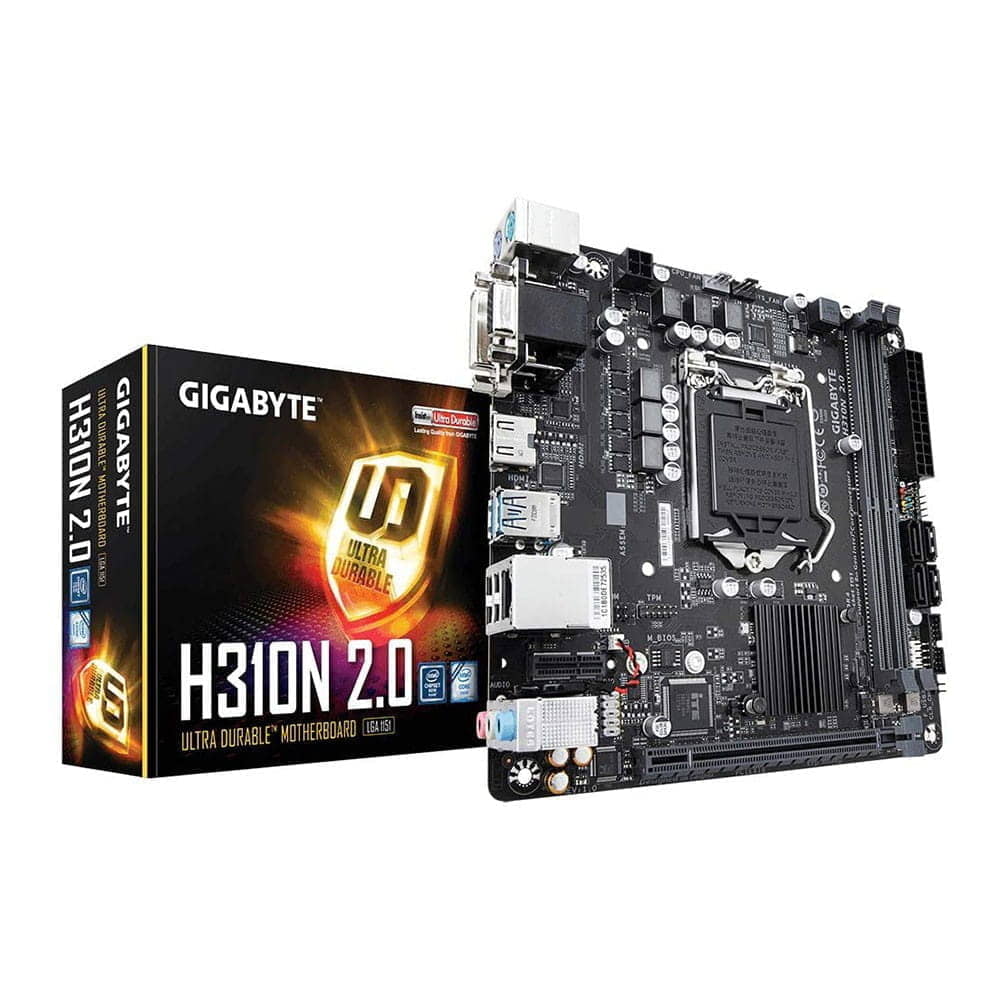

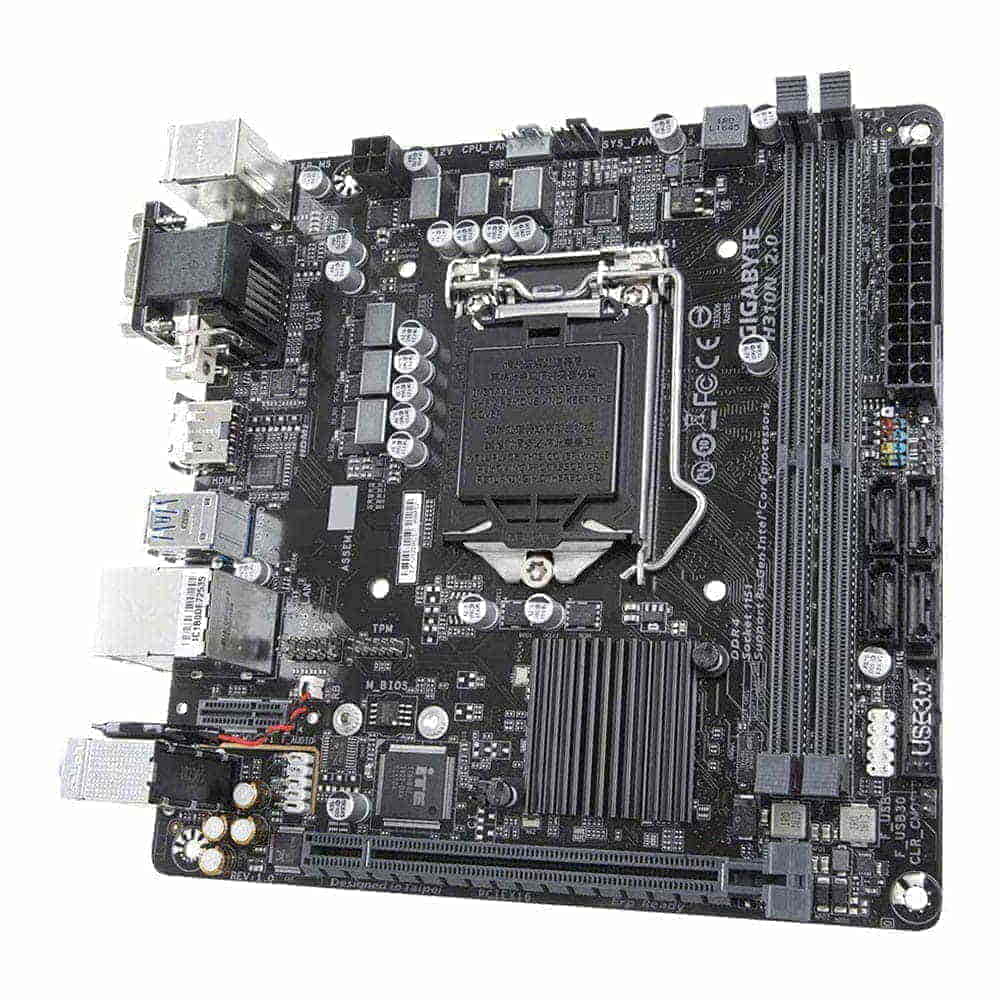

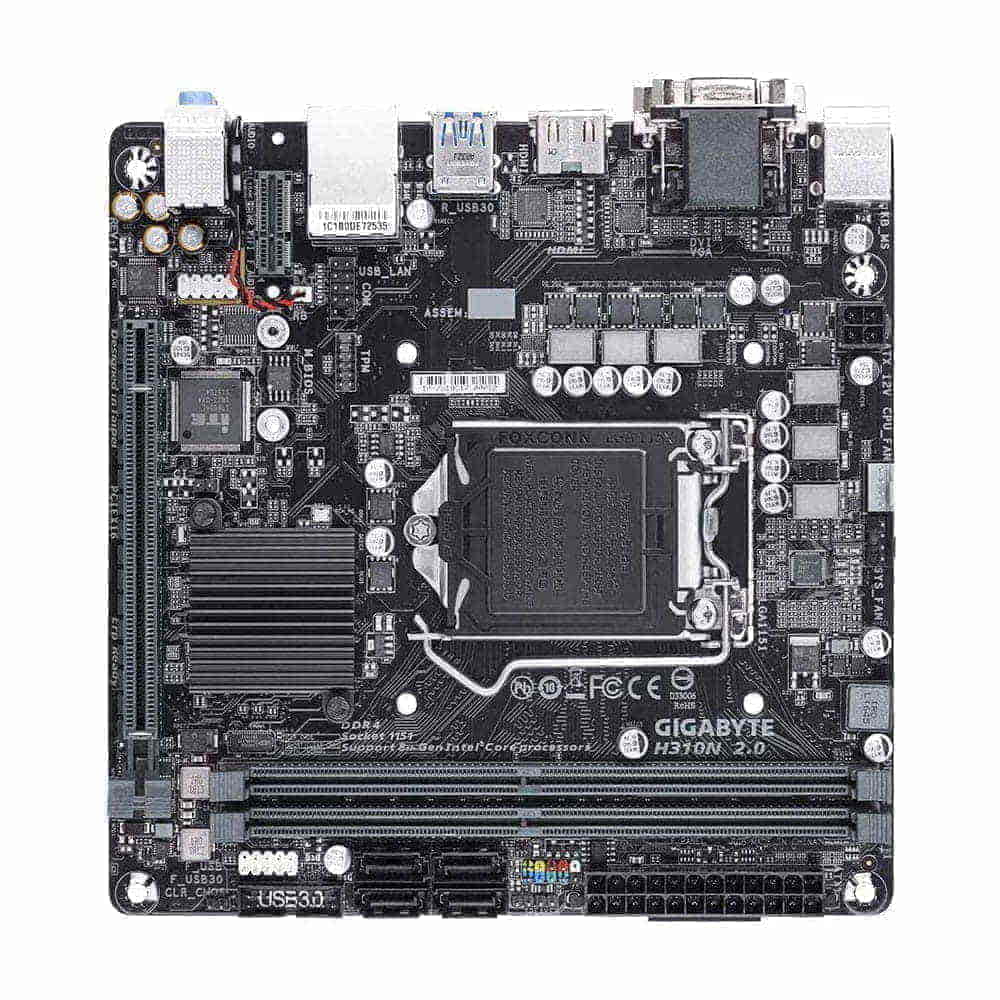

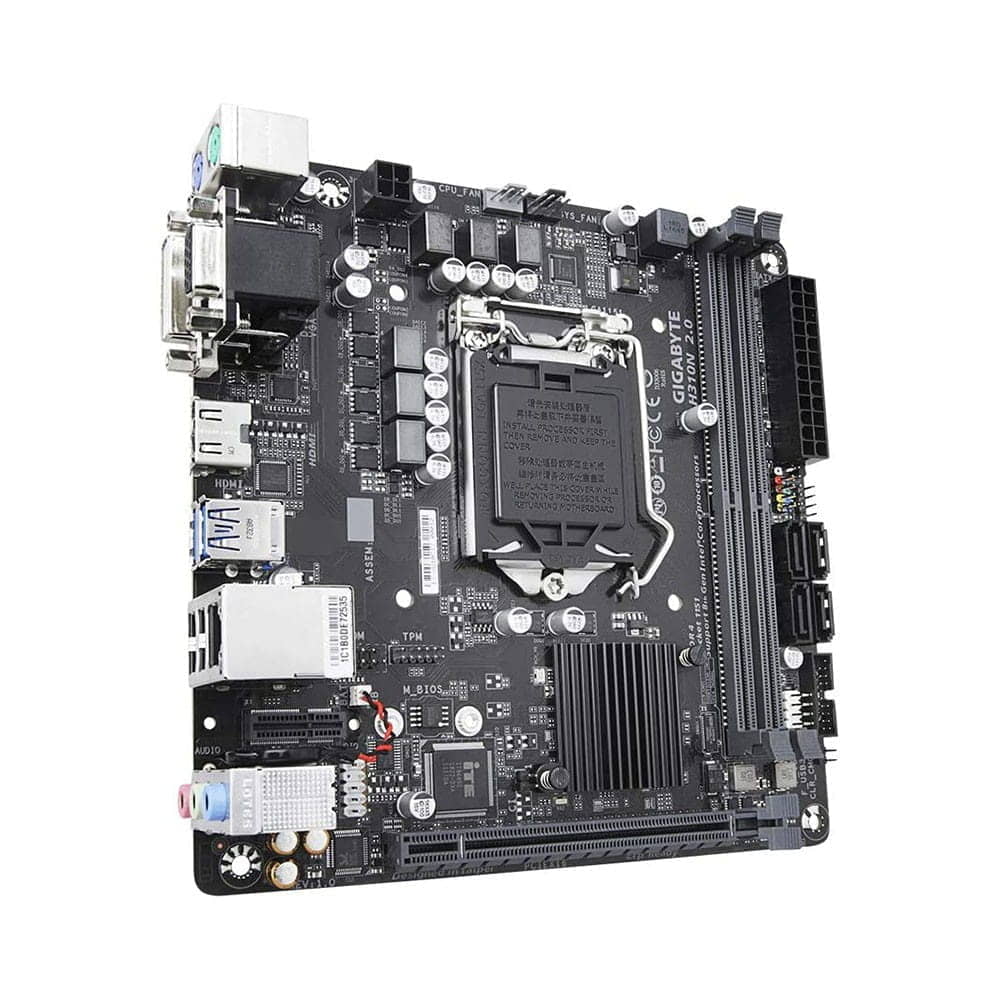

Gigabyte H310N V2. Socket 1151. Mini-ITX.

Gigabyte H310N V2. Socket 1151. Mini-ITX.

Gigabyte
  • Supports 9th and 8th generation Intel® Core ™ processors.
  • Ultra fast M.2 with PCIe Gen2 X4 and SATA interface.
  • GIGABYTE 8118 exclusive gaming LAN with bandwidth management.
  • 8-channel HD audio with high-quality audio capacitors and audio noise protection.

P/N: GA-H310N - EAN/UPC: 4719331805432

73,86 € Without VAT
89,37 € With VAT
This product is not available in our warehouse or in any of our suppliers at this time.
The price that appears is indicative
Otras opciones de compra
3 years
of guarantee
Shipment
Insured
100%
Secure pay

Otros clientes que vieron este producto también se interesaron en
201,91 €
Without VAT
244,31 €
With VAT
Intel Core i5-11500 2.7Ghz. Socket 1200.
403,46 €
Without VAT
488,19 €
With VAT
Supermicro MBD-X11SRM-VF. Socket 2066. Micro-ATX.
35,45 €
Without VAT
42,89 €
With VAT
be quiet! Shadow Rock LP

GIGABYTE motherboards are focused on bringing M.2 technology to enthusiasts who want to maximize the potential of their system.

Realtek 8118 LAN is a high performance and friendly network chip for game players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users with the most comprehensive features and the fastest, smoothest Internet experience.

Enjoy true high definition viewing capabilities using the most recognized digital output technologies built into today's high definition televisions and displays.

With Smart Fan 5 users can have games from their PC and can maintain stable performance while keeping it cool. Smart Fan 5 allows users to swap their connectors for the fans to connect different thermal sensors to different receivers on the motherboard. In addition, with Smart Fan 5, the hybrid connectors for the fan support PWM and voltage fans, this makes the motherboard more suitable for mounting cooling liquids.

Achieve fan silence. With Fan Stop map any fan to stop completely when temperatures drop below a specific threshold. Which fan stops, based on what sensor readings and at what temperature, everything can be customized to your liking.

Take complete control over your liquid cooling setup! Smart Fan 5 receives up-to-date flow rate information via the hybrid fan's pin headers, giving you absolute mastery over your PC.
All hybrid fan headers can automatically detect the type of cooling device, be it fan or pump with different PWM or voltage modes.

GIGABYTE motherboards use high-end audio capacitors. These high-quality capacitors help deliver high-resolution, high-fidelity audio to provide the most realistic sound effects for gamers.

GIGABYTE motherboards feature an audio noise shield that essentially separates the board's sensitive analog audio components from potential PCB-level noise contamination.

GIGABYTE motherboards also feature special surge integrated circuits that protect your motherboard, helping to ensure that your PC is equipped to deal with any potentially irregular electrical spikes.

There is nothing more damaging to the longevity of PCs than condensation, and in most of the world condensation of the air due to humidity occurs at some time of the year. GIGABYTE 9 Series motherboards have been monitored to identify humidity is not a problem, and incorporate a new Glass Fabric PCB technology that repels condensation caused by humid conditions. Glass Fabric PCB technology makes it difficult for condensation to penetrate the board by using a new PCB material that reduces the space between the fibers they form. Thus, it can offer much greater protection against short circuits and system malfunctions caused by wet conditions.

GIGABYTE baseplaces use low RDS MOSFETs that reduce power waste through unnecessary waste heat dissipation. This equates to tangible energy savings that do not affect performance but are beneficial to both end users and the environment.

CEC requirement: PC power consumption must be below a certain level when in off mode, idle mode, standby mode. With energy-efficient hardware components and tuned BIOS, GIGABYTE motherboards can achieve lower power consumption.

We highlight ...

* Supports 9th and 8th generation Intel® Core ™ processors.
* Ultra fast M.2 with PCIe Gen2 X4 and SATA interface.
* GIGABYTE 8118 exclusive gaming LAN with bandwidth management.
* 8-channel HD audio with high-quality audio capacitors and audio noise protection.

Datos técnicos
Procesador
  1. Support for 9th and 8th Generation Intel® Core™ i9 processors/ Intel® Core™ i7 processors/ Intel® Core™ i5 processors/ Intel® Core™ i3 processors/ Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1151 package
  2. Caché L3 varía según la CPU
Chipset Intel® H310 Express Chipset
Memoria
  1. 2 x DDR4 DIMM sockets con soporte de hasta 32 GB de memoria del sistema
  2. Arquitectura de memoria Dual Channel
  3. Support for DDR4 2666/2400/2133 MHz memory modules
  4. Soporte para módulos de memoria ECC Un-buffered UDIMM 1Rx8/2Rx8 (operando en modo no-ECC)
  5. Soporte para módulos de memoria non-ECC Un-buffered DIMM 1Rx8/2Rx8
  6. Soporte para módulos de memoria Extreme Memory Profile (XMP)
  7. * To support 2666 MHz or XMP memory, you must install a 9th or 8th Generation Intel® Core™ i9/i7/i5 processor.
Gráfica Integrada
  1. 1 x puerto D-Sub, con una resolución máxima de 1920x1200@60 Hz
  2. 1 x puerto DVI-D , soportando una resolución máxima de 1920x1200@60 Hz
    * El puerto DVI-D no soporta conexión D-Sub por adaptador.
  3. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
  4. * Support for HDMI 1.4 version and HDCP 2.2.
Audio
  1. Realtek® ALC887 codec
  2. Audio de alta definición
  3. 2/4/5.1/7.1-channel
LAN Chip Realtek® GbE LAN (10/100/1000 Mbit)
Zócalos de Expansión
  1. 1 x PCI Express x16 slot, running at x16
    (The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
  2. 1 x M.2 Socket 1 connector for the PCIe wireless communication module (M2_WIFI)
Interfaz de almacenamiento
  1. 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280 SATA and PCIe x4/x2 SSD support)
  2. 4 x conector SATA 6Gb/s
  3. * Consulte "1-7 Conectores internos" para obtener los avisos de instalación de los conectores M.2 y SATA.
USB
  1. 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  2. 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Conectores Internos E/S
  1. 1 x conector de alimentación principal ATX 24-pin
  2. 1 x 4-pin ATX 12V power connector
  3. 1 x conector del ventilador de la CPU
  4. 1 x conector del ventilador del sistema
  5. 1 x Triple conector socket M.2
  6. 4 x conectores SATA 6 Gb / s
  7. 1 x conector del panel frontal
  8. 1 x conector de audio en el panel frontal
  9. 1 x cabezal USB 3.1 Gen 1
  10. 1 x conector USB 2.0/1.1
  11. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
    La función TPM es opcional según las diferentes políticas locales
  12. 1 x Clear CMOS jumper
  13. 1 x conector para altavoz
  14. 1 x conector del puerto de serie

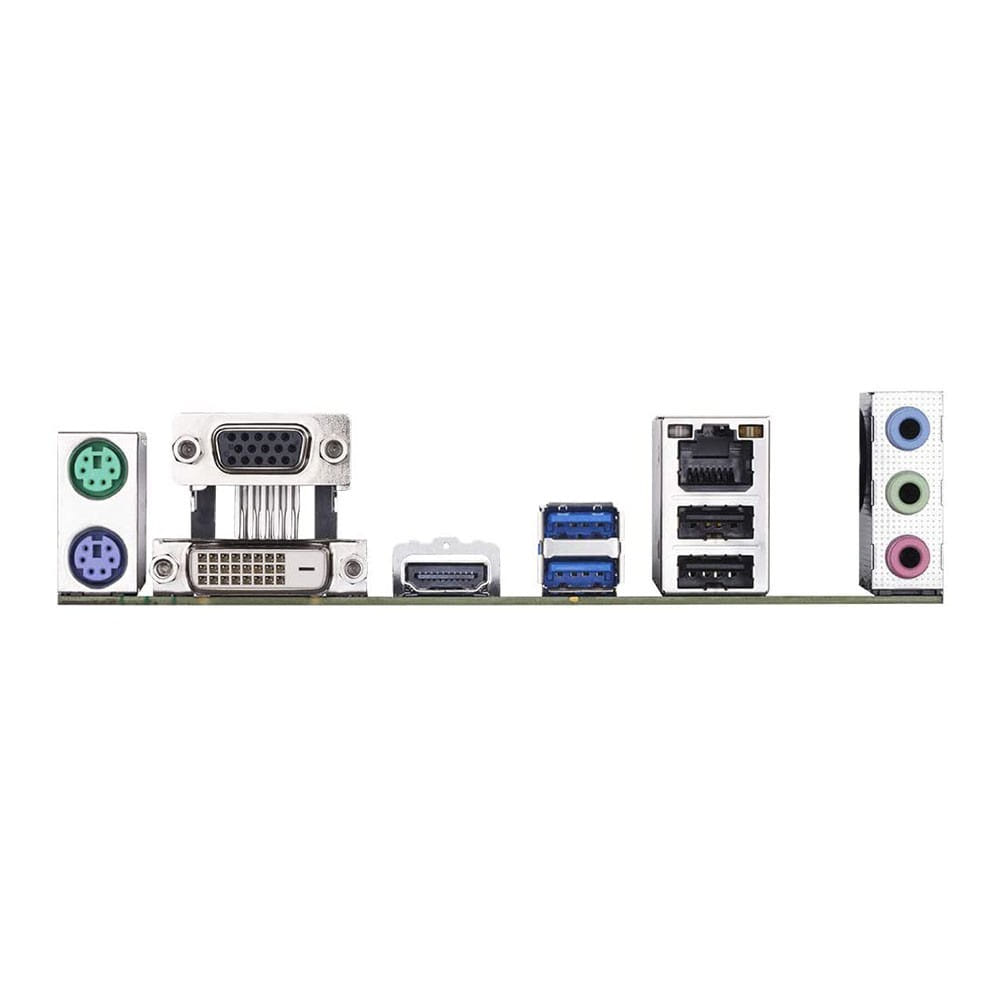

Panel E/S Trasero
  1. 1 x puerto de ratón PS / 2
  2. 1 x puerto de Teclado PS / 2
  3. 1 x puerto D-Sub
  4. 1 x puerto DVI-D
  5. 1 x HDMI
  6. 2 x USB 3.1 Gen 1 ports
  7. 2 x puerto USB 2.0/1.1
  8. 1 x Puerto RJ-45
  9. 3 x audio jacks
Controlador E/S Chip controlador E/S iTE®
Monitorización Hardware
  1. Detección de voltaje
  2. Detección de temperatura
  3. Detección de la velocidad del ventilador
  4. Advertencia de sobrecalentamiento
  5. Aviso en caso de fallo en el ventilador
  6. Control de la velocidad del ventilador

Otras Características

  1. 3D OSD
    @ BIOS ™
    Auto Green
    Soporte de Cloud Station
    EasyTune
    Fast Boot
    Boost en los juegos
    Soporte para On/Off Charge
    Administración de la energía
    Smart Backup
    Smart Keyboard
    Smart TimeLock
    Smart HUD
    Smart Survey
    Visor de información del sistema
    USB Blocker
  2. Soporte para Q-Flash
  3. Soporta Xpress Install
Formato Factor de forma Mini-ITX: 17.0cm x 17.0cm
Sistema Operativo Support for Windows 10 64-bit
