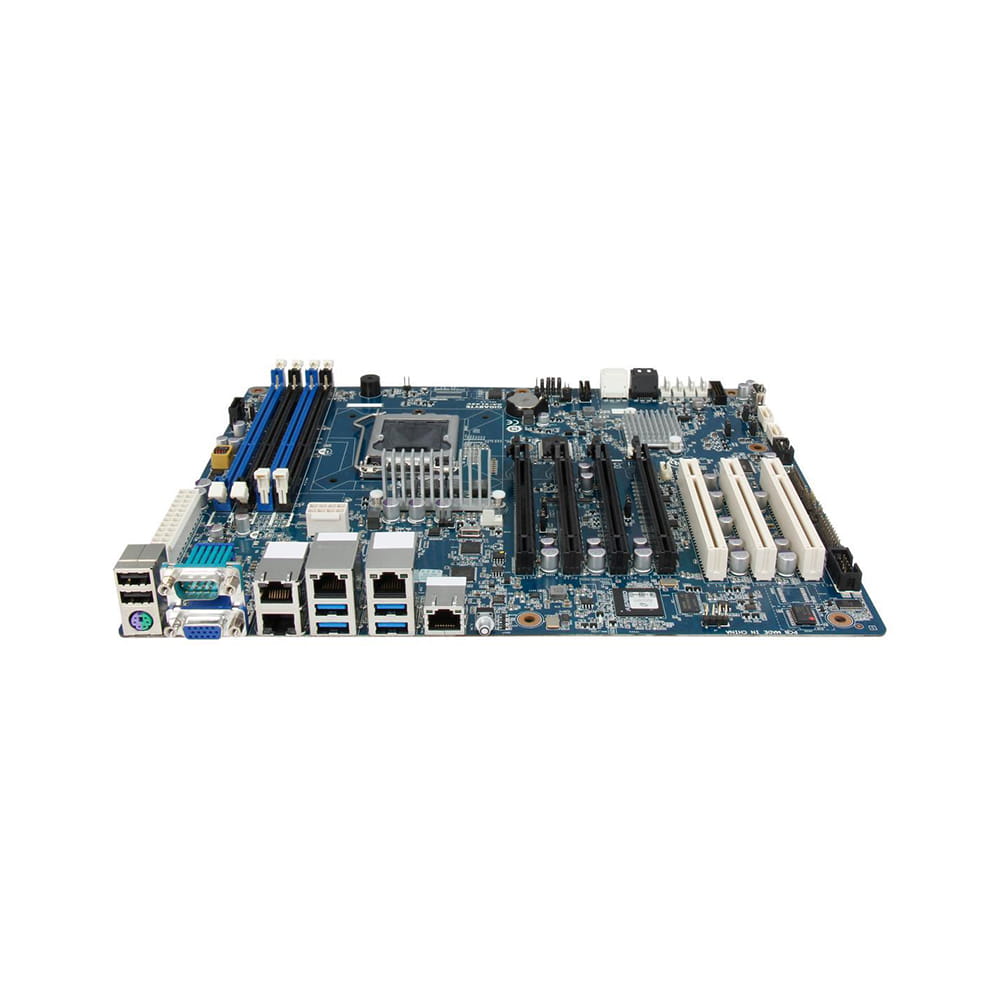

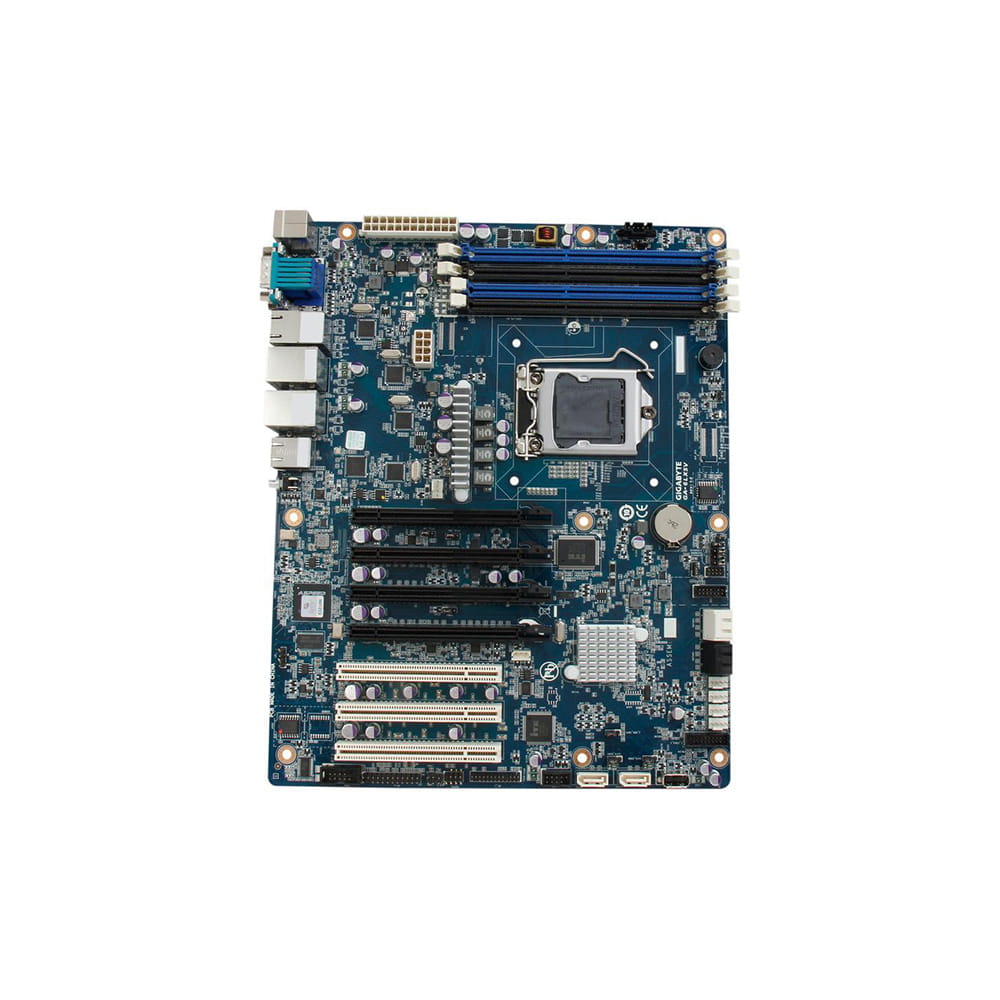

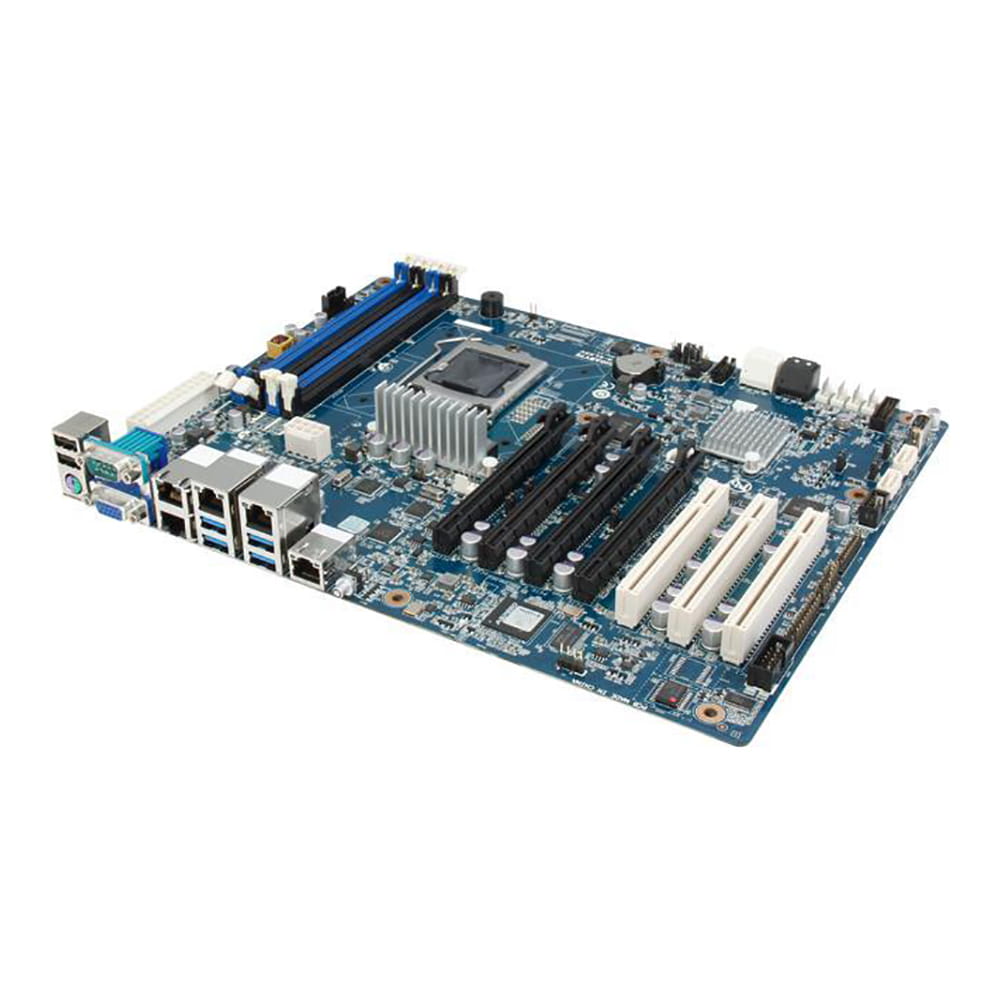

Gigabyte GA-6LXSV. Socket 1150. BULK.
- ATX form factor.
- Intel C224 Chipset.
- Intel Xeon processor E3-1200 V3 product families.
- 4 x GbE LAN ports (Intel I210).
- 4 x DIMM slots, up to 32GB UDIMM ECC.
- 4 x SATA III 6Gb / s, 2 x SATA II 3Gb / s.
- Aspeed AST2300 Controller.
The price that appears is indicative
of guarantee
Insured
Secure pay
Formate | |
Chipset | |
Socket | |
kind of product | |
No. of sockets |
Designed as an ultra flexible ATX solution, this model is suitable for both tower and rack integration and adapts to most professional application scenarios thanks to its expansion platform and versatile connectivity. Server, Workstation, Industrial PC, High Performance Embedded System, this motherboard will live up to and deliver performance and durability through its DIMM location optimized for best thermal properties and robust construction with selection of highly reliable components.
Still based on 22nm three-door lithography, this new generation of Xeon processors is based on Intel's latest microarchitecture and offers up to 15% improvements in computing power and increased L3 cache across the line.
In addition, this new generation will also bring 1600MHz ECC memory support, Intel Trusted Execution and Virtualization technologies, as well as AVX 2.0 and TSX instructions to the Xeon E3 family.
Last but not least, the Xeon E3-1200 V3 processors will include the latest Intel integrated graphics, which will support OGL3.2 +, DirectX 11.1 and higher frequencies.
The next-generation LAN controller built on those two motherboards features several improvements over the previous generation that has been a long-standing standard in the server market.
In addition to improvements in overall performance and error correction, power consumption has been reduced thanks to the on-chip integration of switching voltage regulators that improve the efficiency of power delivery to the controller.
This new controller also received new audio / video bridging features, in particular time stamping and timing of time sensitive applications through traffic shaping, time based transmission and precision time stamping.
Two new administration functions are also included, with common transport support for LAN to BMC / local operating system to BMC and standards-based transport for communication from BMC to adapter.
Supported by the latest PCI Express Gen.3.0 technology directly on the CPU, the GA-6LXSV is fully configured to provide users with dramatically reduced latency and improved data bandwidth to take full advantage of its expansion accessories.
The VMware Ready program enables customers to quickly identify products and solutions from VMware partners, which are optimized for VMware vSphere.
The VMware Ready logo certifies that this product addresses VMware-specific criteria in terms of integration and compatibility, and that it is ready to run mission-critical applications and operations.
GIGABYTE certifies its server hardware with Red Hat Enterprise Linux to provide its customers with the confidence of knowing that their hardware systems are Red Hat compatible when running Red Hat Enterprise Linux.
Highlights...
* ATX form factor.
* Intel C224 chipset.
* Intel Xeon processor E3-1200 V3 product families.
* 4 x GbE LAN ports (Intel I210).
* 4 x DIMM slots, up to 32GB UDIMM ECC.
* Aspeed AST2300 Controller.
Características | ||||
Factor de forma | ATX 305W x 244D (mm) |
|||
UPC | Intel ® Xeon ® procesador E3-1200 V3 familia de productos soporta 4 º gen Intel ® Core ™ i3 procesadores |
|||
Socket | 1 x LGA 1150 | |||
Chipset | Intel ® C224 | |||
Memoria | 4 x Ranuras DIMM admite módulos ECC UDIMM solamente Soporta rango único y módulos rango UDIMM duales hasta 32GB 1333/1600 / (1,866 *) MHz |
|||
LAN | 4 x puertos LAN GbE (Intel ® I210) 1 x LAN de administración 10/100 |
|||
LAN | Intel® I219-V 1Gb Ethernet | |||
Vídeo | Integrado en Aspeed ® AST2300 Adaptador gráfico de video 2D con interfaz de bus PCIe 1920x1200 @ 60Hz 32bpp |
|||
SATA | 4 x puertos SATA III de 6 Gb / s 2 x puertos SATA II de 3 Gb / s |
|||
Ranuras de expansión
|
1 x ranura PCIe x16 (bus Gen3 x16) 1 x ranura PCIe x16 (bus Gen3 x8) 1 x ranura PCIe x16 (bus Gen3 x4) 1 x ranura PCIe x16 (bus Gen2 x1) 3 x ranuras PCI |
|||
E/S internas | 1 x conector de alimentación principal ATX de 24 pines 1 x conector de alimentación ATX 12V de 8 pines 1 x PMBus Seleccionar puente 1 x conector PMBus 1 x Encabezado de intrusión abierto de la caja 1 x Encendido Seleccionar puente 1 x Puente de recuperación del BIOS 1 x Saltar puente de contraseña de supervisor 2 x puentes de recuperación ME 1 x puente Clear CMOS 1 x encabezado TPM 1 x encabezado del ventilador de la CPU 4 x encabezados del ventilador del sistema 1 x encabezado USB 3.0 1 x encabezado USB 2.0 1 x conector USB 2.0 tipo A 2 x puentes de soporte SATA DOM 1 x parte posterior cabecera de la placa plana 1 x cabecera SGPIO 1 x cabecera del panel frontal 1 x cabecera serie 1 x conector IPMB |
|||
E / S trasera | 4 x USB 3.0 2 x USB 2.0 1 x PS / 2 1 x VGA 1 x Serie 5 x RJ45 1 x Botón de ID con LED |
|||
TPM | 1 x encabezado TPM | |||
Compatibilidad del sistema operativo | Windows Server 2008 R2 SP1 (x64) Windows Server 2008 SP2 (x86) Windows Server 2012 (x64) Red Hat Enterprise Linux 5.9 (x86 / x64) Red Hat Enterprise Linux 6.4 (x86 / x64) SUSE Linux Enterprise Server 11.3 (x86 / x64 ) VMware ESXi 5.0 / 5.1 / 5.1 U1 / 5.1 U2 |
|||
Conectores de fuente de alimentación | 1 x conector de alimentación principal ATX de 24 pines 1 x conector de alimentación ATX 12V de 8 pines |
