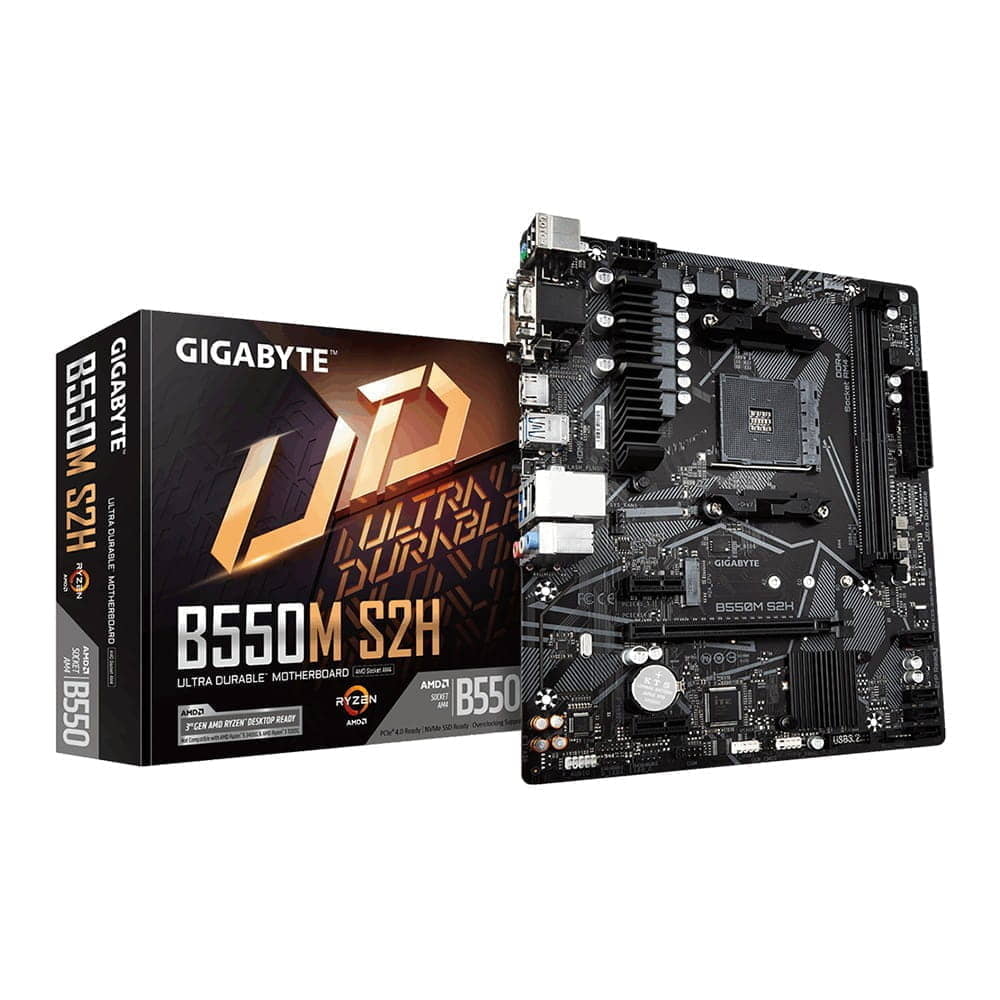

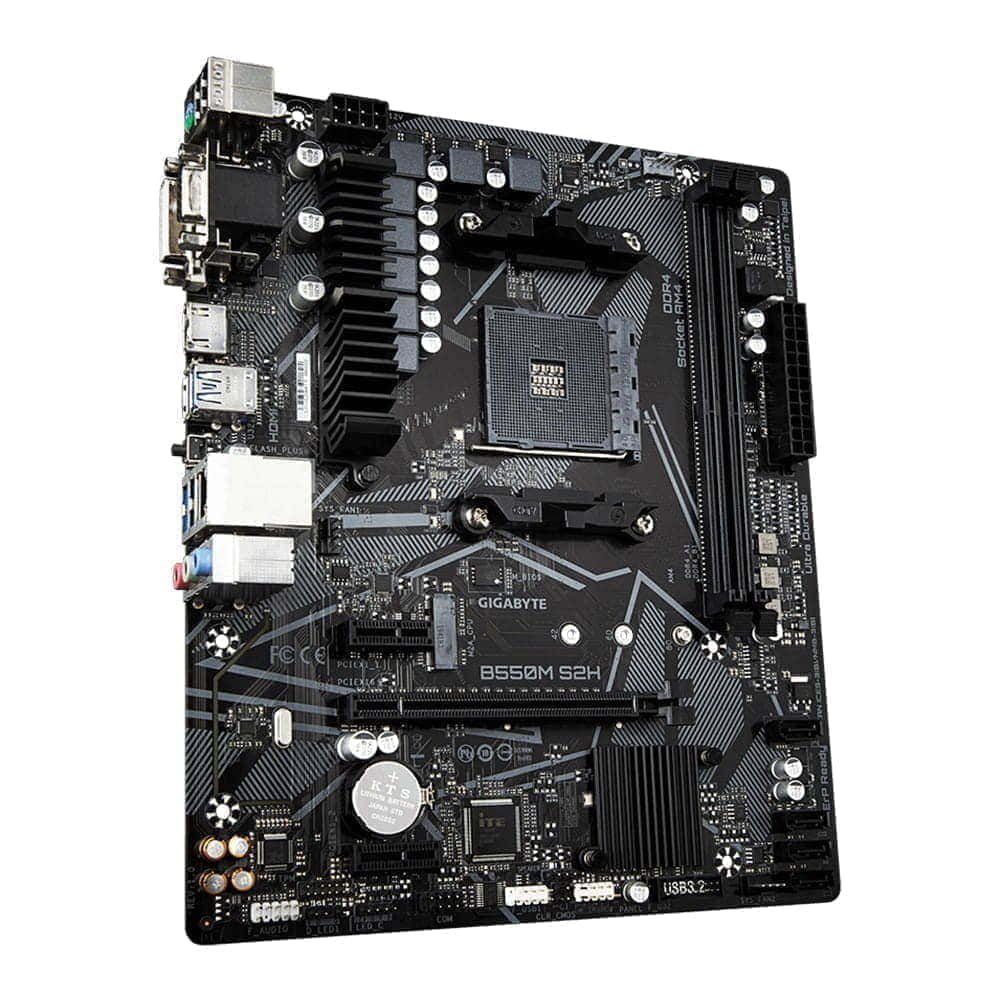

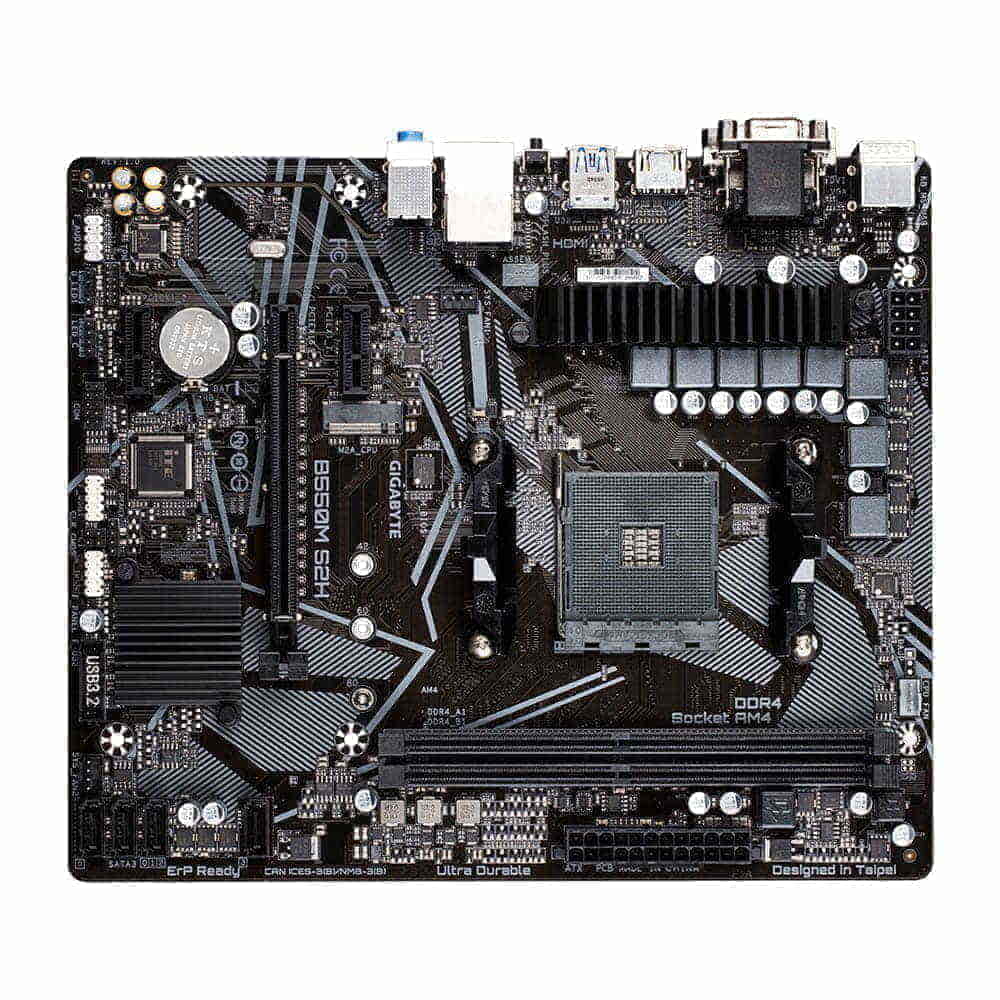

Gigabyte B550M S2H. Socket AM4. Micro-ATX.

Gigabyte B550M S2H. Socket AM4. Micro-ATX.

Gigabyte
  • Processor socket: Socket AM4.
  • Compatible processor: AMD Ryzen.
  • Supported memory types: DDR4-SDRAM.
  • Supported memory clock speeds: 2133, 2400, 2667, 2933, 3200, 3333, 3400, 3466, 3600, 3733, 3800, 3866, 4000, 4400,4600, 4866, 5000 MHz.
  • Supported storage disk interfaces: Serial ATA III.
  • Types of storage drives supported: HDD & SSD.
  • Maximum resolution: 4096 x 2160 pixels.
  • Ethernet interface type: Gigabit Ethernet.

P/N: B550MS2H - EAN/UPC: 4719331809591

75,84 € Without VAT
91,77 € With VAT
In stock
Approximate delivery between 01 octubre and 02 octubre
2 years
of guarantee
sending
shipping
100%
Secure pay

That performance is not at odds with a compact size is evident in the Gigabyte B550M S2H. This micro-ATX motherboard for AMD Ryzen processors has optimized aspects such as the power design or the cooling system to offer a stable response and get the most out of each of the components.

With the integrated NVMe PCIe 4.0 * / 3.0 x4 M.2 connector, GIGABYTE motherboards allow users to experience NVMe mode or SATA mode connectivity with data transfer rates of up to 64 Gb / s.

Realtek 8118 LAN is a high performance and friendly network chip for game players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users with the most comprehensive features and the fastest, smoothest Internet experience.

HDMI 2.1, which is backward compatible with HDMI 2.0 / 1.4 and offers 48 Gb / s of bandwidth, twice as much as the previous generation. This unlocks the potential for users to stream multiple video streams, as well as a native 21: 9 cinematic ratio (which most movies are recorded at), Full HDR and HDCP 2.3 support, to deliver the best experience. visual for viewers.

GIGABYTE motherboards use integrated circuits with up to 3 times the ESD resistance levels compared to traditional integrated circuits. This helps to better protect the motherboard and its components from possible damage caused by static electricity. GIGABYTE motherboards also feature special anti-surge ICs that protect your motherboard and PC from any surge in power delivery that may occur, helping to ensure that your PC is equipped to handle any power delivery. potentially irregular and inconsistent energy.

With B550 motherboards, RGB Fusion 2.0 is even better with addressable LEDs. RGB Fusion 2.0 offers users the option to control built-in RGB and external RGB / Addressable LED light strips * for their PC build. With features packed with colors and patterns, RGB Fusion 2.0 has now been updated to improve support for addressable LEDs. With external addressable LED strips, where each LED is digitally addressable, users can experience even more patterns, styles, and lightings.

Highlights ...

* Processor socket: Socket AM4.
* Compatible processor: AMD Ryzen.
* Supported memory types: DDR4-SDRAM.
* Supported memory clock speeds: 2133, 2400, 2667, 2933, 3200, 3333, 3400, 3466, 3600, 3733, 3800, 3866, 4000, 4400,4600, 4866, 5000 MHz.
* Supported storage disk interfaces: Serial ATA III.
* Types of storage drives supported: HDD & SSD.
* Maximum resolution: 4096 x 2160 pixels.
* Ethernet interface type: Gigabit Ethernet.

Procesador AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors
Chipset AMD B550
Memoria 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
3rd Gen AMD Ryzen™ Processors:
Support for DDR4 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
New Generation AMD Ryzen™ with Radeon™ Graphics processors:
Support for DDR4 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Gráficos 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Audio Realtek® ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
LAN Realtek® GbE LAN chip (1000 Mbit/100 Mbit)
Slots de expansión 1‎ x PCI Express x16 slot, integrated in the CPU:
3rd Generation AMD Ryzen™ processors support PCIe 4.0 x16 mode
3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x16 mode
2 x PCI Express x1 slots (PCIEX1_1, PCIEX1_2), integrated in the Chipset:
Supporting PCIe 3.0 x1 mode
Almacenamiento 1‎ x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280 SSDs:
3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs
3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors, integrated in the Chipset:
Support for RAID 0, RAID 1, and RAID 10
Conectores internos 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x speaker header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x serial port header
1 x chassis intrusion header
1 x Clear CMOS jumper

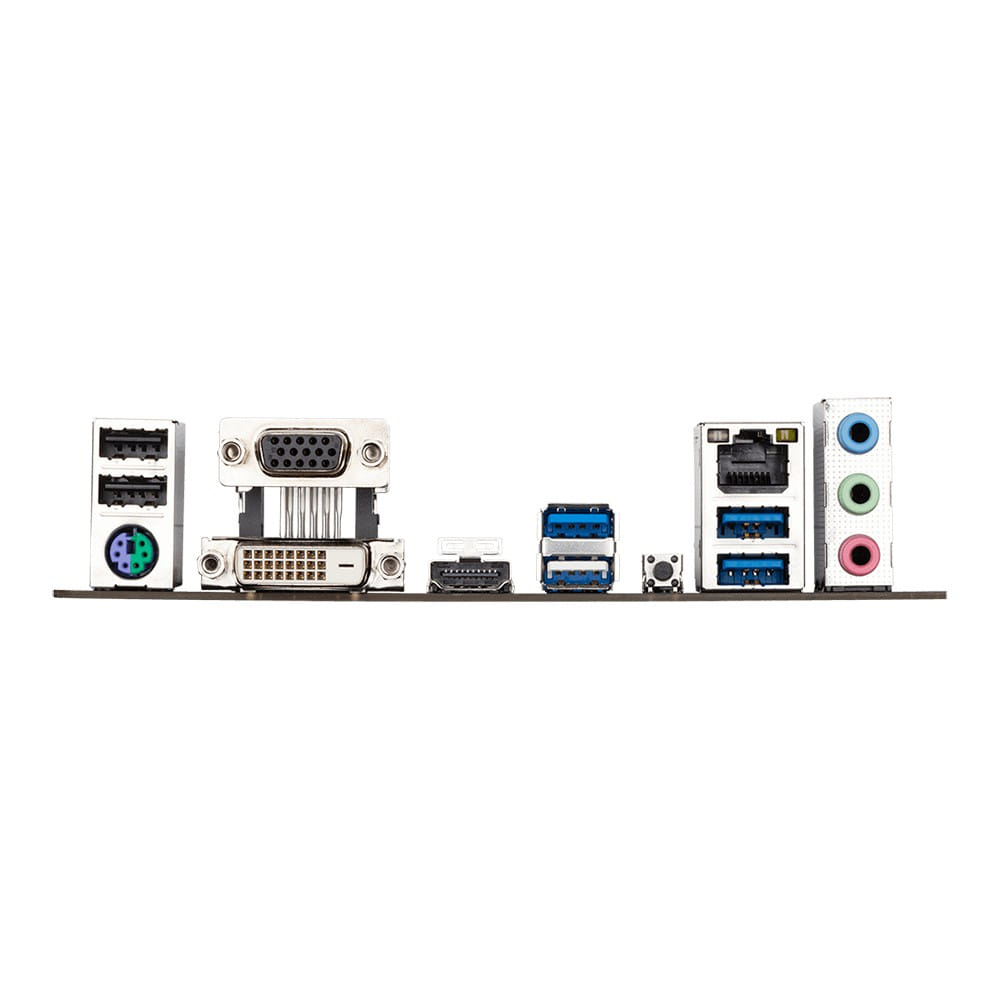

Panel trasero E/S 1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x DVI-D port
1 x HDMI port
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Formato Micro ATX Form Factor; 24.4cm x 20.5cm
Sistema Operativo Support for Windows 10 64-bit
