Fuente alimentación FlexATX 500W 80Plus Gold

Fuente alimentación FlexATX 500W 80Plus Gold

FSP
  • Flex ATX form factor.
  • 80+ Gold certification.
  • Low Ripple & Noise.
  • 100% Hi-pot tested Complies with EN61000-3-2 AC input full range.

P/N: FSP500-50FDB - EAN/UPC: 4713224522680

96,00 € Without VAT
116,16 € With VAT
Only 1 unit left
Delivery 24/48h working
2 years
of guarantee
Shipment
Insured
100%
Secure pay

Otros clientes que vieron este producto también se interesaron en
26,67 €
Without VAT
32,27 €
With VAT
Transformador AC-DC 84W 12V 7A EDAC
7,30 €
Without VAT
8,83 €
With VAT
Regleta blanca 3 tomas.

At this time, we do not have in our catalog any product with characteristics identical to: FSP FSP500-50FDB. However, we can show you very similar products, if you tell us what you are looking for:
Formate
Certification
Power

FSP500-50FDB is an industrial level of switching power supply.

The power supply comes to offer the total power capacity up to 500 Watts, and uses unique active PFC (Power Factor Correction) circuit design with its high-load electrical components, makes it to be perfectly used in an industrial environment.

In addition, with its full range of input and output electrical features, the power supply is ideally the best choice for server, workstation, communication or any other automation applications to use.

The product also complies with the latest safety and EMC standards, which is perfectly to meet various regulations worldwide.

Highlights...

* Flex ATX form factor.
* 80+ Gold certification.
* Low Ripple & Noise
* 100% Hi-pot tested Complies with EN61000-3-2 AC input full range

Model FSP500-500FDB
Wattage 500W

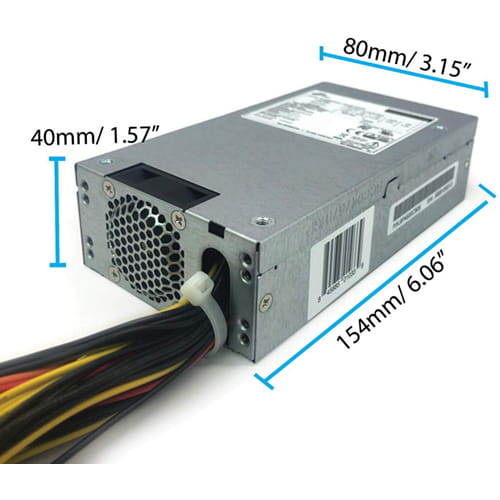

Dimensions 150mm (L) × 81.5 mm (W) × 40.5mm (H)
Efficiency Level 80 Plus Gold
Efficiency 90% 230VAC
Voltaje regulation +3.3V, +12V, +5V, +5SB: ±5%
-12V: ±10%
Input Electrical Specification
Input Frequency 47 ~ 63 Hz
Input Current 115V@ 6.0 Amps-rms maximum
230V@ 3.0 Amps-rms maximum
Output Specification
Hold-up time 115V/60Hz 10mSec. Minimum@100% Load,
230V/50Hz 12mSec. Minimum@100% Load
Ouput Voltage Regulation +3.3Vdc output : +3.7 Vdc minimum, + 7Vdc maximum
+5Vdc output : +5.7 Vdc minimum, + 7Vdc maximum
+12Vdc output : +13.3 Vdc minimum, + 16Vdc maximum
Output Rise Time 115V-rms/230V-rms +5V 20ms Maximum
Output Rating +3.3V:50mV p-p
+5V:50mV p-p
+12V:120mV p-p
-12V:120mV p-p
+5Vsb:50mV p-p
Environmental Requirement
Temperature Range Operating : 0 to +50℃
Storage :-40 to +80℃
Humidity Operating : 0% to 85% RH, Non-condensing
Storage : 0% to 95% RH, Non-condensing

FSP500-50FDB is an industrial level of switching power supply.

The power supply comes to offer the total power capacity up to 500 Watts, and uses unique active PFC (Power Factor Correction) circuit design with its high-load electrical components, makes it to be perfectly used in an industrial environment.

In addition, with its full range of input and output electrical features, the power supply is ideally the best choice for server, workstation, communication or any other automation applications to use.

The product also complies with the latest safety and EMC standards, which is perfectly to meet various regulations worldwide.

Highlights...

* Flex ATX form factor.
* 80+ Gold certification.
* Low Ripple & Noise
* 100% Hi-pot tested Complies with EN61000-3-2 AC input full range

Model FSP500-500FDB
Wattage 500W
Dimensions 150mm (L) × 81.5 mm (W) × 40.5mm (H)
Efficiency Level 80 Plus Gold
Efficiency 90% 230VAC
Voltaje regulation +3.3V, +12V, +5V, +5SB: ±5%
-12V: ±10%
Input Electrical Specification
Input Frequency 47 ~ 63 Hz
Input Current 115V@ 6.0 Amps-rms maximum
230V@ 3.0 Amps-rms maximum
Output Specification
Hold-up time 115V/60Hz 10mSec. Minimum@100% Load,
230V/50Hz 12mSec. Minimum@100% Load
Ouput Voltage Regulation +3.3Vdc output : +3.7 Vdc minimum, + 7Vdc maximum
+5Vdc output : +5.7 Vdc minimum, + 7Vdc maximum
+12Vdc output : +13.3 Vdc minimum, + 16Vdc maximum
Output Rise Time 115V-rms/230V-rms +5V 20ms Maximum
Output Rating +3.3V:50mV p-p
+5V:50mV p-p
+12V:120mV p-p
-12V:120mV p-p
+5Vsb:50mV p-p
Environmental Requirement
Temperature Range Operating : 0 to +50℃
Storage :-40 to +80℃
Humidity Operating : 0% to 85% RH, Non-condensing
Storage : 0% to 95% RH, Non-condensing
