Español Fuente alimentación FlexATX 400W 80Plus Gold
Fuente alimentación FlexATX 400W 80Plus Gold
- Flex ATX form factor.
- 80+ Gold certification.
- Low Ripple & Noise.
- 100% Hi-pot tested Complies with EN61000-3-2 AC input full range.
of guarantee
Insured
Secure pay
| Formate | |
| Certification | |
| Power |

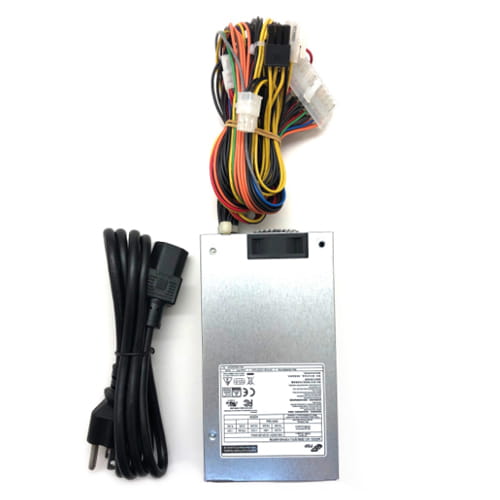

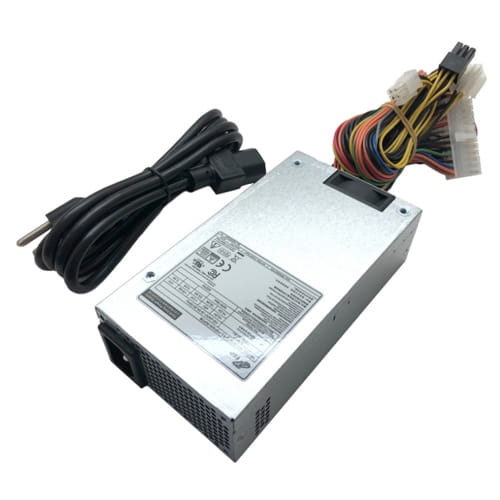

FSP400-50FDB is an industrial level of switching power supply.
The power supply comes to offer the total power capacity up to 500 Watts, and uses unique active PFC (Power Factor Correction) circuit design with its high-load electrical components, makes it to be perfectly used in an industrial environment.
In addition, with its full range of input and output electrical features, the power supply is ideally the best choice for server, workstation, communication or any other automation applications to use.
The product also complies with the latest safety and EMC standards, which is perfectly to meet various regulations worldwide.
Highlights...
* Flex ATX form factor.
* 80+ Gold certification.
* Low Ripple & Noise.
* 100% Hi-pot tested Complies with EN61000-3-2 AC input full range.
| Model | FSP400-500FDB |
| Wattage | 400W |

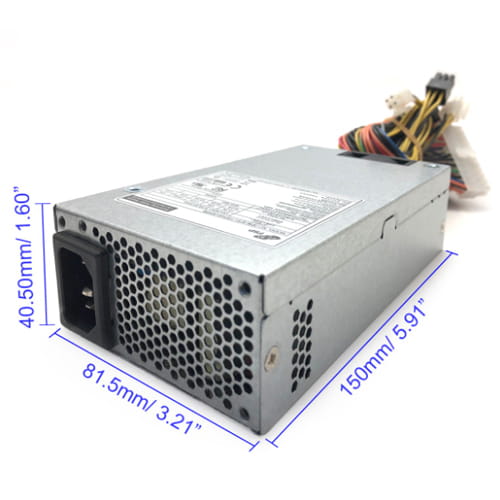

| Dimensions | 150mm (L) × 81.5 mm (W) × 40.5mm (H) |
| Efficiency Level | 80 Plus Gold |
| Efficiency | 90% 230VAC |
| Voltaje regulation | +3.3V, +12V, +5V, +5SB: ±5% -12V: ±10% |
| Input Electrical Specification | |
| Input Frequency | 47 ~ 63 Hz |
| Input Current | 115V@ 6.0 Amps-rms maximum 230V@ 3.0 Amps-rms maximum |
| Output Specification | |
| Hold-up time | 115V/60Hz 10mSec. Minimum@100% Load, 230V/50Hz 12mSec. Minimum@100% Load |
| Ouput Voltage Regulation | +3.3Vdc output : +3.7 Vdc minimum, + 7Vdc maximum +5Vdc output : +5.7 Vdc minimum, + 7Vdc maximum +12Vdc output : +13.3 Vdc minimum, + 16Vdc maximum |
| Output Rise Time | 115V-rms/230V-rms +5V 20ms Maximum |
| Output Rating | +3.3V:50mV p-p +5V:50mV p-p +12V:120mV p-p -12V:120mV p-p +5Vsb:50mV p-p |
| Environmental Requirement | |
| Temperature Range | Operating : 0 to +50℃ Storage :-40 to +80℃ |
