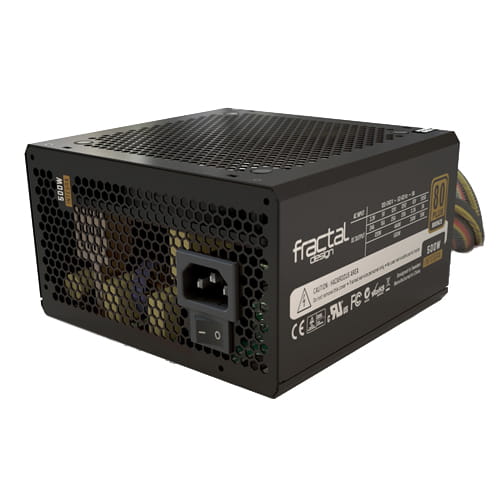

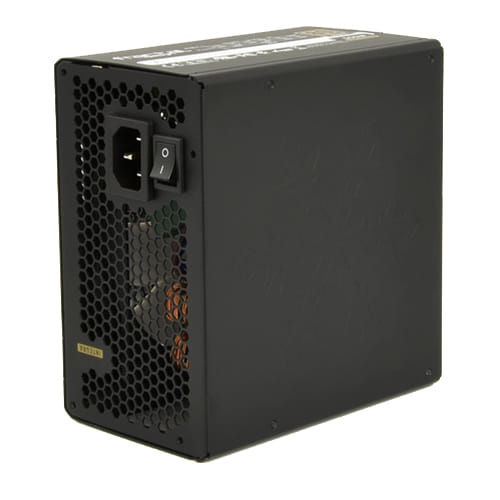

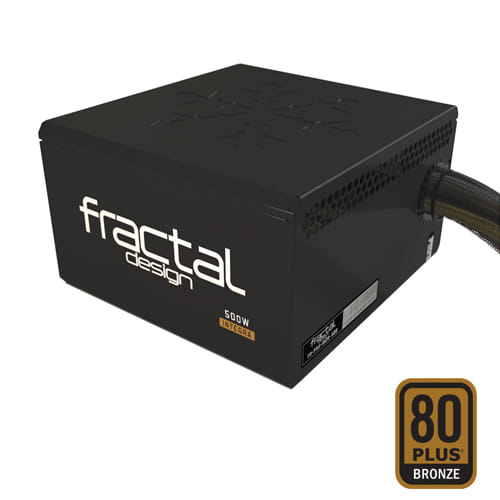

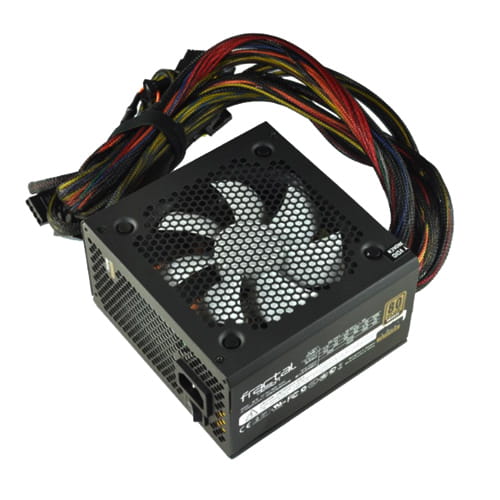

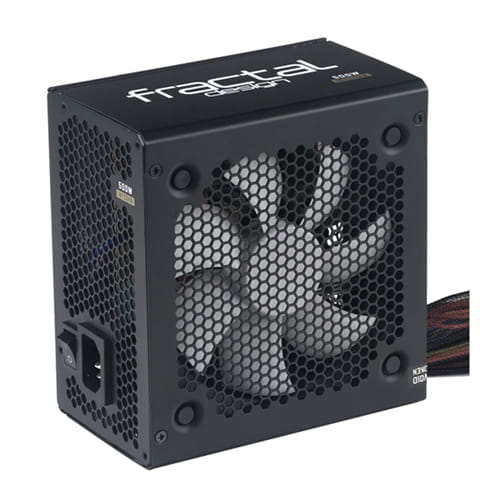

Fractal Design Integra R2 500W 80Plus Bronze REFURBISHED

Fractal Design Integra R2 500W 80Plus Bronze REFURBISHED

Fractal design
  • 500W ATX power supply.
  • 80+ Bronze certification.
  • Includes a silent 120mm fan, with temperature control.
  • Includes two 12V rails.
  • Connectors: 1 x 20/24-Pin, 1 x P4 + P4, 2 x 4-Pin, 5 x SATA, 1 x Floppy, 1 x 6 + 2 PCIe.
  • Security systems: OPP, OVP, SCP, UVP and OCP.

P/N: FR-IN2B500

39,90 € Without VAT
48,28 € With VAT
Only 3 units left
Delivery 24/48h working
2 years
of guarantee
sending
shipping
100%
Secure pay

Fractal Design Integra R2, these are power supplies designed to provide stable energy at the best price. They are an excellent choice for medium to high performance personal computers or workstations.

Fractal has wanted to take care of the design of its power supplies, to the maximum. For this reason they have an elegant and contemporary design. Also thinking of being able to adapt this source to the most compact computers, the Integra R2 has a length of 140mm.

It has a power of 500W, and is 80+ Bronze certified, which guarantees that it has an efficiency of at least 80%.

It includes a 120mm fan with Sleeve Bearing, capable of having the source well cooled with a low noise level.

In addition, the Fractal Design Integra R2 has been designed to generate less heat and provide the same power with lower fan speeds, which causes reduced noise levels.

It has two 12V rails.

It has numerous protection systems, such as: over-voltage (OPP), over-voltage (OVP), short-circuit (SCP), under-voltage (UVP) and over-current (OCP)

Highlights...

* 500W ATX power supply.
* 80+ Bronze certification.
* Includes a 120mm silent fan, with temperature control.
* Includes two 12V rails.
* Connectors: 1 x 20/24-Pin, 1 x P4 + P4, 2 x 4-Pin, 5 x SATA, 1 x Floppy, 1 x 6 + 2 PCIe.
* Security systems: OPP, OVP, SCP, UVP and OCP.

Datos técnicos
Potencia 500W
Modelo

FRACTAL DESIGN INTEGRA R2 500

Voltaje/Frecuencia 100~240V
Normativa ATX 12V 2.31
Ventiladores 120mm Sleeve Bearing
Nivel Ruido, dB(A)
12V Railes 2
Protecciones

OPP / OVP / SCP / UVP / OCP

Certificaciones 80 Plus Bronze
Durabilidad >100.000 Horas

Cableado
A Placa Base 1 x ATX 20/24-Pin / 1 x P4+P4 Conector
A Dispositivos

2 x 4-Pin Molex (HDD) / 5 x S-ATA / 1 x Floppy

A VGA 1 x 6+2 Pin PCI-Express
Extras


Datos salida/entrada corriente

AC Input

100~240Vac 50-60Hz 10-5A

DC Output

3,3V

5V

12V1

12V2





-12V

5VSB

max. current

24A

15A

25A

20A





0.3A

3A

444W

max. Combined power

120W



3.6W

15W

500W


Dimensiones
Ancho 150mm.
Alto 86mm.
Fondo 140mm.
Peso
  Ver.1.1.
