F.A. para RACK 4U 500W Redundante 80Plus Gold
F.A. para RACK 4U 500W Redundante 80Plus Gold
- Complies with EN62368 standard.
- Low ripple and noise.
- Output over voltage protection.
- Short circuit protection on all outputs.
- Resettable power shutdown.
- INTERNAL 4cm fan 100% burned out at high ambient temperature (50 ℃).
- Vacuum impregnated transformer.
- MTBF: 100,000 hours at 25 ℃.
- 100% line input fuse protection tested in high power.
of guarantee
shipping
Secure pay

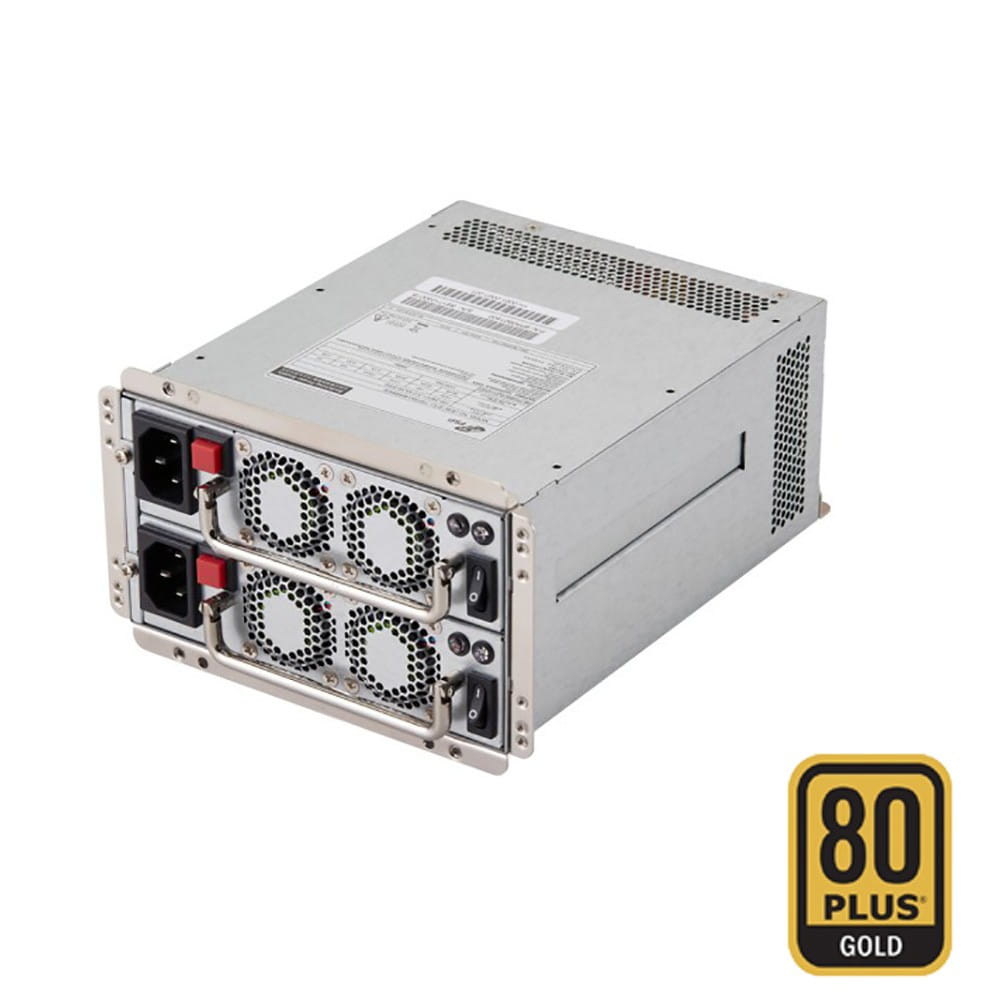

FSP500-60MRB (S) is an industrial grade switching power supply.
This model offers a total power handling of up to 500 watts and uses a unique active PFC (Power Factor Correction) circuit design with high load electrical components making it perfect for use in industrial environments.
Additionally, with its full-range input and output electrical characteristics, this power supply is the best choice for server, workstation, communication, or any other automation application.
This model also meets the latest safety and EMC standards, enabling it to comply with various regulations around the world.
Highlights...
* Complies with EN62368 standard.
* Output over voltage protection.
* INTERNAL 4cm fan 100% burned out at high ambient temperature (50 ℃).
* Short circuit protection on all outputs.
* MTBF: 100,000 hours at 25 ℃
Factor de forma | Mini-Redundante |
Potencia | 500w |
Tipo de PFC | Activo |
Sistema de ventilacion | 4 ventiladores |
Diametro del ventilado | 40mm |
Potencia maxima en lines de 12v | 480w |
Nº de fuentes | 2 |
Rango de voltaje de entrada | 200-240v |
MTBF | 100.000 horas |
Modular | No |
Intecarmbiable en caliente | Si |
Dimensiones | 150 x 84 x 190 |
