Buy MP2145. Fanless Palm PC para Videocarteleria Intel J34552x4K

There are no configurations available for this product.

If you are looking for a small, silent and powerful equipment for videocartelería, we have the perfect solution!

The MP2145 is a totally fanless solution, which integrates the Intel Celeron J3455 Quad Core processor with a base speed of 1.5Ghz, which can be increased in turbo mode up to 2.3Ghz. This processor has a TDP consumption of 10W.

The MP2145 supports a So-DIMM DDR3L memory module at 1866Mhz with a maximum capacity of 8Gb. In addition, an mSATA disk can be installed.

It has connections: 1x RS232 / 422/485 COM, 2x USB 3.0, 1x VGA (1920 x 1200 @ 60Hz), 2x HDMI 1.4b (3840 x 2160 @ 30Hz), 2x USB 3.0, 2x RJ-45 port.

Highlights...

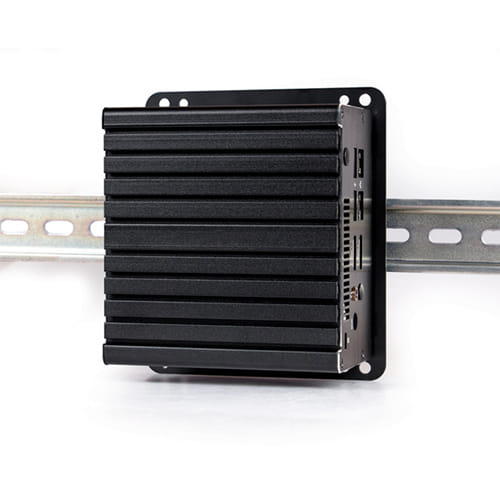

* Black aluminum case without fan.
* Intel Celeron J3455 quad-core.
* Up to 8 GB of total DDR3L-1866 memory.
* 2 HDMI ports (3840 x 2160 @ 30Hz), VGA.
* Wireless 802.11 b / g / n + Bluetooth 4.0.
* Dual Gigabit LAN.
* 1 serial port, 4 x USB 3.0 ports, watchdog timer.

Technical specifications

Dimensions	116 x 110 x 49mm
Material	Aluminum
Color	Black
CPU	Intel Celeron J3455 Quad Core- TDP: 10W
Memory	1x So-DIMM DDR3L 1866Mhz up to 8Gb
Storage space	1x Full Size mSATA Slot
Graphics	Intel HD Graphics 500, 250MHz - 750MHz
Network	2x RJ45 GigaLan 1x Wireless 802.11 b/g/n + Bluetooth 4.0 1x SIM Card

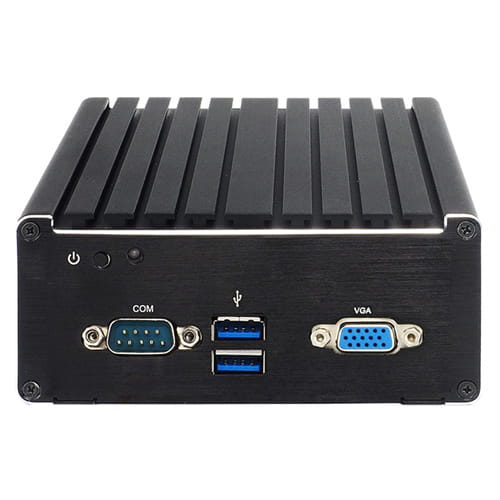

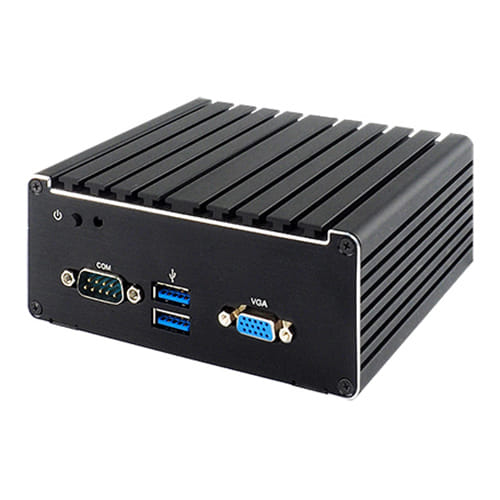

Front I/O Ports	2x USB 3.0 1x COM (RS232/422/485) 1x VGA

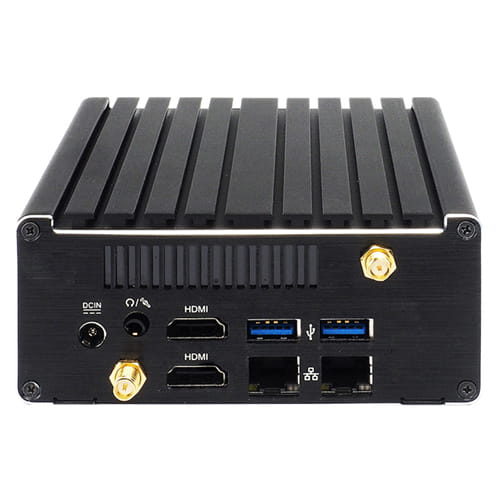

Rear I/O Ports	2x USB 3.0 2x HDMI 1.4 2x RJ45
Expansion Slots
Power Source	Adapter: AC 90~240V / DC 12V / 40W
Certifications	CE, FCC, RoHS, ErP
Environment	Operating Temperature: 0 ~ 40ºC Storage Temperature: -10 ~ 70ºC
