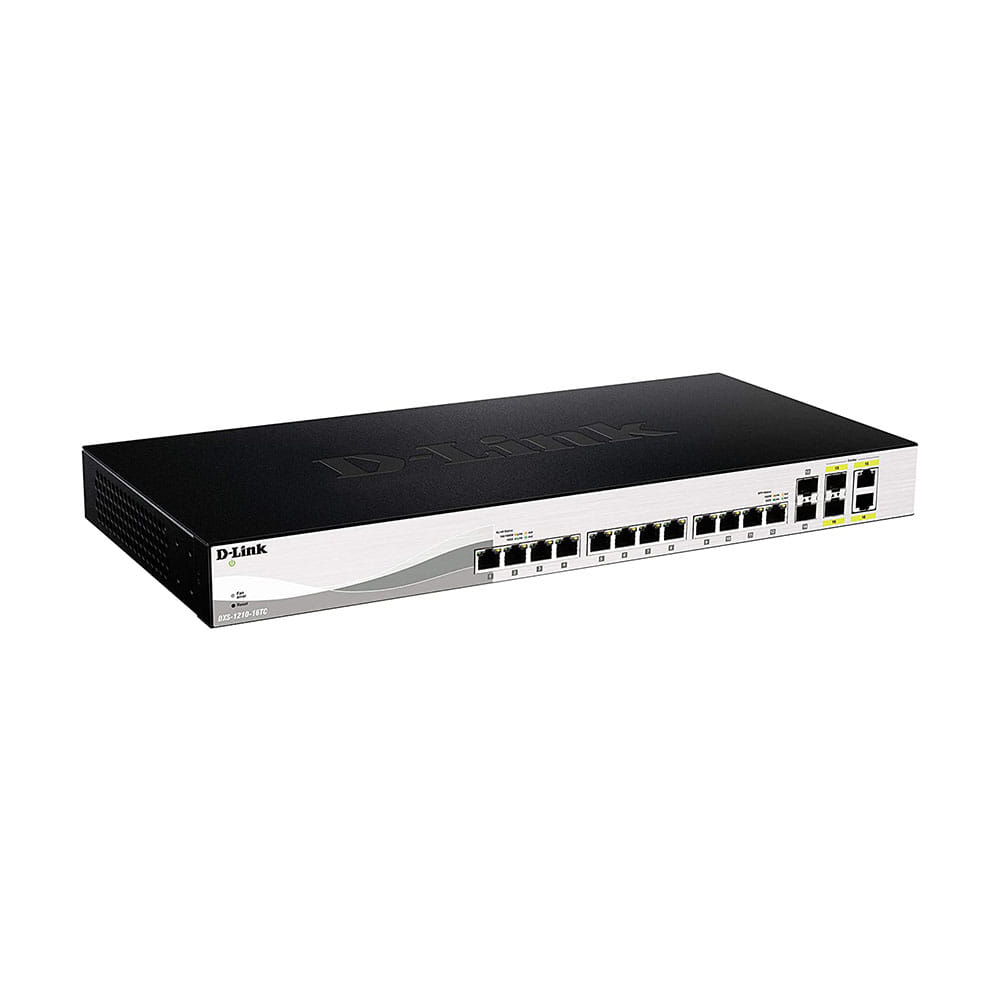

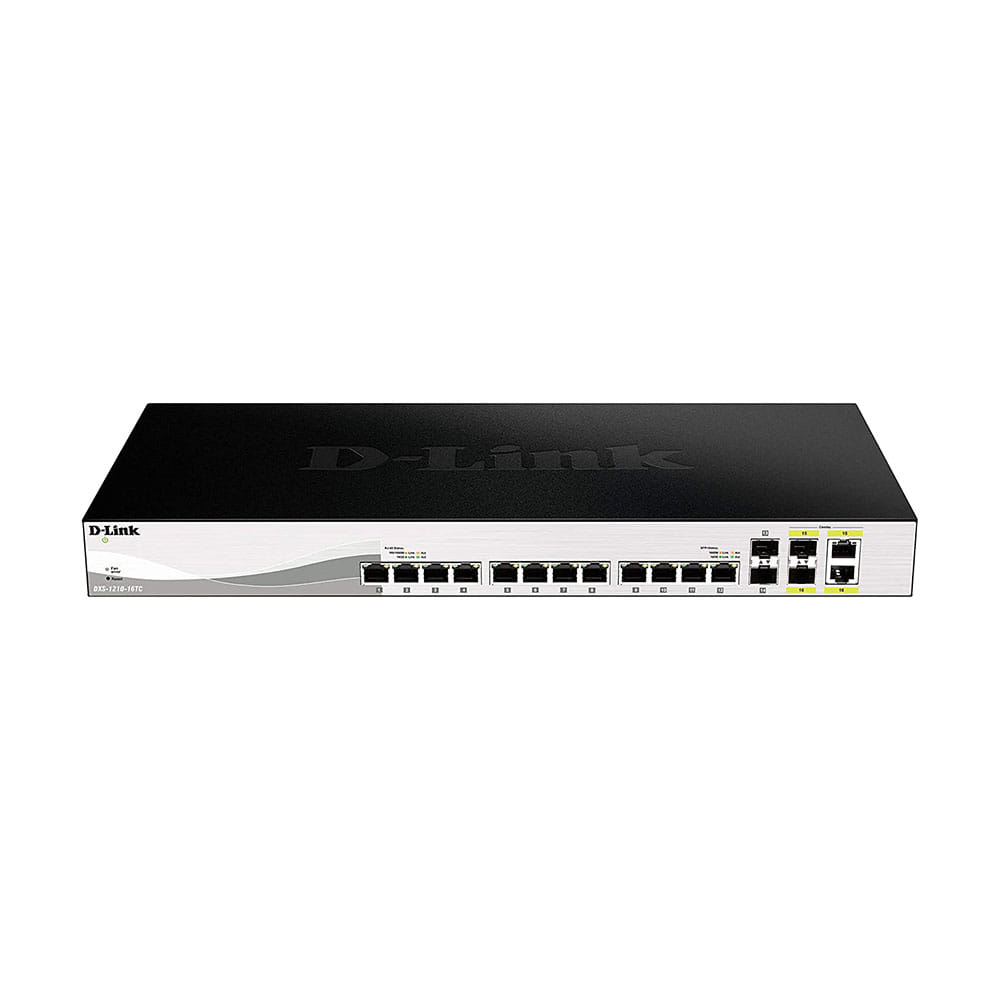

D-Link DXS-1210-16TC. Switch 12 Puertos 10Gb + 2 SFP 10Gb
- 10GbE bandwidth connections.
- Layer 2 Administration with Layer 3 Lite Features.
- Web-based graphical user interface (GUI), console port, Full CLI.
- Static Routing and MSTP.
- Cable diagnosis and loopback detection.
The price that appears is indicative
of guarantee
Insured
Secure pay
Layer type | |
Ports and Interfaces | |
Ports and Interfaces | |
No. of ports | |
PoE/PoE+ |
10 Gigabit Ethernet ensures high bandwidth demand is easily met, for example in data replication and backup, video on demand, and 10G server connection requests
Internal routing of the wired VLAN helps reduce pressure on routers and backbones, improving overall network efficiency
D-Link Green technology conserves energy by shutting down unused ports, saving money and reducing carbon footprint
D-Link DXS-1210 Series 10 Gigabit Ethernet Smart Managed Switches are a cost-effective solution with the ability to meet the networking needs of any business. Capacity for 10GBASE-T / SFP + combo ports that provide connection flexibility over a network that makes integration easy. Thanks to its high performance and low latency, it can meet the needs of virtualization, cloud services and server-to-server applications, making it perfect for small businesses.
Incorporating D-Link Green technology allows the switch to save power without sacrificing performance or functionality. The switches have smart built-in fans and internal heat sensors that monitor and detect temperature changes and react accordingly with different fan speeds for different temperatures.
At lower temperatures, fans run slower, reducing power consumption and switch noise. Checking the connection status dramatically reduces power consumption by automatically putting offline ports on standby. The concept of green IT goes one step further by incorporating a special chipset with advanced silicon technology for efficient use of energy.
Equipped with a full range of Tier 2 features, it includes Spanning Tree Port and Protocol Copy and Link Aggregation Control (LACP). Network maintenance features include loopback detection and cable diagnostics. Loopback detection is used to detect loops created by a specific port and automatically close the affected port.
Initially designed for administrators and customer support technicians, the cable diagnostics feature can quickly uncover faults and determine cable quality, allowing you to manage the network yourself.
Supports Auto Surveillance VLAN (ASV) and AutoVoice VLAN, perfect for implementing VoIP and IP Video Surveillance systems. Auto Surveillance VLAN (ASV) is a new, industry-leading technology that offers the Gigabit Ethernet Smart Managed switch. This technology facilitates the installation and prioritizes the transmission of data from IP Video Surveillance cameras, avoiding the need for special hardware and installations.
ASV also guarantees real-time video quality to monitor and control without compromising the transmission of conventional network data. Auto Voice VLAN technology improves VoIP service by automatically directing voice traffic from an IP phone to an assigned VLAN. With a higher priority VLAN, these features ensure the quality and security of VoIP traffic. In addition, DSCP markings on Ethernet packets allow different levels of service to be assigned to network traffic. As a result, these voice and video packages take precedence over other packages.
Additionally, with bandwidth control, network administrators can reserve bandwidth for important functions that require more or have high priority.
D-Link's innovative Safeguard Engine ™ protects switches against traffic overload caused by malicious attacks. It supports 802.1X port-based authentication and host-based authentication, allowing you to authenticate the network through external RADIUS servers. Additionally, the Access Control List (ACL) improves network security and helps protect your internal IT network. It includes ARP anti-phishing protection, which protects the network from intruders who can access data and modify or stop traffic by sending false ARP messages. To prevent ARP spoofing attacks, the switch uses packet control ACLs to block invalid packets that contain false ARP messages.
For added security, the DHCP Server Discovery feature blocks malicious packets from DHCP servers from user ports to prevent unauthorized IP allocation.
Highlights...
* 10GbE bandwidth connections.
* Layer 2 administration with Layer 3 Lite functions.
* Web-based graphical user interface (GUI), console port, Full CLI.
* Static Routing and MSTP.
* Cable diagnostics and loopback detection.
CARACTERÍSTICAS DE ADMINISTRACIÓN | ||||
Tipo de interruptor | Gestionado | |||
Capa del interruptor | L2 | |||
Calidad de servicio (QoS) soporte | Si | |||
Administación basada en web | Si | |||
Inspección ARP | Si | |||
Registro de eventos en sistema | Si | |||
MIB, soporte | RFC 783, RFC 951, RFC 1157, RFC 1213, RFC 1215, RFC 1350, RFC 1493, RFC 1769, RFC 1542, RFC 1901, RFC 1907, RFC 1908, RFC 2131, RFC 2138, RFC 2139, RFC 2233, RFC-2246, RFC 2475, RFC 2570, RFC 2575, RFC 2598, RFC 2618, RFC 2819, RFC 2865, RFC 3164, RFC 3195, RFC 3411-17 | |||
PUERTOS E INTERFACES | ||||
Cantidad de puertos básicos de conmutación RJ-45 Ethernet | 12 | |||
Puertos tipo básico de conmutación RJ-45 Ethernet | 10G Ethernet (100/1000/10000) | |||
Combo SFP Cantidad de puertos | 2 | |||
Cantidad de ranuras del módulo SFP+ | 2 | |||
CONEXIÓN | ||||
Estándares de red | IEEE 802.1D,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3an,IEEE 802.3az,IEEE 802.3p,IEEE 802.3u,IEEE 802.3z | |||
Soporte 10G | Si | |||
Tecnología de cableado ethernet de cobre | 10GBASE-T,100BASE-TX,1000BASE-T | |||
Espejeo de puertos | Si | |||
Bloqueo de cabeza de línea (HOL) | Si | |||
Soporte VLAN | Si | |||
Funciones de LAN virtual | Voice VLAN,MAC address-based VLAN,Port-based VLAN | |||
FIBRA ÓPTICA | ||||
Tecnología de fibra de cableado ethernet | 1000BASE-X | |||
TRANSMISIÓN DE DATOS | ||||
Tabla de direcciones MAC | 16000 entradas | |||
Capacidad de conmutación | 320 Gbit/s | |||
Tasa de reenvío | 238,08 Mpps | |||
Guardar y remitir | Si | |||
Jumbo Frames, soporte | Si | |||
Tramas Jumbo | 16000 | |||
SEGURIDAD | ||||
Características de DHCP | DHCP server,DHCP client | |||
Lista de Control de Acceso (ACL) | Si | |||
Reglas de lista de control de acceso | 256 | |||
IGMP | Si | |||
Vinculación de puertos IP-MAC | Si | |||
FUNCIONES DE MULTIDIFUSIÓN | ||||
Multidifusión, soporte | Si | |||
Intrusión de rendimiento de multidifusión (MLD) | MLD v | |||
PROTOCOLOS | ||||
Protocolos de red compatibles | IPv4, IPv6 | |||
DISEÑO | ||||
Montaje en rack | Si | |||
Color del producto | Negro | |||
Indicadores LED | Actividad, Enlace, Poder, Velocidad | |||
Seguridad | cUL, CB, CE, CCC, BSMI | |||
Certificación | CE, FCC, C-Ticket, VCCI, BSMI, CCC | |||
DESEMPEÑO | ||||
Procesador incorporado | Si | |||
DETALLES TÉCNICOS | ||||
Altura del palé (en barco) | 2,05 m | |||
CONTROL DE ENERGÍA | ||||
Voltaje de entrada AC | 120 - 230 V | |||
Frecuencia de entrada AC | 50 - 60 Hz | |||
Consumo de energía (max) | 90,81 W | |||
ALIMENTACIÓN A TRAVÉS DE ETHERNET (POE) | ||||
Energía sobre Ethernet (PoE) | No | |||
CONDICIONES AMBIENTALES | ||||
Intervalo de temperatura operativa | -5 - 50 °C | |||
Intervalo de temperatura de almacenaje | -40 - 70 °C | |||
Intervalo de humedad relativa para funcionamiento | 0 - 95% | |||
Intervalo de humedad relativa durante almacenaje | 0 - 95% | |||
PESO Y DIMENSIONES | ||||
Ancho | 440 mm | |||
Profundidad | 210 mm | |||
Altura | 44 mm | |||
Peso | 3,15 kg | |||
EMPAQUETADO | ||||
Ancho del paquete | 349 mm | |||
Profundidad del paquete | 546 mm | |||
Altura del paquete | 96 mm | |||
Peso del paquete | 4,53 kg | |||
Max. Tasa de reenvío de paquetes | 90.81 w | |||
Dimensiones |
|
|||
Peso | 3.2 Kg |
