Español D-Link DGS-3630-52T. Switch Gestionado 44 Puertos Gigabit + 4 Combo + 4 SPF+.
D-Link DGS-3630-52T. Switch Gestionado 44 Puertos Gigabit + 4 Combo + 4 SPF+.
- Designed for companies, large corporations and ISPs, Ideal for the core network or the deployment of links.
- L3 functionalities such as Static Routing, RIP / RIPng and VRRP. ACLs, robust QoS and IPV6 support.
- License upgradeable to Full Layer 3, with OSPF, BGP, IS-IS, multicast routing PIM-DM, PIM-SM and MPLS.
- 4 10GbE SFP + ports. Models of 26 and 52 Gigabit ports.
- Stacking physical up to 9 units.
of guarantee
Insured
Secure pay
| Layer type | |
| Ports and Interfaces | |
| Ports and Interfaces | |
| No. of ports | |
| PoE/PoE+ |
The DGS-3620 has been a winner against the similar Cisco model in the demanding performance tests of the prestigious analyst Tolly Report, also standing out for its lower cost and lower consumption.
The DGS-3630 series have several management methods: Network Assistant Utility, Industry-standard CLI, Intuitive web-based management interface.
SNMP support allows centralized management of a large number of devices.
The mini-USB console port allows management without extra connectors, while the USB Type A port allows configuration files, access and firmware updates to be saved.
It includes physical stacking, which allows several switches to be combined in the same physical unit.
It increases redundancy with respect to multiple physical units, simplifies network administration and provides a single IP address to manage all switches in the stack.
The robust QoS functionality engine ensures the prioritization of essential services such as IP Voice traffic, video conferencing or video surveillance.
D-Link Safeguard technology increases network security, blocking attacks by worms or viruses in the hardware layer.
Highlights ...
* Designed for companies, large corporations and ISPs, Ideal for the core network or the deployment of links.
* L3 functionalities such as Static Routing, RIP / RIPng and VRRP. ACLs, robust QoS and IPV6 support.
* License upgradeable to Full Layer 3, with OSPF, BGP, IS-IS, multicast routing PIM-DM, PIM-SM and MPLS.
* 4 10GbE SFP + ports on all models. Models of 26 and 52 Gigabit ports. Stacking physical up to 9 units.
* Redundant source. Unlimited lifetime warranty.
| General | |
| Hardware version | A1 |
| Size | 19", 1U rack-mount size |
| Interfaces | 44 x 10/100/1000BASE-T ports 4 x Combo 10/100/1000BASE-T/SFP ports 4 x 10 GbE SFP+ ports |

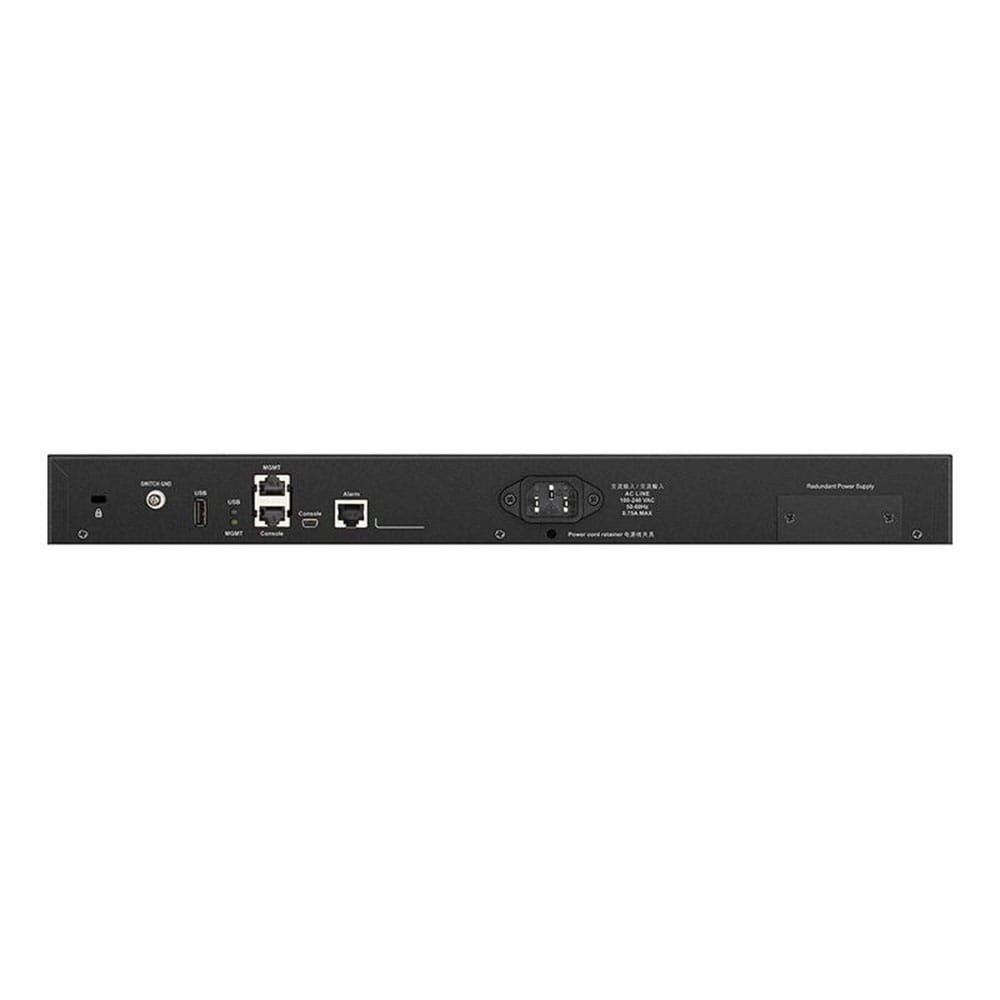

| Console Port | RJ-45 and Mini-USB console ports for out-of-band CLI management |
| Management Port | 10/100/1000BASE-T RJ-45 Ethernet port for out-of-band IP management |
| Alarm Port | 1 x RJ-45 port |
| USB Port | 1 x USB 2.0 Type A port |
| Performance | |
| Switching Capacity | 176 Gbps |
| Packet Forwarding Rate | 130.95 Mbps |
| Buffer | 4 MBytes |
| MAC Address Table | 68K entries |
| IPv4 Routing Table (IPv4 / IPv6) | 16K entries / 7K entries |
| IPv4 Forwarding Table (IPv4 / IPv6) | 32K entries / 16K entries |
| Jumbo Frame Size | 12 KBytes |
| Dimensions & Environmental Conditions | |
| MTBF | 263,936.78 hours |
| Noise Level | 53.9 dB(A) |
| Heat Disipation | 212 BTU/h |
| Power input | 100 to 240 VAC 50/60 Hz |
| Maximum Power Consumption | 65 W |
| Standby Poweer Consumption | 36 W |
| Dimensions | 441 x 259.8 x 44 mm (17.4 x 10.2 x 1.73 in) |
| Weight | 4.04 Kg |
| Ventilation | 2 x smart fans |
| Operating Temperature | 5 to 50 °C (23 to 122 °F) |
| Storage Temperature | -40 to 70 °C (-40 to 158 °F) |
| Operating Humidity | 10% to 95% RH |
| Storage Humidity | 5% to 95% RH |
| Surge Protection | 6 kV surge protection on all Ethernet access ports |
| Safety Certifications | cUL, CB, CE, CCC, BSMI |
| EMI/EMC | CE, FCC Class A, C-Tick, VCCI, BSMI, CCC |
| IPv6 Ready Certification | IPv6 Ready Logo Phase-2 |
