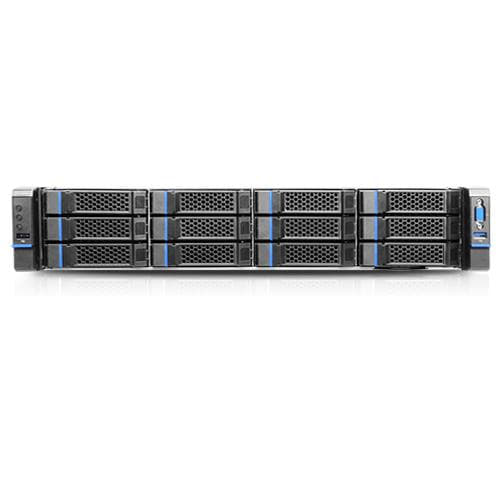

Chenbro RM23712 con 12 bahías HD hot-swap
- 2U rack with 12 HD hot-swap bays.
- Compatible with 16.7 "x 17" motherboards.
- Supports Intel S2600WT and S2600WF family motherboards.
- 6 full size and 2 low profile expansion slots.
of guarantee
Insured
Secure pay
Height | |
Fondo | |
Front Hot-Swap | |
Número de Slots | |
Número de Slots | |
Tarjeta gráfica |
2U server box with great flexibility. Configured with 8 PCI express slots.

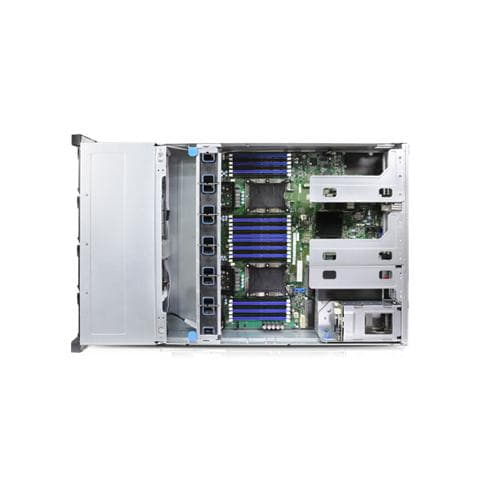

The RM237 has a modular design and installation without tools for HDD trays, fan hooks and add card slots. It also improves the virtual performance of the motherboards.
The RM237 series supports full-featured motherboards, offering enough memory, CRPS power supply, as well as modular and hot-swappable 8, 12, and 24-port storage cage designs to meet different application demands. The manual exchange motherboard tray that can support compatibility with the motherboard and the PSU with custom motherboard (16.7 "x 17") and redundant PSU. In addition, the RM237 series supports up to 8 PCIe slots and is compatible with the 2 "hot-swappable 2.5" hard disk drive for installing the operating system.
The RM237 series offers new levels of constant and innovative performance. It is based on cutting-edge technology and provides compelling benefits in a wide variety of usage models, including big data, artificial intelligence, high performance computing, cloud computing, storage, vitualization and IoT. Great improvement with optional design to support the highest TDP processor and maximum memory bandwidth that can facilitate performance for a wide range of workloads.
Highlights...
* Rack box in 2U format.* Supports S2600WT and S2600WF family motherboards.
* Power supply supported: 1 + 1 CRPS.
* Configured with 8 PCI express slots.
* 12 Hot-Swap bays.
Form factor | 2U |
Mother board supported | 16.7" x 17" |
Dimensions | 735x 438 x 87 mm |
Unit bays | 12x 3,5" Hot-swap |
Power Supply | 1 + 1 CRPS |
Indicators | 1x Estado alimentación 2x Actividad LAN 1x UID 1x Alarma de sistema |
Front Panel | 1x Botón encendido / apagado 1x Botón de reset 1x UID 1x VGA 1x USB 3.0 1x USB 2.0 |
Fans | Medio: 6x 60x38mm |
Expansion Slots | 6x Altura completa 2x Bajo perfil |
Weight | 14.9 ~ 19 Kg |
Acc. Cajas Rack
SAS

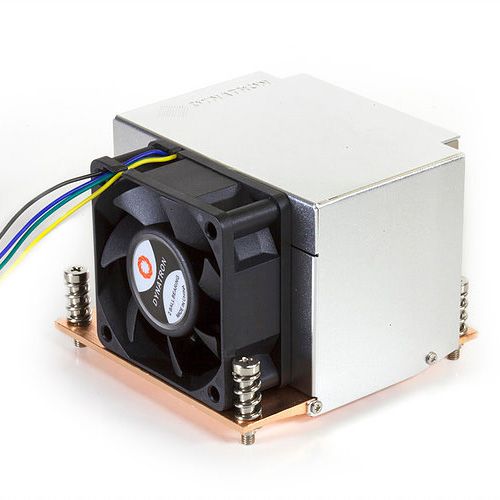

CPU cooler
