Español Cable DisplayPort 1.4 to HDMI 2.0b 2M M/M

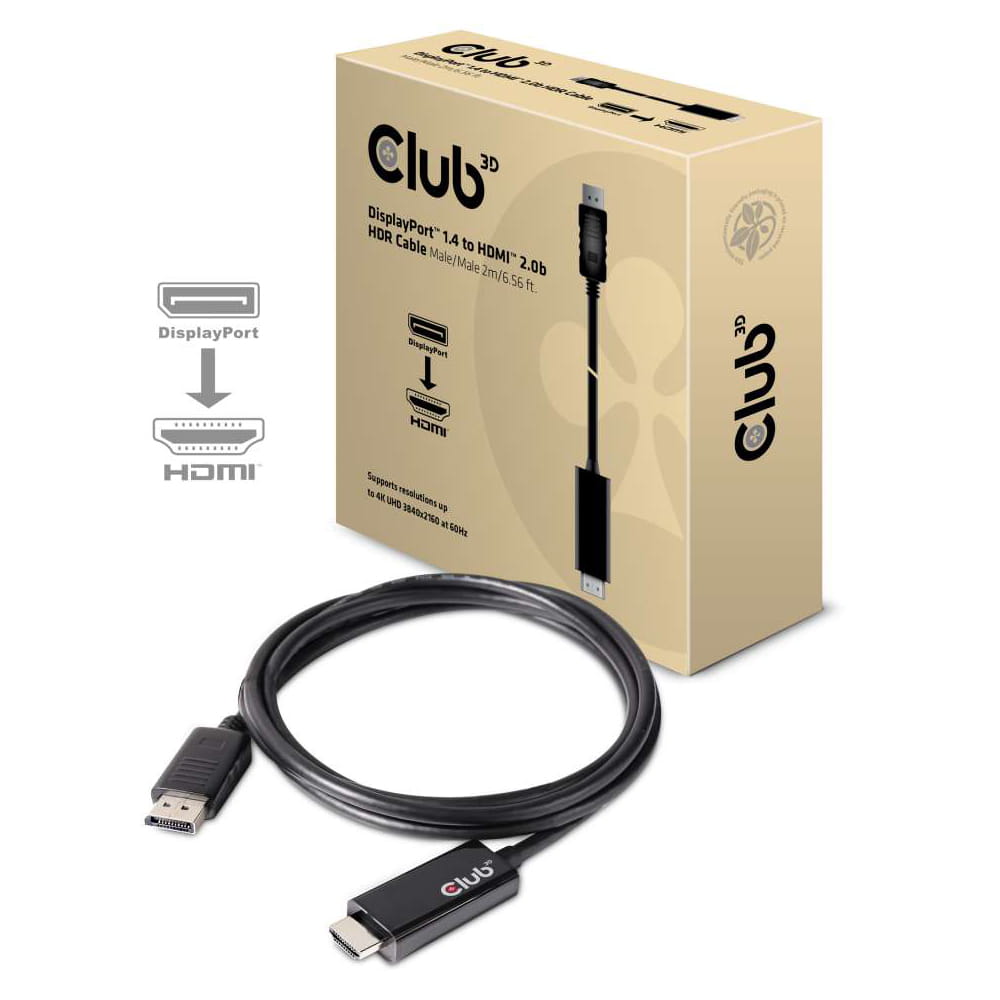

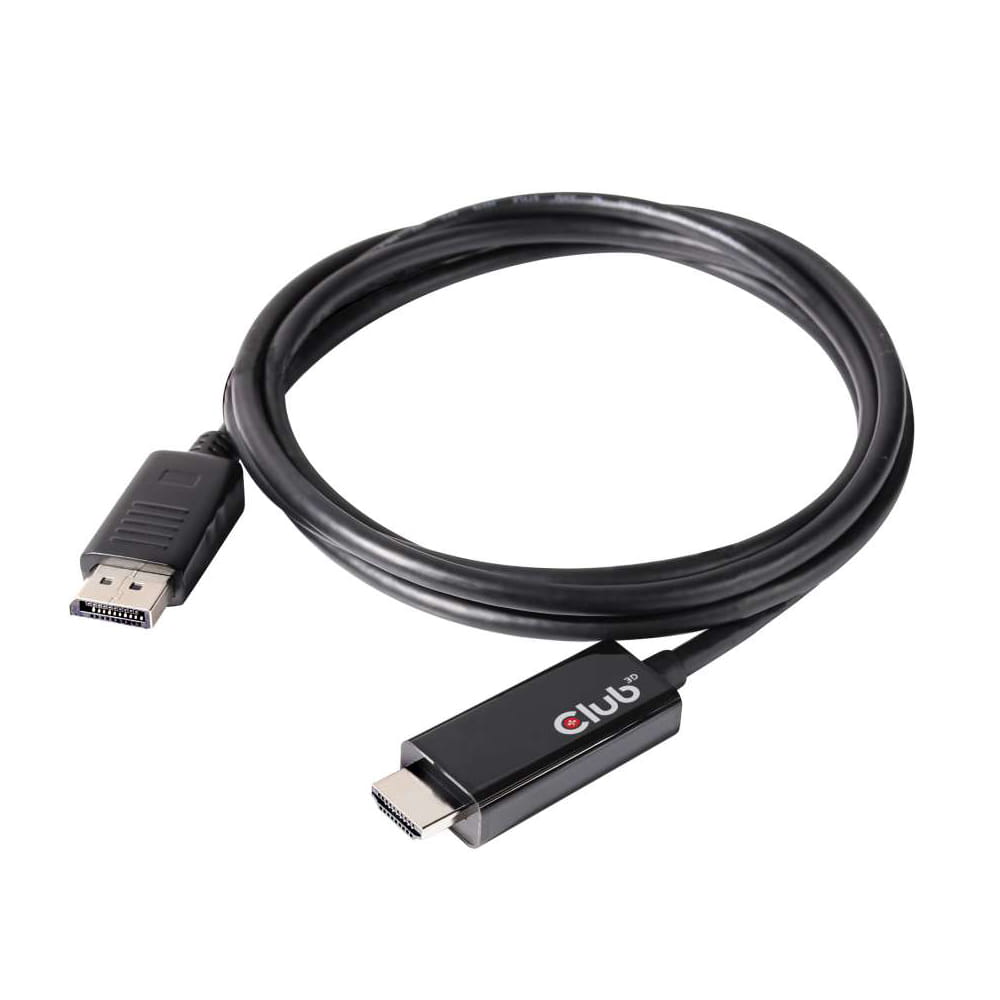

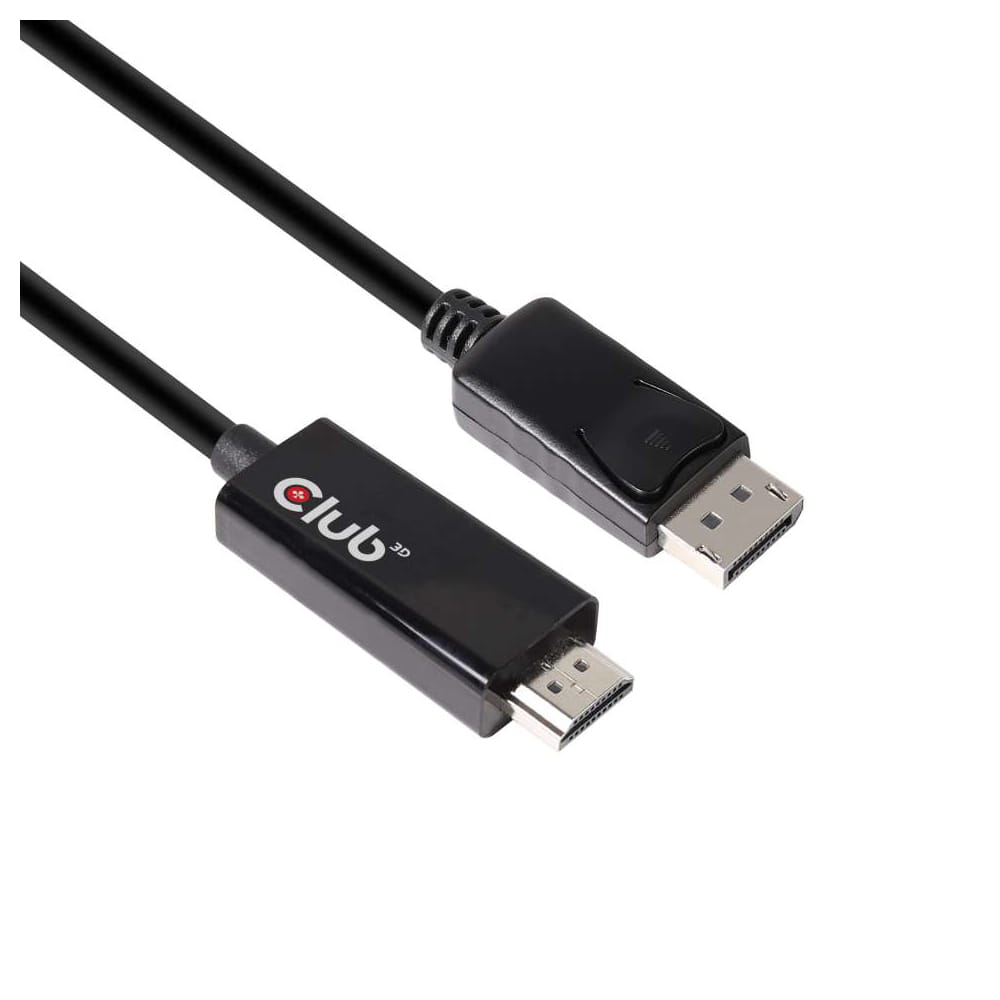

Cable DisplayPort 1.4 to HDMI 2.0b 2M M/M
- Passive DisplayPort 1.4 to HDMI 2.0b adapter.
- Connector 1: DisplayPort 1.4.
- Connector 2: HDMI 2.0.

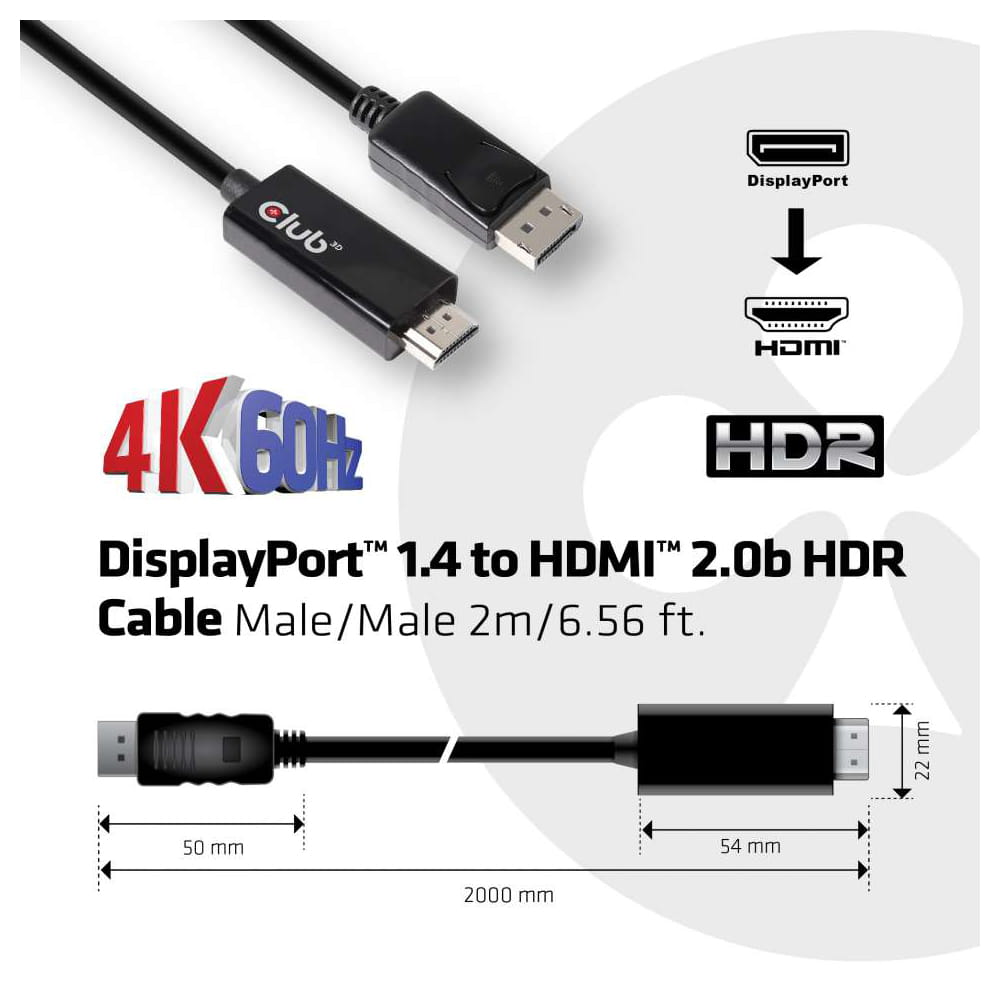

- Cable length: 2m.
- Plated Connector Contacts: Silver.
- Color of product: Black.
of guarantee
Insured
Secure pay
| Tipos de Conexión | |
| Tipos de Conexión | |
| Cable length | |
| Normative | |
| Normative |
CAC-1082 -The Club3D CAC-1082 is a DisplayPort ™ 1.4 to HDMI ™ 2.0b signal converter. It offers HDR video quality support for deep color media content playback. The DisplayPort ™ receiver supports up to 5.4 Gbps per lane in 4 lanes. The HDMI ™ output is fully compliant with the HDMI ™ specification version 2.0b.
The CAC-1082 supports UHD resolutions up to 4096 x 2160p at 60Hz.
It supports RGB / YCbCr video color formats with a color depth of 16bpc (or 48 bits per pixel), as long as it matches the bandwidth of the DisplayPort ™ and HDMI ™ link. The CAC-1082 also supports converting RGB or YCbCr 4: 4: 4 pixel encoding to YCbCr 4: 2: 0 and YCbCr 4: 2: 0 pass-through function. Plus, deep color HDR up to 12Bpc at 4K 60Hz is supported through RGB / YCbCr 4: 4: 4 conversion over DP link to YCbCr 4: 2: 0 on HDMI ™ output with horizontal expansion to the times CEA.
Note: For HDR to work, the source system must be DisplayPort ™ 1.4 compliant and the display must have HDR and / or HDMI ™ 2.0 support a or b.
Highlights ...
* Passive DisplayPort 1.4 to HDMI 2.0b adapter.
* Connector 1: DisplayPort 1.4.
* Connector 2: HDMI 2.0.
* Cable length: 2m.
* Plated connector contacts: Silver.
* Product color: Black.
| Nombre | CAC-1082 |
| Compatibilidad | DisplayPort 1.4 - HDMI 2.0b |
| Resolución | 4096 x 2160p a 60Hz. |
| Conector 1 | DisplayPort 1.4 Macho |
| Conector 2 | HDMI 2.0b Macho |
| Normativas |
CAC-1082 -The Club3D CAC-1082 is a DisplayPort ™ 1.4 to HDMI ™ 2.0b signal converter. It offers HDR video quality support for deep color media content playback. The DisplayPort ™ receiver supports up to 5.4 Gbps per lane in 4 lanes. The HDMI ™ output is fully compliant with the HDMI ™ specification version 2.0b.
The CAC-1082 supports UHD resolutions up to 4096 x 2160p at 60Hz.
It supports RGB / YCbCr video color formats with a color depth of 16bpc (or 48 bits per pixel), as long as it matches the bandwidth of the DisplayPort ™ and HDMI ™ link. The CAC-1082 also supports converting RGB or YCbCr 4: 4: 4 pixel encoding to YCbCr 4: 2: 0 and YCbCr 4: 2: 0 pass-through function. Plus, deep color HDR up to 12Bpc at 4K 60Hz is supported through RGB / YCbCr 4: 4: 4 conversion over DP link to YCbCr 4: 2: 0 on HDMI ™ output with horizontal expansion to the times CEA.
Note: For HDR to work, the source system must be DisplayPort ™ 1.4 compliant and the display must have HDR and / or HDMI ™ 2.0 support a or b.
Highlights ...
* Passive DisplayPort 1.4 to HDMI 2.0b adapter.
* Connector 1: DisplayPort 1.4.
* Connector 2: HDMI 2.0.
* Cable length: 2m.
* Plated connector contacts: Silver.
* Product color: Black.
| Nombre | CAC-1082 |
| Compatibilidad | DisplayPort 1.4 - HDMI 2.0b |
| Resolución | 4096 x 2160p a 60Hz. |
| Conector 1 | DisplayPort 1.4 Macho |
| Conector 2 | HDMI 2.0b Macho |
| Normativas |
