be quiet! Straight Power 11 Platinum 1000W
be quiet! Straight Power 11 Platinum 1000W
- Efficiency 80 PLUS Platinum up to 94,1%.
- Virtually inaudible 135mm Silent Wings 3 PWM fan.
- Funnel-shaped fan opening in the power supply box for high air inlet flow.
- No wires inside the power supply on the DC side for improved cooling and longer life.
- Modular cables for maximum construction flexibility.
- Powerful compatibility with several GPUs with two PCI Express connectors.
of guarantee
shipping
Secure pay
be quiet! Straight Power 11 Platinum 1000W raises the level for systems that require virtually inaudible operation and exceptional efficiency.
Straight Power 11 Platinum 1000W is certified with 80 PLUS Platinum and reaches up to 94.1%. This offers numerous advantages for its high-end system, including lower energy consumption and generally quieter and cooler operation. The stand-by loss is below 0.1 W.

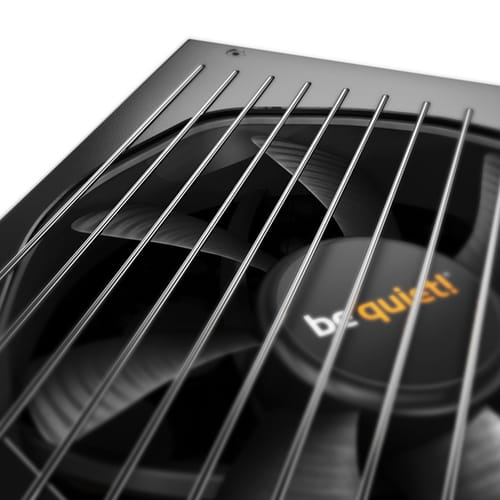

The high-end Silent Wings 3 fan offers the best air flow in its category although it generates very little noise. This is achieved thanks to its unique optimized fin design, along with an advanced dynamic support with liquid and a 6-pole fan motor that greatly eliminates operational noise and offers a super-long lifespan and minimal energy consumption.
The fan input of the Straight Power 11 Platinum 1000W is funnel shaped. This causes an increase in the air passage, which allows to benefit from a higher cooling capacity.

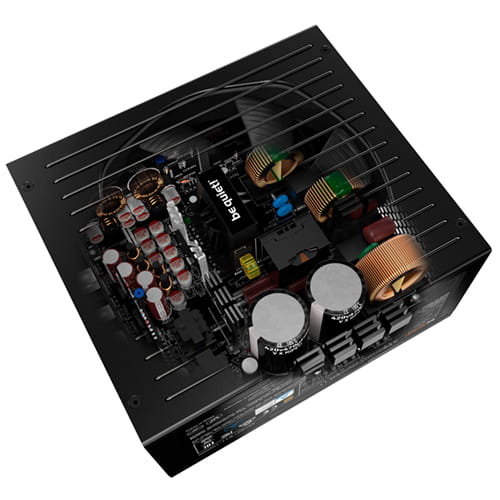

Absolute innovation: The Straight Power 11 Platinum 1000W lacks cables on the DC side inside the body of the power supply. This results in an improved cooling air flow and less signal interference simply due to the lack of wiring, which maximizes the life of the components.

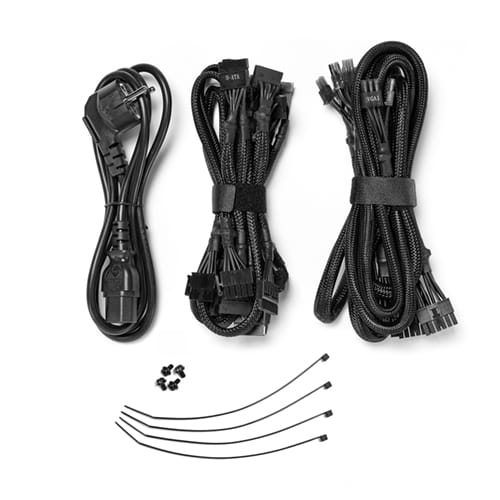

Thanks to the modular cables, all cables that have no purpose in the system are eliminated. For this reason, systems always have a very neat appearance. At the same time, the installation is done in a much more comfortable way. The smoother air flow is due to the orderly design of the system, which means less noise and lower temperatures inside the case.
Discover the most technologically advanced power supply to be quiet! I have never manufactured! Thanks to advanced full bridge technology, LLC and Synchronous Rectifier (SR), it offers unmatched signal stability and unsurpassed energy efficiency. It is also equipped with DC to DC conversion for tight voltage regulation even under high cross load conditions. This guarantees reliable operation for the next generation of processors and graphics cards.
Only the best components are used in the Straight Power Pro 11 Platinum 1000W. That is why we have incorporated only high quality Japanese capacitors into the power supply chassis. They offer a rating of 105 ° C, which guarantees stability, reliability and a long service life.
Highlights...
* Efficiency 80 PLUS Platinum up to 94.1%.
* Silent Wings 3 PWM 135mm fan virtually inaudible.
* Funnel-shaped fan opening in the power supply box for high air inlet flow.
* No wires inside the power supply on the DC side for improved cooling and longer life.
* Modular cables for maximum construction flexibility.
* Powerful compatibility with several GPUs with two PCI Express connectors.
* Japanese capacitors for a nominal temperature of 105 ° C guarantee performance and reliability.
* Compatible with the directive for energy-related products and Energy Star 7.0.
GENERAL DATA | |
Model | Straight Power 11 Platinum | 1000W |
Continuous Power (W) | 1000 |
Peak Power (W) | 1070 |
ATX 12V Format | Version 2.51 |
EPS 12V Format | Version 2.92 |
Modular Cable Organization | ✓ |
Topology | LLC + SR + DC/DC |
Wireless design (CC Side) | ✓ |
Voltage (VCA) | 100 - 240 |
Frequency (Hz) | 50 - 60 |
Input Current (A) | 13/6.5 |
PFC | active |
100% Load power factor | >0.99 |
Compatible with Intel C6/C7 | ✓ |
Stand-by power consumption (W) | 0.16 |
Average lifespan (horas / 25 °C) | 100.000 |
Operating temperature up to (°C) | 40 |
PERFORMANCE | |
12V lanes (multi-lane operation) | 4 |
Operation with single 12V rail | - |
Over acceleration key | - |
+3.3V (A) | 25 |
+5V (A) | 25 |
+12V1 (A) | 22 |
+12V2 (A) | 22 |
+12V3 (A) | 30 |
+12V4 (A) | 30 |
+12V5 (A) | - |
+12V6 (A) | - |
-12V (A) | 0.5 |
+5Vsb (A) | 3 |
Max combined power 12 V (W) | 999.6 |
Max combined power 3.3V + 5V (W) | 150 |
100% load resistance time (ms @ 100%) | 20,0 |
Power good signal | 100-150ms |
COOLING | |
Fan type | be quiet! Silent Wings 3 |
+SilentWings | ✓ |
Motor technology | 6-pole fan motor |
Support technology | FDB |
Fan size (mm) | 135 |
Max fan speed (rpm), depending on the temperature | 2,600 |
Temperature control for case fans | - |
dB (A) at 20% load | 7.8 |
dB (A) at 50% load | 8.0 |
dB (A) at 100% load | 28.1 |
PROTECTION | |
OCP (overcurrent protection) | ✓ |
OVP (overvoltage protection) | ✓ |
UVP (undervoltage protection) | ✓ |
SCP (short circuit protection) | ✓ |
OTP (over temperature protection) | ✓ |
OPP (overpower protection) | ✓ |
EFFICIENCY | |
80 Plus Certification | Platinum |
Efficiency (%) at 230 V, load at 20% | 92,8 |
Efficiency (%) at 230 V, 50% load | 94,1 |
Efficiency (%) at 230 V, 100% load | 92,4 |
ENVIRONMENTAL DIRECTIVES | |
ENERGY STAR | 7.0 |
ErP | ✓ |
WEEE | ✓ |
ROHS | ✓ |
ORGANIZATION OF CABLES | |
Suitable for several GPUs | ✓ |
Modular Cable Organization | ✓ |
Fully modular | ✓ |
Coated Cables | ✓ |
Flat cables | - |
Cable length to the base plate (cm) | 60 |
Cable length to 1st connector (cm) | 55 |
Maximum cable length (cm) | 115 |
All-in-one cable (SATA / PATA / FDD) | - |
Number of wires | 11 |
ATX motherboard (20 + 4 pins) | 1 |
P8 (CPU) | 1 |
P4+4 (CPU) | 1 |
P4 (CPU) | - |
PCI-E 6-pin (GPU) | - |
PCI-E 6+2-pin (GPU) | 6 |
PATA 4-pin | 4 |
SATA 15 pins (hard drive, disk drives) | 11 |
FDD (Floppy) | 1 |
External fan connectors | - |
DIMENSIONS AND WEIGHT | |
Medidas without cable (mm) | 170 x 150 x 86 |
Weight (kg) | 1,87 |
