be quiet! P11-PRO 1000W Dark Power 80Plus Platinum
In order to achieve constant improvement in power supply technology, be quiet! has created the new Dark Power Pro 11, more powerful, efficient, reliable and safe.
They have the 80+ Platinum certification, which guarantees an energy efficiency of up to 94%. This on the one hand means a good saving in the electricity bill, but it also means that it will generate less residual heat which will require less cooling.

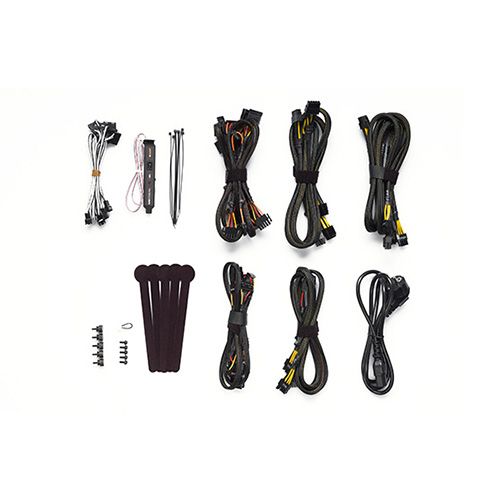

They also include modular cabling for a better optimization of the use of the cables and the air flow inside the pc case.

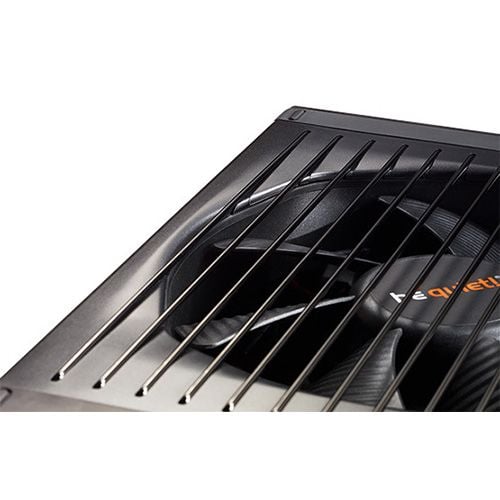

They are extremely silent power supplies, thanks to the included 135mm fan with automatic speed control by temperature, with SilentWings technology patented by be quiet !. Its noise level will vary between 10.1dBA and 26.3dBA. Be quiet! has paid great attention to the sound level it wanted to achieve in this series of sources, installing a fan that will operate silently throughout its long life, and has a circuit that minimizes electrical and mechanical noise by means of a copper core FDB bearing , flow-optimized blades and high-quality IC motor control.
With its 1000W of power you will have the energy that the most demanding computers need. It also offers very high performance and stability for the CPU and GPU with four independent 12V rails, making it perfect for use with multi-CPU and multi-GPU in SLI and Crossfire.
It has the protection systems: Over-current (OCP), Over-voltage (OVP), Under-voltage (UVP), Short-circuits (SCP), Over-voltage (OPP) and High Temperatures (OTP).
Highlights...
* 1000W ATX power supply.
* 80+ Platinum certification. Efficiency up to 94%.
* Modular wiring.
* SilentWings 135mm fan.
* 4 12V rails.
* Low sound level: 10.1 ~ 26.3dBA.
* Cabling: 1 x 24-Pin, 1 x P4 + P4, 1 x P8, 7 x 4-Pin, 10 x STA, 2 x Floppy, 9 x 6 + 2 PCIe.
* Protection: OCP, OVP, UVP, SCP, OPP, OTP.
Datos técnicos | ||||
Potencia | 1000W | |||
Modelo |
BE QUIET DARK POWER PRO 11 1000W MODULAR |
|||
Voltaje/Frecuencia | 100 ~ 240V 50Hz ~ 60Hz | |||
Normativa | ATX 12V 2.4 EPS 12V 2.92 | |||
Ventiladores | 135mm | |||
Nivel Ruido, dB(A) | 10.1 ~ 26.3 dBA | |||
12V Railes | 4 | |||
Protecciones |
OCP / OVP / UVP / SCP / OTP / OPP |
|||
Certificaciones | 80 PLUS PLATINUM / Active PFC | |||
Durabilidad | 150.000 Horas |
Cableado | ||||
A Placa Base | 1 x ATX 24-Pines / 1 x P4+P4 Conector / 1 x P8 Conector | |||
A Dispositivos |
7 x 4-Pines Molex (HDD) / 10 x S-ATA (5 Pines) / 2 x 4-Pines Floppy |
|||
A VGA | 9 x 6+2-Pines PCI-Express | |||
Extras |
Datos salida/entrada corriente |
||||||||
AC Input |
100 ~ 240V 50Hz ~ 60Hz14~8A |
|||||||
DC Output |
3,3V |
5V |
12V1 |
12V2 |
12V3 |
12V4 |
-12V |
5VSB |
max. current |
25A |
25A |
32A |
32A |
40A |
40A |
0.5A |
3A |
83A |
||||||||
max. Combined power |
150W |
996W |
6W |
15W |
||||
1000W |
Dimensiones | |
Ancho | 150mm |
Alto | 86mm |
Fondo | 193mm |
Peso | 2.38Kg |
Ver.1.1. |
