be quiet! Dark Power PRO 12 1500W 80Plus Titanium

be quiet! Dark Power PRO 12 1500W 80Plus Titanium

be quiet!
  • 80 PLUS Titanium efficiency (up to 94.9%).
  • Fully digital control (PFC, LLC, SR / 12V) and full bridge topology.
  • Patented frameless Silent Wings fan for virtually inaudible operation under ordinary load.
  • All-mesh power supply front with new funnel-shaped opening design.
  • Overdrive switch toggles between six 12V rails and a single solid 12V rail.
  • Japanese 105 ° C capacitors ensure maximum performance and reliability.
  • Aluminum enclosure and uniquely coated modular cables ensure great looks.

P/N: BN312 - EAN/UPC: 4260052187432

330,50 € Without VAT
399,91 € With VAT
Reserve now!!. Only 1 left in stock
They will arrive between 29 octubre and 30 octubre
2 years
of guarantee
sending
shipping
100%
Secure pay

La be quiet! The 1500W Dark Power Pro 12 with 80 PLUS® Titanium efficiency and top-notch performance thanks to fully digital control and frameless fan concept.

1500W Dark Power Pro 12 is certified with 80 PLUS Titanium and an energy efficiency rating of up to 94.7%. This offers numerous benefits for your high-end system, including lower power consumption and overall quieter and cooler operation. The stand-by loss is below 0.1 W.

Fully digital control results in higher efficiency, better regulation and a lower level of ripple noise. This guarantees incomparably stable operation. Thanks to the digital concept, the Dark Power Pro 12 can achieve high efficiency throughout the entire power range, even at low load.

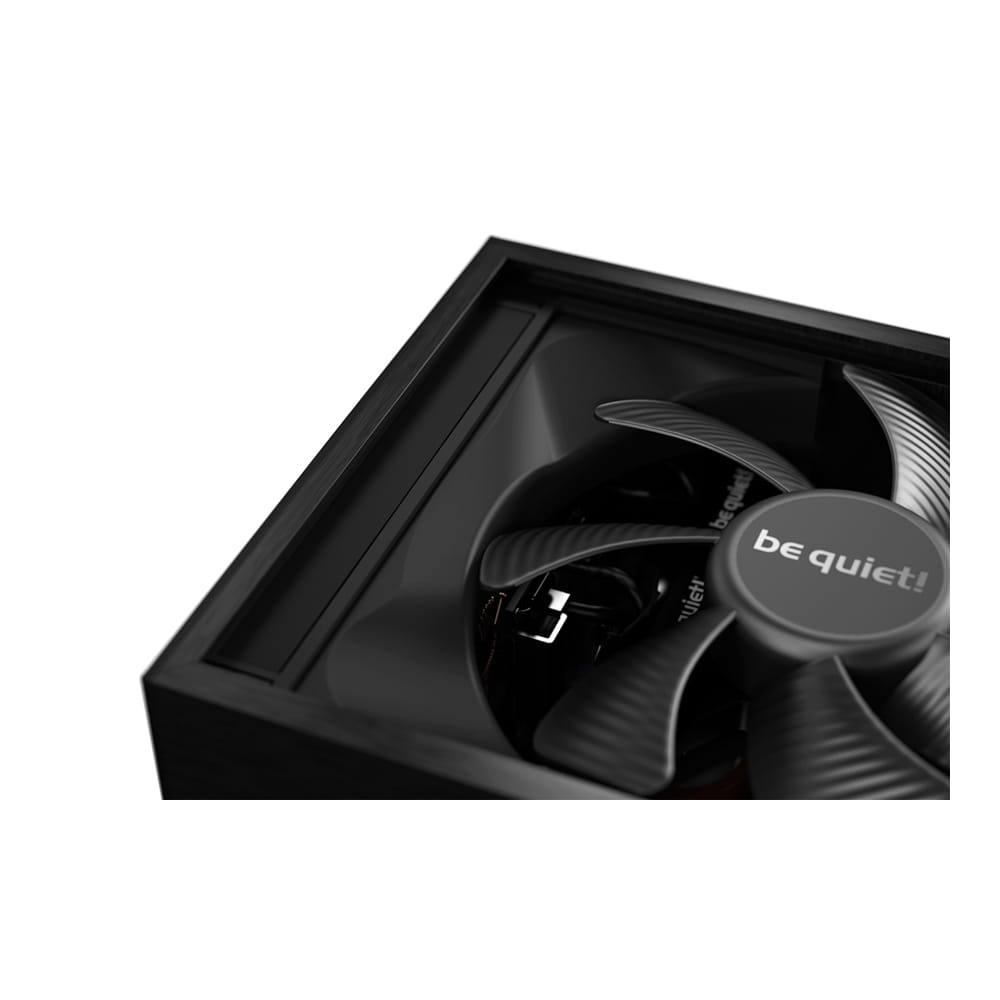

La be quiet! Tripod-mounted Silent Wings fan enables maximum airflow and virtually inaudible operation under ordinary loads. This is achieved thanks to its unique fin design with optimized airflow, coupled with advanced fluid dynamic support and a 6-pole fan motor with less vibration, super long life and minimal power consumption.

The 1500W Dark Power Pro 12's fan inlet is a specially shaped two-part funnel that increases airflow while reducing unwanted turbulence. Combined with the cordless design inside the power supply, cool air reaches all components within the power supply, which in turn leads to a longer service life.

The 1500W Dark Power Pro 12 is particularly suitable for overclocking thanks to its solid and stable 12V rails. The overdrive key gives you full control by allowing you to manually toggle between the default 12V six-lane mode and the alternate operation with a solid single rail.

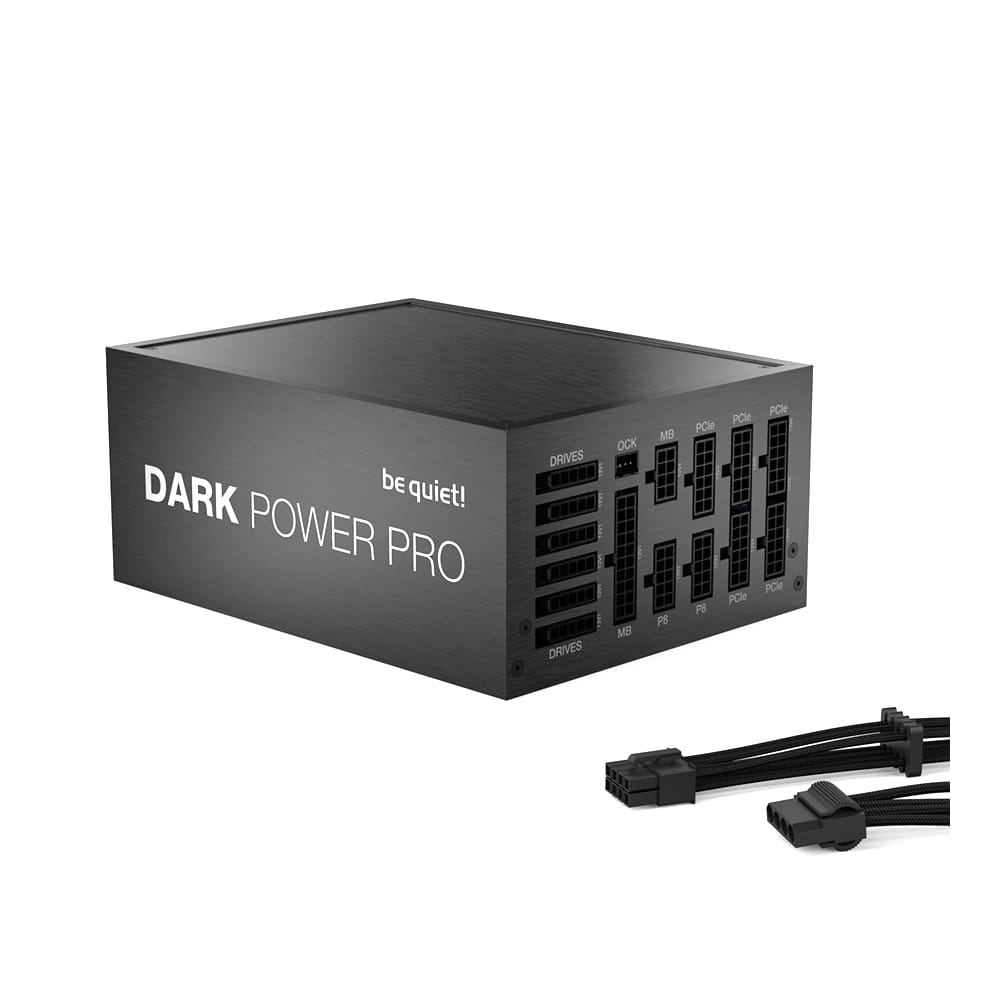

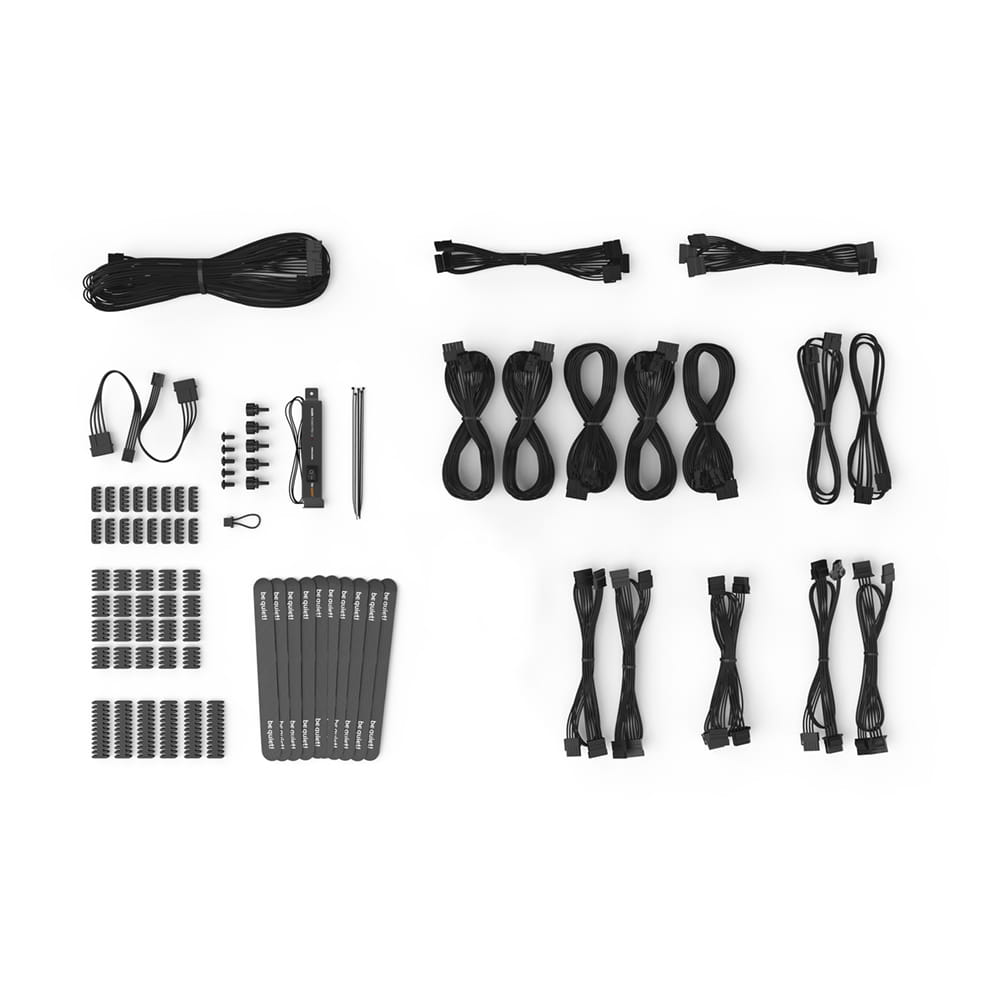

The maximum utility offered by modular single jacketed cables up to 120cm simplifies component installation and reduces annoying clutter. This results in increased airflow and improved cooling even in the largest PC cases.

Discover the most technologically advanced power supply than be quiet! have ever made! Thanks to advanced full bridge digital technology, LLC and Synchronous Rectifier (SR), it offers unsurpassed signal stability and unsurpassed power efficiency. It is also equipped with DC to DC conversion for tight voltage regulation even under high cross load conditions. This ensures reliable operation for the next generation of processors and graphics cards.

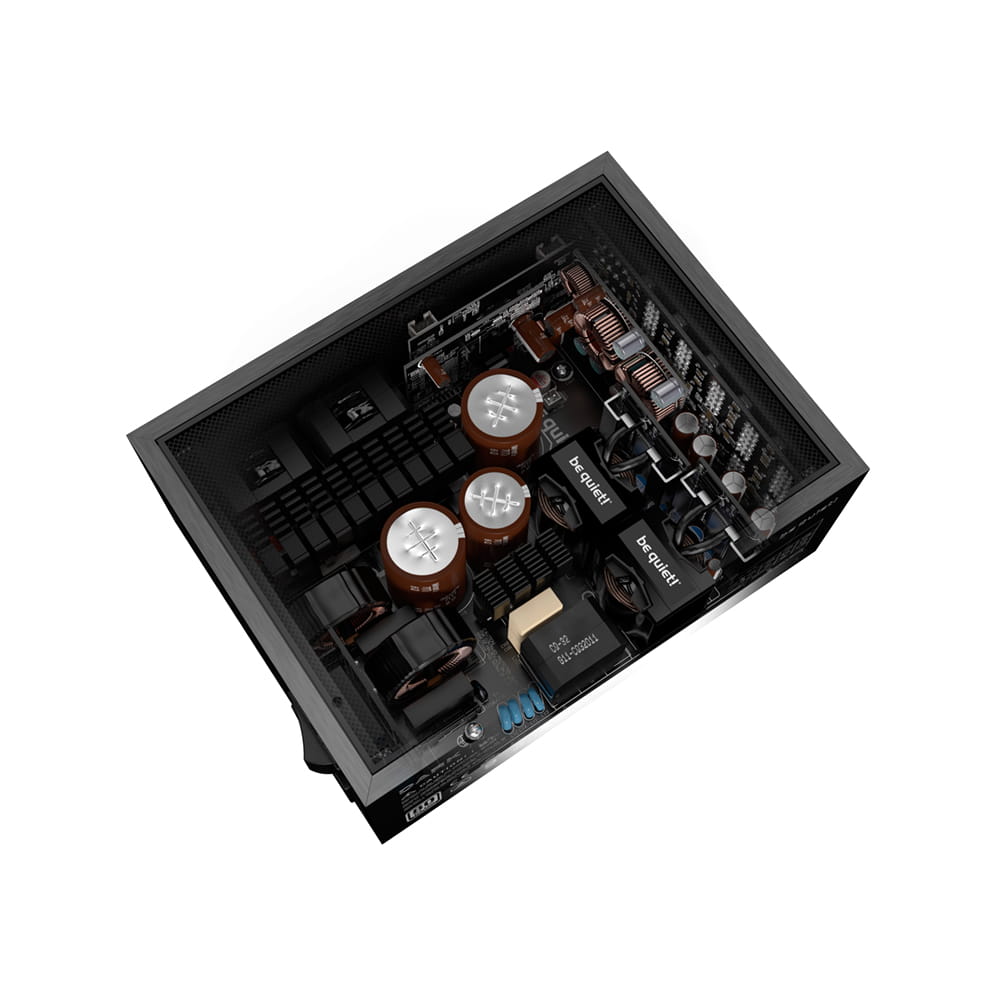

Only the best components are used in the 1500W Dark Power Pro 12. That is why we have exclusively incorporated high-quality Japanese capacitors into the power supply chassis. They are rated for 105 ° C, ensuring stability, reliability, and long life.

The new front of the power supply and the new design of the funnel-shaped opening support the high capacities of the air circulation. Combined with the uniquely coated cables, the high-quality aluminum case on the outside, and the high-end components on the inside, it all makes the Dark Power Pro 12 shine from every possible angle.

Highlights ...

* 80 PLUS Titanium efficiency (up to 94.9%).
* Fully digital control (PFC, LLC, SR / 12V) and full bridge topology.
* Patented frameless Silent Wings fan for virtually inaudible operation under ordinary load.
* All-mesh power supply front with new funnel-shaped opening design.
* Overdrive switch toggles between six 12V rails and a single solid 12V rail.
* Japanese 105 ° C capacitors ensure maximum performance and reliability.
* Aluminum enclosure and uniquely coated modular cables ensure great looks.

DATOS GENERALES
Modelo Dark Power Pro 12 1500W
Potencia continua (W) 1500
Pico de potencia (W) 1600
Formato ATX 12V Version 2.51
Formato EPS 12V Version 2.92
Organización de cables modular
Topología Full bridge + LLC + SR + DC/DC
Diseño inalámbrico (lado de CC)
Voltaje (VCA) 100 - 240
Frecuencia (Hz) 50 - 60
Corriente de entrada (A) 17/9
PFC active
Factor de potencia al 100 % de carga >0.99
Compatible con Intel C6/C7
Consumo de energía en stand-by (W) 0.06
Vida útil media (horas / 25 °C) 300.000
Temperatura operativa hasta (°C) 50
RENDIMIENTO
Carriles de 12 V (funcionamiento multicarril) 6
Funcionamiento con carril de 12 V único
Llave de sobreaceleración
+3.3V (A) 25
+5V (A) 25
+12V1 (A) 40
+12V2 (A) 40
+12V3 (A) 40
+12V4 (A) 40
+12V5 (A) 45
+12V6 (A) 45
-12V (A) 0.5
+5Vsb (A) 3.5
Potencia combinada máx. 12 V (W) 1500
Potencia combinada máx. 3,3 V + 5 V (W) 150
Tiempo de resistencia al 100 % de carga (ms @ 100%) 18.82
Señal Power good 100-150ms
REFRIGERACIÓN
Tipo de ventilador be quiet! Silent Wings 3
+SilentWings
Tecnología de motor 6-pole fan motor
Tecnología de soporte FDB
Tamaño de ventilador (mm) 135
Velocidad de ventilador máx. (rpm), en función de la temperatura 2600
Control de temperatura para ventiladores de caja -
dB(A) al 20% de carga 12.1
dB(A) al 50% de carga 12.4
dB(A) al 100 % de carga 31.5
PROTECCIÓN
OCP (protección contra sobrecorriente)
OVP (protección de sobrevoltaje)
UVP (protección contra subtensión)
SCP (protección contra cortocircuito)
OTP (protección contra sobretemperatura)
OPP (protección contra sobrepotencia)
EFICIENCIA
Certificación 80 Plus Titanium
Eficiencia (%) a 230 V, carga al 20% 94.7
Eficiencia (%) a 230 V, carga al 50% 94.9
Eficiencia (%) a 230 V, carga al 100 % 92.8
DIRECTIVAS MEDIOAMBIENTALES
ENERGY STAR 7.0
ErP
WEEE
ROHS
ORGANIZACIÓN DE CABLES
Apto para varias GPU
Organización de cables modular
Plenamente modular
Cables con revestimiento
Cables planos -
Longitud de cable a la placa base (cm) 60
Longitud del cable hasta el 1.er conector (cm) 50
Longitud de cable máxima(cm) 120
Cable todo en uno (SATA/PATA/FDD) -
Número de cables 17
Placa base ATX (20+4 pines) 1
P8 (CPU) 1
P4+4 (CPU) 1
P4 (CPU) -
PCI-E 6-pin (GPU) -
PCI-E 6+2-pin (GPU) 10
PATA 4-pin 8
SATA 15 pines (disco duro, unidades de disco) 16
FDD (Floppy) 2
Conectores de ventilador externos -
DIMENSIONES Y PESO
Medidas sin cable (mm) 200 x 150 x 86
Peso (kg) 2.44
