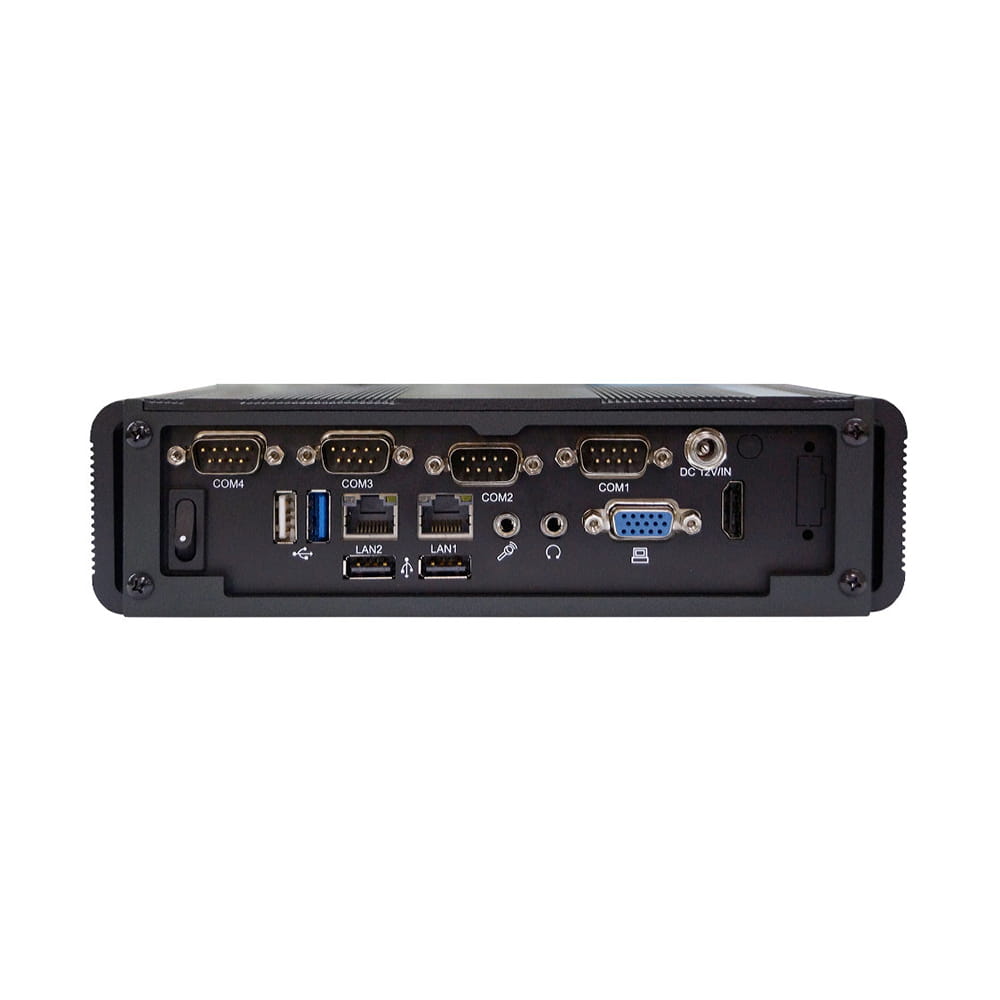

Barebone Lex Twitter 3I380CW-I44
- CPU Intel® Bay Trail: Atom ™ E3845 / E3825, Celeron® J1900
- A bordo DDR3L 2GB / 4GB (SODIMM, Máx. 8GB-OEM)
- Pantalla independiente: VGA, HDMI
- 2 x GbE, 4 x COM, 4 x USB, audio HD
- 2 x Mini PCIe, 1 x SIM
P/N: TT3I380CW-I44
530,42 € Without VAT
641,81 € With VAT
This product is not available in our warehouse or in any of our suppliers at this time.
The price that appears is indicative
The price that appears is indicative
2 years
of guarantee
of guarantee
Shipment
Insured
Insured
100%
Secure pay
Secure pay
Embedded Fanless System / Box PC for 3.5" SBC / Intel Bay Trail
| System Dimension(WxDxH) | 210W x 125D x 55H mm | |
| Weight(Incl.M/B) | 1.2 kg | |
| CPU | Intel® Bay Trail E3845 1.91 Ghz (Quad Core) (Optional J1900 ; E3825) |
|
| Chipset | Intel® Bay Trail SoC | |
| Memory | On Board DDR3L 2GB / 4GB ; 1 x DDR3L SODIMM socket, Max. 8GB (OEM) |
|
| Storage | mSATA, HDD / SSD* | |
| Expansion slots | 1 x Full-size Mini PCIe (PCIe / mSATA / USB) 1 x Full-size Mini PCIe (PCIe / USB) 1 x SIM |
|
| I/O ports | Network | 2 x Intel GbE |
| USB | 1 x USB 3.0, 3 x USB 2.0 | |
| Serial ports | 4 x COM | |
| Display | VGA & HDMI | |
| Audio | Line-out / Mic-in | |
| Accessory (Optional) | GPS, Bluetooth, PoE, WiFi, 4G LTE, Isolated COM, battery UPS, DI/DO, Video Input *SATA Kit , VESA Mounting Kit |
|
| Power | DC input : +12V +9~36V (Option-3I380CW) AC input : External adapter 100 / 240V AC-DC 30W |
|
| Operating Temp. (100 % CPU usage) |
-20°C to +60°C with mSATA / SSD | |
| Storage Temp. | -20°C to +70°C | |
| Relative Humidity | 95% @ 40°C, non-condensing | |
