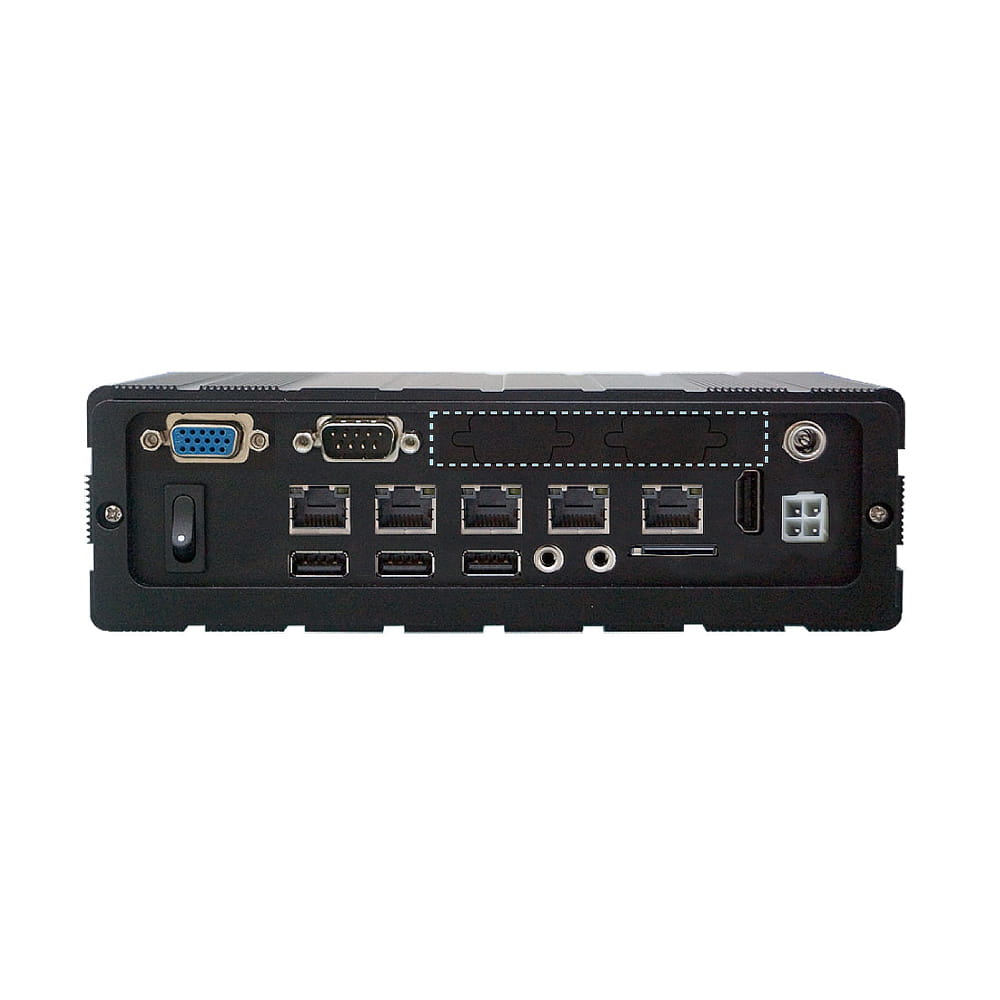

Barebone Lex Tiger 3I380NX-I44

MODEL

3I380NX

CPU Type

Intel® Bay Trail-I E3845 1.91 GHz (Quad Core)

MB Chipset

Intel® Bay Trail-I E3845 SoC

BIOS

Insyde UEFI BIOS

Graphics

Intel's 7th generation (Gen 7) graphics and media encode / decode engine,
Supports DX*11, OpenGL 3.0 (OGL 3.0), OpenCL 1.2 (OCL 1.2), Open GLES 2.0

System Memory

On Board 4G DDR3L ; 1333 MHz for E3845

SATA

2 x SATA ports (Share with mSATA 1 & 2)

Audio

High Definition Audio Specification, Support Line-out / Mic-in / Line-in / SPDIF-OUT

LAN

4 x PoE Intel I210IT PCIE LAN chipset

LVDS / Touch Screen

Dual Ch 18 / 24 Bit LVDS (Optional) ; COM touch screen controller (Optional)

IO Function

4 x Internal COM port (1 x RS232 / 422 / 485 ; 3 x RS232)

USB

7 x USB	4 x USB 2.0 Internal (2 x Share with PCIe Mini Card)
	1 x USB 3.0 external / 2 x USB 2.0 external

HDMI

1 x HDMI 1.3a (Type A 19 Pin)

SIM card

1 x SIM card socket (Push / Push)

MicroSD card

1 x MicroSD card socket (Push / Push) ; Support SD Card 3.0 interface

DIO & WDT

Hardware digital Input & Output, 8 x DI / 8 x DO
Hardware Watch Dog Timer, 0~255 sec programmable

Expansion Interface

Mini PCIe Slot 1: mSATA / USB interface
Mini PCIe Slot 2: mSATA / USB interface

Power

Wide Range DC IN +9V~+36V

Dimension

146 x 102 mm (3.5 inch)

Operation Temperature

-20°C ~ 70°C

Operation Humidity

5 ~ 95%, non-condensing

Expansion

GPS, IEEE1394, 3G / 4G, Bluetooth, WI-FI, I/O

Chassis
