Barebone Lex Tera 2I610DW-CI5

Procesador Intel® Skylake-U / Kaby Lake-U Core i7 / i5 / i3 de 6.a / 7.a generación
1 x zócalo SODIMM DDR4, máx. 16 GB
Pantalla independiente: VGA
3 x Intel GbE LAN, 3 x USB 3.0, 2 x COM
2 x mini PCIe

P/N: TE2I610DW-CI5

894,18 € Sin IVA

1.081,96 € Con IVA

Este producto no está disponible ni en nuestro almacén ni en ninguno de nuestros proveedores en estos momentos.
El precio que aparece es orientativo

Asistencia
personalizada

Envío
asegurado

100%
pago seguro

Compact Fanless Embedded Computer with 6th / 7th Gen Intel® Skylake-U / Kaby Lake-U i7 / i5 / i3 processor

System Dimension(WxDxH)		145W x 106.2D x 56.5H mm
Weight(Incl.M/B)		0.9 kg
CPU		6th / 7th Gen Intel® Skylake-U / Kaby Lake-U Core i7/ i5 / i3 CPU
Chipset		Intel® Skylake-U / Kaby Lake-U SoC
Memory		1x DDR4 SODIMM socket, Max. 16GB
Storage		mSATA, HDD / SSD*
Expansion slots		1 x Full-size Mini PCIe (PCIe / mSATA / USB) 1 x Full-size Mini PCIe (PCIe / USB 3.0)

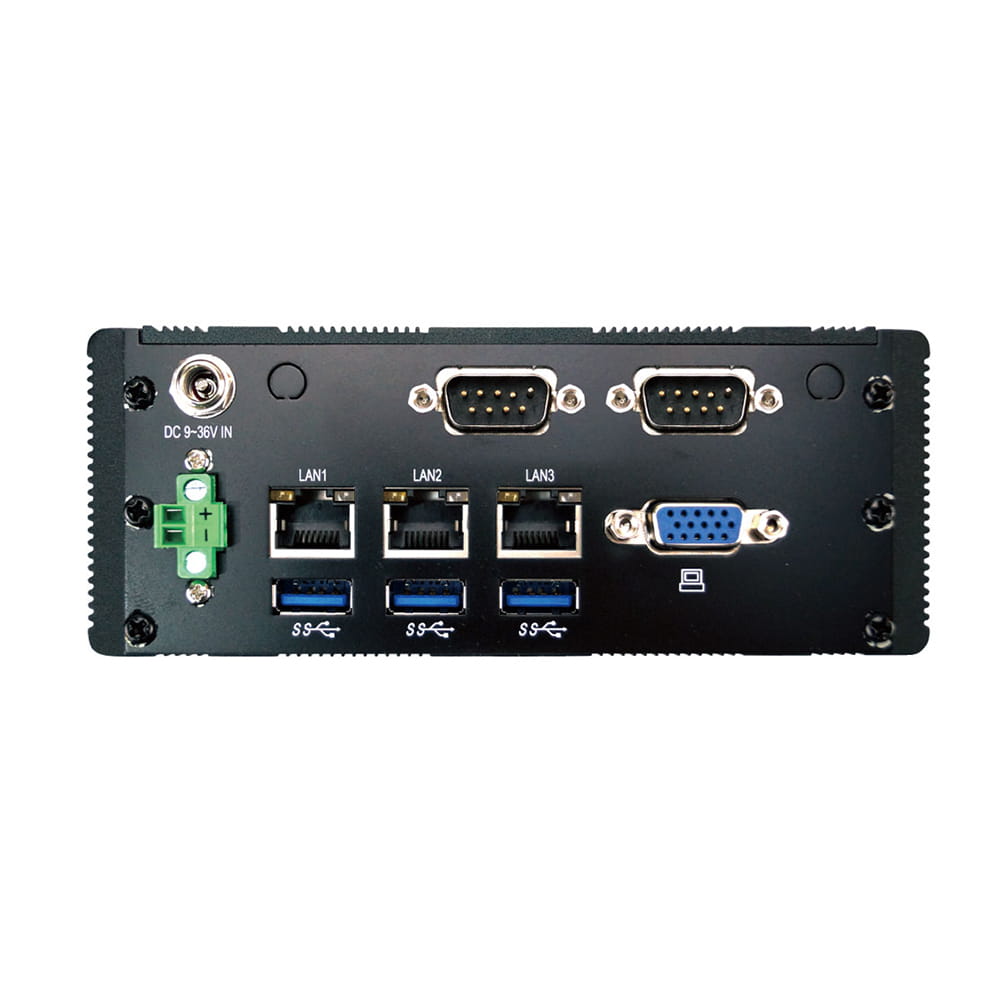

I/O ports	Network	3 x Intel GbE
	USB	3 x USB 3.0
	Serial ports	2 x RS232 / 422 / 485
	Display	1 x VGA
Optional Modules & Accessory		GPS, Bluetooth, PoE, WiFi, 4G LTE, Isolated COM, battery UPS, DI/DO, Video Input SATA Kit, VESA Mount, Wall Mount*
Power		DC input : +9~36V AC input : External adapter 100/240V ; AC-DC 60W
Operating Temp. (100 % CPU usage)		-20°C to +60°C with mSATA / SSD 0°C to +50°C with HDD
Storage Temp.		-20°C to +70°C
Relative Humidity		95% @ 40°C, non-condensing

Compact Fanless Embedded Computer with 6th / 7th Gen Intel® Skylake-U / Kaby Lake-U i7 / i5 / i3 processor

System Dimension(WxDxH)		145W x 106.2D x 56.5H mm
Weight(Incl.M/B)		0.9 kg
CPU		6th / 7th Gen Intel® Skylake-U / Kaby Lake-U Core i7/ i5 / i3 CPU
Chipset		Intel® Skylake-U / Kaby Lake-U SoC
Memory		1x DDR4 SODIMM socket, Max. 16GB
Storage		mSATA, HDD / SSD*
Expansion slots		1 x Full-size Mini PCIe (PCIe / mSATA / USB) 1 x Full-size Mini PCIe (PCIe / USB 3.0)
I/O ports	Network	3 x Intel GbE
	USB	3 x USB 3.0
	Serial ports	2 x RS232 / 422 / 485
	Display	1 x VGA
Optional Modules & Accessory		GPS, Bluetooth, PoE, WiFi, 4G LTE, Isolated COM, battery UPS, DI/DO, Video Input SATA Kit, VESA Mount, Wall Mount*
Power		DC input : +9~36V AC input : External adapter 100/240V ; AC-DC 60W
Operating Temp. (100 % CPU usage)		-20°C to +60°C with mSATA / SSD 0°C to +50°C with HDD
Storage Temp.		-20°C to +70°C
Relative Humidity		95% @ 40°C, non-condensing
